| Basic Information | ||
| Supported CPU | LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors (Go to GIGABYTE's website for the latest CPU support list.) L3 cache varies with CPU |
|
| Chipset | Intel® B760 Express Chipset | |
| BIOS | 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
|
| Form Factor | Micro ATX Form Factor; 24.4cm x 24.4cm | |
| Audio | Realtek® Audio CODEC High Definition Audio 2/4/5.1/7.1-channel Support for S/PDIF Out |
|
| Expansion Slots | ||
| M.2 Socket | CPU: - 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16) Chipset: - 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x4 (PCIEX4) |
|
| Memory | ||
| Type | Support for DDR5 7600(O.C.) | |
| Supported Memory | Support for DDR5 7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MT/s memory modules 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.) |
|
| Connector & Ports | ||
| Internal I/O Ports | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 3 x system fan headers 3 x addressable LED strip headers 1 x RGB LED strip header 2 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x USB Type-C® header, with USB 3.2 Gen 2 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 2 x Thunderbolt™ add-in card connectors 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) 1 x serial port header 1 x Q-Flash Plus button 1 x reset jumper 1 x Clear CMOS jumper |
|
| USB (s) | Chipset: - 1 x USB Type-C® port with USB 3.2 Gen 2 support, available through the internal USB header - 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header) - 1 x USB 2.0/1.1 port on the back panel Chipset+2 USB 2.0 Hubs: - 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers) |
|
| LAN Port (s) | Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) | |
| Supported Storage | CPU: - 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) Chipset: - 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB) - 4 x SATA 6Gb/s connectors RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices |
|
| Others | ||
| Special Features | Support for GIGABYTE Control Center (GCC) Support for Q-Flash Support for Q-Flash Plus Support for Smart Backup |
|
| Bundled Software | Norton® Internet Security (OEM version) LAN bandwidth management software |
|

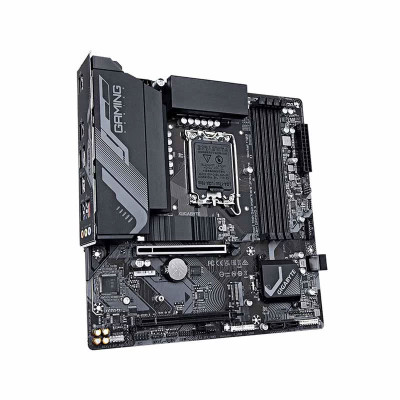

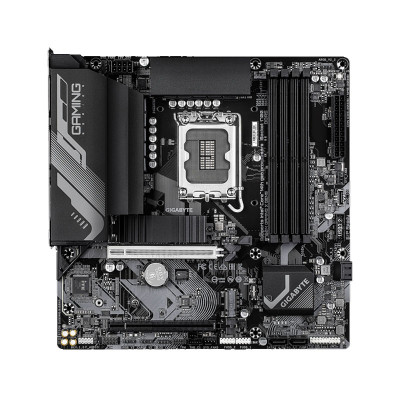

The GIGABYTE B760M GAMING X GEN5 DDR5 Gaming Motherboard is designed for gamers and PC enthusiasts who demand high-speed performance, future-ready features, and excellent value. Built on the Intel® B760 chipset and equipped with next-gen DDR5 memory support and PCIe Gen5 compatibility, this Micro ATX motherboard offers a powerful platform for 14th, 13th, and 12th Gen Intel® Core processors. Whether you're upgrading your gaming setup or building a new PC, this board provides all the essential connectivity, speed, and reliability you need.
At the heart of this motherboard is the LGA1700 socket, giving you support for the latest Intel® Core™, Pentium® Gold, and Celeron® processors, including the powerful 14th Gen Raptor Lake Refresh CPUs. Whether you're gaming, streaming, or working with demanding software, this board provides a stable and fast foundation for your system.
The GIGABYTE B760M GAMING X GEN5 supports up to DDR5 7600 MHz (OC) memory, giving you access to the latest RAM speeds for ultra-fast load times and smoother multitasking. With 4 DIMM slots, the board can handle up to 256GB of high-performance memory in dual-channel architecture, optimized for both gaming and content creation.
One of the standout features is the PCIe 5.0 x16 slot, ready for the newest and most powerful graphics cards on the market. PCIe 5.0 delivers double the bandwidth of PCIe 4.0, giving your GPU more headroom to perform at its best—ideal for competitive gamers and creators alike.
Enjoy ultra-fast storage performance with dual M.2 PCIe 4.0 slots, supporting both 2280 and 22110 form factors. These slots offer support for NVMe SSDs for lightning-fast boot times, data access, and application loading. Additionally, four SATA 6Gb/s ports ensure compatibility with traditional storage devices and RAID configurations (RAID 0/1/5/10 supported).
This motherboard features Realtek® 2.5GbE LAN, offering faster data transfer over your network—perfect for low-latency online gaming, file sharing, and media streaming. Combined with bandwidth management tools, it ensures optimal network performance even under load. Connect your peripherals and external storage easily with a rich set of ports, including USB 3.2 Gen 2 Type-C, USB 3.2 Gen 1, and USB 2.0. Internal headers support additional USB ports, front panel connectors, and RGB/ARGB lighting for complete case customization.
Enjoy immersive sound with Realtek® high-definition audio CODEC, supporting 2/4/5.1/7.1-channel configurations and S/PDIF Out. Whether you're gaming with a headset or using external speakers, you’ll get clear, high-quality audio that brings every detail to life.
The B760M GAMING X GEN5 includes a 256Mbit AMI UEFI BIOS, packed with features like Q-Flash Plus, which lets you update the BIOS without needing a CPU or RAM installed. The GIGABYTE Control Center (GCC) software gives you access to system monitoring, fan control, RGB lighting, and more in one place.
At Potaka IT, we guarantee authentic and officially supported GIGABYTE products. Your motherboard comes brand-new with manufacturer-backed warranty, ensuring peace of mind and long-term reliability. We offer some of the best prices for gaming motherboards in Bangladesh, including regular deals, combo offers, and exclusive discounts on GIGABYTE hardware. Build your dream gaming PC without breaking the bank.
The latest price of GIGABYTE B760M GAMING X GEN5 Motherboard in Bangladesh is 20,000৳. You can buy the GIGABYTE B760M GAMING X GEN5 Motherboard at best price from our website or visit any of our showrooms.
