| Supported Sockets | ||
| AMD | AMD SP5 (LGA6096) | |
| Key Features | ||
| Fan Speed | 3000±10% RPM (Max) | |
| Fan Airflow | 95.1 CFM (Max) | |
| Noise | 34.6 dBA (MAX) | |
| Air Pressure | 5.2 mmH2O (Max) | |
| Connector | 2510-4pin (PWM) | |
| Ampere | Rating Voltage: 12VDC Rating Current: 0.32A (Max) |
|
| Material | Material: Copper | |
| Others | Radiator: Connector: 2510-4pin Rated Voltage: 12VDC Power Consumption: 3.0W (Max) Noise: 23 dBA (Max) MTTF: 200,000 h Bearing Type: Double Ball Bearing |
|
| Physical Specification | ||
| Dimension | Radiator: Dimensions (L x W x H): Approx. 399.2 x 120 x 40mm Fan: Dimensions (L x W x H): Approx. 120 x 120 x 25mm |
|
| Weight | Dimensions: Approximately 450mm | |
| Warranty Information | ||
| Warranty | 3 Years | |

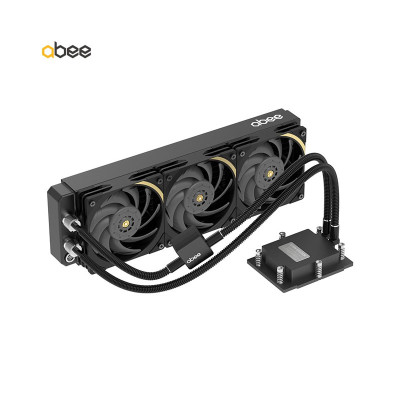

The ABEE STEM360-6096 High Performance CPU Cooler is a professional-grade cooling solution engineered for demanding server and workstation environments powered by the AMD SP5 (LGA6096) platform. Built with a high-efficiency copper radiator, a powerful PWM-controlled cooling fan, and a durable double ball bearing design, this CPU cooler ensures exceptional thermal performance, long-term reliability, and stable operation under continuous heavy workloads. Whether you're building an AI workstation, enterprise server, HPC system, or virtualization platform in Bangladesh, the ABEE STEM360-6096 delivers dependable cooling to maximize processor performance and system uptime.
The ABEE STEM360-6096 is specifically designed for AMD EPYC processors using the AMD SP5 (LGA6096) socket. Its optimized contact surface and copper heatsink efficiently transfer heat away from the processor, helping maintain optimal operating temperatures during intensive computing tasks.
For enterprise servers, cloud infrastructure, AI computing, engineering simulations, and data analytics, efficient cooling is essential for maintaining peak CPU performance while minimizing thermal throttling.

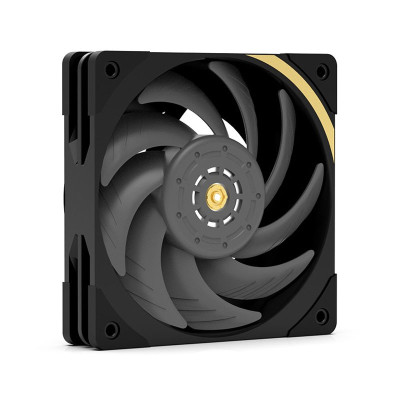

The included PWM fan operates at speeds of up to 3000 RPM, delivering an impressive 95.1 CFM airflow with a maximum static pressure of 5.2 mmH₂O. This combination provides efficient airflow through the dense radiator fins for rapid heat dissipation.
PWM control automatically adjusts fan speed based on processor temperature, balancing cooling efficiency with quieter operation.

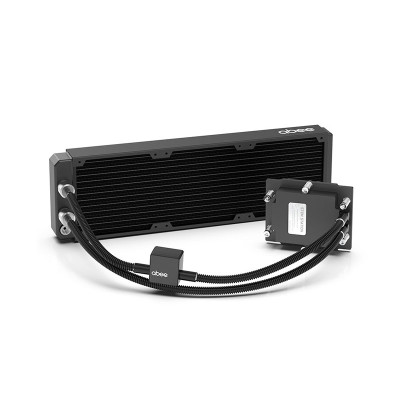

The ABEE STEM360-6096 utilizes a high-quality copper radiator, which offers superior thermal conductivity compared to conventional materials. Copper rapidly absorbs and disperses CPU heat, making it ideal for high-core-count AMD EPYC processors operating under sustained workloads.
The large radiator dimensions provide increased cooling surface area while maintaining excellent airflow throughout the cooling system.
Designed for 24/7 operation, the cooler features a double ball bearing fan with an impressive MTTF of up to 200,000 hours. This enterprise-grade bearing design offers greater durability than standard sleeve bearings, making it an excellent choice for mission-critical servers and workstations.
Despite its powerful cooling capabilities, the ABEE STEM360-6096 maintains efficient power usage with a maximum power consumption of only 3.0W. The 12V DC operating voltage and 2510 4-pin PWM connector ensure broad compatibility with professional server motherboards.
The ABEE STEM360-6096 High Performance CPU Cooler is suitable for a wide range of professional computing environments, including:
| Specification | Details |
|---|---|
| Product Name | ABEE STEM360-6096 High Performance CPU Cooler |
| Supported Socket | AMD SP5 (LGA6096) |
| Radiator Material | Copper |
| Maximum Fan Speed | 3000 ±10% RPM |
| Maximum Airflow | 95.1 CFM |
| Maximum Static Pressure | 5.2 mmH₂O |
| Maximum Fan Noise | 34.6 dBA |
| Radiator Noise | 23 dBA (Max) |
| Bearing Type | Double Ball Bearing |
| Connector | 2510 4-pin PWM |
| Operating Voltage | 12V DC |
| Maximum Current | 0.32A |
| Power Consumption | 3.0W (Max) |
| MTTF | 200,000 Hours |
| Radiator Dimensions | 399.2 × 120 × 40 mm |
| Fan Dimensions | 120 × 120 × 25 mm |
| Cable Length | Approximately 450 mm |
If you are building a server powered by AMD EPYC SP5 processors, choosing a dedicated enterprise-grade CPU cooler is essential. The ABEE STEM360-6096 combines high airflow, copper construction, PWM fan control, and long-life double ball bearings to provide consistent cooling under continuous heavy workloads. It is an ideal solution for organizations that prioritize reliability, thermal efficiency, and long-term operational stability.
This cooler is specifically designed for AMD processors using the SP5 (LGA6096) socket, including AMD EPYC server CPUs.
Yes. The included 4-pin PWM fan automatically adjusts its speed based on CPU temperature for optimal cooling and quieter operation.
Yes. Its double ball bearing fan and 200,000-hour MTTF make it ideal for continuous operation in enterprise environments.
Copper provides excellent thermal conductivity, allowing faster heat transfer from the CPU to improve cooling efficiency during sustained workloads.
Absolutely. The high airflow, efficient cooling, and enterprise-grade durability make it well-suited for AI computing, virtualization, rendering, and cloud infrastructure.
The latest price of ABEE STEM360-6096 CPU Cooler in Bangladesh is 46,500৳. You can buy the ABEE STEM360-6096 CPU Cooler at best price from our website or visit any of our showrooms.
