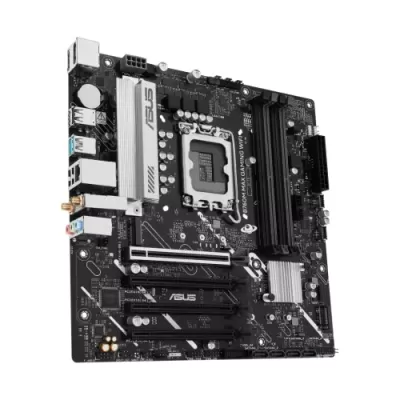

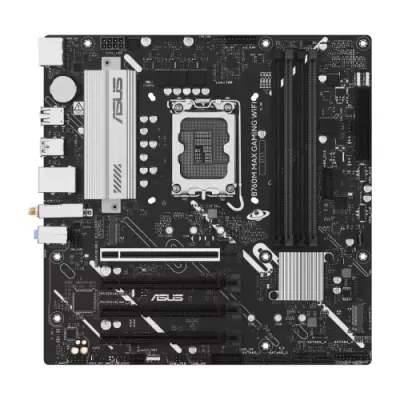

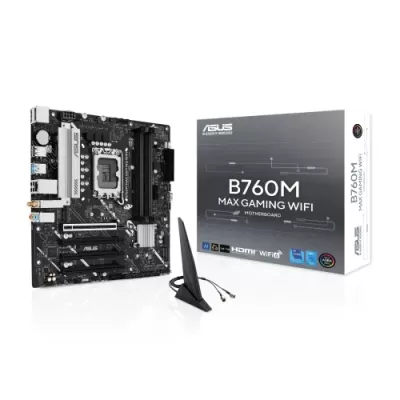

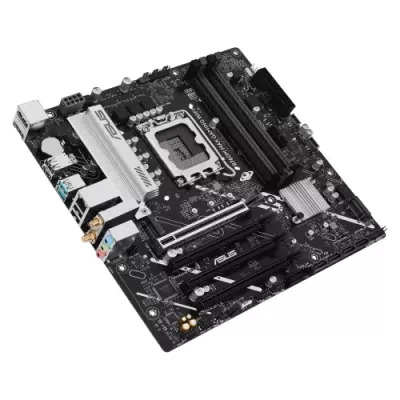

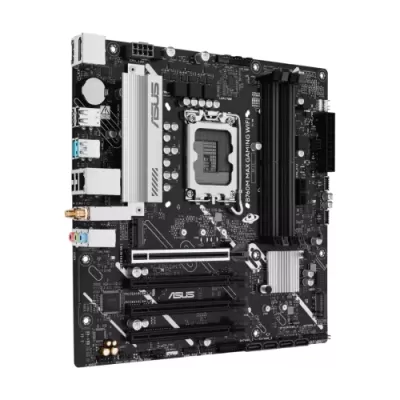

ASUS B760M MAX GAMING WIFI mATX Motherboard

ASUS B760M MAX GAMING WIFI mATX Motherboard

The ASUS B760M MAX GAMING WIFI mATX Motherboard is a feature-rich Intel motherboard designed for gaming PCs, professional workstations, and high-performance desktop builds. Powered by the Intel B760 chipset and LGA1700 socket, it supports compatible 14th, 13th, and 12th Gen Intel Core processors, along with supported Pentium Gold and Celeron CPUs. With DDR5 memory support up to 192GB, PCIe 5.0 graphics connectivity, three M.2 slots, Wi-Fi 6, and Bluetooth 5.3, this ASUS motherboard provides a versatile foundation for modern computing. If you are planning a new desktop build, explore compatible processors and other essential PC components to create a balanced system.

Designed in a compact 24.4 x 24.4 cm micro-ATX form factor, the ASUS B760M MAX GAMING WIFI combines modern connectivity, flexible storage expansion, and practical cooling support. It is suitable for gamers, content creators, programmers, and everyday users who want a capable Intel DDR5 motherboard without moving to a larger ATX platform. Check the available motherboards at Potaka IT when planning your next PC upgrade.

Key Features of ASUS B760M MAX GAMING WIFI Motherboard

• Intel B760 chipset with LGA1700 CPU socket.
• Compatible with supported 14th, 13th, and 12th Gen Intel Core processors, plus supported Pentium Gold and Celeron processors.
• Four DDR5 DIMM slots with a maximum supported capacity of 192GB.
• DDR5 memory speeds up to 7200+ MT/s through supported overclocking configurations.
• One PCIe 5.0 x16 slot for compatible graphics cards.
• Three M.2 slots and four SATA 6Gb/s ports for flexible storage expansion.
• Integrated Wi-Fi 6 and Bluetooth 5.3 wireless connectivity.
• Realtek 1Gb Ethernet with ASUS LANGuard protection.
• HDMI 2.1 and DisplayPort 1.4 display outputs.
• Rear USB 10Gbps Type-A ports and support for front USB Type-C connectivity.
• Realtek 7.1-channel high-definition audio support.
• ASUS 5X Protection III, Q-Design, UEFI BIOS, and Aura Sync addressable RGB headers.
• Three-year manufacturing warranty, as specified for this product.

Intel LGA1700 Processor Support for Gaming and Productivity

The ASUS B760M MAX GAMING WIFI motherboard uses the Intel B760 chipset and LGA1700 socket. It supports compatible Intel Core processors from the 12th, 13th, and 14th generations, making it suitable for a wide range of desktop configurations. Supported Pentium Gold and Celeron processors are also compatible.

This flexibility allows users to build a system around their computing requirements, from everyday office tasks and programming to gaming, multitasking, and content creation. Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0 are supported where applicable, depending on the installed processor.

Before purchasing a CPU, check the official ASUS CPU support list and the required BIOS version. Processor compatibility depends on the exact CPU model and system configuration.

DDR5 Memory Support up to 192GB

For users who need responsive multitasking and memory-intensive applications, the ASUS B760M MAX GAMING WIFI includes four DDR5 memory slots and supports up to 192GB of non-ECC, unbuffered memory. Its dual-channel memory architecture helps deliver the bandwidth required for modern games and productivity software.

High-Speed DDR5 and Intel XMP Support

The motherboard supports listed DDR5 memory speeds from 4800 MT/s up to 7200+ MT/s through supported overclocking configurations. Intel Extreme Memory Profile (XMP) support makes it easier to configure compatible memory kits at their advertised performance settings. ASUS OptiMem II is designed to improve memory signal integrity through optimized memory trace and routing design.

Actual memory speed depends on the processor, installed modules, BIOS version, and memory configuration. For the best compatibility, verify your selected RAM kit against the official ASUS memory support list.

PCIe 5.0 Graphics Card Support

The ASUS B760M MAX GAMING WIFI includes a PCIe 5.0 x16 slot connected to supported Intel Core processors. This provides a modern expansion interface for compatible dedicated graphics cards and makes the motherboard suitable for gaming and graphics-intensive desktop builds.

Additional expansion options include one PCIe 4.0 x16 slot operating in x4 mode and two PCIe 4.0 x16-form-factor slots operating in x1 mode through the chipset. These slots can support compatible expansion cards, subject to device compatibility and available physical space.

When selecting a graphics card, check its dimensions, power requirements, and compatibility with your PC case and power supply. Explore compatible graphics cards before finalizing your build.

Three M.2 Slots for Flexible SSD Storage

Storage flexibility is a major advantage of the ASUS B760M MAX GAMING WIFI. It provides three M.2 Key M slots for compatible SSDs and four SATA 6Gb/s ports for additional storage devices. This configuration allows users to combine fast NVMe storage with larger-capacity SATA SSDs or hard drives.

M.2 PCIe Storage Configuration

• M.2_1: Supports compatible M.2 2242, 2260, and 2280 SSDs with PCIe 4.0 x4 connectivity.
• M.2_2: Supports compatible M.2 2242, 2260, and 2280 SSDs with PCIe 4.0 x4 connectivity.
• M.2_3: Supports compatible M.2 2242, 2260, and 2280 SSDs with PCIe 3.0 x2 connectivity.
• SATA storage: Four SATA 6Gb/s ports support compatible SATA storage devices.

The two PCIe 4.0 x4 M.2 slots are suitable for high-speed NVMe SSDs used for operating systems, applications, games, and project files. The third M.2 slot provides additional storage capacity, although its PCIe 3.0 x2 interface has a lower theoretical bandwidth.

Intel Rapid Storage Technology supports SATA RAID 0, 1, 5, and 10 configurations, subject to the applicable configuration requirements. Review the official motherboard manual for storage compatibility and installation guidance. You can also compare compatible SSDs when choosing storage for your system.

Wi-Fi 6, Bluetooth 5.3, and Gigabit Ethernet

The integrated wireless connectivity of the ASUS B760M MAX GAMING WIFI helps reduce the need for separate networking adapters. Wi-Fi 6 supports compatible 2.4GHz and 5GHz wireless networks, while Bluetooth 5.3 enables connections to compatible wireless peripherals.

Reliable Wired and Wireless Networking

• Wi-Fi 6: Supports IEEE 802.11a/b/g/n/ac/ax standards on compatible networks.
• Bluetooth 5.3: Connects compatible wireless accessories, including keyboards, mice, headphones, and other Bluetooth devices.
• Realtek 1Gb Ethernet: Provides a wired networking option for online gaming, downloads, office networks, and general desktop use.
• ASUS LANGuard: Adds network-port protection as part of ASUS 5X Protection III.

For online gaming, video meetings, large file transfers, and remote work, users can choose between wireless networking and a wired Gigabit Ethernet connection according to their network setup. Actual wireless performance depends on the router, distance, interference, and network conditions.

HDMI 2.1, DisplayPort 1.4, and USB Connectivity

This motherboard offers practical connectivity for monitors, external devices, and front-panel accessories. Its rear I/O includes HDMI 2.1, DisplayPort 1.4, two USB 10Gbps Type-A ports, four USB 2.0 Type-A ports, a Gigabit Ethernet port, a Wi-Fi module connection, and three audio jacks.

Display Connectivity

The HDMI 2.1 port supports up to 4K at 60Hz, and DisplayPort 1.4 supports up to 4K at 60Hz under the specified conditions. These display outputs require a compatible processor with integrated graphics. If your build uses a dedicated graphics card, connect your monitor to the graphics card's outputs when appropriate.

USB Expansion for Modern Devices

The motherboard supports front-panel USB expansion through internal headers, including USB 5Gbps connectivity and front USB Type-C support. Additional USB 2.0 headers allow compatible cases and accessories to provide more connections.

The exact number of accessible front USB ports depends on the case and how its ports are connected to the motherboard. Check your case's front-panel specifications before purchasing if USB Type-C or a particular USB speed is essential to your setup.

Audio Features and Cooling Support

The integrated Realtek 7.1-channel high-definition audio codec supports playback up to 24-bit/192kHz, along with jack detection, multi-streaming, and front-panel jack retasking. Audio shielding, premium audio capacitors, and dedicated audio PCB layers are designed to support a cleaner audio experience.

Full 7.1-channel surround output through the front panel requires a compatible chassis with an HD audio module. Actual audio output also depends on the connected speakers, headphones, and software configuration.

For system cooling, the ASUS B760M MAX GAMING WIFI provides a 4-pin CPU fan header, a CPU OPT fan header, an AIO pump header, and three chassis fan headers. These connections support a range of compatible air-cooling and liquid-cooling configurations. The final cooling setup should be selected according to the processor's power requirements, case airflow, and cooler compatibility.

ASUS 5X Protection III, Q-Design, and Aura Sync

ASUS includes several hardware design and setup features intended to simplify PC assembly and everyday maintenance.

• DIGI+ VRM: Provides digital voltage-regulation control.
• ASUS LANGuard: Helps protect the wired network connection.
• Overvoltage Protection: Provides protection for supported motherboard power circuits.
• SafeSlot: Reinforces the primary expansion slot.
• Stainless-Steel Back I/O: Uses a corrosion-resistant rear I/O shield design.
• Q-DIMM and Q-Slot: Help simplify memory and compatible expansion-card installation.
• Q-LED Core: Helps diagnose certain startup issues through supported indicator behavior.
• ProCool: Uses a designed power-connection implementation.
• Aura Sync: Supports synchronization with compatible ASUS Aura Sync components through the motherboard's addressable Gen 2 RGB headers.

Supported software includes Armoury Crate, Aura Creator, Aura Sync, Fan Xpert 2+, AI Suite 3, ASUS CPU-Z, and UEFI BIOS utilities. Bundled software availability and trial periods may vary by region and current ASUS distribution policy.

Who Should Buy the ASUS B760M MAX GAMING WIFI?

Gaming PC Builders

This motherboard is suitable for users building an Intel gaming PC with a compatible dedicated graphics card, DDR5 memory, and NVMe storage. The PCIe 5.0 x16 graphics slot and multiple M.2 connections provide useful expansion options for a modern gaming setup.

Programmers and Software Developers

Developers who use code editors, development environments, virtual machines, and multiple applications can benefit from the motherboard's support for compatible Intel processors and up to 192GB of DDR5 memory. The actual performance of a development workstation will depend on the chosen CPU, RAM, storage, and software workload.

Content Creators and Multitaskers

Users working with photo editing, video production, design applications, and large project files can take advantage of high-speed NVMe storage, memory expansion, and dedicated graphics support. Choose the processor, memory capacity, and GPU according to the specific applications you use.

Compact Desktop Builds

The 24.4 x 24.4 cm micro-ATX design is suitable for compatible compact desktop cases. It offers a balance of expansion and space efficiency for home offices, gaming rooms, and professional workspaces. Confirm the case's motherboard support, GPU clearance, cooler height, and power-supply dimensions before assembly.

ASUS B760M MAX GAMING WIFI Buying Guide

Before purchasing this Intel B760 motherboard in Bangladesh, consider the following compatibility requirements to avoid problems during PC assembly.

• Processor: Select a compatible LGA1700 CPU and verify the required BIOS version.
• Memory: Choose DDR5 desktop RAM. DDR4 memory is not compatible with this motherboard.
• Graphics: Check whether your CPU includes integrated graphics or whether your build requires a dedicated GPU.
• Storage: Confirm the interface and physical size of each M.2 SSD. The three M.2 slots do not all operate at the same PCIe generation and lane configuration.
• Power supply: Select a PSU that meets the requirements of your CPU and graphics card and provides the necessary motherboard power connectors.
• PC case: Confirm micro-ATX support and adequate clearance for your CPU cooler, graphics card, and other components.
• Networking: Make sure the included Wi-Fi module and antenna are installed correctly for wireless connectivity.
• Warranty: Verify the applicable three-year manufacturing warranty with the seller before purchase.

ASUS B760M MAX GAMING WIFI vs Other Intel Motherboards

When comparing the ASUS B760M MAX GAMING WIFI with other Intel motherboards, focus on processor compatibility, memory generation, storage expansion, wireless networking, and available connectivity rather than model names alone.

Compared with a basic motherboard that lacks integrated wireless networking or multiple M.2 slots, this ASUS model offers more built-in connectivity and storage flexibility. However, a motherboard with a different chipset, additional expansion options, or another CPU socket may be more appropriate for a different build. Choose according to your actual requirements and budget.

ASUS B760M MAX GAMING WIFI Price in Bangladesh

The ASUS B760M MAX GAMING WIFI motherboard is an option for PC builders in Bangladesh looking for an Intel B760 platform with DDR5 memory, PCIe 5.0 graphics support, multiple M.2 slots, and integrated Wi-Fi. Its suitability depends on your processor choice, total build budget, storage needs, and desired connectivity.

For the current ASUS B760M MAX GAMING WIFI motherboard price in Bangladesh, check the product listing at Potaka IT. Prices and stock availability may change. Confirm the latest selling price, warranty terms, and product availability before completing your purchase.

Frequently Asked Questions

1. Which processors are compatible with the ASUS B760M MAX GAMING WIFI?

The motherboard supports compatible Intel Core 14th, 13th, and 12th Gen processors, along with supported Pentium Gold and Celeron CPUs that use the LGA1700 socket. Check the official ASUS CPU support list for exact model and BIOS compatibility.

2. Does the ASUS B760M MAX GAMING WIFI support DDR5 RAM?

Yes. It has four DDR5 DIMM slots, supports dual-channel memory, and provides a maximum supported memory capacity of 192GB. Supported memory speeds reach 7200+ MT/s through overclocking, depending on the CPU and memory configuration.

3. How many M.2 SSDs can I install on this motherboard?

You can install up to three compatible M.2 SSDs. Two slots support PCIe 4.0 x4, while the third supports PCIe 3.0 x2. The motherboard also includes four SATA 6Gb/s ports for additional compatible storage devices.

4. Does this motherboard have built-in Wi-Fi and Bluetooth?

Yes. The ASUS B760M MAX GAMING WIFI includes Wi-Fi 6 for compatible 2.4GHz and 5GHz wireless networks and Bluetooth 5.3 support. Bluetooth version and functionality may depend on the installed wireless module.

5. Does the ASUS B760M MAX GAMING WIFI support PCIe 5.0 graphics cards?

Yes. It has one PCIe 5.0 x16 slot connected to supported Intel Core processors. The graphics card must also fit the PC case and work with the installed power supply.

6. Can I use DDR4 RAM on the ASUS B760M MAX GAMING WIFI?

No. This model supports DDR5 desktop memory only. DDR4 modules are physically and electrically incompatible with its memory slots.

7. Does this motherboard support multiple monitors?

The motherboard provides one HDMI 2.1 port and one DisplayPort 1.4 output. Display output from these ports depends on the installed processor's integrated graphics capability. A compatible dedicated graphics card may provide additional monitor connections.

8. Is the ASUS B760M MAX GAMING WIFI suitable for gaming?

Yes. It can serve as the foundation of a gaming PC with a compatible Intel processor, DDR5 memory, and suitable graphics card. Gaming performance depends primarily on the complete system configuration, particularly the CPU and GPU.

9. What is the form factor of the ASUS B760M MAX GAMING WIFI?

It uses the micro-ATX form factor and measures 24.4 x 24.4 cm. Make sure your selected case supports micro-ATX motherboards and provides sufficient room for your other components.

10. What warranty comes with the ASUS B760M MAX GAMING WIFI motherboard?

The supplied product information specifies a three-year manufacturing warranty. Confirm the warranty coverage and terms with the seller in Bangladesh before purchasing.
