| Basic Information | ||
| Supported CPU | AMD Socket AM5 for AMD Ryzen 9000 & 8000 & 7000 Series Desktop Processors | |
| Chipset | AMD B850 Chipset | |
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS | |
| Form Factor | mATX Form Factor 9.6 inch x 9.6 inch (24.4 cm x 24.4 cm) |
|
| Audio | Realtek 7.1 Surround Sound High Definition Audio CODEC - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback Audio Features - Audio Shielding - Premium audio capacitors - Dedicated audio PCB layers |
|
| Expansion Slots | ||
| PCI | AMD Ryzen 9000 & 7000 Series Desktop Processors 1 x PCIe 5.0 x16 slot (supports x16 mode) 3 x PCIe 4.0 x16 slot (support x1 mode) AMD Ryzen 8000 Series Desktop Processors 1 x PCIe 4.0 x16 slot (supports x8/x4 mode) 3 x PCIe 4.0 x16 slot (support x1 mode) |
|
| M.2 Socket | Supports 3 x M.2 slots AMD Ryzen™ 9000 & 7000 Series Desktop Processors M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode) AMD Ryzen™ 8000 Series Desktop Processors M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)* AMD B850 Chipset M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x2 mode) |
|
| Memory | ||
| Type | DDR5 | |
| Slots | 4 x DIMM | |
| Supported Memory | Supports up to 8000+MT/s (OC) with Ryzen 9000 & 8000 & 7000 Series Processors, ECC and Non-ECC Un-buffered DIMM Dual channel memory architecture Supports AMD Extended Profiles for Overclocking (EXPO) ASUS Enhanced Memory Profile (AEMP) |
|
| Maximum Memory | 256GB | |
| Graphics | ||
| Graphics | Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications. Supports max. 8K@30Hz as specified in DisplayPort 1.4. Supports 4K@60Hz as specified in HDMI 2.1. |
|
| Connector & Ports | ||
| HDMI | 1x HDMI | |
| Internal I/O Ports | 2 x USB 10Gbps ports (1 x Type-A + 1 x USB Type-C®) 2 x USB 5Gbps ports (2 x Type-A) 5 x USB 2.0 ports (5 x Type-A) 1 x DisplayPort 1 x HDMI™ port 1 x Wi-Fi module 1 x Realtek 1Gb Ethernet port 3 x Audio jacks 1 x BIOS FlashBack™ button Internal I/O Connectors Fan and Cooling Related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 4 x 4-pin Chassis Fan headers Power Related 1 x 24-pin Main Power connector 1 x 8-pin +12V CPU Power connectors 1 x 4-pin +12V CPU Power connectors Storage Related 3 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 5Gbps connector (supports USB Type-C® ) 2 x USB 5Gbps header support 4 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports Miscellaneous 3 x Addressable RGB Gen 2 headers 1 x Clear CMOS header 1 x Chassis Intrusion header 1 x COM Port header 1 x Front Panel Audio header (F_AUDIO) 1 x S/PDIF Out header 1 x SPI TPM header (14-1 pin) 1 x 10-1 pin System Panel header |
|
| Display Port (s) | 1 x DisplayPort | |
| USB (s) | Rear USB (Total 9 ports) 2 x USB 10Gbps ports (1 x Type-A + 1 x USB Type-C) 2 x USB 5Gbps ports (2 x Type-A) 5 x USB 2.0 ports (5 x Type-A) Front USB (Total 9 ports) 1 x USB 5Gbps connector (supports USB Type-C) 2 x USB 5Gbps header support 4 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports USB Type-C power delivery output: max. 5V/3A |
|
| LAN Port (s) | 1 x Realtek 1Gb Ethernet ASUS LANGuard |
|
| Supported Storage | Supports 3 x M.2 slots and 4 x SATA 6Gb/s ports AMD Ryzen™ 9000 & 7000 Series Desktop Processors M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode) AMD Ryzen™ 8000 Series Desktop Processors M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)* AMD B850 Chipset M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x2 mode) 4 x SATA 6Gb/s ports |
|
| Audio | Realtek 7.1 Surround Sound High Definition Audio CODEC* - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback Audio Features - Audio Shielding - Premium audio capacitors - Dedicated audio PCB layers * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output. |
|
| Wireless Communication module | Wi-Fi 6 1x1 Wi-Fi 6 (802.11ax) Supports 2.4/5GHz frequency band Bluetooth v5.4 |
|
| TPM (Trusted Platform Module ) | 1 x SPI TPM header (14-1 pin) | |
| RAID | AMD RAIDXpert2 Technology Ryzen 9000 Series Processors: RAID 0/1/5/10 Ryzen 8000 Series Processors: RAID 0/1 Ryzen 7000 Series Processors: RAID 0/1/10 |
|
| Others | ||
| Special Features | ASUS 5X PROTECTION III - DIGI+ VRM - LANGuard - Overvoltage protection - SafeSlot - Stainless-steel back I/O ASUS Q-Design - Q-Dashboard - Q-DIMM - Q-LED Core - Q-Slot ASUS Thermal Solution - VRM heatsink design ASUS EZ DIY - BIOS FlashBack™ button - BIOS FlashBack™ LED - Pre-mounted I/O shield - SafeSlot Aura Sync - Addressable RGB Gen 2 headers |
|
| Bundled Software | ASUS Exclusive Software Armoury Crate - Aura Creator - Aura Sync - Fan Xpert 2+ ASUS AI Advisor ASUS Driver Hub ASUS GlideX TurboV Core ASUS CPU-Z Norton 360 Deluxe (60 Days Free Trial) WinRAR (40 Days Free Trial) UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode - ASUS MyHotkey |
|
| Warranty Information | ||
| Manufacturing Warranty | 3 Years | |

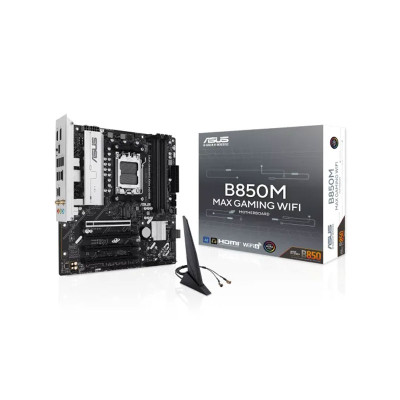

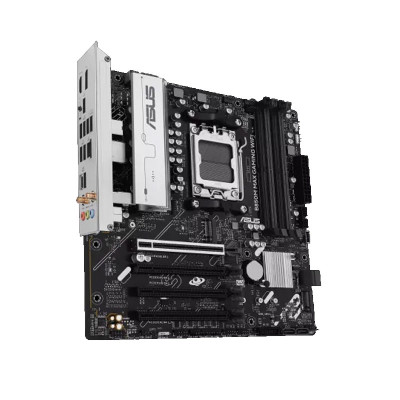

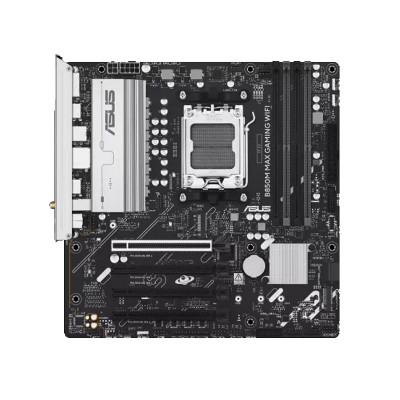

The ASUS B850M MAX GAMING WIFI AM5 mATX Motherboard is built for modern AMD Ryzen 9000, 8000, and 7000 Series desktop processors, combining the B850 platform with DDR5 memory, PCIe 5.0 expansion, three M.2 slots, Wi-Fi 6, and Bluetooth 5.4. Its compact 24.4 x 24.4 cm micro-ATX design makes it a practical foundation for gaming PCs, productivity systems, content-creation machines, and high-performance everyday computers.
For users planning a new AM5 gaming PC in Bangladesh, this ASUS B850 motherboard brings together the features that matter for a modern build: high-speed DDR5 memory, next-generation NVMe storage, wireless connectivity, PCIe expansion, multiple cooling headers, and convenient BIOS FlashBack. It is particularly useful for builders who want modern platform connectivity without moving to a larger ATX motherboard.
Four DDR5 DIMM slots support up to 256GB of memory, with speeds up to 8000+ MT/s (OC) depending on the Ryzen processor and memory configuration. AMD EXPO and ASUS Enhanced Memory Profile (AEMP) provide additional memory configuration options, while dual-channel architecture supports the bandwidth required by current Ryzen systems.
The primary PCIe 5.0 x16 slot provides a high-bandwidth interface for compatible graphics hardware. Storage is equally flexible, with three M.2 slots: one PCIe 5.0 x4 slot for compatible 2280 NVMe SSDs, one PCIe 4.0 x4 slot, and one PCIe 4.0 x2 slot. Four SATA 6Gb/s ports provide additional storage options.
Wireless connectivity is built in through a 1x1 Wi-Fi 6 module supporting the 2.4GHz and 5GHz bands, alongside Bluetooth 5.4. For users who prefer wired networking, the motherboard includes Realtek 1Gb Ethernet with ASUS LANGuard.

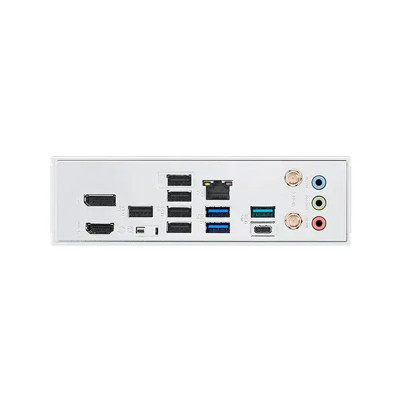

The board provides DisplayPort 1.4 support up to 8K@30Hz and HDMI 2.1 support up to 4K@60Hz, with actual graphics capabilities depending on the installed CPU. Rear I/O includes nine USB ports, including USB 10Gbps Type-A and Type-C connectivity. Four chassis-fan headers, a CPU fan header, CPU OPT fan header, and AIO pump header give builders useful cooling flexibility.
ASUS also includes DIGI+ VRM, a VRM heatsink design, SafeSlot, Q-DIMM, Q-LED Core, Q-Slot, Q-Dashboard, USBGuard, BIOS FlashBack, and a pre-mounted I/O shield. Aura Sync addressable RGB Gen 2 headers allow compatible lighting components to be integrated into a gaming setup.
| Specification | Details |
|---|---|
| CPU Socket | AMD AM5 |
| Supported CPUs | AMD Ryzen 9000 / 8000 / 7000 Series |
| Chipset | AMD B850 |
| Memory | 4 x DDR5 DIMM, up to 256GB |
| Memory Speed | Up to 8000+ MT/s (OC), EXPO, AEMP |
| Graphics Expansion | 1 x PCIe 5.0 x16 |
| M.2 Slots | 3 x M.2: PCIe 5.0 x4, PCIe 4.0 x4, PCIe 4.0 x2 |
| SATA | 4 x SATA 6Gb/s |
| Wireless | Wi-Fi 6, Bluetooth 5.4 |
| LAN | Realtek 1Gb Ethernet |
| Display | DisplayPort 1.4, HDMI 2.1 |
| Form Factor | Micro-ATX, 24.4 x 24.4 cm |
This ASUS AM5 motherboard is a strong fit for buyers building a Ryzen gaming PC, compact workstation, creator system, or responsive productivity machine. Four memory slots and three M.2 connectors make it especially practical for users who want more memory and storage flexibility than a basic compact motherboard typically provides.
If your build needs multiple PCIe expansion cards, a full-size ATX motherboard may offer more physical space. For a micro-ATX AM5 system, however, the combination of PCIe 5.0, triple M.2 storage, DDR5, Wi-Fi 6, Bluetooth 5.4, and modern USB connectivity provides a comprehensive feature set.
Before you buy ASUS B850M MAX GAMING WIFI in Bangladesh, confirm that your processor is compatible with the AM5 socket and that your case supports micro-ATX. For a performance-focused build, pair the motherboard with compatible DDR5 memory and an NVMe SSD. If you specifically want to use PCIe 5.0 storage, install a compatible NVMe drive in the primary M.2 slot.
Build your next AM5 system with components suited to your performance requirements. Explore Potaka IT's motherboard collection, browse ASUS AMD motherboards, discover the wider ASUS collection, or find compatible hardware through PC components.
The ASUS B850M MAX GAMING WIFI AM5 mATX Motherboard combines AMD B850, DDR5 memory, PCIe 5.0, triple M.2 storage, Wi-Fi 6, Bluetooth 5.4, and flexible cooling connectivity in a compact micro-ATX platform for modern Ryzen builds.
Yes. The supplied specifications list support for AMD Ryzen 9000 Series desktop processors, as well as Ryzen 8000 and 7000 Series processors.
It has four DDR5 DIMM slots and supports up to 256GB of memory, with supported speeds reaching 8000+ MT/s (OC) depending on the processor and memory configuration.
The motherboard has three M.2 slots. The primary slot supports PCIe 5.0 x4, while the other two support PCIe 4.0 x4 and PCIe 4.0 x2 respectively.
Yes. It includes 1x1 Wi-Fi 6 supporting 2.4GHz and 5GHz bands, plus Bluetooth 5.4.
Yes. The primary graphics slot supports PCIe 5.0 x16, and the primary M.2 slot supports PCIe 5.0 x4.
The latest price of Asus B850M MAX GAMING WIFI AM5 Motherboard in Bangladesh is 29,000৳. You can buy the Asus B850M MAX GAMING WIFI AM5 Motherboard at best price from our website or visit any of our showrooms.
