| Basic Information | ||
| Supported CPU | AMD Socket AM5 for AMD Ryzen 8000 / 7000 Series Desktop Processors | |
| Chipset | AMD B650 | |
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS | |
| Form Factor | micro-ATX Form Factor 9.6 inch x 8.7 inch ( 24.4 cm x 22.1 cm ) |
|
| Audio | Realtek 7.1 Surround Sound High Definition Audio CODEC* - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback Audio Features - Audio Shielding - Premium audio capacitors - Dedicated audio PCB layers |
|
| Expansion Slots | ||
| PCI | AMD Ryzen 7000 Series Desktop Processors 1 x PCIe 4.0 x16 slot (supports x16 mode) AMD B650 Chipset 1 x PCIe 4.0 x1 slot |
|
| Memory | ||
| Type | DDR5 | |
| Slots | 2 x DIMM slots | |
| Supported Memory | 8000+ (OC)/7800(OC)/7600(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/ 6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600(OC)/5400(OC)/5200/5000/ 4800 ECC and Non-ECC, Un-buffered Memory Dual Channel Memory Architecture Supports AMD Extended Profiles for Overclocking (EXPO) OptiMem II |
|
| Maximum Memory | 96GB | |
| Graphics | ||
| Graphics | 1 x HDMI port (Supports 4K@60Hz as specified in HDMI 2.1.) | |
| Connector & Ports | ||
| HDMI | 1x HDMI | |
| Internal I/O Ports | Back Panel I/O Ports 2 x USB 3.2 Gen 2 (10G) ports (2 x Type-A) 2 x USB 3.2 Gen 1 (5G) ports (2 x Type-A) 4 x USB 2.0 ports (4 x Type-A) 1 x HDMI port 1 x Realtek 2.5Gb Ethernet port 3 x Audio jacks 1 x PS/2 Keyboard/Mouse combo port Internal I/O Connectors Fan and Cooling-related 1 x 4-pin CPU Fan header 3 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector Storage related 2 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 1 (5G) connector (supports USB Type-C ) 1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports Miscellaneous 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x S/PDIF Out header 1 x Speaker header 1 x 10-1 pin System Panel header |
|
| USB (s) | Rear USB (Total 8 ports) 2 x USB 3.2 Gen 2 (10G) ports (2 x Type-A) 2 x USB 3.2 Gen 1 (5G) ports (2 x Type-A) 4 x USB 2.0 ports (4 x Type-A) Front USB (Total 7 ports) 1 x USB 3.2 Gen 1 (5G) connector (supports USB Type-C) 1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports |
|
| LAN Port (s) | 1 x Realtek 2.5Gb Ethernet | |
| Supported Storage | Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports AMD Ryzen™ 7000 Series Desktop Processors M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) AMD B650 Chipset 4 x SATA 6Gb/s ports |
|
| Audio | 3 x Audio jacks | |
| RAID | AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/10 and SATA RAID 0/1/10 | |
| Others | ||
| Special Features | ASUS 5X PROTECTION III - DIGI+ VRM - LANGuard - Overvoltage Protection - SafeSlot Core+ - Stainless-Steel Back I/O ASUS Q-Design - Q-DIMM - Q-LED Core - Q-Slot ASUS Thermal Solution - VRM heatsink design Non-stop Action - Lightning Boot Non-stop Challenger - ASUS iCafe labs certified Non-stop Durability - Luminous anti-moisture coating - USBGuard |
|
| Warranty Information | ||
| Manufacturing Warranty | 3-Year Brand Warranty (Condition applied) | |

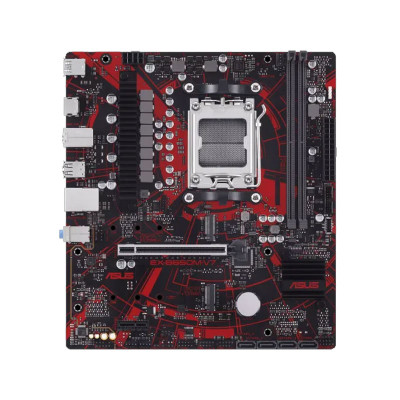

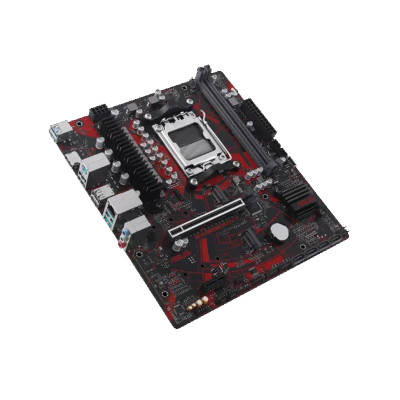

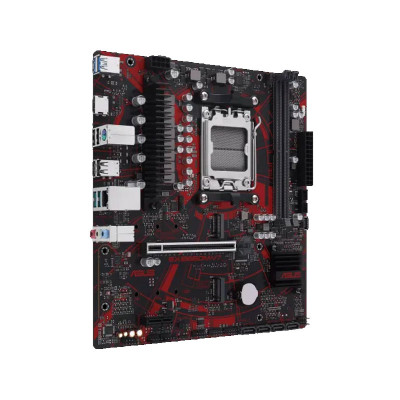

The ASUS EX-B650M-V7 AM5 Micro-ATX Motherboard is a compact AMD B650 motherboard built for modern Ryzen desktop PCs that need fast DDR5 memory, high-speed storage, strong connectivity, and practical expansion without moving to a full-size ATX board. Supporting AMD Ryzen 7000 and 8000 Series desktop processors, it combines two DDR5 DIMM slots, PCIe 4.0 graphics expansion, a PCIe 5.0 x4 M.2 slot, a second PCIe 4.0 x4 M.2 slot, four SATA 6Gb/s ports, 2.5Gb Ethernet, and HDMI 4K output in a micro-ATX design.
For buyers planning an AM5 Ryzen PC build in Bangladesh, the ASUS EX-B650M-V7 offers a useful balance between modern platform features and compact motherboard design. The AMD B650 chipset supports the AM5 ecosystem, while DDR5 memory and high-speed PCIe storage make it suitable for responsive everyday computing, productivity, content creation, gaming, and workstation-style workloads.
Two DDR5 DIMM slots support up to 96GB of memory and a wide range of supported speeds, including overclocked configurations up to 8000+ MT/s according to the supplied specifications. AMD EXPO support makes compatible high-speed DDR5 memory easier to configure, while the dual-channel architecture helps deliver the bandwidth modern Ryzen systems require.
Storage flexibility is a major advantage. The primary M.2 slot supports PCIe 5.0 x4 for compatible next-generation NVMe SSDs, while the second M.2 slot supports PCIe 4.0 x4. Four SATA 6Gb/s ports provide additional options for SATA SSDs and hard drives. AMD RAIDXpert2 also supports PCIe and SATA RAID 0/1/10 configurations.
The integrated Realtek 2.5Gb Ethernet connection provides faster wired networking than traditional Gigabit LAN when the rest of the network supports it. Rear connectivity includes two USB 3.2 Gen 2 10Gbps Type-A ports, two USB 3.2 Gen 1 ports, four USB 2.0 ports, HDMI, PS/2, and three audio jacks.
The PCIe 4.0 x16 slot provides the primary expansion interface for a dedicated graphics card, making the board suitable for gaming PCs and graphics-focused systems. The HDMI output supports up to 4K at 60Hz with a compatible processor. Three chassis-fan headers plus a CPU fan header provide practical cooling connectivity for compact builds.
ASUS also includes features such as DIGI+ VRM, LANGuard, overvoltage protection, SafeSlot Core+, Q-DIMM, Q-LED Core, Q-Slot, VRM heatsink design, USBGuard, and a luminous anti-moisture coating. These features are particularly useful for users who want a durable motherboard platform for long-term everyday use.
| Specification | Details |
|---|---|
| CPU Socket | AMD AM5 |
| Supported CPUs | AMD Ryzen 8000 / 7000 Series Desktop Processors |
| Chipset | AMD B650 |
| Memory | 2 x DDR5 DIMM, up to 96GB |
| Memory Support | Up to 8000+ MT/s (OC), AMD EXPO, ECC & Non-ECC Unbuffered |
| Graphics Slot | 1 x PCIe 4.0 x16 |
| M.2 Storage | 1 x PCIe 5.0 x4 + 1 x PCIe 4.0 x4 |
| SATA | 4 x SATA 6Gb/s |
| LAN | Realtek 2.5Gb Ethernet |
| Display Output | HDMI, up to 4K@60Hz |
| Form Factor | Micro-ATX, 24.4 x 22.1 cm |
This ASUS B650 motherboard is well suited to users building a new AM5 desktop who want DDR5 memory, fast NVMe storage, 2.5Gb networking, and a compact motherboard footprint. It can work particularly well in gaming PCs, productivity systems, home workstations, development machines, and high-performance everyday computers.
If your priority is maximum expansion with multiple PCIe cards, a larger ATX motherboard may provide more physical expansion space. However, for a compact AM5 build that still needs PCIe 5.0 NVMe support and multiple storage options, the EX-B650M-V7 provides a strong feature set in a smaller footprint.
Before you buy the ASUS EX-B650M-V7 motherboard in Bangladesh, confirm that your selected processor uses the AM5 socket and that your PC case supports micro-ATX. For the best performance, pair the board with compatible DDR5 memory and an NVMe SSD. If you plan to use the PCIe 5.0 M.2 slot, choose a compatible PCIe 5.0 NVMe drive to take advantage of that interface.
For users comparing AM5 motherboards, the key advantages here are the B650 platform, DDR5 support, dual M.2 storage with PCIe 5.0 connectivity, 2.5Gb Ethernet, and compact micro-ATX format. These features make it a practical choice for a modern Ryzen system without requiring a full-size motherboard.
Ready to build an AM5 Ryzen PC? Explore the motherboard collection at Potaka IT, browse ASUS AMD motherboards, or discover more products through the ASUS collection. You can also explore PC components for compatible processors, RAM, SSDs, graphics cards, and other parts.
The ASUS EX-B650M-V7 AM5 Micro-ATX Motherboard brings together AMD B650, DDR5, PCIe 5.0 NVMe support, 2.5Gb networking, modern USB connectivity, and compact micro-ATX dimensions, making it a capable foundation for a new-generation Ryzen desktop.
Yes. The motherboard supports compatible AMD Ryzen 7000 Series desktop processors on the AM5 platform. Check the processor support information for your exact CPU before purchase.
Yes. It has two DDR5 DIMM slots and supports up to 96GB of memory, including AMD EXPO-compatible configurations.
Yes. Its primary M.2 slot supports PCIe 5.0 x4 for compatible NVMe SSDs. The second M.2 slot supports PCIe 4.0 x4.
Yes. The motherboard includes a Realtek 2.5Gb Ethernet port for high-speed wired networking.
It has two Key M M.2 slots. One supports PCIe 5.0 x4, while the second supports PCIe 4.0 x4. Both support 2242, 2260, and 2280 form factors.
