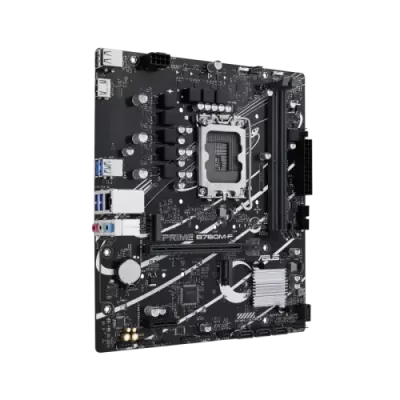

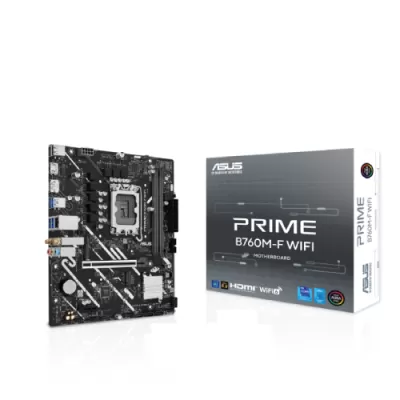

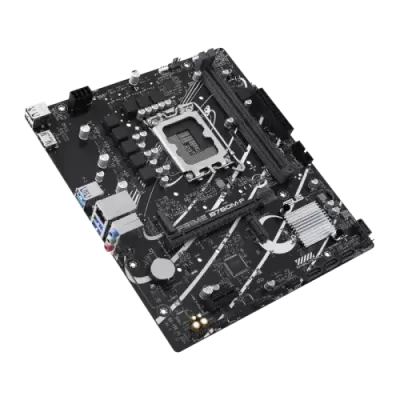

Asus PRIME B760M-F WIFI mATX Motherboard

Asus PRIME B760M-F WIFI mATX Motherboard

The Asus PRIME B760M-F WIFI mATX Motherboard is designed for users who want a reliable Intel-based PC with modern connectivity, DDR5 memory support and flexible storage options. Built around the Intel B760 chipset and LGA1700 socket, this ASUS motherboard supports compatible 14th, 13th and 12th Gen Intel Core processors, making it suitable for productivity, programming, everyday computing and gaming PC builds. If you are planning to build a new desktop, explore the available motherboards and processors at Potaka IT to find compatible components for your setup.

Featuring two DDR5 DIMM slots with support for up to 96GB of memory, two PCIe 4.0 M.2 slots for high-speed NVMe SSDs, Wi-Fi 6 wireless connectivity and a PCIe 5.0 x16 graphics card slot, the PRIME B760M-F WIFI offers a practical foundation for a modern desktop computer. Its compact micro-ATX form factor also makes it a suitable choice for space-conscious PC builds without giving up essential expansion and connectivity features.

Key Features of Asus PRIME B760M-F WIFI Motherboard

• Intel B760 chipset: Designed for compatible Intel LGA1700 desktop processors.
• 14th, 13th and 12th Gen CPU support: Compatible with supported Intel Core, Pentium Gold and Celeron processors.
• DDR5 memory: Two DIMM slots support up to 96GB of DDR5 RAM.
• PCIe 5.0 graphics slot: Provides a modern expansion interface for compatible graphics cards.
• Dual M.2 storage: Two PCIe 4.0 x4 M.2 slots support compatible NVMe SSDs.
• Wi-Fi 6: Provides wireless networking through a compatible 802.11ax network.
• Gigabit Ethernet: Includes Realtek 1Gb Ethernet for wired networking.
• Compact design: The micro-ATX form factor measures 24.4 × 21.1 cm.
• Aura Sync support: Addressable Gen 2 RGB headers enable compatible lighting accessories.
• Three-year manufacturing warranty: Warranty coverage is subject to the applicable seller and manufacturer terms.

Intel B760 Chipset and LGA1700 Processor Compatibility

The Asus PRIME B760M-F WIFI motherboard uses the Intel B760 chipset and LGA1700 CPU socket. It supports compatible Intel Core processors from the 12th, 13th and 14th generations, as well as supported Pentium Gold and Celeron models. This makes it a flexible platform for building a desktop around a suitable Intel processor.

When choosing a CPU, check the official ASUS processor support list and the required BIOS version before purchasing. Processor compatibility depends on the exact model and firmware support. A compatible processor with integrated graphics can also provide display output through the motherboard's HDMI and DisplayPort connections without requiring a separate graphics card for basic display tasks.

Suitable for Productivity and Everyday Computing

Paired with a compatible Intel CPU, sufficient DDR5 memory and an NVMe SSD, this motherboard can support office applications, web development, programming, multitasking, online meetings and general desktop workloads. The final performance depends on the processor, memory configuration, storage drive and other installed components.

DDR5 Memory Support up to 96GB

The Asus PRIME B760M-F WIFI features two DDR5 DIMM slots and supports up to 96GB of system memory. Its dual-channel memory architecture and Intel XMP support allow users to configure compatible memory kits for their performance and capacity requirements.

For everyday computing, study and office work, a suitable memory configuration can provide a responsive experience. Programming, content creation and heavier multitasking may benefit from additional RAM, depending on the software being used.

The motherboard supports a range of memory data rates, including DDR5-4800 and higher speeds through supported configurations and overclocking. The maximum supported speed depends on the CPU, memory kit, BIOS and system configuration. Check the ASUS memory compatibility list before selecting a high-speed DDR5 kit.

PCIe 5.0 Graphics Card Support

This ASUS B760 motherboard provides one PCIe 5.0 x16 expansion slot for a compatible graphics card and one PCIe 4.0 x1 slot for supported expansion devices. The PCIe 5.0 graphics interface offers forward-looking bandwidth for compatible GPUs while maintaining backward compatibility with supported earlier-generation PCIe devices.

Whether you are assembling a gaming desktop, a workstation for creative applications or a computer for GPU-accelerated workloads, the graphics card should be selected according to your performance needs, power supply capacity, case clearance and budget. The motherboard itself does not determine gaming frame rates; those depend primarily on the installed GPU, processor, memory and software.

Dual M.2 PCIe 4.0 SSD Slots for Fast Storage

The Asus PRIME B760M-F WIFI includes two M.2 Key M slots supporting compatible PCIe 4.0 x4 NVMe SSDs. This arrangement allows users to install fast storage for the operating system, applications, games and project files while retaining four SATA 6Gb/s ports for compatible additional storage drives.

An NVMe SSD can reduce operating system startup times, speed up application loading and make large project files easier to manage compared with a traditional mechanical hard drive. Users who need more storage can combine M.2 SSDs with SATA SSDs or hard drives, subject to drive compatibility and available connections.

NVMe SSD and SATA Storage Options

• Two M.2 Key M slots with PCIe 4.0 x4 support.
• Four SATA 6Gb/s connectors for compatible SATA storage devices.
• Intel Rapid Storage Technology support for SATA RAID 0, 1, 5 and 10 configurations.
• Support for compatible M.2 2242, 2260 and 2280 drives where specified for each slot.

For a straightforward build, a suitable NVMe SSD is a practical choice for the primary operating system drive. Always confirm the SSD's interface and physical dimensions before installation.

Wi-Fi 6 and Gigabit Ethernet Connectivity

With built-in Wi-Fi 6, the Asus PRIME B760M-F WIFI supports wireless networking on compatible 2.4GHz and 5GHz networks. This is useful for desktop setups where running an Ethernet cable is inconvenient or where flexible placement is important. Actual wireless speed and stability depend on the router, signal strength, network congestion and internet service.

The motherboard also includes Realtek 1Gb Ethernet for users who prefer a wired network connection. Gigabit Ethernet can be useful for online gaming, large file transfers, remote work and other tasks where a consistent local network connection matters.

Bluetooth specifications can vary with the installed wireless module. Check the exact unit's specification and included antenna before relying on a particular Bluetooth version or accessory compatibility.

Display Outputs, USB Ports and Audio Features

The motherboard provides one HDMI 1.4 port and one DisplayPort 1.4 connection. HDMI supports up to 4K at 30Hz, while DisplayPort supports up to 4K at 60Hz under the specified conditions. Display output availability depends on the installed CPU's integrated graphics, so confirm processor graphics support before planning a display-only build without a discrete GPU.

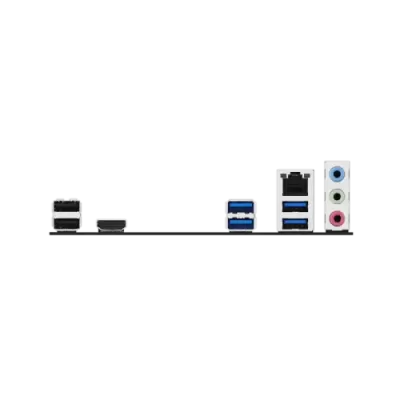

For peripherals and accessories, the rear I/O includes four USB 5Gbps Type-A ports and two USB 2.0 Type-A ports. Internal USB headers provide support for additional compatible front-panel USB connections when the case supports them.

Audio is handled by a Realtek 7.1-channel High Definition Audio CODEC with support for up to 24-bit/192kHz playback. Audio shielding, premium audio capacitors and dedicated PCB layers are designed to support audio quality. Full front-panel surround-sound functionality requires a compatible case audio module and appropriate configuration.

Cooling, RGB Lighting and ASUS Protection Features

The Asus PRIME B760M-F WIFI includes one 4-pin CPU fan header and two 4-pin chassis fan headers for compatible cooling fans. ASUS Fan Xpert 2+ software provides fan-control options, helping users configure cooling according to system temperature and workload.

Two Addressable Gen 2 RGB headers support compatible lighting accessories and Aura Sync customisation. Users can coordinate supported RGB components to create a consistent desktop setup, provided the lighting devices use compatible connections.

ASUS 5X PROTECTION III incorporates features such as DIGI+ VRM, LANGuard, overvoltage protection, SafeSlot and stainless-steel back I/O. These design features are intended to support dependable operation and component protection. Actual system stability still depends on correct installation, suitable power delivery, adequate cooling and compatible hardware.

Who Should Buy the Asus PRIME B760M-F WIFI?

Students and Office Users

This motherboard is a suitable option for a desktop intended for document editing, online classes, research, office applications and everyday multitasking. A compatible Intel processor, DDR5 RAM and SSD can create a responsive system for common workloads.

Programmers and Web Developers

Developers who use code editors, browsers, local development environments and productivity applications can benefit from a configurable Intel desktop platform. Choose memory capacity and storage based on your development tools, virtual machines and multitasking requirements.

Gaming PC Builders

The PCIe 5.0 x16 graphics slot, DDR5 memory support and dual NVMe storage slots make this motherboard a potential foundation for a gaming PC. Pair it with a suitable graphics card, compatible Intel processor, adequate PSU and well-ventilated case. Gaming performance depends on the complete hardware configuration rather than the motherboard alone.

Compact Desktop Builders

Its micro-ATX dimensions make the PRIME B760M-F WIFI appropriate for compatible smaller desktop cases. Before purchasing, check the case's motherboard support, graphics card clearance, CPU cooler height and airflow arrangements.

Asus PRIME B760M-F WIFI Buying Guide

Before buying the Asus PRIME B760M-F WIFI motherboard in Bangladesh, consider these compatibility points to avoid unnecessary upgrade costs and installation problems.

• Processor: Confirm that your selected Intel CPU uses the LGA1700 socket and appears on the motherboard's supported CPU list.
• BIOS: Check the required BIOS version for your specific processor.
• RAM: Purchase DDR5 memory; DDR4 desktop RAM is not compatible with this DDR5 motherboard.
• Graphics: Confirm whether your CPU has integrated graphics if you intend to use the motherboard's display outputs without a separate GPU.
• Storage: Select compatible M.2 NVMe or SATA drives according to your capacity and performance requirements.
• Case: Ensure that the case supports micro-ATX motherboards and provides enough clearance for the selected components.
• Power supply: Choose a suitable PSU for your CPU and graphics card, including the required motherboard and GPU power connectors.
• Wireless networking: Confirm that the supplied Wi-Fi antenna is installed and positioned correctly for the best available reception.
• Warranty: Verify the applicable three-year manufacturing warranty and local warranty conditions with the seller.

Asus PRIME B760M-F WIFI Price in Bangladesh

The price of the Asus PRIME B760M-F WIFI motherboard in Bangladesh may vary depending on stock availability, import costs, seller pricing and warranty coverage. Check the current product listing at Potaka IT for the latest price and availability before purchasing.

When comparing motherboard prices, consider more than the initial cost. Processor compatibility, DDR5 support, Wi-Fi 6, M.2 storage expansion, graphics connectivity and warranty terms all contribute to the overall value of a desktop build. Compare the complete feature set against your requirements rather than choosing a motherboard based on price alone.

Frequently Asked Questions

Which processors are compatible with the Asus PRIME B760M-F WIFI motherboard?

The motherboard supports compatible 14th, 13th and 12th Gen Intel Core processors, as well as supported Pentium Gold and Celeron processors using the LGA1700 socket. Check the official ASUS CPU support list for the exact model and BIOS requirements.

Does the Asus PRIME B760M-F WIFI support DDR5 RAM?

Yes. It has two DDR5 DIMM slots and supports up to 96GB of memory. Supported memory speeds depend on the processor, memory kit and system configuration.

Does the Asus PRIME B760M-F WIFI support PCIe 5.0 graphics cards?

Yes. Its primary graphics expansion slot supports PCIe 5.0 x16. Compatible graphics cards from earlier PCIe generations can also work, subject to the device specifications and system compatibility.

How many M.2 SSDs can be installed?

The motherboard supports two M.2 NVMe SSDs using PCIe 4.0 x4 interfaces. It also has four SATA 6Gb/s ports for compatible additional storage devices.

Does this motherboard have built-in Wi-Fi?

Yes. It includes Wi-Fi 6 wireless networking and supports 2.4GHz and 5GHz bands. Wireless performance depends on the router, network conditions and antenna placement.

Can I use this motherboard without a graphics card?

Yes, provided the installed processor includes integrated graphics and supports the intended display output. A processor without integrated graphics generally requires a discrete graphics card for display output.

Does the Asus PRIME B760M-F WIFI support gaming?

Yes. It can be used in a gaming PC with a compatible Intel processor, suitable graphics card, DDR5 memory and adequate cooling. The gaming performance will depend on the installed hardware and the games being played.

What is the form factor of the Asus PRIME B760M-F WIFI?

It uses the micro-ATX form factor and measures approximately 24.4 × 21.1 cm. Confirm that your PC case supports micro-ATX motherboards before purchasing.

How many displays can be connected to this motherboard?

It provides one HDMI port and one DisplayPort. Simultaneous display support depends on the installed processor's integrated graphics capabilities and configuration. The specified maximum resolutions are 4K at 30Hz over HDMI 1.4 and 4K at 60Hz over DisplayPort 1.4.

What is the warranty for the Asus PRIME B760M-F WIFI motherboard?

The supplied product information specifies a three-year manufacturing warranty. Confirm the exact coverage, warranty provider and service conditions with the seller before purchasing.

Asus PRIME B760M-F WIFI Specifications
