| Basic Information | ||
| Supported CPU | Intel Socket LGA1700 for 14th, 13th & 12th Gen Intel Core, Pentium Gold, and Celeron Processors Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0 |
|
| Chipset | Z690 | |
| BIOS | 192 (128+64) Mb Flash ROM, UEFI AMI BIOS | |
| Form Factor | microATX 24.4cm x 24.4cm |
|
| Audio | Realtek 7.1 Surround Sound High Definition Audio CODEC - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback Audio Features - Audio Shielding - Premium audio capacitors - Dedicated audio PCB layers * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output |
|
| Expansion Slots | ||
| PCI | Intel 12th Gen Processors 1 x PCIe 5.0/4.0/3.0 x16 slot Intel Z690 Chipset 1 x PCIe 4.0/3.0 x16 slot (supports x4 mode) 2 x PCIe 3.0 x1 slots |
|
| M.2 Socket | Supports 3 x M.2 slots | |
| Memory | ||
| Type | DDR4 | |
| Slots | 4 x DIMM | |
| Supported Memory | 5333(OC)/ 5133(OC)/ 5000(OC)/ 4800(OC)/ 4600(OC)/ 4400(OC)/ 4266(OC)/ 4133(OC)/ 4000(OC)/ 3866(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200/ 3000/ 2933/ 2800/ 2666/ 2400/ 2133 Non-ECC, Un-buffered Memory Dual Channel Memory Architecture Supports Intel Extreme Memory Profile (XMP) OptiMem II |
|
| Maximum Memory | 128GB | |
| Graphics | ||
| Graphics | 1 x DisplayPort (Supports max. 8K@60Hz as specified in DisplayPort 1.4) 1 x HDMI port (Supports 4K@60Hz as specified in HDMI 2.1) |
|
| Connector & Ports | ||
| HDMI | 1 x DisplayPort | |
| Internal I/O Ports | Fan and cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 3 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector 1 x 4-pin +12V Power connector Storage related 3 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 1 connector (supports USB Type-C) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 1 x AURA RGB header 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x M.2 slot (Key E) 1 x S/PDIF Out header 1 x SPI TPM header (14-1pin) 1 x 20-3 pin System Panel header with Chassis intrude function 1 x Thunderbolt header |
|
| Display Port (s) | 1 x HDMI port | |
| USB (s) | Rear USB:Total 8 ports 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C) 1 x USB 3.2 Gen 2 port (1 x Type-A) 4 x USB 3.2 Gen 1 ports (4 x Type-A) 2 x USB 2.0 ports (2 x Type-A) Front USB:Total 7 ports 1 x USB 3.2 Gen 1 connector (supports USB Type-C) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports |
|
| LAN Port (s) | 1 x Intel 1Gb Ethernet | |
| Supported Storage | Supports 3 x M.2 slots and 4 x SATA 6Gb/s ports Intel 12th Gen Processors M.2_1 slot (Key M), type 2242/2260/2280 - Intel 12th Gen processors support PCIe 4.0 x4 mode. Intel® Z690 Chipset M.2_2 slot (Key M), type 2260/2280 (supports PCIe 4.0 x4 mode) M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes) 4 x SATA 6Gb/s ports * Intel Rapid Storage Technology supports NVMe RAID 0/1/5, SATA RAID 0/1/5/10 |
|
| Audio | 3 x Audio jacks | |
| Wireless Communication module | M.2 slot only (Key E, CNVi & PCIe) | |
| TPM (Trusted Platform Module ) | 1 x SPI TPM header (14-1pin) | |
| Others | ||
| Special Features | ASUS 5X PROTECTION III - DIGI+ VRM (- Digital power design with DrMOS) - Enhanced DRAM Overcurrent Protection - ESD Guards - LANGuard - Overvoltage Protection - SafeSlot - Stainless-Steel Back I/O ASUS Q-Design - M.2 Q-Latch - Q-Connector - Q-DIMM - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - Q-Slot ASUS Thermal Solution - M.2 heatsink backplate - M.2 heatsink - VRM heatsink design ASUS EZ DIY - Box headers - Clear CMOS button - CPU socket lever protector - ProCool - Pre-mounted I/O shield AURA Sync - AURA RGB header(s) - Addressable Gen 2 header(s) |
|
| Bundled Software | ASUS Exclusive Software Armoury Crate - AURA Creator - AURA Sync - Fan Xpert 4 - Two-Way AI Noise Cancelation AI Suite 3 -Easy Optimization with AI Overclocking TPU EPU DIGI+ VRM Turbo app ASUS CPU-Z DTS:X Ultra Norton Anti-virus software (Free Trial version) WinRAR UEFI BIOS AI Overclocking Guide ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode FlexKey MemTest86 |
|
| Warranty Information | ||
| Manufacturing Warranty | 3 years | |

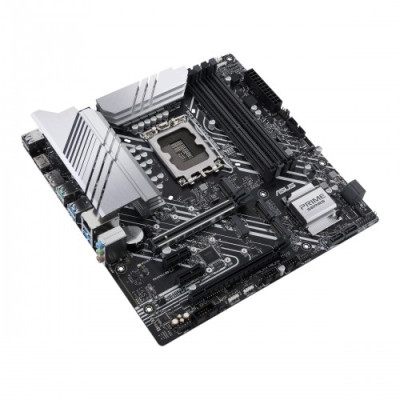

The Asus Prime Z690M-PLUS D4 Intel 12th Gen microATX Motherboard, Designed for performance-focused PC builders in Bangladesh, this microATX motherboard combines premium-grade engineering with cutting-edge features to deliver robust speed, superior stability, and unmatched customization. Whether you're upgrading your gaming rig or creating a reliable workstation, this Z690 chipset motherboard is ready for every challenge, all in a compact form factor.
Supports Intel LGA1700 socket CPUs including the latest 14th Gen, 13th Gen, and 12th Gen Core, Pentium Gold, and Celeron processors, optimized with Intel Turbo Boost 2.0 and 3.0 support.
Built on the powerful Z690 chipset, this motherboard brings support for high-speed DDR4 RAM and PCIe 5.0 graphics performance, ensuring future-proof speed and connectivity.
With 4 DIMM slots supporting up to 128GB of DDR4 RAM at blazing speeds of up to 5333MHz (OC), it's perfect for multitasking, rendering, and high-end gaming performance.
Enjoy rapid data transfers and flexible storage configurations with 3 M.2 slots (including PCIe 4.0 x4 support) and 4 SATA 6Gb/s ports with RAID options.
Powered by Realtek 7.1 Surround Sound CODEC, with features like jack-detection, premium capacitors, and audio shielding for crystal-clear, studio-quality sound output.
Harness the next-generation power of PCIe 5.0 for your GPU, offering ultra-fast bandwidth for modern high-performance graphics cards.
Equipped with multiple fan headers, AIO pump support, and robust VRM heatsinks for efficient cooling under load. ASUS DIGI+ VRM and ProCool connectors ensure stable power delivery.
Features USB 3.2 Gen 2x2 Type-C, DisplayPort, HDMI 2.1, Intel 1Gb LAN, and internal USB-C headers, making it perfect for modern peripherals and display setups.
Get peace of mind with advanced protection features including SafeSlot, LANGuard, ESD Guards, and stainless-steel back I/O shield to ensure durability and safety.
Customize your build with AURA Sync support and Addressable Gen 2 headers, syncing your RGB lighting with other compatible components for a unified aesthetic.
Pre-mounted I/O shield, Q-LED, M.2 Q-Latch, and Q-DIMM make building and upgrading your PC faster and more convenient than ever.
If you're looking for the best place to buy the Asus Prime Z690M-PLUS D4 motherboard in Bangladesh, Potaka IT is your trusted tech partner. We offer genuine ASUS motherboards with manufacturer warranty, competitive prices, and expert support. Whether you're a gamer, creator, or PC enthusiast, buying from Potaka IT means reliable service, fast delivery, and authentic products every time. Order now and power up your build with confidence!
The latest price of Asus Prime Z690M-PLUS D4 Motherboard in Bangladesh is 29,000৳. You can buy the Asus Prime Z690M-PLUS D4 Motherboard at best price from our website or visit any of our showrooms.
