| Basic Information | ||
| Supported CPU | AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors | |
| Chipset | AMD X870E | |
| BIOS | 2 x 64 MB (512Mb) Flash ROM, UEFI AMI BIOS |
|
| Form Factor | E-ATX Form Factor 12 inch x 10.9 inch (30.5 cm x 27.7 cm) |
|
| Expansion Slots | ||
| M.2 Socket | AMD Ryzen™ 9000 & 7000 Series Desktop Processors* 2 x PCIe 5.0 x16 slots with PCIe Q-Release Switch (supports x16 or x8/x8 or x8/x4/x4 or x4/x4/x4/x4 modes) AMD Ryzen™ 8700 & 8600 & 8400 Series Desktop Processors* 2 x PCIe 4.0 x16 slots with PCIe Q-Release Switch (only supports PCIEx16(G5)_1 & total bandwidth for x8, PCIEx16(G5)_2 will run at PCIe 3.0 x4) AMD Ryzen™ 8500 & 8300 Series Desktop Processors* 2 x PCIe 4.0 x16 slots with PCIe Q-Release Switch (only supports PCIEx16(G5)_1 & total bandwidth for x4, PCIEx16(G5)_2 will run at PCIe 3.0 x4) |
|
| Memory | ||
| Type | DDR5 | |
| Slots | 4 x DIMM slots | |
| Supported Memory | max. 256GB | |
| Maximum Memory | Supports up to 8600+MT/s(OC)**/8200+MT/s(OC)*** with Ryzen™ 9000 Series Processors, 9600+MT/s(OC)**/9200+MT/s(OC)*** with Ryzen™ 8000 Series Processors, 8000+MT/s(OC)**/8000+MT/s(OC)*** with Ryzen™ 7000 Series Processors, ECC and Non-ECC, Un-buffered DIMM* Dual Channel Memory Architecture Supports AMD Extended Profiles for Overclocking (EXPO™) Supports DIMM Fit and DIMM Fit Pro ASUS Enhanced Memory Profile (AEMP) NitroPath DRAM Technology |
|
| Graphics | ||
| Graphics | 2 x USB4® (40Gbps) ports support USB Type-C® display outputs | |

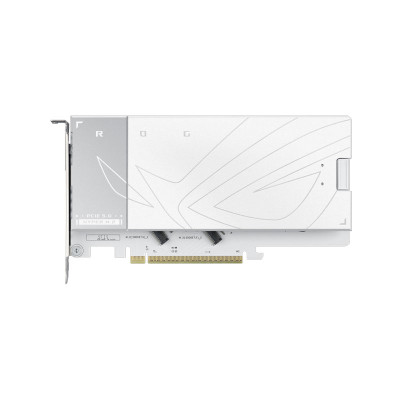

| Max Shared Memory | Supports up to 7 x M.2 slots and 4 x SATA 6Gb/s ports AMD Ryzen™ 9000 & 7000 Series Desktop Processors* M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)** Hyper M.2_1 slot (Key M) via ROG Hyper M.2 card, type 2230/2242/2260/2280/22110 (suppports PCIe 5.0 x4 mode) Hyper M.2_2 slot (Key M) via ROG Hyper M.2 card, type 2230/2242/2260/2280/22110 (suppports PCIe 5.0 x4 mode) AMD Ryzen™ 8700 & 8600 & 8400 Series Desktop Processors* M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)** AMD Ryzen™ 8500 & 8300 Series Desktop Processors* M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280 (Not supports) AMD X870E Chipset M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) DIMM.2_1 slot (Key M) via ROG Q-DIMM.2, type 2230/2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) DIMM.2_2 slot (Key M) via ROG Q-DIMM.2, type 2230/2242/2260/2280/22110 (supports PCIe 4.0 x2 mode) 2 x SATA 6Gb/s ports ASMedia ASM1162 Controller 2 x SATA 6Gb/s ports |
|
| Connector & Ports | ||

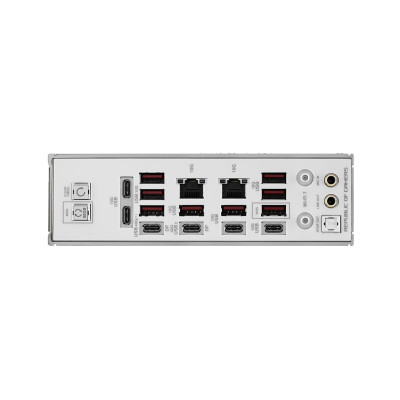

| Internal I/O Ports | Back Panel I/O Ports: 2 x USB4® (40Gbps) ports (2 x USB Type-C®) 12 x USB 10Gbps ports (8 x Type-A + 4 x USB Type-C®) 1 x Wi-Fi Module 2 x Realtek 10Gb Ethernet ports 2 x LED-illuminated audio jacks 1 x Optical S/PDIF out port 1 x BIOS FlashBack™ button 1 x Clear CMOS button Internal I/O Connectors: Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 2 x 4-pin Chassis Fan headers 2 x 4-pin Radiator Fan headers 2 x W_PUMP+ headers 1 x AIO Q-Connector 1 x Extra Flow Fan header Power related 1 x 24-pin Main Power connector 2 x 8-pin +12V CPU Power connector 1 x 8-pin PCIe Power connector Storage related 3 x M.2 slots (Key M) 1 x DIMM.2 slot supports 2 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 2 x USB 20Gbps connector (supports USB Type-C®) 2 x USB 5Gbps headers support 4 additional USB 5Gbps ports 3 x USB 2.0 headers support 6 additional USB 2.0 ports Miscellaneous 1 x 6-pin ARGB Gen 2 header to support 2 x ARGB Gen 2 headers 2 x Addressable Gen 2 header 1 x Alteration PCIe mode switch 2 x BCLK button 1 x BIOS Switch 1 x FlexKey button 1 x Front Panel Audio header (F_AUDIO) 1 x LN2 Mode jumper 12 x ProbeIt Measurement Points 1 x ReTry button 1 x RSVD header 1 x Safe Boot button 1 x Start button 1 x 10-1 pin System Panel header 1 x Thermal Sensor header |
|
| USB (s) | Rear USB (Total 14 ports) 2 x USB4® (40Gbps) ports (2 x USB Type-C®) 12 x USB 10Gbps ports (8 x Type-A + 4 x USB Type-C®) Front USB (Total 12 ports) 1 x USB 20Gbps connector (supports USB Type-C® with up to 60W PD/QC4+)* 1 x USB 20Gbps connector (supports USB Type-C®) 2 x USB 5Gbps headers support 4 additional USB 5Gbps ports 3 x USB 2.0 headers support 6 additional USB 2.0 ports USB Type-C® power delivery output: max. 5V/3A *USB Type-C® power delivery output: 5/9/15/20V max. 3A, PPS:3.3–21V max. 3A |
|
| LAN Port (s) | 2 x Realtek 10Gb Ethernet ASUS LANGuard |
|
| Audio | ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4082** - Impedance sense for front and rear headphone outputs - Supports: Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking - High quality 120 dB SNR stereo playback output and 110 dB SNR recording input - Supports up to 32-Bit/384 kHz playback on front panel Audio Features - SupremeFX Shielding Technology - ESS® ES9219 QUAD DAC - LED-illuminated audio jacks - Rear optical S/PDIF out port- Premium audio capacitors * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output. |
|
| Wireless Communication module | Wi-Fi 7 (MediaTek MT7927) 2x2 Wi-Fi 7* (802.11be) Supports 2.4/5/6GHz frequency band** Supports Wi-Fi 7 320MHz bandwidth Bluetooth® v5.4 (support LE Audio) |
|
| RAID | AMD RAIDXpert2 Technology Ryzen™ 9000 & 8000 & 7000 Series Processors: RAID 0/1/5/10 |
|
| Others | ||
| Special Features | Extreme OC Kit - FlexKey button - LN2 Mode - ProbeIt - ReTry button - Safe boot button - Start button Extreme Engine Digi+ - 10K Black Metallic Capacitors - MicroFine Alloy Choke ASUS Q-Design - M.2 Q-Latch - M.2 Q-Release - M.2 Q-Slide - PCIe Q-Release Switch (with PCIe SafeSlot) - Q-Antenna - Q-Code - Q-Connector - Q-Dashboard - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - Q-DIMM.2 ASUS Thermal Solution - M.2 heatsink backplate - M.2 heatsink - Metal backplate - VRM heatsink design - 3D VC M.2 Heatsink - ROG Memory Q-Fan ASUS EZ DIY - Backplate - BIOS FlashBack™ button - Clear CMOS button - CPU Socket lever protector - ProCool II - Pre-mounted I/O shield - SafeSlot - SafeDIMM Aura Sync - Addressable Gen 2 headers Dual BIOS Full Color 5" LCD Display Front Panel USB 20Gbps with Quick Charge 4+ Support - Support: up to 60W fast charging and USB Wattage Watcher* - Output: 5/9/15/20V max. 3A, PPS:3.3–21V max. 3A - Compatible with PD3.0 and PPS |
|
| Bundled Software | ROG Exclusive Software - ROG CPU-Z - Dolby Atmos - LCD Display - Internet Security (1-year full version) ASUS Exclusive Software Armoury Crate - Aura Creator - Aura Sync - Fan Xpert 4 (with AI Cooling II) - GameFirst - WiFi Q-Antenna - MLO Wizard ASUS DriverHub - ASUS MB Manager - ASUS AI Advisor - AIDA64 Extreme (1 year full version) - HWiNFO - Turbo Vcore - ASUS GlideX - USB Wattage Watcher WinRAR (40 Days Free Trial) Adobe Creative Cloud (Free Trial) UEFI BIOS Integrated WiFi Driver Support AI Overclocking Guide AI Cache Boost ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode - ASUS MyHotkey |
|
| Warranty Information | ||
| Manufacturing Warranty | 3 Years Warranty | |

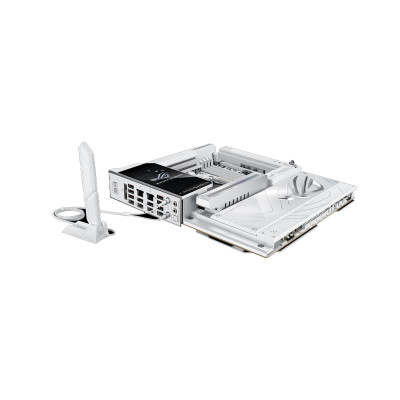

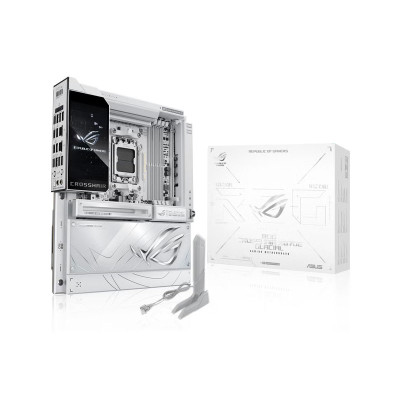

The ASUS ROG CROSSHAIR X870E GLACIAL AMD Wi-Fi 7 Motherboard is a flagship enthusiast motherboard built for extreme gaming, advanced overclocking, and next-generation PC builds. Designed with the powerful AMD X870E chipset and AM5 socket, it supports AMD Ryzen 9000, 8000, and 7000 Series desktop processors while delivering exceptional performance, cutting-edge connectivity, and premium cooling solutions. With PCIe 5.0 support, DDR5 memory speeds up to 8600+ MT/s, integrated Wi-Fi 7, dual 10Gb Ethernet, and a built-in 5-inch LCD display, this E-ATX motherboard is engineered for elite gamers, creators, and PC enthusiasts who want the ultimate AMD platform.
The ASUS ROG CROSSHAIR X870E GLACIAL is designed around the AMD AM5 platform and supports AMD Ryzen 9000, 8000, and 7000 Series desktop processors. Powered by the high-end AMD X870E chipset, the motherboard delivers exceptional processing performance, improved efficiency, and advanced connectivity options for gaming, streaming, and demanding productivity tasks. Its robust power delivery system combined with Extreme Engine Digi+ components, MicroFine alloy chokes, and 10K black metallic capacitors ensures stable CPU performance even during extreme overclocking scenarios.
This premium ROG motherboard supports up to 256GB of DDR5 memory across four DIMM slots, delivering outstanding multitasking performance and faster system responsiveness. Depending on the processor generation, the motherboard supports DDR5 speeds up to 8600+ MT/s with Ryzen 9000 processors and even higher memory frequencies with overclocking. Advanced technologies such as AMD EXPO memory profiles, ASUS Enhanced Memory Profile (AEMP), NitroPath DRAM technology, and DIMM Fit Pro ensure stable memory tuning and maximum performance. These features make the motherboard ideal for enthusiasts who want to push their system beyond standard limits.
The ASUS ROG CROSSHAIR X870E GLACIAL offers powerful expansion capabilities with two PCIe 5.0 x16 slots designed for modern high-end graphics cards. These slots support multiple configurations including x16, x8/x8, and advanced bandwidth modes, ensuring compatibility with next-generation GPUs and high-performance computing devices. Storage performance is equally impressive, with support for up to seven M.2 NVMe SSD slots and four SATA 6Gb/s ports. Several of the M.2 slots support PCIe 5.0 speeds, enabling lightning-fast data transfer rates that significantly reduce load times for games, applications, and large data files. The ROG Hyper M.2 expansion card and Q-DIMM.2 design allow additional storage devices while maintaining optimal cooling.
The motherboard features ASUS advanced thermal design to maintain stable performance under heavy workloads. Large VRM heatsinks, metal backplates, and specialized M.2 heatsinks ensure effective heat dissipation. The innovative 3D vapor chamber M.2 heatsink improves cooling for high-speed NVMe drives. Multiple fan headers, radiator fan connectors, and W_PUMP+ headers allow users to build powerful custom water-cooling or liquid-cooling setups. ASUS AI Cooling II and Fan Xpert 4 software further optimize cooling performance automatically.
The ASUS ROG CROSSHAIR X870E GLACIAL delivers cutting-edge networking with integrated Wi-Fi 7 technology powered by the MediaTek MT7927 module. It supports 2.4GHz, 5GHz, and 6GHz bands with 320MHz bandwidth for faster wireless speeds and reduced latency, making it ideal for competitive gaming and high-speed data transfers. For wired networking, the motherboard includes dual Realtek 10Gb Ethernet ports that provide extremely fast and stable network connections for gaming, professional workloads, and large file transfers.
This high-end ROG motherboard includes two USB4 ports with 40Gbps bandwidth, offering ultra-fast data transfer and versatile device connectivity. The rear I/O panel also includes twelve USB 10Gbps ports along with additional internal USB headers for expanded front-panel connectivity. Front USB Type-C ports support 20Gbps transfer speeds with Quick Charge 4+ and up to 60W power delivery, allowing fast charging for modern devices and high-speed external storage solutions.
For immersive sound quality, the ASUS ROG CROSSHAIR X870E GLACIAL features the ROG SupremeFX audio system powered by the ALC4082 codec and ESS ES9219 Quad DAC. This premium audio solution delivers crystal-clear sound with up to 120dB signal-to-noise ratio playback and 32-bit/384kHz audio support. Premium audio capacitors, SupremeFX shielding technology, and LED-illuminated audio jacks provide high-fidelity sound for gaming, music, and professional audio applications.
This motherboard is designed for serious overclockers and PC enthusiasts. The Extreme OC Kit includes tools such as LN2 Mode, Safe Boot button, ReTry button, ProbeIt measurement points, FlexKey controls, and onboard Start buttons. These features allow users to experiment with advanced overclocking techniques while maintaining system stability. Dual BIOS support, BIOS FlashBack, Clear CMOS button, and Q-Code diagnostics provide convenient troubleshooting and firmware management.
The ASUS ROG CROSSHAIR X870E GLACIAL features a distinctive enthusiast-grade design with Aura Sync RGB lighting and an integrated full-color 5-inch LCD display. The display can show system information, animations, or custom graphics, giving users an advanced level of system monitoring and personalization. ASUS Q-Design technologies such as PCIe Q-Release Switch, M.2 Q-Latch, Q-Connector, and pre-mounted I/O shield simplify the building process, making installation easier for enthusiasts and professional builders.
Potaka IT is a trusted destination for premium gaming hardware, PC components, and high-performance motherboards in Bangladesh. When you purchase the ASUS ROG CROSSHAIR X870E GLACIAL AMD Wi-Fi 7 Motherboard from Potaka IT, you receive a genuine ASUS product with reliable warranty support and competitive pricing. Potaka IT offers authentic technology products, expert guidance for PC builders, and excellent customer service. Whether you are building an advanced gaming PC, a professional workstation, or a custom water-cooled system, Potaka IT ensures you get the latest ROG hardware and dependable support for your high-performance setup.
The latest price of ASUS ROG CROSSHAIR X870E GLACIAL Motherboard in Bangladesh is 0৳. You can buy the ASUS ROG CROSSHAIR X870E GLACIAL Motherboard at best price from our website or visit any of our showrooms.
