| Basic Information | ||
| Supported CPU | AMD Socket AM5 for AMD Ryzen 9000 & 8000 & 7000 Series Desktop Processors | |
| Chipset | AMD X870 | |
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS | |
| Form Factor | ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) |
|
| Audio | ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080* - Impedance sense for front and rear headphone outputs - Supports: Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking - High quality 120 dB SNR stereo playback output and 110 dB SNR recording input - Supports up to 32-Bit/384 kHz playback on front panel" Audio Features - SupremeFX Shielding Technology - Savitech SV3H712 AMP - Rear optical S/PDIF out port - Premium audio capacitors - Audio cover |
|
| Expansion Slots | ||
| PCI | AMD Ryzen 9000 & 7000 Series Desktop Processors 1 x PCIe 5.0 x16 slot (supports x16 mode) AMD Ryzen™ 8000 Series Desktop Processors 1 x PCIe 4.0 x16 slot (supports x8/x4 mode) AMD X870 Chipset 1 x PCIe 4.0 x16 slot (supports x4 mode) |
|
| M.2 Socket | Supports 4 x M.2 slots AMD Ryzen 9000 & 7000 Series Desktop Processors M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode) AMD Ryzen 8000 Series Desktop Processors M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4/x2 mode) M.2_2 slot (Key M), type 2242/2260/2280/22110 (Not supports) AMD X870 Chipset M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) M.2_4 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) |
|
| Memory | ||
| Type | DDR5 | |
| Slots | 4 x DIMM | |
| Supported Memory | Supports up to 8000+MT/s(OC) with Ryzen 9000 & 8000 & 7000 Series Processors, ECC and Non-ECC, Un-buffered Memory Dual channel memory architecture Supports AMD Extended Profiles for Overclocking (EXPO) ASUS Enhanced Memory Profile (AEMP) |
|
| Maximum Memory | 192GB | |
| Graphics | ||
| Graphics | 1 x DisplayPort 1 x HDMI port 2 x USB4 (40Gbps) ports support USB Type-C display outputs * Please refer to AMD CPU specifications. Supports max. 8K@30Hz as specified in DisplayPort 1.4. Supports 4K@60Hz as specified in HDMI 2.1. Supports max. 4K@60Hz as specified in DisplayPort 1.4a VGA resolution support depends on processors' or graphic cards' resolution. |
|
| Connector & Ports | ||
| HDMI | 1x HDMI | |
| Internal I/O Ports | Fan and Cooling Related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 5 x 4-pin Chassis Fan headers Power Related 1 x 24-pin Main Power connector 2 x 8-pin +12V CPU Power connectors Storage Related 4 x M.2 slots (Key M) 2 x SATA 6Gb/s ports USB 1 x USB 20Gbps connector (supports USB Type-C®) 2 x USB 5Gbps headers support 4 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 1 x Alteration PCIe mode switch 1 x Chassis Intrusion header 1 x CPU Over voltage jumper 1 x Front Panel Audio header (F_AUDIO) 1 x Start button 1 x 10-1 pin System Panel header 1 x Thermal Sensor header |
|
| Display Port (s) | 1x DisplayPort | |

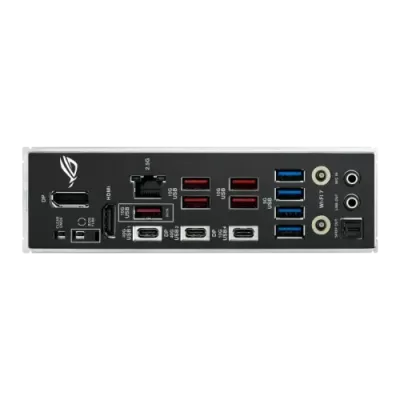

| USB (s) | Rear USB (Total 12 ports) 2 x USB4 (40Gbps) ports(2 x USB Type-C with DP Alt mode) 6 x USB 10Gbps ports (5 x Type-A + 1 x USB Type-C with up to 30W PD Fast-charge) 4 x USB 5Gbps ports (4 x Type-A) Front USB (Total 9 ports) 1 x USB 20Gbps connector (supports USB Type-C) 2 x USB 5Gbps headers support 4 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports USB Type-C power delivery output: max. 5V/3A USB Type-C power delivery output: 5V/9V max. 3A, 12V max 2.5A, 15V max. 2.0A |
|
| LAN Port (s) | 1 x Intel 2.5Gb Ethernet ASUS LANGuard |
|
| Supported Storage | Supports 4 x M.2 slots and 2 x SATA 6Gb/s ports AMD Ryzen™ 9000 & 7000 Series Desktop Processors M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode) AMD Ryzen™ 8000 Series Desktop Processors M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4/x2 mode) M.2_2 slot (Key M), type 2242/2260/2280/22110 (Not supports)**** AMD X870 Chipset M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) M.2_4 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) 2 x SATA 6Gb/s ports * AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/5/10 and SATA RAID 0/1. RAID 5 Function is only supported by AMD Ryzen™ 9000 series CPU. M.2_2 shares bandwidth with PCIEX16(G5). When M.2_2 is occupied with SSD device, PCIEX16(G5) will run x8 only. M.2_3 shares bandwidth with PCIEX16(G4). When M.2_3 is occupied with SSD device, PCIEX16(G4) will be disabled. M.2_2 will be disabled when using AMD Ryzen™ 8000 Series Desktop Processors. |
|
| Audio | ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080 - Impedance sense for front and rear headphone outputs - Supports: Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking - High quality 120 dB SNR stereo playback output and 110 dB SNR recording input - Supports up to 32-Bit/384 kHz playback on front panel" Audio Features - SupremeFX Shielding Technology - Savitech SV3H712 AMP - Rear optical S/PDIF out port - Premium audio capacitors - Audio cover |
|
| Wireless Communication module | Wi-Fi 7 2x2 Wi-Fi 7 (802.11be) Supports 2.4/5/6GHz frequency band Supports Wi-Fi 7 320MHz bandwidth, up to 6.5Gbps transfer rate. Bluetooth v5.4 |
|
| RAID | AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/5/10 and SATA RAID 0/1. RAID 5 Function is only supported by AMD Ryzen™ 9000 series CPU | |
| Others | ||
| Special Features | Extreme Engine Digi+ - 5K Black metallic capacitors ASUS Q-Design - M.2 Q-Latch - M.2 Q-Release - M.2 Q-Slide - PCIe Slot Q-Release Slim (with PCIe SafeSlot) - Q-Antenna - Q-DIMM - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - Q-Slot ASUS Thermal Solution - M.2 heatsink backplate - M.2 heatsink ASUS EZ DIY - BIOS FlashBack™ button - BIOS FlashBack™ LED - Clear CMOS button - ProCool II - Pre-mounted I/O shield - SafeSlot - SafeDIMM Aura Sync - Addressable Gen 2 headers |
|
| Bundled Software | ROG Exclusive Software - ROG CPU-Z - Dolby Atmos ASUS Exclusive Software Armoury Crate - AIDA64 Extreme (60 days free trial) - Aura Creator - Aura Sync - Fan Xpert 4 (with AI Cooling II) - GameFirst - HWiNFO - Power Saving ASUS Driver Hub ASUS GlideX USB Wattage Watcher TurboV Core Adobe Creative Cloud (Free Trial) Norton 360 for Gamers (60 Days Free Trial) WinRAR (40 Days Free Trial) UEFI BIOS AI Overclocking Guide ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode - ASUS MyHotkey Dynamic OC Switcher FlexKey |
|
| Warranty Information | ||
| Manufacturing Warranty | 3 Years | |
The Asus ROG STRIX X870-F GAMING WIFI DDR5 AMD AM5 ATX Motherboard is a powerhouse built for gamers, content creators, and PC enthusiasts in Bangladesh. With support for the latest AMD Ryzen 9000, 8000, and 7000 series processors, this high-performance motherboard delivers cutting-edge features, blazing-fast connectivity, and exceptional durability. Designed with the premium AMD X870 chipset, it ensures maximum compatibility, superior overclocking potential, and future-ready expansion options for high-end builds.
Equipped with AMD Socket AM5, this motherboard supports Ryzen 9000, 8000, and 7000 series desktop processors, making it ideal for demanding gaming and professional workloads. Whether you are building a high-FPS gaming rig or a powerful workstation, the ROG STRIX X870-F ensures seamless performance.
Featuring 4 DIMM slots with support for up to 192GB of DDR5 RAM and speeds up to 8000+ MT/s (OC), you can experience ultra-fast data transfer, smoother multitasking, and improved productivity. AMD EXPO and ASUS AEMP technologies make overclocking easier and more stable.
The motherboard supports PCIe 5.0 x16 for the latest graphics cards, ensuring maximum bandwidth for high-end GPUs. With four M.2 slots (including PCIe 5.0 support) and two SATA 6Gb/s ports, you get incredible storage speed and capacity for games, creative projects, and multimedia files.
Enjoy ultra-fast network performance with Intel 2.5Gb Ethernet and Wi-Fi 7 for lag-free online gaming and streaming. Bluetooth 5.4 ensures seamless connection with wireless peripherals. Rear I/O features dual USB4 ports, high-speed USB Type-C, and multiple USB 10Gbps and 5Gbps ports, giving you plenty of options for accessories and storage devices.
ROG SupremeFX 7.1 surround sound with premium audio capacitors delivers crystal-clear, studio-quality sound for gaming, streaming, and entertainment. With support for high-definition audio playback and recording, you can enjoy immersive game soundscapes or professional-grade audio production.
Equipped with multiple fan headers, AI Cooling II, and large heatsinks, this motherboard ensures stable operation even during intense gaming or overclocking. ASUS Q-Design features, such as M.2 Q-Latch and PCIe Q-Release, make installation and upgrades easier than ever.
With Armoury Crate, GameFirst, and AI Overclocking tools, you can optimize your system’s performance effortlessly. Aura Sync RGB lighting allows you to customize your PC’s look, syncing with other compatible components for stunning visual effects.
Potaka IT offers genuine Asus products in Bangladesh at competitive prices. When you buy from us, you get authentic hardware, expert advice, and reliable after-sales support. Whether you’re a gamer, content creator, or PC enthusiast, Potaka IT ensures you receive the best deals, fast delivery, and peace of mind with your purchase.
The latest price of Asus ROG STRIX X870-F GAMING WIFI DDR5 AMD AM5 ATX Motherboard in Bangladesh is 69,800৳. You can buy the Asus ROG STRIX X870-F GAMING WIFI DDR5 AMD AM5 ATX Motherboard at best price from our website or visit any of our showrooms.
