| Basic Information | ||
| Supported CPU | AMD Socket AM5 for AMD Ryzen 9000 & 8000 & 7000 Series Desktop Processors | |
| Chipset | AMD X870E | |
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS | |
| Form Factor | ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) |
|
| Audio | Realtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC* - Impedance sense for front and rear headphone outputs - Internal audio Amplifier to enhance the highest quality sound for headphones and speakers - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in) - Supports up to 32-bit/192 kHz playback* Audio Features - SupremeFX Shielding Technology - Savitech SV3H712 AMP - Rear optical S/PDIF out port - Premium audio capacitors - Audio cover |
|
| Memory | ||
| Type | DDR5 | |
| Slots | 4 x DIMM slots | |
| Supported Memory | Max. 256GB | |
| Maximum Memory | Supports up to 8000+MT/s(OC) with Ryzen 9000 & 8000 & 7000 Series Processors Dual-channel memory architecture Supports AMD Extended Profiles for Overclocking (EXPO) Supports DIMM Fit / DIMM Fit Pro ASUS Enhanced Memory Profile (AEMP) |
|
| Connector & Ports | ||
| Internal I/O Ports | Fan and Cooling Related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 5 x 4-pin Chassis Fan headers Power Related 1 x 24-pin Main Power connector 2 x 8-pin +12V CPU Power connector Storage Related 4 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 20Gbps connector (supports USB Type-C) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports Miscellaneous 3 x Addressable RGB Gen 2 headers 1 x Chassis Intrusion header 1 x CPU Overvoltage jumper 1 x Front Panel Audio header (F_AUDIO) 1 x Start button 1 x 10-1 pin Front Panel System header 1 x Thermal Sensor header |
|

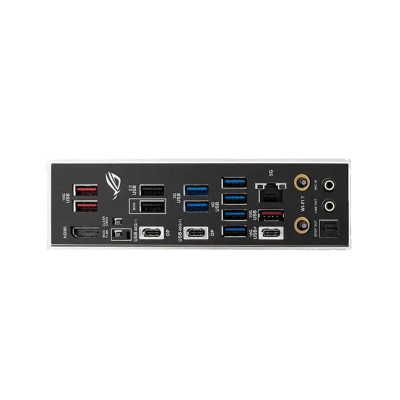

| USB (s) | Rear USB (Total 14 ports) 2 x USB4 (40Gbps) ports (2 x USB Type-C) 4 x USB 10Gbps ports (3 x Type-A + 1 x USB Type-C with up to 30W PD/PPS Fast-charge)** 6 x USB 5Gbps ports (6 x Type-A) 2 x USB 2.0 ports (2 x Type-A) Front USB (Total 7 ports) 1 x USB 20Gbps connector (supports USB Type-C) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports |
|
| LAN Port (s) | 1 x Realtek 5Gb Ethernet ASUS LANGuard |
|
| Supported Storage | Supports 4 x M.2 slots and 4 x SATA 6Gb/s ports AMD Ryzen 9000 & 7000 Series Desktop Processors M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) M.2_2 slot (Key M), type 2280/22110 (supports PCIe 5.0 x4 mode)* AMD Ryzen 8000 Series Desktop Processors* M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4/x2 mode) M.2_2 slot (Key M), type 2280/22110 (Not supports)** AMD X870E Chipset M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) M.2_4 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) 4 x SATA 6Gb/s ports |
|
| Wireless Communication module | Wi-Fi 7 (Realtek RTL8922AE) 2x2 Wi-Fi 7* (802.11be) Supports 2.4/5/6GHz frequency band** Supports Wi-Fi 7 160MHz bandwidth Bluetooth v5.4*** *Wi-Fi features may vary depending on the operating system For, Windows 11, Wi-Fi 7 will require 24H2 or later version for full functions, Windows 11 21H2/22H2/23H2 only supports Wi-Fi 6E. For, Windows 10, only Wi-Fi 6 is supported. |
|
| Others | ||
| Special Features | Extreme Engine Digi+ - 5K Black metallic capacitors ASUS Q-Design - M.2 Q-Latch - M.2 Q-Release - PCIe Slot Q-Release - Q-Antenna - Q-Dashboard - Q-DIMM - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - Q-Slot ASUS Thermal Solution - M.2 heatsink - VRM heatsink design ASUS EZ DIY - BIOS FlashBack button - BIOS FlashBack LED - Clear CMOS button - ProCool II - Pre-mounted I/O shield - SafeSlot - SafeDIMM Aura Sync -Addressable RGB Gen 2 headers |
|
| Warranty Information | ||
| Manufacturing Warranty | 3-Year Brand Warranty (Condition applied) | |

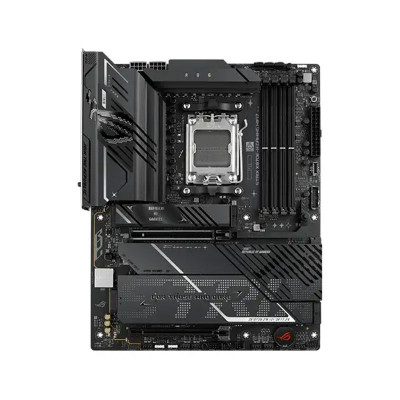

The ASUS ROG STRIX X870E-H GAMING WiFi-7 Ryzen AM5 ATX Gaming Motherboard is built for gamers and PC enthusiasts who want cutting-edge performance, future-ready connectivity, and premium build quality. Powered by the AMD X870E chipset and designed for Ryzen 9000, 8000, and 7000 series processors, this motherboard delivers extreme speed, stability, and next-generation features for high-end gaming and productivity builds.
Designed for AMD Socket AM5, the ASUS ROG STRIX X870E-H supports the latest Ryzen desktop processors, unlocking powerful multi-core performance and improved efficiency. The robust power design with dual 8-pin CPU connectors ensures stable overclocking and reliable performance for demanding workloads, gaming, and streaming.
This ROG STRIX motherboard features four DDR5 DIMM slots supporting up to 256GB of memory and speeds exceeding 8000MT/s when overclocked. With support for AMD EXPO, ASUS AEMP, and advanced memory tuning technologies, users can enjoy faster load times, smoother gameplay, and optimized system responsiveness.
The ASUS ROG STRIX X870E-H offers four M.2 slots, including PCIe 5.0 support for ultra-fast NVMe SSDs on compatible Ryzen processors. Combined with four SATA 6Gb/s ports, this motherboard provides flexible and high-speed storage options for gaming libraries, creative projects, and professional workflows.
Experience blazing-fast networking with integrated Wi-Fi 7, Bluetooth 5.4, and Realtek 5Gb Ethernet with ASUS LANGuard for stable and secure connections. With dual USB4 Type-C ports delivering up to 40Gbps, along with multiple high-speed USB ports and fast charging support, this motherboard is ready for modern peripherals and future devices.
The built-in SupremeFX audio solution with Realtek ALC1220P codec, Savitech amplifier, and premium capacitors delivers crystal-clear sound with high signal-to-noise ratios. Whether using headphones or speakers, gamers enjoy immersive 7.1 surround sound for competitive and cinematic experiences.
ASUS thermal solutions include VRM and M.2 heatsinks to maintain optimal temperatures under heavy loads. With EZ DIY features like BIOS FlashBack, Clear CMOS, M.2 Q-Latch, and pre-mounted I/O shield, building and upgrading is simple. Aura Sync and addressable RGB Gen 2 headers allow full customization to match your gaming setup.
Potaka IT offers 100% genuine ASUS ROG products, competitive pricing, and reliable after-sales support. Buying from Potaka IT ensures expert guidance, authentic hardware, and confidence when building or upgrading your high-performance gaming PC. This motherboard stands out with AMD X870E chipset support, PCIe 5.0 storage, DDR5 memory up to 8000+MT/s, Wi-Fi 7 connectivity, USB4 ports, SupremeFX audio, advanced cooling, and premium ROG build quality.
The latest price of ASUS ROG STRIX X870E-H WiFi-7 Ryzen AM5 Gaming Motherboard in Bangladesh is 72,500৳. You can buy the ASUS ROG STRIX X870E-H WiFi-7 Ryzen AM5 Gaming Motherboard at best price from our website or visit any of our showrooms.
