| Basic Information | ||
| Supported CPU | Intel Core Ultra Processors(Series 2) | |
| Chipset | Intel Z890 Chipset |
|
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS | |
| Form Factor | ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) |
|
| Audio | ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080* - Impedance sense for front and rear headphone outputs - Supports: Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking - High quality 120 dB SNR stereo playback output and 110 dB SNR recording input - Supports up to 32-Bit/384 kHz playback Audio Features - Audio Shielding - Savitech SV3H712 AMP - Gold-plated audio jacks - Rear optical S/PDIF outport - Premium audio capacitors - Audio cover |
|
| Expansion Slots | ||
| PCI | Intel® Core™ Ultra Processors(Series 2)* 1 x PCIe 5.0 x16 slot (supports x16 or x8/x4/x4 modes) Intel® Z890 Chipset 1 x PCIe 4.0 x16 slot (supports x4 mode) * Please check PCIe bifurcation table in support site |
|
| M.2 Socket | Supports 5 x M.2 M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode) M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) Intel® Z890 Chipset M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) M.2_4 slot (Key M), type 2280/22110 (supports PCIe 4.0 x4 mode) M.2_5 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes) |
|
| Memory | ||
| Type | DDR5 | |
| Slots | 4 x DIMM slots | |
| Supported Memory | Support up to 8600+MT/s (OC), Non-ECC, Clocked Unbuffered DIMM (CUDIMM) | |
| Maximum Memory | 192GB | |
| Graphics | ||
| Graphics | 1 x DisplayPort 1 x HDMI port 2 x Intel Thunderbolt™ 4 support DisplayPort and Thunderbolt™ video outputs * Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates. Supports max. 8K@60Hz as specified in DisplayPort 1.4. Supports 4K@60Hz as specified in HDMI 2.1. In ThunderboltTM 4 mode, supports up to 8K@60Hz x1 with DSC or 4K@60Hz x 2, maximum total bandwidth up to 23.8Gbps or 16Gbps/16Gbps, for resolution support please check DisplayPort 2.1 specs. In DP alt mode, Only one USB Type-C® port supports up to UHBR20 at a time. VGA resolution support depends on processors' or graphic cards' resolution. While installing the operating system, please ensure that your monitor is connected to the HDMI port on the back I/O panel or to a discrete graphics card. |
|
| Connector & Ports | ||
| HDMI | 1 x HDMI | |
| Internal I/O Ports | Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 5 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 2 x 8-pin +12V CPU Power connectors Storage related 5 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 20Gbps connector (supports USB Type-C®) 2 x USB 5Gbps headers support additional 4 USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports Miscellaneous 3 x Addressable Gen2 headers 1 x Chassis Intrusion header 1 x CPU Over voltage jumper 1 x Front Panel Audio header (F_AUDIO) 1 x Start button 1 x 10-1 pin Front System Panel header 1 x Thermal Sensor header 1 x Thunderbolt™ (USB4®) header Back Panel I/O Ports 2 x Thunderbolt™ 4 (2 x USB Type-C®) 6 x USB 10Gbps ports (4 x Type-A + 1 x USB Type-C® + 1 x USB Type-C® with up to 30W PD Fast-charge)** 4 x USB 5Gbps ports (4 x Type-A) 2 x USB 2.0 ports (2 x Type-A) 1 x DisplayPort 1 x HDMI™ port 1 x Wi-Fi module 1 x Intel® 2.5Gb Ethernet port 2 x Gold-plated audio jacks 1 x Optical S/PDIF out port 1 x BIOS FlashBack™ button 1 x Clear CMOS button |
|
| Display Port (s) | 1 x DisplayPort 2 x Intel Thunderbolt 4 support DisplayPort and Thunderbolt video outputs |
|

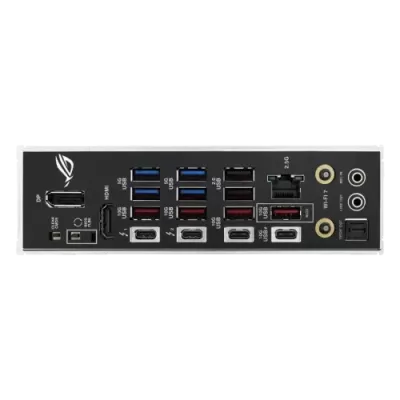

| USB (s) | Rear USB (Total 14 ports) 2 x Thunderbolt™ 4 (2 x USB Type-C®) 6 x USB 10Gbps ports (4 x Type-A + 1 x USB Type-C®* + 1 x USB Type-C® with up to 30W PD Fast-charge)** 4 x USB 5Gbps ports (4 x Type-A) 2 x USB 2.0 ports Front USB (Total 9 ports) 1 x USB 20Gbps connector (1 x USB Type-C®) 2 x USB 5Gbps headers support 4 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports * USB Type-C® power delivery output: 5V/3A ** USB Type-C® power delivery output: 5V/9V max. 3A, 12V max 2.5A, 15V max. 2A. |
|
| LAN Port (s) | 1 x Intel 2.5Gb Ethernet ASUS LANGuard |
|
| Supported Storage | 5 x M.2 slots (Key M) 4 x SATA 6Gb/s ports |
|
| Audio | 2 x Gold-plated audio jacks | |
| Wireless Communication module | Wi-Fi 7 2x2 Wi-Fi 7 (802.11be) Supports 2.4/5/6GHz frequency band Support Wi-Fi 7 320MHz bandwidth, up to 5.8Gbps transfer rate. Bluetooth v5.4 |
|
| RAID | Intel Rapid Storage Technology supports PCIe RAID 0/1/5, SATA RAID 0/1/5/10, M.2 slot from CPU only support RAID 0/1/5. | |
| Others | ||
| Special Features | Extreme Engine Digi+ - 5K Black Metallic Capacitors ASUS Q-Design - M.2 Q-Latch - M.2 Q-Release - M.2 Q-Slide - PCIe Slot Q-Release Slim (with PCIe SafeSlot) - Q-Antenna - Q-Code - Q-Dashboard - Q-DIMM - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - Q-Slot ASUS Thermal Solution - M.2 heatsinks - M.2 heatsink backplate - VRM heatsink design ASUS EZ DIY - BIOS FlashBack™ button - BIOS FlashBack™ LED - Clear CMOS button - ProCool II - Pre-mounted I/O shield - SafeSlot - SafeDIMM Aura Sync - Addressable Gen2 headers |
|
| Bundled Software | ROG Exclusive Software - ROG CPU-Z - Dolby Atmos ASUS Exclusive Software Armoury Crate - AIDA64 Extreme (60 days free trial) - Aura Creator - Aura Sync - Fan Xpert 4 (with AI Cooling II) - GameFirst - HWiNFO - Power Saving ASUS Driver Hub ASUS GlideX TurboV Core USB Wattage Watcher Adobe Creative Cloud (Free Trial) Norton 360 for Gamers (60 Days Free Trial) WinRAR (40 Days Free Trial) UEFI BIOS AI Overclocking Guide ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash - ASUS UEFI BIOS EZ Mode - ASUS MyHotkey NPU Boost FlexKey |
|
| Warranty Information | ||
| Manufacturing Warranty | 3 Year Warranty | |

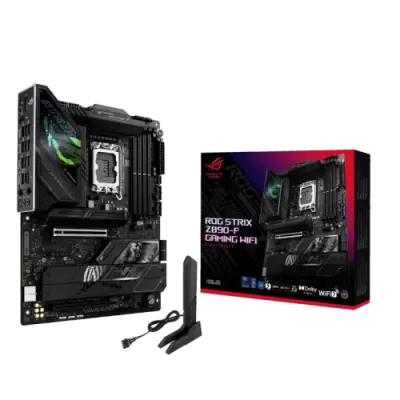

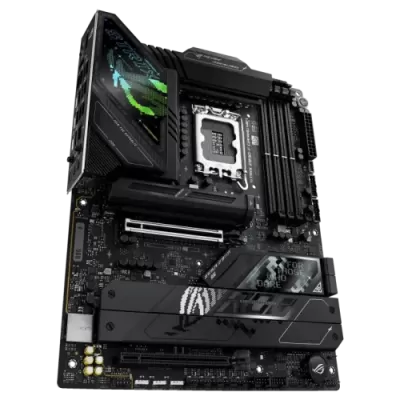

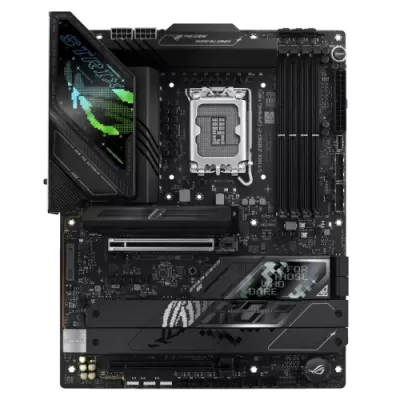

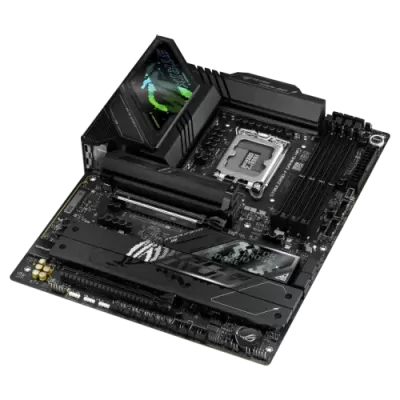

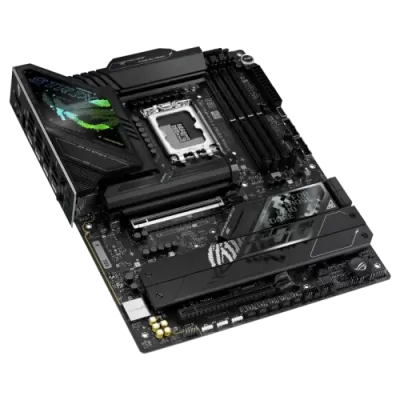

The ASUS ROG STRIX Z890-F GAMING WIFI LGA 1851 DDR5 ATX Motherboard is a high-performance motherboard designed for Intel Core Ultra Series 2 desktop processors. Featuring the Intel Z890 chipset, DDR5 memory support, PCIe 5.0 graphics connectivity, five M.2 storage slots, Wi-Fi 7, Bluetooth 5.4 and dual Thunderbolt 4 ports, it provides a powerful foundation for premium gaming PCs, professional workstations and high-performance desktop builds. If you are looking for an ASUS ROG Strix Z890 motherboard price in Bangladesh, this model offers advanced connectivity, flexible storage expansion and modern platform features for demanding computing needs. Explore the motherboard collection at Potaka IT to compare compatible options for your next PC build.
This ASUS ROG STRIX motherboard uses the Intel Z890 chipset and LGA 1851 socket for compatible Intel Core Ultra Series 2 desktop processors. It is suitable for users building a modern gaming system or a productivity-focused PC with advanced connectivity and expansion capabilities. Before purchasing, check the processor compatibility list and BIOS requirements to ensure your chosen CPU works with the motherboard.
With four DDR5 DIMM slots and support for high-speed memory overclocking, the ROG STRIX Z890-F GAMING WIFI is built for demanding applications. Faster compatible memory can help improve system responsiveness, multitasking and performance in memory-sensitive workloads. Actual memory speed depends on the CPU, installed modules, BIOS configuration and supported memory profile. Check ASUS's official memory compatibility list before selecting a RAM kit.
The motherboard provides five M.2 slots, including one PCIe 5.0 x4 slot for compatible next-generation NVMe SSDs. The remaining M.2 slots support PCIe 4.0, with the fifth slot also supporting SATA-mode M.2 drives. Four SATA 6Gb/s ports provide additional options for traditional SATA SSDs and hard drives. This storage flexibility is useful for large game libraries, creative projects, software development and demanding file-management workloads.
Built-in Wi-Fi 7 supports compatible wireless networks across the 2.4GHz, 5GHz and 6GHz bands, while Bluetooth 5.4 enables connections to compatible wireless peripherals. Intel 2.5Gb Ethernet offers a faster wired networking option than standard Gigabit Ethernet when the network infrastructure supports it. These features make the motherboard suitable for online gaming, large file transfers, streaming and wireless desktop setups. Wi-Fi 7 capabilities depend on regional regulations, operating system support and compatible networking equipment.
Two rear Thunderbolt 4 USB Type-C ports support high-speed data connectivity and compatible display connections. The rear panel also includes USB 10Gbps, USB 5Gbps and USB 2.0 ports, plus a USB Type-C connection with up to 30W power delivery. This extensive connectivity helps users connect external SSDs, compatible docks, accessories and other peripherals without relying entirely on additional expansion cards.
The integrated ROG SupremeFX ALC4080 audio solution, Savitech amplifier and audio shielding are designed to provide high-quality sound for gaming, music and multimedia. Dedicated CPU, AIO pump and chassis fan headers support flexible cooling configurations. M.2 heatsinks and VRM heatsinks help manage component temperatures, while ASUS Fan Xpert 4 provides fan-control features through supported software.
Before buying this ASUS Z890 motherboard in Bangladesh, confirm that your processor uses the LGA 1851 socket and belongs to a supported Intel Core Ultra desktop processor family. This board requires DDR5 memory; older DDR4 modules are not compatible. Check the memory capacity and speed listed by ASUS for your exact CPU and RAM configuration.
| Name | Details |
|---|---|
| Brand | ASUS |
| Series | ROG STRIX |
| Model | ROG STRIX Z890-F GAMING WIFI |
| Product Type | Gaming Motherboard |
| Supported CPU | Intel Core Ultra Processors (Series 2), LGA 1851 |
| Chipset | Intel Z890 |
| BIOS | 256Mb Flash ROM, UEFI AMI BIOS |
| Form Factor | ATX |
| Dimensions | 30.5 x 24.4 cm (12 x 9.6 inches) |
| Memory Type | DDR5 |
| Memory Slots | 4 x DIMM, Dual Channel |
| Maximum Memory | Up to 256GB, according to the official global specification |
| Memory Speed | Up to 9066+ MT/s (OC), depending on configuration |
| Memory Support | Non-ECC, Unbuffered DIMM, CUDIMM support; XMP support |
| PCIe Expansion | 1 x PCIe 5.0 x16 slot; 1 x PCIe 4.0 x16 slot operating at up to x4 |
| M.2 Slots | 5 x M.2; 1 x PCIe 5.0 x4 and 4 x PCIe 4.0-based slots, with interface support varying by slot |
| SATA Ports | 4 x SATA 6Gb/s |
| RAID Support | PCIe RAID 0/1/5; SATA RAID 0/1/5/10, subject to supported configurations |
| Graphics Outputs | 1 x HDMI 2.1, 1 x DisplayPort 1.4, 2 x Thunderbolt 4 with display support |
| USB Connectivity | 2 x Thunderbolt 4 Type-C; 6 x USB 10Gbps; 4 x USB 5Gbps; 2 x USB 2.0 on rear panel |
| Front USB Support | 1 x USB 20Gbps Type-C connector; 2 x USB 5Gbps headers; 2 x USB 2.0 headers |
| LAN | Intel 2.5Gb Ethernet, ASUS LANGuard |
| Wireless | Wi-Fi 7, 2x2, 2.4GHz/5GHz/6GHz bands |
| Bluetooth | Bluetooth 5.4 |
| Audio | ROG SupremeFX ALC4080, Savitech SV3H712 amplifier, optical S/PDIF output |
| Cooling Headers | 1 x CPU Fan, 1 x CPU OPT, 1 x AIO Pump, 5 x Chassis Fan |
| RGB Support | 3 x Addressable Gen 2 RGB headers, Aura Sync |
| Special Features | BIOS FlashBack, Clear CMOS, Q-Design, M.2 heatsinks, SafeSlot, NPU Boost, FlexKey |
| Bundled Software | Armoury Crate, Aura Sync, Fan Xpert 4, ROG CPU-Z and other supported ASUS utilities |
| Warranty | 3 Years, as provided in the supplied product information; confirm local warranty terms with the seller |
The price in Bangladesh can vary depending on stock, import costs and seller warranty coverage. Check the current listing at Potaka IT for the latest price and availability before purchasing.
This motherboard uses the Intel LGA 1851 socket and supports compatible Intel Core Ultra Series 2 desktop processors. Check the official ASUS CPU support list for your exact processor model and any BIOS requirements.
No. The motherboard supports DDR5 memory and has four DDR5 DIMM slots. DDR4 memory modules are physically and electrically incompatible with this board.
The official global ASUS specification lists a maximum capacity of 256GB. Supported capacity and memory speeds depend on the processor, BIOS version and installed memory configuration.
The supplied product information states a three-year manufacturing warranty. Confirm the warranty provider, coverage conditions and service arrangements in Bangladesh with the seller before purchasing.
The latest price of ASUS ROG STRIX Z890-F GAMING WIFI DDR5 ATX Motherboard in Bangladesh is 68,700৳. You can buy the ASUS ROG STRIX Z890-F GAMING WIFI DDR5 ATX Motherboard at best price from our website or visit any of our showrooms.
