| Key Features | ||
| Continuous Power | 1600W | |
| Efficiency (Approx.) | 80Plus Titanium | |
| Fan Size | 135mm Cooling Fan | |

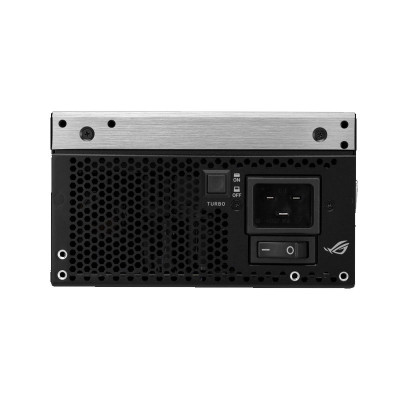

| Others | Intel Form Factor: ATX12V Protection Features: OPP/OVP/UVP/SCP/OCP/OTP Hazardous Materials; ROHS AURA SYNC: Yes MTBF: >120,000 hrs @ 25°C 0dB Fan Button: Yes. When the Button is ON, the fan will only spin up when the system reaches a certain load. When the Button is OFF, the fan will continuously spin at all load levels. |
|
| Output | ||
| Total Power | 1600W | |
| Modular Type | Full Modular | |
| AC Input | 100–240V | |
| DC Output | +3.3V +5V +12V -12V +5Vsb | |

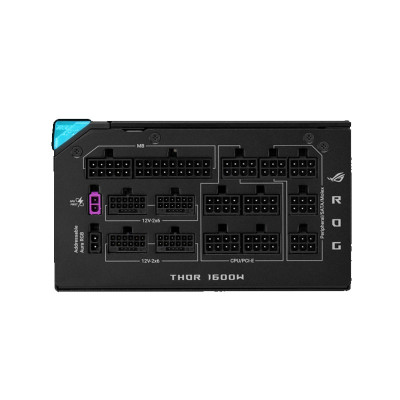

| Connector | ||
| CPU | 4+4-pin x 3 | |
| PCI-E | PCI-E 6+2-pin x 3 PCI-E 16-pin x 2 (12V-2x6/ROG EQUALIZER) |
|
| SATA | x 9 | |
| Molex | MB 24/20-pin x 1 | |
| Floppy | 1 x Floppy Connector (via Adapter) | |
| Main Power | PERIPHERAL x 3 | |
| Package Contents | Power Cord x 1 Motherboard Power Cable x 1 (610mm) CPU Cable x 3 (1000mm) ROG EQUALIZER 12V-2x6 PCI-E Cable with GPU-First x1 (750mm) ROG EQUALIZER 12V-2x6 PCI-E Cable x1 (750mm) PCI-E Cable 1-to-1 x 3 (750mm) SATA Cable 1-to-3 x 3 (400+120+120mm) Peripheral 1-to-3 x 1 (400+150+150mm) Addressable RGB Cable x 1 (800mm) ROG OLED stand x 1 ROG sticker x 1 ROG cable tie x 6 Chassis Screws Package x 1 Cable Tie x 12 User Manual x 1 |
|
| Input | ||
| Voltage | 100–240V AC | |
| Frequency Range | 50–60Hz | |
| Current | Maximum Load 30A 25A 133.3A 0.3A 3A Combined Load: 125W 125W 1600W 3.6W 15W |
|
| Physical Dimension | ||
| Dimensions | 190 x 150 x 86 mm | |
| Weight | 2.5 kg (single PSU) | |
| Color | Black | |
| Warranty Information | ||
| Manufacturing Warranty | 10 Years | |
The latest price of ASUS ROG Thor 1600W Titanium III EVO Power Supply in Bangladesh is 135,000৳. You can buy the ASUS ROG Thor 1600W Titanium III EVO Power Supply at best price from our website or visit any of our showrooms.
