| Basic Information | ||
| Supported CPU | AMD Ryzen 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series Desktop Processors | |
| Chipset | A520 | |
| BIOS | 128 Mb Flash ROM, UEFI AMI BIOS | |
| Form Factor | microATX 24.4cm x 24.4cm |
|
| Audio | Realtek ALC887/897 7.1 Surround Sound High Definition Audio CODEC* - Supports: Jack detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback" Audio Features - Audio Shielding - Premium Japanese audio capacitors - Dedicated audio PCB layers *A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output. |
|
| Expansion Slots | ||
| PCI | AMD Ryzen 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series Desktop Processors 1 x PCIe 3.0 x16 slot (supports x16 mode) AMD A520 Chipset 2 x PCIe 3.0 x1 slots |
|
| Memory | ||
| Type | DDR4 | |
| Slots | 4 x DIMM | |
| Supported Memory | 4866(OC)/ 4800(OC)/ 4600(OC)/ 4466(OC)/ 4400(OC)/ 4266(OC)/ 4133(OC)/ 4000(OC)/ 3866(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3333(OC)/ 3200/ 3000/ 2800/ 2666/ 2400/ 2133 MHz, Un-buffered Memory Dual Channel Memory Architecture |
|
| Maximum Memory | 128GB | |
| Graphics | ||
| Graphics | 1 x DisplayPort 1.2 1 x HDMI 2.1(4K@60Hz) 1 x D-Sub |
|
| Connector & Ports | ||
| HDMI | 1 x HDMI port | |
| Internal I/O Ports | Fan and cooling related 1 x 4-pin CPU Fan header 2 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector Storage related 1 x M.2 slot (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports Miscellaneous 2 x AURA Addressable Gen 2 header 2 x AURA RGB headers 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x S/PDIF Out header 1 x Speaker header 1 x 10-1 pin System Panel header |
|
| Display Port (s) | 1 x DisplayPort | |
| USB (s) | 4 x USB 3.2 Gen 1 ports (4 x Type-A) 2 x USB 2.0 ports (2 x Type-A) Front USB:Total 6 ports 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 3 USB 2.0 ports |
|
| LAN Port (s) | 1 x Realtek 1Gb Ethernet TUF LANGuard |
|
| Supported Storage | AMD Ryzen 5000 Series/ 4000 G-Series/ 3000 Series Desktop Processors M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes) AMD A520 Chipset: 4 x SATA 6Gb/s ports Support RAID 0, 1, 10 |
|
| Audio | 3 x Audio jacks | |
| D-Sub (s) | 1 x D-Sub | |
| TPM (Trusted Platform Module ) | 1 x SPI TPM header (14-1pin) | |
| Others | ||
| Special Features | ASUS TUF PROTECTION - DIGI+ VRM - ESD Guards - TUF LANGuard - Overvoltage Protection - SafeSlot Core+ - ASUS Stainless-Steel Back I/O ASUS Q-Design - Q-DIMM - Q-Slot ASUS Thermal Solution - VRM heatsink design ASUS EZ DIY - BIOS FlashBack button - BIOS FlashBack LED AURA Sync - AURA RGB headers - Addressable Gen 2 RGB headers |
|
| Bundled Software | ASUS Exclusive Software Armoury Crate - Aura Creator - Aura Sync AI Suite 3 - Performance And Power Saving Utility TurboV EVO EPU DIGI+ VRM Fan Xpert 2+ - EZ update - PC Cleaner - System Information TUF GAMING CPU-Z AI Charger ASUS Turbo LAN DAEMON Tools Norton Anti-virus software (Free Trial version) WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode |
|
| Warranty Information | ||
| Manufacturing Warranty | 3 Years | |

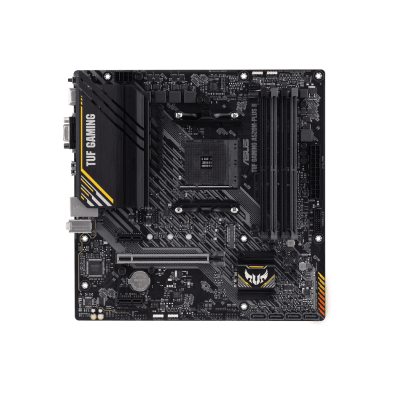

The Asus TUF GAMING A520M-PLUS II AMD AM4 microATX Motherboard is designed for serious PC builders looking for durability, stability, and performance on a budget. Powered by the AMD A520 chipset, this motherboard supports AMD Ryzen 5000, 4000 G-Series, and 3000 Series desktop processors. With military-grade components, comprehensive cooling, and advanced power solutions, this microATX motherboard is built to handle extended gaming sessions and productivity tasks alike. Ideal for gamers and content creators in Bangladesh, it combines performance with long-term reliability.
This motherboard supports AMD Ryzen 5000 Series, 5000 G-Series, 4000 G-Series, and 3000 Series processors, ensuring compatibility with high-performance CPUs for gaming and multitasking.
With support for up to 128GB DDR4 RAM and overclocked speeds up to 4866 MHz, this board delivers fast, smooth performance for all your demanding applications.
Experience premium sound with Realtek ALC887/897 7.1 Surround Sound and Japanese audio capacitors, ideal for immersive gaming and media experiences.
Integrated DisplayPort 1.2, HDMI 2.1, and D-Sub ports support multi-monitor setups and high-definition visuals, including 4K at 60Hz via HDMI.
Equipped with 1 x M.2 slot and 4 x SATA 6Gb/s ports, it supports both PCIe 3.0 x4 and SATA modes, with RAID 0, 1, and 10 configurations for fast and secure storage solutions.
The board includes multiple USB 3.2 Gen 1 and USB 2.0 ports along with Realtek 1Gb Ethernet and TUF LANGuard for high-speed and stable connections.
Features like ESD Guards, SafeSlot Core+, Stainless-Steel Back I/O, and Overvoltage Protection provide robust protection and enhanced durability.
With AURA RGB and Addressable Gen 2 RGB headers, users can personalize their rig’s lighting to match their style or setup theme.
Enjoy easy setup and maintenance with features like Q-DIMM, Q-Slot, BIOS FlashBack, and EZ Flash 3, perfect for DIY PC builders.
If you're looking for a durable, performance-packed AMD motherboard in Bangladesh, Potaka IT is your trusted source. With competitive pricing, authentic products, and excellent after-sales service, we make it easy to upgrade your system with the Asus TUF GAMING A520M-PLUS II. Enjoy the power of ASUS, backed by a 3-year warranty, right here at Potaka IT.
The latest price of Asus TUF GAMING A520M-PLUS II Motherboard in Bangladesh is 12,300৳. You can buy the Asus TUF GAMING A520M-PLUS II Motherboard at best price from our website or visit any of our showrooms.
