| Basic Information | ||
| Supported CPU | Support for 12th/ 13th/ 14th Generation Intel Core i9/ i7/ i5/ i3 processors and Intel Pentium processors/ Intel Celeron processors in the LGA1700 package L3 cache varies with CPU |
|
| Chipset | Intel H610 Express Chipset | |
| BIOS | 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
|
| Form Factor | Micro ATX Form Factor; 23.0cm x 21.5cm | |
| Audio | Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1-channel You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings. |
|
| Expansion Slots | ||
| PCI | 1 x PCI Express x16 slot, running at x16 * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. (The PCI Express x16 slot conforms to PCI Express 4.0 standard.) 1 x PCI Express x1 slot (The PCI Express x1 slot conforms to PCI Express 3.0 standard.) |
|
| Memory | ||
| Type | DDR4 | |
| Slots | 2 x DDR DIMM sockets | |
| Supported Memory | Support for DDR4 3200/3000/2933/2666/2400/2133 MT/s memory modules Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules |
|
| Maximum Memory | supporting up to 64 GB (32 GB single DIMM capacity) of system memory | |
| Graphics | ||
| Graphics | Integrated Graphics Processor-Intel® HD Graphics support: 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz * The DVI-D port does not support D-Sub connection by adapter. 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.1 version and HDCP 2.3. ** Support native HDMI 2.1 TMDS compatible ports 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz * Support for DisplayPort 1.2 version and HDCP 2.3 (Graphics specifications may vary depending on CPU support.) |
|
| Connector & Ports | ||
| HDMI | 1 x HDMI port | |
| Internal I/O Ports | Internal I/O Connectors 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x M.2 Socket 3 connector 4 x SATA 6Gb/s connectors 1 x CPU fan header 2 x system fan headers 1 x RGB LED strip header 1 x front panel header 1 x front panel audio header 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x serial port header 1 x Clear CMOS jumper Back Panel Connectors 1 x PS/2 keyboard port 1 x PS/2 mouse port 1 x D-Sub port 1 x DVI-D port 1 x DisplayPort 1 x HDMI 2.0 port 2 x USB 3.2 Gen 1 ports 4 x USB 2.0/1.1 ports 1 x RJ-45 port 3 x audio jacks |
|
| Display Port (s) | 1 x DisplayPort | |
| USB (s) | Chipset: 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header) 4 x USB 2.0/1.1 ports on the back panel Chipset+USB 2.0 Hub: 4 x USB 2.0/1.1 ports available through the internal USB headers |
|
| LAN Port (s) | Intel GbE LAN chip (1 Gbps/100 Mbps) | |
| Supported Storage | 1 x M.2 connector (Socket 3, M key, type 2260/2280 PCIe 3.0 x4/x2 SSD support) 4 x SATA 6Gb/s connectors |
|
| Audio | 3 x audio jacks | |
| D-Sub (s) | 1 x D-Sub port | |
| DVI-D (s) | 1 x DVI-D port | |
| TPM (Trusted Platform Module ) | 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) | |
| Others | ||
| Special Features | Support for APP Center * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. @BIOS Ambient LED EasyTune Smart Backup System Information Viewer Support for Q-Flash Support for Xpress Install |
|
| Bundled Software | Norton Internet Security (OEM version) LAN bandwidth management software |
|
| Warranty Information | ||
| Manufacturing Warranty | 3 years | |

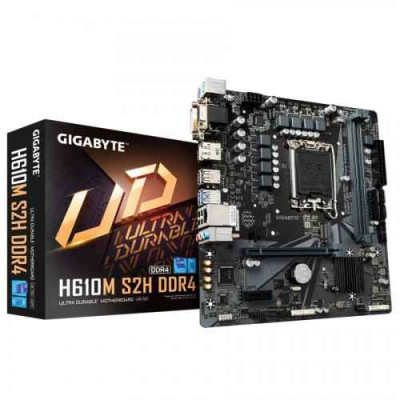

The Gigabyte H610M S2H DDR4 is a powerful and reliable micro ATX motherboard designed for users seeking a solid platform for 12th, 13th, and 14th Gen Intel processors. Built with the Intel H610 Express Chipset, it delivers top-notch performance, broad connectivity options, and superior durability, making it an excellent choice for everyday computing, gaming, or professional use. Whether you're building a new PC or upgrading, this motherboard offers a perfect balance of power, compatibility, and value for money.
Supports Intel 12th, 13th, and 14th Gen Core i9, i7, i5, i3, Pentium, and Celeron processors with LGA1700 socket, giving you the flexibility to build your system as needed.
Equipped with two DDR4 DIMM sockets, it supports dual-channel memory architecture and up to 64GB of system memory with speeds up to 3200 MT/s for smooth multitasking and fast performance.
Integrated Intel HD Graphics support via HDMI 2.1, DisplayPort 1.2, DVI-D, and D-Sub, delivering ultra-clear visuals up to 4K resolution for both work and entertainment needs.
Features a high-speed M.2 connector for NVMe SSDs and four SATA 6Gb/s ports, ensuring fast boot times and efficient file transfers.
Includes one PCIe 4.0 x16 slot and one PCIe 3.0 x1 slot for graphics cards, capture cards, or other add-ons, offering future-proof expandability.
Offers a range of USB ports including USB 3.2 Gen 1 and USB 2.0, plus Intel Gigabit LAN for stable, high-speed network performance.
Realtek high definition audio codec provides up to 7.1-channel surround sound, customizable through the audio software for immersive media experiences.
Connect multiple monitors with DisplayPort, HDMI, DVI-D, and D-Sub for a flexible and productive desktop setup.
Comes with licensed AMI UEFI BIOS, Q-Flash, and a suite of utilities like EasyTune and System Information Viewer via the APP Center for simplified system management.
Backed by a 3-year manufacturer warranty, ensuring peace of mind with your purchase.
If you’re looking to buy the Gigabyte H610M S2H DDR4 12th Gen Micro ATX Motherboard in Bangladesh, Potaka IT is your trusted source. We offer authentic Gigabyte motherboards at the best price in BD with official warranty, secure packaging, and fast delivery. Whether you're a gamer, content creator, or tech enthusiast, choose Potaka IT for your next motherboard purchase and experience unmatched service quality and customer support.
The latest price of Gigabyte H610M S2H DDR4 12th Gen Motherboard in Bangladesh is 10,500৳. You can buy the Gigabyte H610M S2H DDR4 12th Gen Motherboard at best price from our website or visit any of our showrooms.
