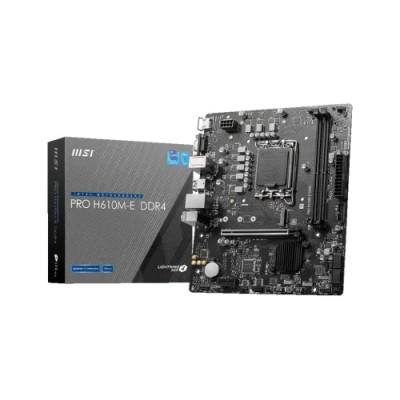

MSI PRO H610M-E DDR4 mATX Motherboard

MSI PRO H610M-E DDR4 mATX Motherboard
MSI PRO H610M-E DDR4 mATX Motherboard
MSI PRO H610M-E DDR4 mATX Motherboard
Save: 1200৳
MSI PRO H610M-E DDR4 mATX Motherboard
MSI PRO H610M-E DDR4 mATX Motherboard
MSI PRO H610M-E DDR4 mATX Motherboard
MSI PRO H610M-E DDR4 mATX Motherboard

Key Features

  • Supported CPU: 14th/13th/12th Gen Intel Processors (LGA1700)
  • Supported RAM: 2x DDR4, Max 64GB
  • Graphics Output: 1x HDMI, 1x VGA
  • Features: 1x M.2 slot, Realtek RTL8111H Gigabit LAN
  • Offer Price: 10,000৳
  • Price: 11,200৳
  • Stock: In Stock
  • Brand: MSI
  • Model: PRO H610M-E DDR4
  • SKU: 897758
Based on 0 reviews. - Write a review
10,000৳
11,200৳
Ex Tax: 10,000৳
Add to Cart
Buy Now
WishList Compare
Key Features
LED 1x 4-pin RGB LED connector
4x EZ Debug LED
Main Features
Chipset Intel H610 Chipset
Form Factor mATX
9.3 in. x 7.9 in. (23.6 cm x 20 cm)
Supported CPU Supports 14th/13th/12th Gen Intel Core Processors, Pentium Gold and Celeron Processors
LGA 1700
Type DDR4
Expansion Slots
PCI 1x PCIe x16 slot (From CPU)
Supports up to PCIe 4.0 x16
1x PCIe x1 slot (From H610 chipset)
Supports PCIe 3.0 x1
Graphics Specifications
Graphics supporting a maximum resolution of 4K 30Hz
supporting a maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz
Available only on processors featuring integrated graphics.
Graphics specifications may vary depending on the CPU installed.
Memory
Maximum Memory 64GB
Memory Specifications
Slot 2
Supported Memory Supports 1R 2133/ 2666/ 3200 MHz (by JEDEC & POR)
Supports Dual-Channel mode
Supports non-ECC, un-buffered memory
Connectivity
Audio Realtek ALC897 Codec
7.1-Channel High-Definition Audio
Audio Jack 1x Front panel audio connector
HDMI 1x HDMI 1.4 with HDR port
Internal I/O Ports 1x 24-pin ATX main power connector
1x 8-pin +12V power connector
1x 4-pin CPU fan connector
2x 4-pin system fan connectors
1x Front panel audio connector
2x System panel connectors
1x Chassis Intrusion connector
1x Serial port connector
1x Clear CMOS jumper
LAN Ports 1x Realtek RTL8111H 1Gbps LAN controller
Supported Storage 1x M.2 slot (Key M) (from CPU)
Supports up to PCIe 3.0 x4
Supports 2242/ 2260/ 2280 storage devices
TPM (Trusted Platform Module ) 1x TPM module connector
USB 1x USB 3.2 Gen 1 5Gbps connector (From H610 chipset)
Supports additional 2 USB 3.2 Gen 1 5Gbps ports
2x USB 2.0 Type-A connectors (From Hub-GL850G)
Supports additional 4 USB 2.0 ports
VGA 1x VGA
Warranty Information
Warranty 3 years

MSI PRO H610M-E DDR4 mATX Motherboard

The MSI PRO H610M-E DDR4 mATX Motherboard is a solid choice for budget-minded builders who are looking for a foundation for a compact mid-tower PC build utilizing the latest 12th, 13th, or 14th generation Intel Core processors.

Special Features:

  • Supports Latest Intel CPUs: Compatible with a wide range of 12th, 13th, and 14th gen Intel Core processors (LGA 1700 socket) including Pentium Gold and Celeron models.
  • DDR4 Memory Support: Allows for the use of high-performance DDR4 RAM, offering a significant improvement over DDR3.
  • Up to 3200MHz Memory Speed: Supports DDR4 memory speeds up to 3200MHz, ensuring smooth performance for multitasking and demanding applications. (Note: Actual supported speeds depend on the specific CPU and RAM you use).
  • 1x PCIe 4.0 x16 Slot: Provides a high-bandwidth slot for the latest graphics cards, enabling peak performance in modern games.
  • Multiple SATA III Ports: Includes SATA III ports for connecting storage devices like hard drives and solid-state drives (SSDs).
  • M.2 Gen 3 Slot: Offers an M.2 slot for connecting an NVMe PCIe Gen 3 SSD for faster storage speeds and boot times.
  • Gigabit LAN: Includes Gigabit Ethernet for reliable wired network connectivity.
  • Realtek Audio Boost: Uses audio enhancements to deliver improved sound quality for gaming and multimedia experiences.
  • Compact mATX Form Factor: Ideal for building small form factor (SFF) PCs with limited space.ion for a compact mid-tower PC build utilizing the latest 12th, 13th, or 14th generation Intel Core processors.
