| Basic Information | ||
| Supported CPU | AMD Ryzen 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series Desktop Processors | |
| Chipset | B550 | |
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS | |
| Form Factor | microATX 24.4cm x 24.4cm |
|
| Expansion Slots | ||
| PCI | AMD Ryzen 5000 Series/ 3000 Series Desktop Processors 1 x PCIe 4.0 x16 slot (supports x16 mode) AMD Ryzen™ 5000 G-Series/ 4000 G-Series Desktop Processors 1 x PCIe 3.0 x16 slot (supports x16 mode)* AMD B550 Chipset 1 x PCIe 3.0 x16 slot (supports x4 mode) 1 x PCIe 3.0 x1 slot Support PCIe bifurcation for RAID on CPU function. PCIEX16_2 will run x2 mode when the PCIEX1 slot is used. |
|
| M.2 Socket | Supports 2 x M.2 slots and 4 x SATA 6Gb/s ports | |
| Memory | ||
| Type | DDR4 | |
| Slots | 4 x DIMM | |
| Supported Memory | 4866(OC)/4800(OC)/4600(OC)/4466(OC)/4400(OC)/ 4333(OC)/4266(OC)/ 4200(OC)/4133(OC)/4000(OC)/3866(OC)/3733(OC)/ 3600(OC)/3466(OC)/ 3400(OC)/3333(OC)/3200/ 3000/ 2933/ 2800/2666/2400/ 2133, Un-buffered Memory | |
| Maximum Memory | 128GB | |
| Graphics | ||
| Graphics | 1 x DisplayPort 1 x HDMI port |
|
| Connector & Ports | ||
| HDMI | 1 x HDMI 2.1(4K@60HZ) | |
| Internal I/O Ports | Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 2 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector Storage related 2 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports Miscellaneous 1 x Addressable Gen 2 header 2 x AURA RGB headers 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x Speaker header 1 x SPI TPM header (14-1pin) 1 x 10-1 pin System Panel header 1 x 10-1 pin System Panel header |
|
| Display Port (s) | 1 x DisplayPort 1.2 | |
| USB (s) | Rear USB:Total 8 ports 2 x USB 3.2 Gen 2 ports (1 x Type-A + 1 x USB Type-C) 4 x USB 3.2 Gen 1 ports (4 x Type-A) 2 x USB 2.0 ports (2 x Type-A) Front USB:Total 6 ports 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports |
|
| LAN Port (s) | TUF LANGuard | |
| Supported Storage | AMD Ryzen 5000 Series/ 3000 Series Desktop Processors M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes) AMD Ryzen™ 5000 G-Series/ 4000 G-Series Desktop Processors M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes) AMD B550 Chipset M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 3.0 x4 & SATA modes) 4 x SATA 6Gb/s ports Support RAID 0, 1, 10 |
|
| Wireless Communication module | 2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) + BT5.2 | |
| TPM (Trusted Platform Module ) | 1 x SPI TPM header (14-1pin) | |
| Others | ||
| Special Features | ASUS TUF PROTECTION - DIGI+ VRM (Digital power design with DrMOS) - Enhanced DRAM Overcurrent Protection - ESD Guards - TUF LANGuard - Overvoltage Protection - SafeSlot - Stainless-Steel Back I/O ASUS Q-Design - Q-DIMM - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - Q-Slot ASUS Thermal Solution - M.2 heatsink - VRM heatsink design ASUS EZ DIY - BIOS FlashBack button - BIOS FlashBack LED - ProCool AURA Sync - AURA RGB headers - Addressable Gen 2 header |
|
| Bundled Software | ASUS Exclusive Software Armory Crate - Aura Creator - Aura Sync - Two-Way AI Noise Cancelation AI Suite 3 - Performance And Power Saving Utility TurboV EVO EPU DIGI+ VRM Fan Xpert 2+ - EZ update TUF GAMING CPU-Z AI Charger DAEMON Tools DTS Custom for GAMING Headsets Norton Anti-virus software (Free Trial version) WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode |
|
| Warranty Information | ||
| Manufacturing Warranty | 3 Years | |

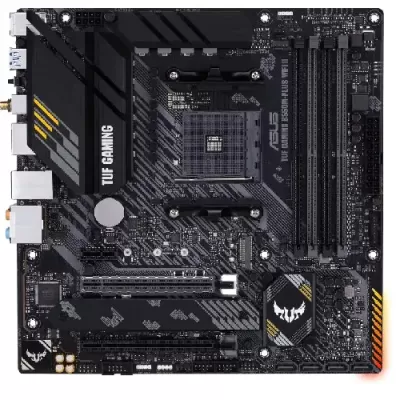

The Asus TUF GAMING B550M Plus WIFI II is a high-performance microATX motherboard designed for AMD Ryzen processors. With advanced features such as Wi-Fi 6, Realtek 2.5Gb Ethernet, and comprehensive cooling options, this motherboard ensures stability, speed, and reliability for gaming and productivity setups.
This motherboard supports AMD Ryzen 5000/5000 G/4000 G/3000 Series Desktop Processors, offering broad compatibility and optimal performance for both gamers and content creators.
Equipped with 4 DIMM slots, the Asus TUF B550M Plus WIFI II can handle up to 128GB of DDR4 RAM with speeds ranging from 2133MHz up to 4866MHz (OC). This allows for seamless multitasking and high-speed memory performance.
The motherboard features 1 x DisplayPort 1.2 and 1 x HDMI 2.1 (4K@60Hz) port, enabling high-quality video output for gaming, streaming, and professional applications.
It includes multiple PCIe slots: 1 x PCIe 4.0 x16, 1 x PCIe 3.0 x16, and 1 x PCIe 3.0 x1 slot. This ensures support for modern graphics cards, RAID setups, and additional expansion cards.
The motherboard provides 2 x M.2 slots and 4 x SATA 6Gb/s ports, supporting RAID 0, 1, and 10 configurations. This allows for fast storage solutions and high-capacity drives to enhance overall system performance.
Rear USB includes 2 x USB 3.2 Gen 2 (Type-A & Type-C), 4 x USB 3.2 Gen 1, and 2 x USB 2.0 ports. Front panel headers allow additional USB connectivity. It also supports 2x2 Wi-Fi 6 and Bluetooth 5.2 for high-speed wireless networking.
The board features 1 x CPU fan header, 1 x CPU OPT header, and 2 x chassis fan headers. Power connectors include 1 x 24-pin main power and 1 x 8-pin +12V, ensuring stable power delivery for demanding workloads.
Asus TUF Protection provides DIGI+ VRM, enhanced DRAM overcurrent protection, ESD guards, TUF LANGuard, overvoltage protection, SafeSlot, and stainless-steel back I/O. ASUS Q-Design and Thermal Solution features include Q-DIMM, Q-LED, M.2 & VRM heatsinks, and AURA RGB headers for full customization.
Exclusive ASUS software includes Armory Crate with Aura Sync, AI Suite 3, TurboV EVO, Fan Xpert 2+, TUF GAMING CPU-Z, and AI Charger, providing performance tuning, RGB control, and system monitoring utilities.
Potaka IT provides authentic, high-quality products with competitive pricing in Bangladesh. With fast online ordering, reliable delivery, and dedicated customer support, purchasing the Asus TUF GAMING B550M Plus WIFI II motherboard ensures a seamless and satisfying experience for gamers and PC enthusiasts alike.
The latest price of Asus TUF GAMING B550M Plus WIFI II AMD AM4 microATX Motherboard in Bangladesh is 18,600৳. You can buy the Asus TUF GAMING B550M Plus WIFI II AMD AM4 microATX Motherboard at best price from our website or visit any of our showrooms.
