| Basic Information | ||
| Supported CPU | Intel Socket LGA1700 for 14th, 13th Gen Intel Core & 12th Gen Intel Core, Pentium Gold and Celeron Processors Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0 |
|
| Chipset | Intel B760 Chipset | |
| BIOS | 128 Mb Flash ROM, UEFI AMI BIOS | |
| Form Factor | micro-ATX Form Factor 9.6 inch x 9.6 inch (24.4 cm x 24.4 cm) |
|
| Audio | Realtek 7.1 Surround Sound High Definition Audio CODEC - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback Audio Features - Audio Shielding - Rear optical S/PDIF out port - Premium audio capacitors - Dedicated audio PCB layers |
|
| Expansion Slots | ||
| PCI | Intel 13th & 12th Gen Processors 1 x PCIe 5.0 x16 slot Intel B760 Chipset 1 x PCIe 4.0 x16 slot (supports x4 mode) 1 x PCIe 4.0 x1 slot |
|
| M.2 Socket | Total supports 2 x M.2 | |
| Memory | ||
| Type | DDR4 | |
| Slots | 4 x DIMM | |
| Supported Memory | 5333(OC)/ 5066(OC)/5000(OC)/ 4800(OC)/ 4600(OC)/ 4400(OC)/ 4266(OC)/ 4000(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC) /3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory Dual Channel Memory Architecture Supports Intel Extreme Memory Profile (XMP) OptiMem II |
|
| Maximum Memory | Max. 128GB | |
| Graphics | ||
| Graphics | 1 x DisplayPort (Supports max. 4K@60Hz as specified in DisplayPort 1.4) 1 x HDMI port (Supports 4K@60Hz as specified in HDMI 2.1) |
|
| Connector & Ports | ||
| HDMI | 1 x HDMI port | |

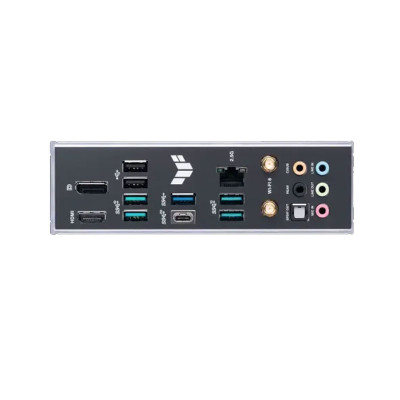

| Internal I/O Ports | I/O Connectors Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 3 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector 1 x 4-pin +12V Power connector Storage related 2 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 1 connector (supports USB Type-C) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 1 x AURA RGB header 1 x Clear CMOS header 1 x Front Panel Audio header (AAFP) 1 x 20-3 pin System Panel header with Chassis intrude function 1 x Thunderbolt (USB4) header Back Panel I/O Ports 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C) 4 x USB 3.2 Gen 2 ports (4 x Type-A) 1 x USB 3.2 Gen 1 port (1 x Type-A) 2 x USB 2.0 ports (2 x Type-A) 1 x DisplayPort 1 x HDMI port 1 x Wi-Fi Module 1 x Realtek 2.5Gb Ethernet port 5 x Audio jacks 1 x Optical S/PDIF out port |
|
| Display Port (s) | 1 x DisplayPort | |
| USB (s) | Rear USB (Total 8 ports) 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C) 4 x USB 3.2 Gen 2 ports (4 x Type-A) 1 x USB 3.2 Gen 1 port (1 x Type-A) 2 x USB 2.0 ports (2 x Type-A) Front USB (Total 7 ports) 1 x USB 3.2 Gen 1 connector (supports USB Type-C) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports |
|
| LAN Port (s) | 1 x Realtek 2.5Gb Ethernet TUF LANGuard |
|
| Supported Storage | Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports Intel 13th & 12th Gen Processors M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) Intel B760 Chipset M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) 4 x SATA 6Gb/s ports |
|
| Audio | 5 x Audio jacks | |
| Wireless Communication module | Wi-Fi 6 2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) Supports 2.4/5GHz frequency band Bluetooth® v5.2 |
|
| RAID | Intel Rapid Storage Technology supports SATA RAID 0/1/5/10. | |
| Others | ||
| Special Features | ASUS TUF PROTECTION - DIGI+ VRM (- Digital power design with DrMOS) - ESD Guards - TUF LANGuard - Overvoltage Protection - SafeSlot Core+ - Stainless-Steel Back I/O ASUS Q-Design - M.2 Q-Latch - Q-DIMM - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - Q-Slot ASUS Thermal Solution - M.2 heatsink - VRM heatsink design ASUS EZ DIY - CPU Socket lever protector - ProCool - Pre-mounted I/O shield - SafeDIMM AURA Sync - AURA RGB header - Addressable Gen 2 headers |
|
| Bundled Software | ASUS Exclusive Software Armoury Crate - AURA Creator - AURA Sync - Fan Xpert 2+ - Power Saving - Two-Way AI Noise Cancelation AI Suite 3 DIGI+ VRM - PC Cleaner TUF GAMING CPU-Z DTS Audio Processing Norton 360 for Gamers WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode |
|
| Warranty Information | ||
| Manufacturing Warranty | 3 years warranty | |

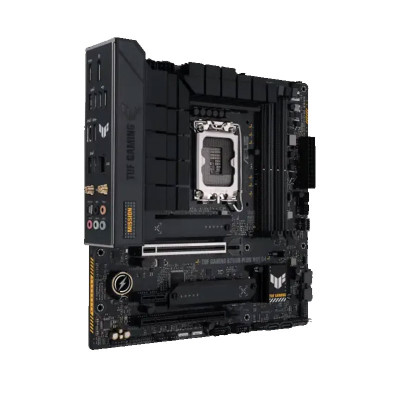

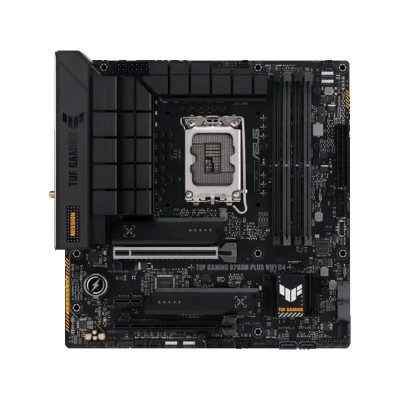

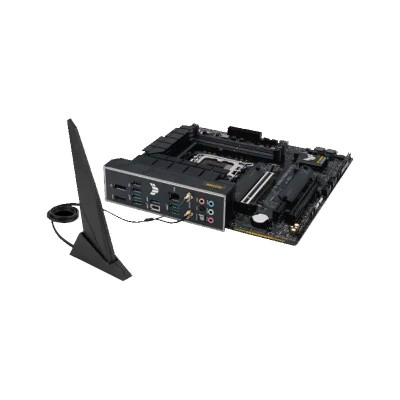

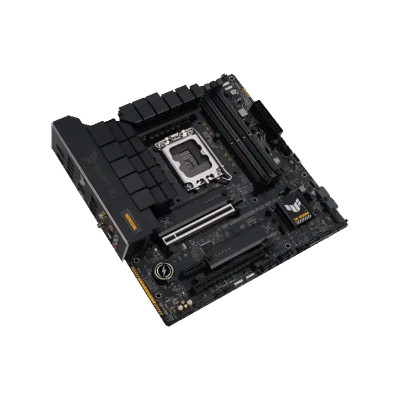

The Asus TUF GAMING B760M-PLUS WIFI D4 Motherboard is a feature-rich micro-ATX motherboard designed for gamers, PC builders, and performance-focused users who want reliable Intel processor support without switching to DDR5 memory. Built around the Intel B760 chipset, it supports 14th, 13th, and 12th Gen Intel Core processors, along with compatible Pentium Gold and Celeron CPUs using the LGA1700 socket. With DDR4 memory support, PCIe 5.0 graphics connectivity, dual PCIe 4.0 M.2 slots, Wi-Fi 6, Bluetooth 5.2, and 2.5Gb Ethernet, this ASUS TUF Gaming motherboard offers a practical foundation for a powerful gaming or productivity PC in Bangladesh.
Build with a compatible Intel processor while retaining your existing DDR4 RAM, where supported. Four DIMM slots accommodate up to 128GB of non-ECC, unbuffered memory, with dual-channel architecture and Intel XMP support. This makes the motherboard an attractive option for gamers and upgraders who want modern platform features without the additional cost of replacing their memory with DDR5.
The primary PCIe 5.0 x16 slot supports compatible graphics cards, while two PCIe 4.0 x4 M.2 sockets allow fast NVMe SSD installations. Four SATA 6Gb/s ports provide additional storage options for SSDs and hard drives. Whether you're building a gaming rig, editing videos, or managing large project files, this flexible storage and expansion setup helps keep your system responsive.
Enjoy dual-band Wi-Fi 6, Bluetooth 5.2, and Realtek 2.5Gb Ethernet. Choose wireless connectivity for a cleaner desk setup or wired networking for a compatible high-speed local network. The onboard networking options are useful for online gaming, video calls, large file transfers, and everyday streaming.
ASUS TUF protection features include DIGI+ VRM digital power control, ESD Guards, Overvoltage Protection, TUF LANGuard, and SafeSlot Core+. Dedicated CPU, CPU OPT, AIO pump, and chassis fan headers provide flexible cooling control. A VRM heatsink, M.2 heatsink, and pre-mounted I/O shield further support a convenient PC-building experience.
| Specification | Details |
|---|---|
| Brand | ASUS |
| Model | TUF GAMING B760M-PLUS WIFI D4 |
| Chipset | Intel B760 |
| CPU Socket | Intel LGA1700 |
| Processor Support | 14th, 13th and 12th Gen Intel Core, compatible Pentium Gold and Celeron |
| Memory | 4 × DDR4 DIMM, up to 128GB, dual-channel |
| Graphics Slot | 1 × PCIe 5.0 x16 |
| Additional Expansion | 1 × PCIe 4.0 x16 (x4 mode), 1 × PCIe 4.0 x1 |
| Storage | 2 × PCIe 4.0 x4 M.2, 4 × SATA 6Gb/s |
| Wireless | Wi-Fi 6, Bluetooth 5.2 |
| LAN | Realtek 2.5Gb Ethernet |
| Display Outputs | 1 × HDMI 2.1, 1 × DisplayPort 1.4 |
| Audio | Realtek 7.1-channel HD audio, optical S/PDIF |
| Form Factor | Micro-ATX, 24.4 × 24.4cm |
Choose the Asus TUF GAMING B760M-PLUS WIFI D4 if you need an Intel LGA1700 motherboard with DDR4 compatibility, built-in wireless networking, fast NVMe storage, and a PCIe 5.0 graphics slot. It is particularly suitable for upgrading a compatible DDR4-based setup or building a new gaming PC with a controlled budget.
Before purchasing, verify your processor's compatibility, CPU cooling requirements, case support for micro-ATX, RAM specifications, and graphics card clearance. This motherboard uses DDR4 memory, not DDR5. Its onboard HDMI and DisplayPort outputs require a compatible processor with integrated graphics; a discrete GPU may be necessary for CPUs without integrated graphics. Check the exact CPU support list and required BIOS version before installation.
Looking for an ASUS TUF Gaming motherboard in Bangladesh? Explore the ASUS product collection and ASUS Intel motherboards to compare compatible options. You can also browse motherboards and PC components to find processors, memory, storage, and other parts for your build. Visit Potaka IT to check availability and choose components that match your gaming or productivity requirements.
It supports compatible 14th, 13th, and 12th Gen Intel Core processors, as well as Pentium Gold and Celeron CPUs for the LGA1700 socket. Check ASUS's CPU support list for your exact model.
No. This motherboard supports DDR4 memory only, with four DIMM slots and a maximum supported capacity of 128GB.
Yes. It includes Wi-Fi 6 wireless networking and Bluetooth 5.2, alongside a Realtek 2.5Gb Ethernet port for wired connections.
You can install up to two M.2 NVMe SSDs using the two PCIe 4.0 x4 M.2 sockets. Four SATA 6Gb/s ports provide additional storage connectivity.
You can check the product listing at Potaka IT for current price, stock availability, warranty information, and purchasing details.
The latest price of Asus TUF GAMING B760M-PLUS WIFI Motherboard in Bangladesh is 26,500৳. You can buy the Asus TUF GAMING B760M-PLUS WIFI Motherboard at best price from our website or visit any of our showrooms.
