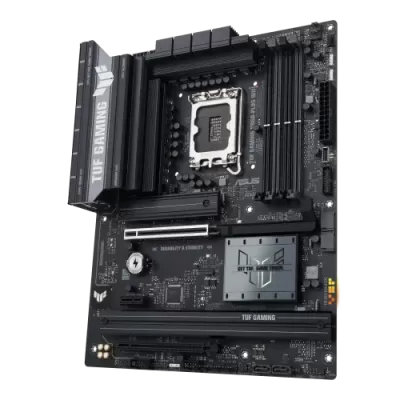

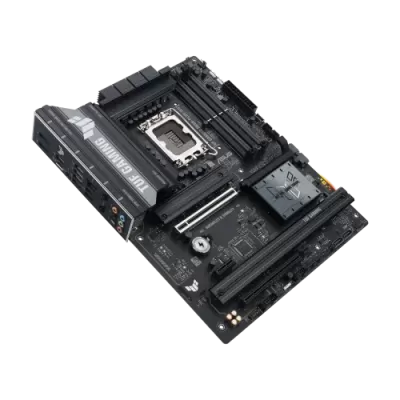

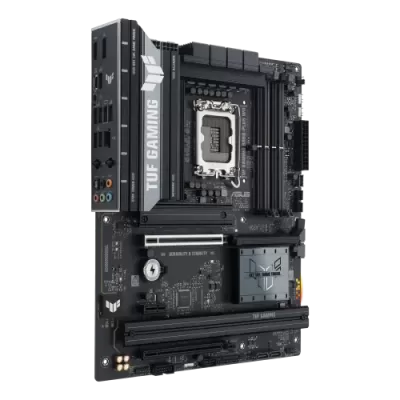

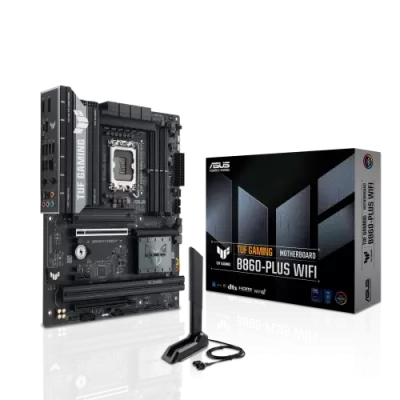

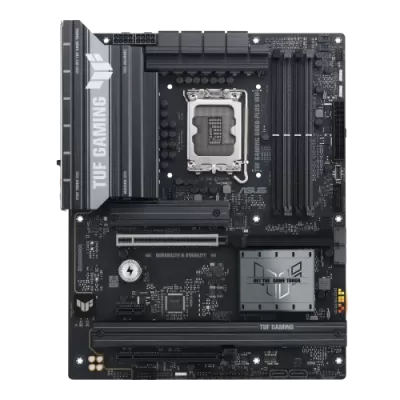

Asus TUF GAMING B860-PLUS WIFI LGA 1851 ATX Motherboard

Asus TUF GAMING B860-PLUS WIFI LGA 1851 ATX Motherboard

The Asus TUF GAMING B860-PLUS WIFI LGA 1851 ATX Motherboard is designed for modern gaming PCs, high-performance desktop builds, and demanding productivity systems powered by Intel Core Ultra Processors (Series 2). Built around the Intel B860 chipset, it combines DDR5 memory support, PCIe 5.0 graphics connectivity, three M.2 storage slots, Wi-Fi 7, Bluetooth 5.4, and 2.5Gb Ethernet in a durable ATX platform. If you are planning to build a new Intel desktop in Bangladesh, this ASUS TUF motherboard offers a practical combination of connectivity, expansion, and upgrade flexibility. Explore the available motherboards at Potaka IT to compare compatible options for your build.

Key Features of Asus TUF GAMING B860-PLUS WIFI Motherboard

Intel Core Ultra Series 2 and LGA 1851 Support

The Intel B860 chipset and LGA 1851 socket support compatible Intel Core Ultra Processors (Series 2). This platform is suitable for gaming, multitasking, software development, content creation, and everyday professional workloads. Check the official CPU support list and BIOS requirements before selecting a processor.

DDR5 Memory Support up to 256GB

Four DDR5 DIMM slots support up to 256GB of memory in a dual-channel configuration. The board supports memory speeds up to 8666+ MT/s through overclocking, depending on the processor, memory kit, BIOS, and configuration. Intel XMP and ASUS Enhanced Memory Profile III help simplify compatible memory setup. This capacity gives demanding applications and multitasking workloads room to grow.

PCIe 5.0 Graphics Expansion

The primary PCIe 5.0 x16 slot supports compatible graphics cards, making this motherboard suitable for gaming PCs and GPU-accelerated workloads. A secondary PCIe 4.0 x16-length slot operates at up to x4 mode, alongside a PCIe 4.0 x1 slot. Note that the secondary expansion slots share bandwidth, so check the manual when installing multiple add-in cards. For a complete build, compare compatible graphics cards before choosing your GPU.

Three M.2 Slots for Fast Storage

The motherboard provides three M.2 slots, including one PCIe 5.0 x4 slot and two PCIe 4.0 x4 slots, plus four SATA 6Gb/s ports. This layout allows you to configure fast NVMe storage for your operating system, games, applications, and project files while retaining space for additional drives. Supported M.2 lengths vary by slot, so verify SSD dimensions before installation. Intel Rapid Storage Technology supports SATA RAID 0, 1, 5, and 10.

Wi-Fi 7, Bluetooth 5.4, and 2.5Gb Ethernet

Built-in 2x2 Wi-Fi 7 supports compatible 2.4GHz, 5GHz, and 6GHz networks, with a theoretical transfer rate of up to 2.9Gbps under supported conditions. Bluetooth 5.4 connects compatible wireless peripherals, while Realtek 2.5Gb Ethernet provides a wired networking option for gaming, large file transfers, and local network tasks. Actual wireless performance depends on your router, environment, operating system, and regional frequency-band regulations.

High-Speed USB and Display Connectivity

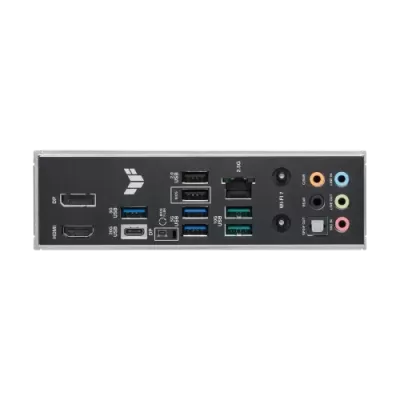

Rear connectivity includes a USB 20Gbps Type-C port, two USB 10Gbps Type-A ports, three USB 5Gbps Type-A ports, and two USB 2.0 ports. Front-panel headers support additional USB Type-C, USB 5Gbps, and USB 2.0 connectivity. HDMI 2.1 and DisplayPort 1.4 provide display outputs up to 4K at 60Hz under supported conditions. The rear USB Type-C port also supports DisplayPort Alt Mode. Display output through the motherboard requires a compatible processor with integrated graphics.

TUF Protection and Convenient DIY Features

ASUS TUF protection features include DIGI+ VRM digital power design with DrMOS, ESD Guards, overvoltage protection, TUF LANGuard, and SafeSlot reinforcement. The board also includes VRM and M.2 heatsinks, a pre-mounted I/O shield, BIOS FlashBack, M.2 Q-Latch, PCIe Slot Q-Release, Q-LED diagnostics, and three Addressable Gen 2 headers for compatible lighting. These features simplify installation, troubleshooting, cooling, and system customization.

Why Choose This ASUS TUF Gaming Motherboard?

• Modern Intel platform: Supports compatible Intel Core Ultra Series 2 desktop processors using the LGA 1851 socket.
• Expandable memory: Four DDR5 slots support up to 256GB for demanding applications and multitasking.
• Next-generation storage: Three M.2 slots include PCIe 5.0 and PCIe 4.0 connectivity.
• Flexible networking: Built-in Wi-Fi 7, Bluetooth 5.4, and 2.5Gb Ethernet reduce the need for separate networking cards.
• Modern connectivity: Multiple USB speeds, rear USB Type-C, HDMI, DisplayPort, and a Thunderbolt/USB4 expansion header support a range of peripherals.
• Build-friendly design: ASUS Q-Design tools, cooling features, BIOS FlashBack, and diagnostic LEDs help simplify PC assembly and maintenance.

Who Should Buy the Asus TUF GAMING B860-PLUS WIFI?

Gaming PC Builds

This motherboard is a suitable foundation for a modern gaming desktop using a compatible Intel Core Ultra processor, dedicated graphics card, DDR5 memory, and NVMe SSD. Pair it with a GPU that matches your resolution and performance goals, along with a suitable power supply and cooling system.

Content Creation and Professional Work

Video editing, graphic design, 3D work, programming, and multitasking can benefit from a capable CPU, ample DDR5 memory, fast SSD storage, and high-speed networking. The three M.2 slots and additional SATA connections provide flexibility for growing project libraries and work files.

Home and Office Workstations

For software development, office productivity, remote work, and multi-monitor setups, the motherboard offers a useful range of USB connections, wired and wireless networking, and display outputs. Confirm processor graphics support if you plan to connect displays without a dedicated graphics card.

Buying Guide: What to Check Before Purchasing

• Processor compatibility: Select an officially supported Intel Core Ultra Series 2 desktop CPU for the LGA 1851 socket. Older Intel LGA 1700 processors are not compatible.
• Memory selection: Choose a compatible DDR5 kit and check the ASUS memory support list. Maximum advertised overclocked speeds are not guaranteed with every configuration.
• Case compatibility: This is a standard ATX motherboard measuring 30.5 × 24.4 cm. Ensure your case supports ATX boards.
• Graphics card and power: Check GPU clearance, PSU capacity, power connectors, and cooling requirements before assembling your PC.
• Storage planning: Verify the M.2 form factor, interface, and supported slot length for each SSD. Review the motherboard manual for slot-sharing details.
• Wireless requirements: Use a compatible router and operating system to benefit from Wi-Fi 7. Windows 11 version 24H2 or later is required for full Wi-Fi 7 functionality according to ASUS.
• BIOS and warranty: Confirm the required BIOS version for your processor and verify the applicable three-year manufacturing warranty with the seller.

If you are comparing Intel platforms, browse Intel motherboards and compatible Intel processors to plan a balanced build. You can also explore other PC components for your complete system.

Asus TUF GAMING B860-PLUS WIFI Specifications

Frequently Asked Questions

Which processors are compatible with the Asus TUF GAMING B860-PLUS WIFI?

It supports compatible Intel Core Ultra Processors (Series 2) for desktop PCs with the LGA 1851 socket. Check the official ASUS CPU support list for your exact processor and BIOS requirements.

Does this motherboard support DDR4 RAM?

No. This motherboard uses DDR5 memory and does not support DDR4. It has four DIMM slots and supports up to 256GB of compatible memory.

How many M.2 SSDs can I install?

You can install up to three M.2 SSDs using the onboard M.2 slots. One supports PCIe 5.0 x4, while the other two support PCIe 4.0 x4. Four SATA 6Gb/s ports are also available for compatible SATA storage drives.

Does the ASUS TUF B860-PLUS WIFI have built-in Wi-Fi?

Yes. It includes 2×2 Wi-Fi 7 and Bluetooth 5.4. A compatible router, suitable operating system, and regional support are needed to use all Wi-Fi 7 features.

Can I use this motherboard without a dedicated graphics card?

Potentially, yes, if the installed processor has integrated graphics and supports the desired display output. Motherboard HDMI, DisplayPort, and USB Type-C display output depend on the processor's graphics capabilities.

Is this motherboard suitable for a gaming PC?

Yes. Its PCIe 5.0 x16 graphics slot, DDR5 memory support, M.2 storage options, Wi-Fi 7, and 2.5Gb Ethernet make it suitable for compatible modern gaming builds. Actual gaming performance depends mainly on the processor, graphics card, memory, and game settings.

Will this motherboard fit in a Micro-ATX case?

Only if the case explicitly supports ATX motherboards. The board measures 30.5 × 24.4 cm, so check the case's motherboard compatibility before purchasing.

What is the warranty for the Asus TUF GAMING B860-PLUS WIFI in Bangladesh?

The supplied product information lists a three-year manufacturing warranty. Confirm the exact local warranty coverage, service conditions, and authorized warranty provider with the seller before purchase.

Buy Asus TUF GAMING B860-PLUS WIFI Motherboard in Bangladesh

The Asus TUF GAMING B860-PLUS WIFI LGA 1851 ATX Motherboard combines modern Intel processor compatibility, DDR5 memory, PCIe 5.0 graphics expansion, three M.2 slots, Wi-Fi 7, Bluetooth 5.4, and robust connectivity for a flexible desktop build. Before purchasing, confirm processor and memory compatibility, case size, power requirements, and local warranty coverage. Check the current price and availability at Potaka IT to plan your next PC build with confidence.
