| Basic Information | ||
| Supported CPU | Support the 14th/13th and 12th generation Intel adapting to the LGA 1700 slot of the motherboard Core TM, Pentium And Cylon processor | |
| Chipset | Intel B760 | |
| BIOS | 128M UEFI, supporting multiple languages | |
| Form Factor | ITX 170mm x 170mm |
|
| Audio | 5.1 Channel sound card | |
| Expansion Slots | ||
| PCI | 1 PCIe 5.0 x16 slot | |
| Memory | ||
| Type | DDR4 | |
| Slots | 2 | |
| Supported Memory | - support DDR4-4800 (OC)/4600 (OC)/4400 (OC)/4266 (OC)/4000 (OC)/3733 (OC)/3600 (OC)/3466 (OC)/3200/3000/2933/2800/2666/2400/2133MHz of memory - support Intel Extreme Memory Profile (XMP) memory technology - supports dual channel memory technology |
|
| Maximum Memory | up to 64 GB of memory (a single socket can support up to 32 GB of memory) | |
| Graphics | ||
| Graphics | Integrated Graphics Processor-Intel HD Graphics support: 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz |
|
| Connector & Ports | ||
| HDMI | 1x HDMI | |

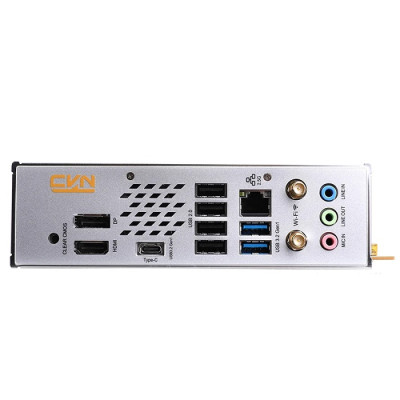

| Internal I/O Ports | Rear I/O interface: - 4 USB 2.0 interfaces - 2 USB 3.2 Gen 1 Type-A interfaces - 1 USB 3.2 Gen 1 Type-C interface - 1 DP 1.2 interface, supporting up to 4K 60Hz resolution - 1 HDMI 2.0 interface, Up to 4K 60Hz resolution - 1 2.5G network interface - 2 Wi-Fi 6 antenna interfaces - 3 audio interfaces (audio input/audio output/microphone) - 1 clear CMOS button On board device interface: - 1 CPU fan pin - 1 system fan pin - 1 water-cooled pump pin - 1 USB 2.0 pin can expand 2 USB 2.0 Type-A interfaces - 1 USB 3.2 Gen 1 pin can expand 2 USB 3.2 Gen 1 Type-A interfaces - 1 USB 3.2 Gen 1 Type-C slot can expand 1 USB 3.2 Gen 1 Type-C interface - 1 5V 3-pin ARGB pin - 1 front audio pin - 1 front panel pin - 1 speaker pin |
|
| Display Port (s) | 1x DisplayPort | |
| LAN Port (s) | RTL8125 2.5Gbit network card | |
| Supported Storage | A total of 2 M.2 slots and 4 SATA 6Gb/s hard disk interfaces are supported, Support the creation of RAID 0, RAID 1, RAID 5, and RAID 10 disk arrays using SATA hard disk devices - M.2_ 1 slot: support 2280 specification M.2 SSD (PCIe 4.0 x4, CPU channel) - M.2_ 2 slots: support 2280 specification M.2 SSD (PCIe 4.0 x4, PCH channel) |
|
| Wireless Communication module | AX201/AX200 WiFi 6 wireless network card, Bluetooth 5.2 | |
| RAID | See the official BIOS user guide of Colorful for the steps to create a RAID disk array | |
| Warranty Information | ||
| Manufacturing Warranty | 3 years | |

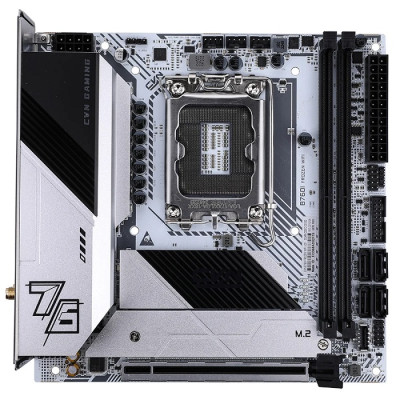

The Colorful CVN B760I FROZEN WIFI V20 Motherboard is a compact and high-performance ITX motherboard designed to support the latest 14th, 13th, and 12th Gen Intel Core, Pentium, and Celeron processors on the LGA 1700 socket. Built with the Intel B760 chipset, this motherboard delivers solid performance for gamers, creators, and system builders who need cutting-edge speed and connectivity in a small form factor. With advanced wireless capabilities, next-gen PCIe 5.0 support, and robust expansion options, this motherboard is perfect for building a powerful yet compact PC in Bangladesh.
Compatible with Intel’s 14th, 13th, and 12th Gen Core, Pentium, and Celeron processors, this motherboard ensures future-ready performance on the LGA 1700 platform.
Powered by the Intel B760 chipset, the board offers fast performance, system stability, and expanded connectivity, making it a reliable choice for gamers and professionals.
With support for up to 64GB of DDR4 memory and Intel XMP profiles, enjoy high-speed multitasking and enhanced system responsiveness for any workload.
Equipped with a PCIe 5.0 x16 slot, you’ll experience ultra-fast data transfer rates and maximum bandwidth support for the latest graphics cards and high-performance add-ons.
Get crystal-clear visuals with HDMI 2.0 and DisplayPort outputs, both supporting 4K resolution at 60Hz, ideal for multi-display setups or high-definition content viewing.
Comes with two M.2 PCIe 4.0 x4 slots and four SATA ports, supporting RAID 0/1/5/10 configurations, enabling fast boot times and large-capacity storage expansion.
Features AX201/AX200 WiFi 6 and Bluetooth 5.2 modules for high-speed wireless networking and seamless peripheral connections in your build.
Includes USB 3.2 Gen 1 Type-C, multiple USB Type-A ports, a 2.5G LAN port, and headers for RGB lighting, fans, and more—making connectivity effortless and efficient.
Its 170mm x 170mm mini-ITX size is perfect for space-saving builds without sacrificing power, ideal for gaming setups or small form factor desktops.
Enjoy peace of mind with a reliable 3-year warranty from the manufacturer, ensuring long-term durability and support for your motherboard investment.
If you're looking to buy the Colorful CVN B760I FROZEN WIFI V20 Motherboard in Bangladesh, Potaka IT is your trusted source. We offer genuine products, competitive prices, and reliable after-sales support. Whether you're building a powerful mini PC for gaming or productivity, this motherboard combines modern features, compact design, and blazing-fast performance—making it the ideal choice for your next build. Order now from Potaka IT and enjoy fast delivery across Bangladesh.
The latest price of Colorful CVN B760I FROZEN WIFI V20 Motherboard in Bangladesh is 18,500৳. You can buy the Colorful CVN B760I FROZEN WIFI V20 Motherboard at best price from our website or visit any of our showrooms.
