| Case Types | ||
| Type | Mid Tower | |
| Motherboard Support | ITX, Micro ATX, ATX, SSI CEB, E-ATX | |
| Tempered Glass Panel | Yes | |
| External Features | ||
| Color(s) | Black | |
| Pre- Installed Fans | Front: 2 x 120mm Rare: 1x 120mm |
|
| Fan Support | Top: 3x 120mm, 2x 140mm Front: 3x 120mm, 2x 140mm Rear: 1x 120mm |
|
| Radiator Support | Top: 120mm, 140mm, 240mm, 280mm, 360mm, (recommended maximum thickness -55mm); Front: 120mm, 140mm, 240mm, 280mm, 360mm; Rear: 120mm | |
| Material | Mesh, Steel, ABS Plastic, Tempered Glass | |
| I/O Port | 1x USB 3.2 Gen 1 Type-A, 1x USB 3.2 Gen 2 Type-C, 1x 3.5mm Headset Jack (Audio+Mic), 1x Reset/ARGB button | |
| Dimensions | 499 x 210 x 498mm | |
| Expansion Slots | 7 | |
| Additional Feature | ||
| PSU | Not Included | |
| Clearance Space | ||
| Maximum CPU Cooler Height | 165mm | |
| Maximum Graphics Card Length | 410mm | |
| Maximum PSU Length | 200mm | |
| Warranty | ||
| Warranty | No Warranty | |

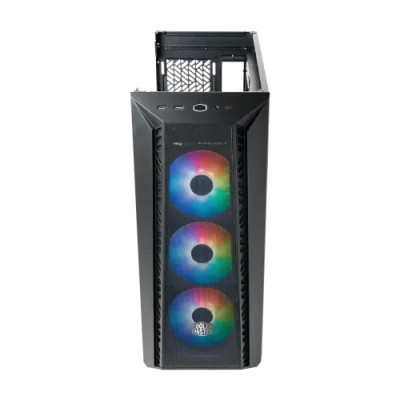

The Cooler Master MasterBox 520 Mesh Mid Tower ARGB Gaming Case Black is built for gamers and PC enthusiasts who want efficient airflow, flexible component support, and a modern gaming appearance. Featuring a mesh front panel, tempered glass side panel, pre-installed ARGB fans, and generous internal clearance, this black gaming case is suitable for building a powerful gaming PC, streaming system, workstation, or upgrade-ready desktop.
The MasterBox 520 Mesh combines a practical mid-tower layout with support for a wide range of motherboard sizes, including Mini-ITX, Micro ATX, ATX, SSI CEB, and E-ATX. Its mesh construction helps improve fresh-air intake, while the tempered glass side panel allows you to display your components and RGB lighting.
A mesh front panel allows more air to move into the case than a fully closed front design. This is useful for gaming systems with high-performance CPUs, dedicated graphics cards, and multiple cooling fans. Proper airflow can also help maintain a more consistent internal temperature during extended workloads.
The pre-installed ARGB fans add customizable lighting without requiring you to purchase every fan separately. Combined with the black exterior and tempered glass side panel, the case offers a clean and customizable appearance for modern RGB gaming setups.
The Cooler Master MasterBox 520 Mesh supports up to three 120mm or two 140mm fans at the top and front, plus one 120mm fan at the rear. It supports radiators up to 360mm at the top and front, making it suitable for compatible liquid CPU coolers as well as traditional air cooling.
With up to 410mm of graphics card clearance, 165mm CPU cooler height support, and space for a power supply up to 200mm long, this case can accommodate many current gaming components. The recommended maximum top radiator thickness is 55mm, so users should check component clearance before installation.
| Specification | Details |
|---|---|
| Case Type | Mid Tower |
| Color | Black |
| Motherboard Support | Mini-ITX, Micro ATX, ATX, SSI CEB, E-ATX |
| Materials | Mesh, Steel, ABS Plastic, Tempered Glass |
| Pre-installed Fans | Front 2 × 120mm; Rear 1 × 120mm |
| Top Fan Support | 3 × 120mm or 2 × 140mm |
| Front Fan Support | 3 × 120mm or 2 × 140mm |
| Rear Fan Support | 1 × 120mm |
| Radiator Support | Top and front up to 360mm; rear 120mm |
| I/O Ports | USB 3.2 Gen 1 Type-A, USB 3.2 Gen 2 Type-C, 3.5mm headset jack, Reset/ARGB button |
| Expansion Slots | 7 |
| Dimensions | 499 × 210 × 498mm |
| Maximum GPU Length | 410mm |
| Maximum CPU Cooler Height | 165mm |
| Maximum PSU Length | 200mm |
| Power Supply | Not included |
This Cooler Master gaming case is ideal for gamers, content creators, streamers, and PC builders who need strong airflow, long graphics card support, E-ATX compatibility, and liquid-cooling flexibility. It is also a good choice for users who prefer a black gaming PC with visible RGB components and room for future upgrades.
Before purchasing, check your motherboard size, GPU length, CPU cooler height, radiator thickness, and PSU dimensions. The case does not include a power supply, so select a suitable PSU based on your complete system’s power requirements.
Yes. It supports Mini-ITX, Micro ATX, ATX, SSI CEB, and E-ATX motherboards.
Yes. The case supports up to a 360mm radiator at the top and front, subject to component and radiator thickness clearance.
The maximum graphics card length is 410mm.
No. The Cooler Master MasterBox 520 Mesh is sold without a power supply.
You can check the latest price and availability at Potaka IT through the PC casing and gaming case category.
The latest price of Cooler Master MasterBox 520 Mesh Gaming Case in Bangladesh is 10,500৳. You can buy the Cooler Master MasterBox 520 Mesh Gaming Case at best price from our website or visit any of our showrooms.
