| Case Types | ||
| Type | Mid Tower | |
| Motherboard Support | Mini-ITX, Micro-ATX, ATX, BTF (ATX) | |
| External Features | ||
| Fan Support | Top: 6x 120mm, 2x 140mm, 2x 180mm, 2x 200mm Bottom: 6x 120mm, 2x 140mm, 2x 180mm, 2x 200mm |
|
| Radiator Support | Top: 120 / 140 / 240 / 280 / 360 mm (maximum thickness clearance 75mm) Bottom: 120 / 140 / 240 / 280 / 360 mm (maximum thickness clearance 75mm) |
|
| Drive Bays | Drive Bays - 3.5" HDD Drive Bay support - 3.5" Drive Bays: 0 Drive Bays - 3.5" / 2.5" Combo Drive bay support - 2.5" / 3.5" Drive Bays (or SSD): 1x HDD or 2x SSD Preinstalled Drive bay - 3.5" Drive Bay (remark Toolfree quantity) / 2.5" Drive Bay(or SSD)(remark Toolfree quantity): 1x HDD or 2x SSD |
|
| Material | SGCC | |
| I/O Port | USB Ports: 2x USB 3.2 Gen 1 Type-A 5G, 1x USB 4.0 Gen 2x2 Type-C 20G Audio In / Out: 1x 3.5mm Headset Jack (Audio+Mic) |
|
| Dimensions | 549 x 291 x 581 mm (Incl. Protrusions) 511 x 291 x 581 mm (Excl. Protrusions) Maximum Dimensions for Front Collectibles Display (H x W x D): 328 x 290 x 110 mm |
|
| Expansion Slots | PCI Expansion Slots: 3.5 | |
| Others | Cable Routing - Behind Motherboard Tray: 110 mm Dust Filters: Mesh Only (Removable Filters) |
|
| Clearance Space | ||
| Maximum CPU Cooler Height | 145 mm | |
| Maximum Graphics Card Length | 430 mm | |
| Maximum PSU Length | 210 mm | |
| Warranty | ||
| Warranty | No Warranty | |

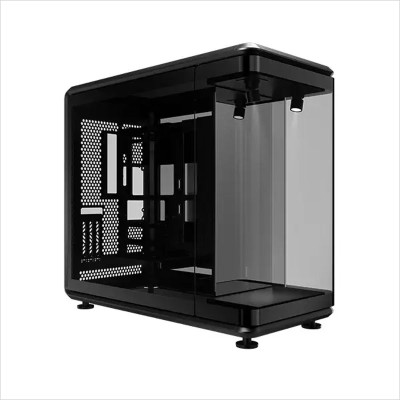

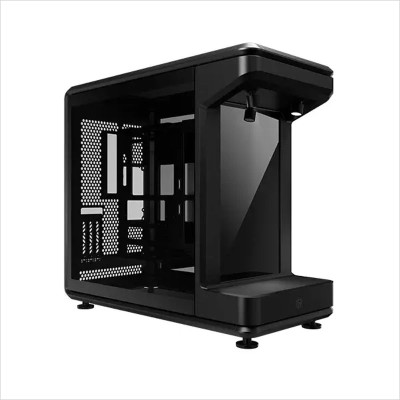

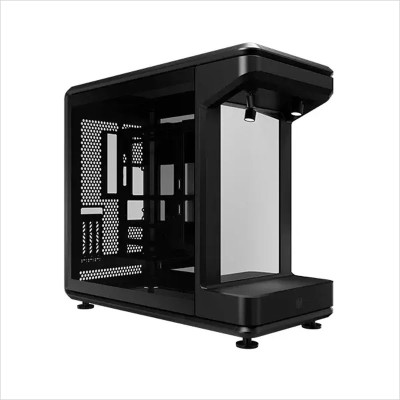

The Cooler Master MasterFrame 360 Panorama Mid-Tower ATX Desktop Casing Black is built for PC enthusiasts who want a distinctive showcase design, flexible liquid cooling and space for high-performance components. With support for ATX, Micro-ATX, Mini-ITX and compatible ATX BTF motherboards, this Cooler Master casing offers versatile options for gaming PCs and custom desktop builds. Its top and bottom radiator support, removable mesh dust filters and generous cable-routing space help create a clean, organised system.
Designed for showcase-focused builds, the MasterFrame 360 Panorama includes a dedicated front collectibles display area measuring up to 328 × 290 × 110mm. Display compatible collectibles alongside your PC setup while keeping your components organised inside the chassis.
The top and bottom mounting areas support radiators up to 360mm, with a maximum thickness clearance of 75mm at each location. This flexibility helps builders plan advanced cooling configurations. Fan support includes up to six 120mm fans at both the top and bottom, alongside options for larger 140mm, 180mm and 200mm fans. Check clearance and component compatibility when planning multiple fans or radiators.
With graphics card support up to 430mm and 110mm of cable-routing space behind the motherboard tray, this mid-tower case accommodates many large GPUs and helps keep cables organised. The maximum CPU cooler height is 145mm, so verify your air cooler dimensions before purchase.
The front I/O panel provides two USB 3.2 Gen 1 Type-A ports, one USB Type-C port specified as USB 4.0 Gen 2x2 20Gbps, and a 3.5mm headset jack. These connections make it convenient to connect compatible peripherals and external storage.
| Model | Cooler Master MasterFrame 360 Panorama |
| Case Type | Mid Tower |
| Color | Black |
| Motherboard Support | Mini-ITX, Micro-ATX, ATX, BTF (ATX) |
| Material | SGCC Steel |
| Top Fan Support | 6 × 120mm, 2 × 140mm, 2 × 180mm or 2 × 200mm |
| Bottom Fan Support | 6 × 120mm, 2 × 140mm, 2 × 180mm or 2 × 200mm |
| Radiator Support | Top and bottom up to 360mm; maximum thickness clearance 75mm |
| Drive Support | 1 × 3.5-inch HDD or up to 2 × 2.5-inch SSDs |
| USB Connectivity | 2 × USB 3.2 Gen 1 Type-A, 1 × USB Type-C (20Gbps as supplied) |
| Expansion Slots | 3.5 |
| Maximum GPU Length | 430mm |
| Maximum CPU Cooler Height | 145mm |
| Maximum PSU Length | 210mm |
| Cable Routing Space | 110mm behind motherboard tray |
| Dimensions (with protrusions) | 549 × 291 × 581mm |
| Dimensions (without protrusions) | 511 × 291 × 581mm |
Gaming enthusiasts: Build a striking desktop with support for compatible graphics cards up to 430mm.
Liquid-cooling builders: Plan a custom setup with top or bottom radiator mounting up to 360mm.
Showcase PC creators: Use the dedicated display area for compatible collectibles.
Clean-build enthusiasts: Benefit from generous cable-routing space and removable mesh dust filters.
Before buying the Cooler Master MasterFrame 360 Panorama in Bangladesh, check your motherboard format, GPU length, CPU cooler height and PSU dimensions. Although the case supports large graphics cards, the 145mm CPU cooler limit may rule out some tall air coolers. Plan radiator and fan placement carefully, and confirm the exact USB Type-C specification and motherboard BTF compatibility for your intended build.
Potaka IT helps PC builders in Bangladesh explore components and casing options for custom desktops. Browse Cooler Master products, explore Cooler Master casings, or compare options in our computer casing and PC components categories. Visit Potaka IT to explore more products for your build.
Yes. It supports ATX, Micro-ATX and Mini-ITX motherboards, along with BTF (ATX) boards as specified.
Yes. Both the top and bottom support radiators up to 360mm, with a stated maximum thickness clearance of 75mm. Check clearance for the complete cooling assembly.
The listed maximum graphics card length is 430mm. Check the dimensions of your specific graphics card before installation.
Check Potaka IT for current product availability, pricing and purchase details in Bangladesh.
The latest price of Cooler Master MasterFrame 360 Panorama Casing in Bangladesh is 22,500৳. You can buy the Cooler Master MasterFrame 360 Panorama Casing at best price from our website or visit any of our showrooms.
