| Case Types | ||
| Type | Mid Tower | |
| Motherboard Support | Mini-ITX, Mini-DTX, Micro-ATX, ATX , E-ATX*, SSI-CEB* (*Conditional Support) | |
| Front Panel | Tempered Glass | |
| External Features | ||
| Color(s) | Black | |
| Pre- Installed Fans | Pre-installed Fans - Front: ARGB: 2x SickleFlow 200mm ARGB, Non-ARGB: 2x SickleFlow 200mm Pre-installed Fans - Rear: ARGB: 1x 120 mm ARGB, Non-ARGB: 1x 120 mm |
|
| Fan Support | Fan Support - Front: 3x 120mm, 2x 140mm, 2x 180mm, 2x 200mm Fan Support - Top: 3x 120mm, 2x 140mm, 2x 180mm, 2x 200mm Fan Support - Rear: 1x 120mm Fan Support - Bottom: 1x 120mm |
|
| Radiator Support | Radiator Support - Front: 120 / 140 / 240 / 280 / 360m Radiator Support - Top: 120 / 140 / 240 / 280 / 360mm Radiator Support - Rear: 120 mm |
|
| Drive Bays | Drive Bays - 3.5" HDD: 0 2.5" / 3.5" Drive Bays (or SSD): 1 (Bottom) Preinstalled Drive Bays - 3.5" / 2.5" Drive Bay (or SSD): 1x 2.5 or 1x 3.5 |
|
| Material | SGCC Steel, Aluminum | |
| I/O Port | USB Ports: 2x USB 3.2 Gen 1 Type A, 1x USB 3.2 Gen 2x2 Type C Audio In / Out: 1x 3.5mm Headset Jack (Audio+Mic) |
|
| Dimensions | 471 x 261 x 373.8 mm (Incl. Protrusions) 471 x 261 x 361 mm (Excl. Protrusions) |
|
| Expansion Slots | PCI Expansion Slots: 8 | |
| Others | GPU Support Bracket Dust Filters: Mesh Only (Removable Filters) Cable Routing - Behind Motherboard Tray: 43 mm |
|
| Additional Feature | ||
| Side Panel | Aluminum, Steel | |
| PSU | SFX, SFX-L | |
| Clearance Space | ||
| Maximum CPU Cooler Height | 190 mm | |
| Maximum Graphics Card Length | 390 mm | |
| Maximum PSU Length | 235 mm | |
| Warranty | ||
| Warranty | No Warranty | |

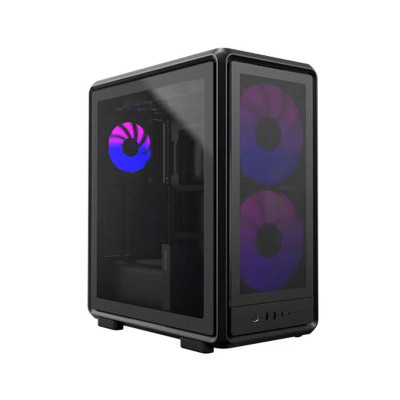

The Cooler Master MasterFrame 500 Mesh Mid-Tower Desktop Casing Black is designed for gaming PC builders who want strong airflow, flexible cooling options and a premium black finish. With pre-installed 200mm SickleFlow fans, tempered glass, support for multiple motherboard sizes and room for graphics cards up to 390mm, this Cooler Master PC case suits powerful gaming and performance-focused desktop builds. Its removable mesh dust filters and generous cable-routing space help keep your system organised and easier to maintain.
The front panel comes with two 200mm SickleFlow fans, available in ARGB or non-ARGB configurations depending on the version. A rear 120mm fan supports additional airflow. The case also supports front and top radiators up to 360mm, making it suitable for compatible liquid cooling systems and demanding gaming setups.
This mid-tower casing supports Mini-ITX, Mini-DTX, Micro-ATX and ATX motherboards, with conditional support for E-ATX and SSI-CEB boards. It provides up to 390mm of graphics card clearance, 190mm of CPU cooler height and 235mm of PSU length, helping builders plan a powerful PC without overlooking component dimensions.
The black finish, tempered-glass front panel and aluminum-and-steel construction create a distinctive look for gaming rooms and professional setups. Front I/O includes two USB 3.2 Gen 1 Type-A ports, one USB 3.2 Gen 2x2 Type-C port and a 3.5mm headset jack. Removable mesh dust filters and 43mm of cable-routing space help simplify maintenance and cable management.
| Model | Cooler Master MasterFrame 500 Mesh |
| Case Type | Mid Tower |
| Color | Black |
| Front Panel | Tempered Glass |
| Motherboard Support | Mini-ITX, Mini-DTX, Micro-ATX, ATX; conditional E-ATX and SSI-CEB |
| Pre-installed Fans | Front: 2 × 200mm SickleFlow; Rear: 1 × 120mm (ARGB or non-ARGB, depending on version) |
| Radiator Support | Front: up to 360mm; Top: up to 360mm; Rear: 120mm |
| Expansion Slots | 8 |
| Drive Support | 1 × 2.5-inch SSD or 3.5-inch drive bay |
| USB Ports | 2 × USB 3.2 Gen 1 Type-A, 1 × USB 3.2 Gen 2x2 Type-C |
| Maximum CPU Cooler Height | 190mm |
| Maximum GPU Length | 390mm |
| Maximum PSU Length | 235mm |
| PSU Form Factor | SFX, SFX-L |
| Dimensions (with protrusions) | 471 × 261 × 373.8mm |
| Materials | SGCC Steel, Aluminum |
Gaming PC builders: The spacious interior and large graphics card clearance suit compatible gaming components.
Liquid-cooling enthusiasts: Front and top radiator support up to 360mm provides flexible cooling options.
Custom PC enthusiasts: Multiple fan mounting positions, eight expansion slots and cable-routing space support tailored builds.
Showcase-focused users: The black design and tempered-glass panel complement a carefully assembled setup.
Before buying the Cooler Master MasterFrame 500 Mesh in Bangladesh, check your motherboard size, GPU length, CPU cooler height and PSU dimensions. This case uses an SFX or SFX-L power supply, rather than a standard ATX PSU, so verify compatibility before ordering. E-ATX and SSI-CEB motherboard support is conditional, and the listed drive bay accommodates either one 2.5-inch or one 3.5-inch drive. Confirm the exact fan configuration with the seller if ARGB lighting is important to you.
Potaka IT helps Bangladeshi PC builders explore computer components and casing options for different budgets and performance needs. Browse our Cooler Master products, explore Cooler Master casing, or compare other options in our computer casing and PC components categories. Visit Potaka IT for more PC-building products.
Yes. It supports ATX, Micro-ATX, Mini-ITX and Mini-DTX motherboards. E-ATX and SSI-CEB support is conditional, so check board dimensions and clearance before purchase.
The maximum supported graphics card length is 390mm. Check your GPU's dimensions and connector clearance before installation.
Yes. The case supports 360mm radiators at the front and top, plus a 120mm radiator at the rear.
You can check product availability and purchasing details at Potaka IT. Confirm the current price, warranty and included fan configuration before ordering.
The latest price of Cooler Master MasterFrame 500 Mesh Casing in Bangladesh is 22,500৳. You can buy the Cooler Master MasterFrame 500 Mesh Casing at best price from our website or visit any of our showrooms.
