| Key Features | ||
| Continuous Power | 750W | |
| Efficiency (Approx.) | Up to 87% | |
| Certification | 80 PLUS Bronze | |
| Fan Size | 120mm HDB Fan | |
| Lighting Effect | No lighting | |
| Others | Active PFC; protection features listed include OVP (Over Voltage Protection), UVP (Under Voltage Protection), OCP (Overcurrent Protection), OPP (Over Power Protection), and SCP (Short-Circuit Protection). OTP (Over Temperature Protection) requires confirmation for the exact model. | |
| Output | ||
| Total Power | 750W | |
| Modular Type | Non-Modular (for the original COUGAR ATLAS 750, model CGR BA-750; verify the supplied unit because the provided MPN differs) | |
| AC Input | 100–240V AC | |
| DC Output | +3.3V, +5V, +12V, −12V, +5Vsb | |
| Connector | ||
| CPU | 2 × 8-pin (4+4-pin), according to the supplied specifications | |
| PCI-E | 4 × 8-pin (6+2-pin), according to the supplied specifications | |
| SATA | 8 connectors on the original CGR BA-750; verify the exact revision | |
| Molex | 3 peripheral connectors on the original CGR BA-750; verify the exact revision | |
| Main Power | 1 × 24-pin (20+4-pin) | |
| Others | Connector configuration may vary by model or revision. Confirm against the unit's packaging and official specification sheet. | |
| Package Contents | 1 × Power Supply Unit; power cable and accessories depend on the supplied package. | |
| Input | ||
| Voltage | 100–240V AC | |
| Frequency Range | 50–60Hz | |
| Current | 10A–5A for the original CGR BA-750 specification | |
| Physical Dimension | ||
| Dimensions | 140 × 150 × 86mm for the original CGR BA-750 | |
| Color | Black | |
| Warranty Information | ||
| Manufacturing Warranty | 5 Years | |

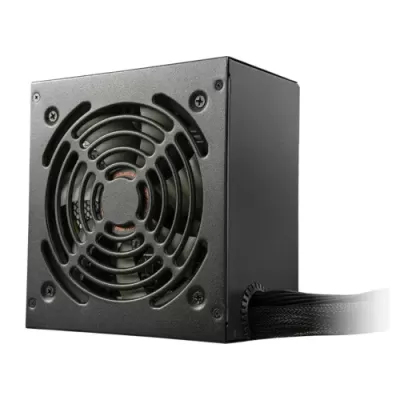

The Cougar ATLAS750 750W 80+ Bronze Non-Modular Power Supply is designed for desktop PC users who need dependable power for gaming, productivity, and everyday computing. With 750W of rated output, 80 PLUS Bronze certification, up to 87% efficiency, and a 120mm cooling fan, this COUGAR power supply offers a practical foundation for a performance-oriented PC build. If you are planning a new gaming computer or upgrading an existing desktop, the ATLAS750 provides substantial power capacity for compatible processors, graphics cards, storage drives, and other components.
A 750W PSU can be a suitable choice for many mid-range and upper-mid-range desktop configurations, depending on the processor, graphics card, and other installed hardware. The Cougar ATLAS750 is designed to supply power to the motherboard, CPU, graphics card, drives, and supported peripherals. Before purchasing, compare the total power requirements of your components with the PSU's specifications and the graphics card manufacturer's recommended power supply capacity.
The ATLAS750 features 80 PLUS Bronze certification and is advertised by COUGAR with power conversion efficiency of up to 87%. Efficient power conversion helps reduce the amount of electricity lost as heat compared with less efficient designs operating under comparable conditions. Actual efficiency depends on load and input conditions, so 87% should be understood as a stated maximum rather than a constant operating figure.

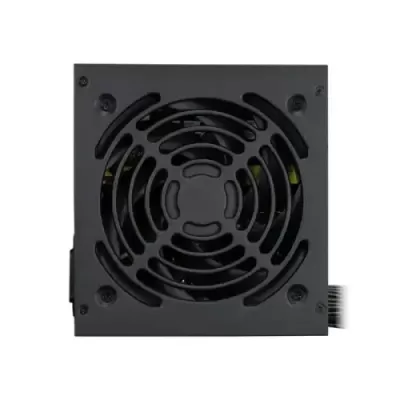

The 120mm hydraulic dynamic bearing (HDB) fan is designed to provide airflow across the power supply's internal components. Automatic fan-speed control helps balance cooling requirements with operating noise. This is useful for home computers, gaming desktops, and office workstations that run for extended periods.
Active power factor correction helps improve how effectively the power supply draws electrical power from the AC source. It is a useful feature in a modern desktop PSU, although power factor and conversion efficiency are different measurements. Active PFC does not replace the need for a suitable electrical connection or surge protection where required.
Protection circuits help the power supply respond to certain abnormal electrical conditions. The protection features listed for the ATLAS series include:
Protection features are an important part of PSU selection, but they do not guarantee protection against every electrical fault or external power problem.
The 750W capacity can suit gaming systems using compatible dedicated graphics cards and modern desktop processors. Its four 6+2-pin PCIe connectors in the original ATLAS 750 specification provide options for supported graphics cards that use conventional PCIe power connections. Always check the exact GPU connector requirements and the PSU's cable layout before installation.
For photo editing, video editing, programming, and other demanding workloads, the ATLAS750 can supply power to a compatible CPU, graphics card, memory, and storage configuration. Whether it is the right choice depends on the combined power draw of the installed components and the workload.
A 750W PSU offers substantial capacity for users who want a versatile desktop for multitasking, professional applications, and future component upgrades. It may provide more headroom than a basic office PC requires, so buyers should compare their actual needs with lower-wattage alternatives before deciding.
If you are replacing an older or lower-capacity power supply, check the case dimensions, motherboard connector, CPU power connections, graphics card power requirements, and storage connectors. A higher wattage rating alone does not establish compatibility with every desktop configuration.
| Specification | Details |
|---|---|
| Brand | COUGAR |
| Product Name | Cougar ATLAS750 750W Power Supply |
| Model | ATLAS 750 |
| Model Number | CGR BA-750 for the original official ATLAS 750 model; confirm the supplied unit's label because CGR VG-750 was provided separately. |
| Total Power Output | 750W |
| Efficiency Certification | 80 PLUS Bronze |
| Maximum Advertised Efficiency | Up to 87% |
| Power Factor Correction | Active PFC |
| Cooling Fan | 120mm HDB fan |
| Modular Design | Fixed, non-modular cables on the original CGR BA-750 model |
| AC Input | 100–240V AC, 50–60Hz, 10–5A for the original specification |
| +3.3V Output | 22A |
| +5V Output | 22A |
| +12V Output | 62.5A |
| −12V Output | 0.3A |
| +5Vsb Output | 3A |
| Combined +3.3V and +5V Output | 140W maximum |
| +12V Output Power | 750W in the original CGR BA-750 specification |
| Mainboard Connector | 1 × 24-pin (20+4-pin) |
| CPU Connectors | 2 × 8-pin (4+4-pin) |
| PCIe Connectors | 4 × 8-pin (6+2-pin) |
| SATA Connectors | 8 in the original CGR BA-750 specification |
| Peripheral/Molex Connectors | 3 in the original CGR BA-750 specification |
| Protection Features | OVP, UVP, OCP, OPP, SCP; verify OTP for the exact regional version |
| Dimensions | 140 × 150 × 86mm for the original model |
| Colour | Black |
| Warranty | 5 years as supplied in the seller's product information; confirm local warranty terms before purchase |
A 750W power supply is not automatically the best choice for every computer. The ideal capacity depends on the processor, graphics card, storage devices, cooling equipment, and expected upgrades. A well-matched PSU should provide sufficient output without relying on wattage alone as a measure of quality.
When comparing the Cougar ATLAS750 with other desktop power supplies, consider these factors:
If you are looking for the Cougar ATLAS750 750W 80 PLUS Bronze power supply in Bangladesh, check the current price, stock status, model number, and warranty coverage before purchasing. The exact revision matters because regional versions can differ in their model codes, connector counts, and warranty terms.
For a compatible desktop build, make sure your processor, motherboard, and graphics card are suitable for the intended power configuration. You should also confirm that your PC casing accommodates the power supply and provides enough room for cable routing.
Visit Potaka IT to check the product listing and available purchasing information. Compare the published specifications with the label on the actual unit, especially if the listing uses the CGR VG-750 model code while the manufacturer's original ATLAS 750 documentation identifies CGR BA-750.
The Cougar ATLAS750 is rated at 750W total output. The original CGR BA-750 specification also lists 750W on its +12V output rail.
Yes. The original COUGAR ATLAS 750 is 80 PLUS Bronze certified and is advertised with efficiency of up to 87%, depending on operating conditions.
The original COUGAR ATLAS 750, model CGR BA-750, uses fixed, non-modular cables. Since the supplied listing identifies CGR VG-750 and also contains a conflicting full-modular specification, confirm the model label and cable design before purchasing.
The original ATLAS 750 provides four 6+2-pin PCIe connectors. Compatibility depends on the graphics card's power requirements, connector type, and the PSU revision. Check the GPU manufacturer's recommendations before installation.
The PSU carries 80 PLUS Bronze certification and has a stated maximum efficiency of up to 87%. Actual efficiency varies with load and operating conditions.
The original ATLAS series lists over-voltage, under-voltage, overcurrent, overpower, and short-circuit protection. Over-temperature protection is also listed in some regional specifications, so confirm it for the exact model.
It can be used with compatible AMD or Intel desktop platforms when the motherboard, CPU power connectors, graphics card, and total system power requirements match the PSU's specifications. Processor brand alone does not determine PSU compatibility.
A 750W PSU can be sufficient for many gaming PCs, but the answer depends on the exact CPU, graphics card, and other components. Check the GPU manufacturer's recommended PSU capacity and allow suitable headroom for system load.
The supplied product information states a five-year manufacturing warranty. Warranty duration and eligibility may vary by distributor or regional version, so confirm the terms with the seller before purchasing.
You can check the Cougar ATLAS750 product listing at Potaka IT for current availability, pricing, and warranty details. Confirm the exact model number and connector configuration before completing your purchase.
The latest price of Cougar ATLAS750 750W Power Supply in Bangladesh is 9,000৳. You can buy the Cougar ATLAS750 750W Power Supply at best price from our website or visit any of our showrooms.
