| Key Features | ||
| Fan Speed | 700–2500 RPM ±10% | |
| Fan Airflow | 78.2 CFM | |
| Noise | 38.0 dB(A) | |
| Type | Single-frame 360mm ARGB reverse-blade PWM fan | |
| Air Pressure | 5.4 mmH₂O | |
| Connector | 4-pin PWM / 3-pin 5V ARGB | |
| Ampere | 0.85 A (Fan) / 1.6 A (LED) | |
| Others | Single-frame reverse-blade design, FDB bearing, motherboard ARGB synchronisation, two-cable connection | |
| Physical Specification | ||
| Dimension | 363.6 × 125 × 25 mm | |
| Weight | 0.39 kg | |
| Warranty Information | ||
| Warranty | 3 years | |

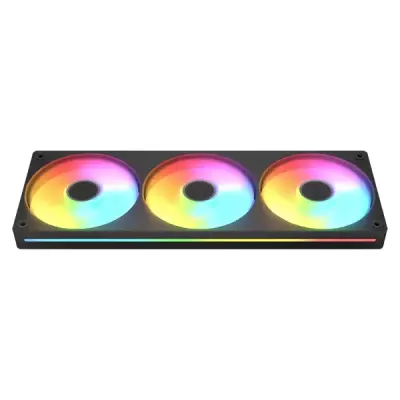

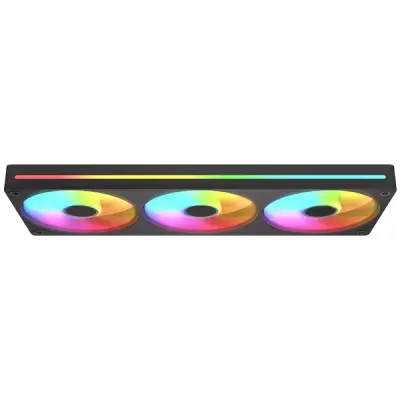

The Cougar Unity 360 ARGB Single Frame Reverse Blade PWM Fan Black is designed for PC builders who want organised cable management, customisable lighting and effective case airflow in a streamlined fan assembly. Its single-frame construction integrates multiple fans into one unit, helping simplify installation compared with mounting and wiring individual fans separately. With PWM speed control, ARGB side lighting and a black finish, this Cougar 360mm fan is a suitable option for compatible gaming PCs, showcase builds and performance-focused desktop systems.
When choosing a cooling solution for your PC, consider your case layout, radiator compatibility, airflow direction and motherboard headers. You can also explore PC casing options to find a suitable enclosure for your build.
The integrated frame combines multiple 120mm fan sections into one assembly. This design makes installation more convenient than fitting three separate fans and helps keep the overall build organised. It is particularly useful for PC builders who want a clean interior without unnecessary cable clutter.
The reverse-blade configuration is intended for airflow arrangements where a conventional fan orientation may not provide the desired combination of air direction and visible fan appearance. It can be useful in showcase PC builds with carefully planned intake and exhaust positions. Always check the manufacturer's airflow direction markings before installation to ensure the fan supports your intended cooling layout.
The supplied specifications list a fan speed range of 700–2500 RPM ±10%. PWM control allows a compatible motherboard or fan controller to adjust fan speed according to system requirements. Lower speeds can help reduce fan noise during lighter workloads, while higher speeds provide more airflow when the system needs additional cooling.
The integrated ARGB side lighting adds colour and visual depth to a gaming PC. With a compatible 3-pin 5V ARGB motherboard header and supported motherboard lighting software, users can synchronise lighting effects with other compatible components. Check the motherboard connector and voltage before connecting the lighting cable.
The single-frame assembly uses a simplified connection arrangement with one 4-pin PWM connection for fan control and one 3-pin 5V ARGB connection for lighting. This reduces cable clutter compared with separately connecting multiple fans and helps create a neater PC interior.
The fan uses a Fluid Dynamic Bearing (FDB), a bearing design intended to support smooth rotation and long-term operation. Actual lifespan and noise levels depend on operating conditions, dust accumulation, mounting, fan speed and the surrounding PC configuration.
The supplied specifications state an airflow rating of 78.2 CFM and a maximum static pressure of 5.4 mmH₂O. Airflow indicates the volume of air the fan can move under specified test conditions, while static pressure describes its ability to push air against resistance. These measurements can help when comparing cooling fans for case ventilation or radiator use, but real-world performance varies with the installation and system configuration.
The listed maximum noise level is 38.0 dB(A). The fan's actual noise depends on its operating speed, mounting surface and nearby components. The supplied power ratings are 10.2W for the fan and 8W for the LED lighting. Check available motherboard headers and the power requirements of any connected controller before installation.
The listed dimensions are 363.6 × 125 × 25 mm. Measure the available mounting area and confirm that your PC case or radiator supports the assembly. A nominal 360mm mounting position does not guarantee compatibility with every case because clearances, mounting-hole layouts and surrounding components can differ.
The fan uses a 4-pin PWM connector, while the lighting uses a 3-pin 5V ARGB connector. Confirm that your motherboard or compatible controller supports both connections. A 3-pin 5V ARGB connection is not interchangeable with a 4-pin 12V RGB header.
Reverse-blade fans are designed for a different airflow direction from conventional fan configurations. Before buying, decide whether the installation location needs intake or exhaust airflow and confirm the manufacturer's airflow markings. Correct placement is important for maintaining a balanced flow of cool air through the PC.
If you prioritise quieter everyday use, check whether your motherboard supports PWM fan curves. Configuring the fan to operate at a suitable speed for everyday tasks can help balance cooling performance and noise. Higher speeds may be useful under demanding workloads but can produce more audible fan noise.
The supplied product information lists a 3-year warranty. Before purchasing, confirm the warranty terms, service coverage and proof-of-purchase requirements with the seller in Bangladesh.
The price of the Cougar Unity 360 ARGB Single Frame Reverse Blade PWM Fan Black in Bangladesh depends on current stock, supplier pricing and warranty coverage. Check the latest listed price and availability at Potaka IT before making a purchase.
For a compatible build, compare the fan's mounting dimensions, reverse-blade airflow direction, PWM control, ARGB connectivity and warranty before deciding. These checks help ensure the fan fits your PC configuration and meets your cooling and lighting requirements.
It is a multi-fan assembly integrated into a single frame, designed to provide controlled PC airflow and ARGB lighting. Its reverse-blade configuration is intended for airflow arrangements that require the opposite direction from conventional fan blades.
The supplied dimensions are 363.6 × 125 × 25 mm. Check your case or radiator's mounting space before purchasing.
Yes, the supplied specifications list a 4-pin PWM connection and a fan speed range of 700–2500 RPM ±10%. Actual control depends on the connected motherboard or compatible controller.
The fan uses a 3-pin 5V ARGB connection. Lighting synchronisation requires a compatible motherboard header or controller and supported lighting software.
No. A 3-pin 5V ARGB connector should not be connected to a 4-pin 12V RGB header. Confirm the connector type and voltage before installation to avoid damaging the lighting components.
The 360mm-class assembly may suit a compatible mounting position, but compatibility should not be assumed from the size alone. Check the radiator's mounting pattern, available clearance, screw placement and the manufacturer's compatibility guidance.
The supplied specification lists a maximum noise level of 38.0 dB(A). Actual noise varies with fan speed, mounting, case acoustics and operating conditions.
The supplied product information lists a 3-year warranty. Confirm the exact warranty coverage and service conditions with the seller before purchasing.
| Specification | Details |
|---|---|
| Product Name | Cougar Unity 360 ARGB Single Frame Reverse Blade PWM Fan Black |
| Fan Size | 360mm assembly |
| Dimensions | 363.6 × 125 × 25 mm |
| Color | Black |
| Bearing Type | FDB (Fluid Dynamic Bearing) |
| Fan Speed | 700–2500 RPM ±10% (verify model-specific specification) |
| Fan Airflow | 78.2 CFM (verify model-specific specification) |
| Maximum Static Pressure | 5.4 mmH₂O (verify model-specific specification) |
| Noise Level | 38.0 dB(A) (verify model-specific specification) |
| Connectors | 4-pin PWM / 3-pin 5V ARGB |
| Rated Voltage | 12V DC (fan) / 5V DC (LED) |
| Rated Current | 0.85A (fan) / 1.6A (LED) |
| Power Consumption | 10.2W (fan) / 8W (LED) |
| Weight | 0.39 kg |
| Warranty | 3 years |
