| Camera Feature | ||
| Image Sensor | 1/2.8" CMOS | |
| IR Distance | IR LEDs: 12 (IR LED) IR Distance: 30 m (98.4 ft) Illuminator Control: Auto/Manual |
|
| Max. Resolution | 1920 (H) × 1080 (V) | |
| Smart Alarm | Network disconnection; IP conflict; illegal access; motion detection; video tampering; safety exception | |
| Shutter Speed | Auto/Manual 1/3 s–1/100000 s | |
| Day & Night | Auto (ICR)/Color/B/W | |
| Angle Adjustment | Pan: 0° to 355° Tilt: 0° to 78° Rotation: 0° to 360° |
|
| Others | Min. Illumination: 0.01 Lux @F2.0 SNR (dB): >56 dB Scanning System: Progressive ROM: 16 MB RAM: 64 MB |
|
| Lens | ||
| Type | Fixed-focal | |
| Focal Length | 2.8 mm; 3.6 mm | |
| Aperture | 2.8 mm: F2.0 3.6 mm: F2.0 |
|
| Angle of View | 2.8 mm: Horizontal: 102°; Vertical: 54°; Diagonal: 120° 3.6 mm: Horizontal: 84°; Vertical: 45°; Diagonal: 100° |
|
| Lens Mount | M12 | |
| Iris Type | Fixed | |
| Close Focus Distance | 2.8 mm: 0.5 m (1.6 ft) 3.6 mm: 0.8 m (2.6 ft) |
|
| DORI Distance | 2.8 mm: 38.6 m(126.6 ft), 15.4 m(50.5 ft), 7.7 m( 25.3 ft), 3.9 m(12.8 ft) 3.6 mm: 49.7 m(163.1 ft), 19.9 m (65.3 ft), 9.9 m(32.5 ft), 5.0 m(16.4 ft) |
|
| Video | ||
| Video Compression | H.265; H.264; H.264B; MJPEG (only supported by the sub stream) | |
| Resolution | 1080p (1920 × 1080); 1.3M(1280 × 960);720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240) | |
| Main Stream | 1920 × 1080 (1 fps–25/30 fps) | |
| Sub Stream | 704 × 576 (1 fps–25 fps) 704 × 480 (1 fps–30 fps) |
|
| Smart Codec | Smart H.265+/Smart H.264+ | |
| Video Frame Rate | Main Stream:1920 × 1080 (1 fps–25/30 fps) Sub stream: 704 × 576 (1 fps–25 fps) 704 × 480 (1 fps–30 fps) |
|
| Stream Capability | 2 streams | |
| Bit Rate Control | CBR/VBR | |
| Video Bit Rate | H.264: 32 kbps–6144 kbps H.265: 12 kbps–6400 kbps |
|
| Day/Night | Auto (ICR)/Color/B/W | |
| BLC | Yes | |
| HLC | Yes | |
| WDR | DWDR | |
| Gain Control | Auto/Manual | |
| Noise Reduction | 3D NR | |
| Region of Interest (ROI) | Yes (4 areas) | |
| Mirror | Yes | |
| Privacy Masking | 4 areas | |
| Network | ||
| Protocol | IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; SMTP; FTP; DHCP; DNS; NTP; Multicast | |
| Interoperability | ONVIF (Profile S/Profile T); CGI; P2P; Genetec | |
| API | Yes | |
| User/Host | 6 (Total bandwidth: 36 M) | |
| Client | IOS; Android | |
| Web Browser | IE Chrome Firefox |
|
| App | Smart PSS; DSS; DMSS | |
| Network Interface | RJ-45 (10/100 Base-T) | |
| Physical Specification | ||

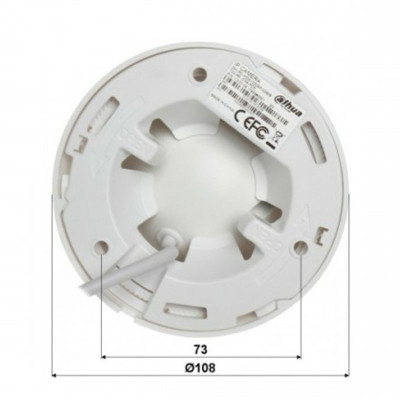

| Dimension | 84.9 mm × Φ108 mm (3.3" × Φ4.3") | |
| Weight | Net Weight: 0.26 kg (0.5 lb) Gross Weight: 0.39 kg (0.8 lb) |
|
| Power | Power Supply: 12V DC/PoE (802.3af) PoE Standard: 802.3af Basic power consumption:1.5W (12V DC); 3.3W (PoE) Max. power consumption (ICR + H.265+IR intensity): 2.3W (12V DC); 4.4W (PoE) Casing Material Inner core: Metal Cover: Plastic Decoration ring: Plastic Pedestal: Plastic |
|
| Others | Operating Temperature: -40°C to +60°C (-40°F to +140°F)/less than ≤ 95% Storage Temperature: -40°C to +60°C (-40°F to +140°F) Water Protection: IP67 |
|
| Warranty | ||
| Warranty | 1 Year | |

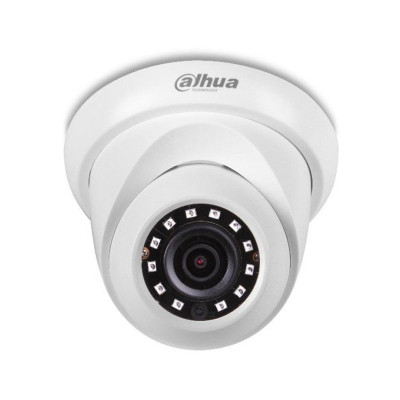

The Dahua DH-IPC-HDW1230S-S5 2MP IR Dome Network Camera is a reliable and high-performance surveillance solution designed for both indoor and outdoor use. Built with advanced night vision, smart detection features, and full HD video quality, this dome camera ensures consistent monitoring and clear footage anytime. Its durable IP67 weatherproof design paired with user-friendly installation makes it a dependable choice for homes, offices, shops, and industrial environments.
This Dahua 2MP dome camera features a 1/2.8" CMOS sensor that delivers crisp 1080p resolution with excellent low-light performance. The powerful IR LEDs provide up to 30 meters of visibility in total darkness, ensuring the camera captures detailed images day or night. With features like DWDR, 3D noise reduction, motion detection, and advanced H.265 compression, the camera is optimized for clarity, storage efficiency, and reliable security monitoring. Flexible angle adjustment, PoE support, and compatibility with major NVR platforms make it suitable for any surveillance system.
The camera captures high-definition footage at a resolution of 1920 × 1080, delivering sharp and detailed video suitable for identifying faces, objects, and activities. With progressive scanning and high SNR performance, it maintains consistent image clarity even in dynamic environments.
Equipped with 12 built-in IR LEDs, the camera provides up to 30 meters of night vision. Its Auto/Manual illuminator control ensures optimized night-time performance, offering clear black-and-white imaging even in complete darkness.
With a minimum illumination of 0.01 Lux, the camera is designed to capture visible images in challenging lighting conditions. Features like DWDR, BLC, HLC, and 3D NR further enhance clarity in bright, low-light, or high-contrast environments.
Available in 2.8mm and 3.6mm fixed-focal lens options, the camera offers wide horizontal viewing angles from 84° to 102°, making it suitable for open areas, hallways, or store interiors. Its flexible pan, tilt, and rotation adjustments allow easy positioning during installation.
The camera uses Smart H.265+ and Smart H.264+ to reduce bandwidth consumption and storage requirements while maintaining footage quality. Its dual-stream capability ensures smooth viewing on both mobile devices and monitoring software.
The camera supports intelligent alarms for motion detection, illegal access, IP conflicts, network disconnections, and video tampering. These smart functions enhance security and ensure timely notifications for suspicious activity.
With support for ONVIF profiles S and T, CGI, P2P, and compatibility with platforms like Genetec, Smart PSS, DSS, and DMSS, the IP camera integrates seamlessly with modern surveillance systems. Remote monitoring is supported on iOS and Android devices for real-time access.
The dome camera is engineered with a metal core and durable plastic housing, offering long-lasting protection against dust, heavy rain, and harsh weather conditions. Its -40°C to +60°C operating range ensures reliable performance outdoors or in industrial areas.
The camera can be powered via 12V DC or PoE, simplifying installation by reducing cable requirements. Its low power consumption makes it energy-efficient without compromising performance.
Potaka IT is a trusted provider of authentic Dahua surveillance products, ensuring competitive pricing and guaranteed quality. When you buy the Dahua DH-IPC-HDW1230S-S5 2MP IR Dome Network Camera from Potaka IT, you receive expert support, reliable after-sales service, and fast delivery. Whether you're upgrading a home security system or building a professional surveillance network, Potaka IT ensures a smooth and dependable buying experience.
The latest price of Dahua DH-IPC-HDW1230S-S5 2MP Camera in Bangladesh is 4,200৳. You can buy the Dahua DH-IPC-HDW1230S-S5 2MP Camera at best price from our website or visit any of our showrooms.
