| Camera Feature | ||
| Image Sensor | 1/2.7" CMOS | |
| Max. Resolution | 6MP Supports 3288 × 1850 @20 fps 2688×1520 @25/30 fps. |
|
| Smart Alarm | Alarm Input: 1 channel in: wet contact, 5 mA 3–5 VDC Alarm Output: 1 channel out: wet contact, 300 mA 12 VDC No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; audio detection; voltage detection; SMD; security exception; external alarm |
|
| Shutter Speed | Auto/Manual 1/3 s–1/100,000 s | |
| Day & Night | Auto(ICR)/Color/B/W | |
| Angle Adjustment | Pan: 0°–360°; Tilt: 0°–90° Rotation: 0°–360° |
|
| Others | Min. Illumination: 0.007 lux@F1.6 (Color, 30 IRE); 0.0007 lux@F1.6 (B/W, 30 IRE) 0 lux (Illuminator on) SNR (dB): >56 dB |
|
| Lens | ||
| Type | Fixed-focal | |
| Focal Length | 3.6 mm; 6 mm; 8 mm | |
| Aperture | F1.6 | |
| Lens Mount | M12 | |
| Field of View | 3.6 mm: H: 91°; V: 46°; D: 110° 6 mm: H: 56°; V: 30°; D: 65° 8 mm: H: 42°; V: 24°; D: 48 |
|
| Iris Type | Fixed | |
| Close Focus Distance | 3.6 mm: 1.7 m (5.58 ft) 6 mm: 3.2 m (10.50 ft) 8 mm: 6.8 m (22.31 ft) |
|
| DORI Distance | 3.6 mm: 85.4 m ( 280.18 ft), 34.2 m( 112.20 ft), 17.1 m( 56.10 ft), 8.5 m( 27.89 ft) 6 mm: 124.0 m( 406.82 ft), 49.6 m( 162.73 ft), 24.8 m( 81.36 ft), 12.4 m ( 40.68 ft) 8 mm: 150.4 m ( 493.44 ft), 60.2 m( 197.51 ft), 30.1 m ( 98.75 ft), 15.0 m ( 49.21 ft) |
|
| Others | IR LEDs: 2 (IR LED); 2 (Warm light) IR Distance: Up to 60 m (196.85 ft) (IR), Up to 50 m (164.04 ft) (Warm light) Illuminator Control: Auto; Manual |
|
| Video | ||
| Video Compression | H.265; H.264; H.264H; H.264B; MJPEG (Only supported by sub stream) | |
| Resolution | 6M (3288 × 1850/3200 × 1800); 5M (2880 × 1620); 4M (2688 × 1520); 3M (2048 × 1536/2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240) | |
| Main Stream | 3288 × 1850@(1–20 fps)/2688 × 1520@(1–25/30 fps) | |
| Sub Stream | 704 × 576@(1–25 fps)/704 × 480@(1–30 fps) | |
| Smart Codec | Smart H.265+; Smart H.264+ | |
| Video Frame Rate | Main stream: 3288 × 1850@(1–20 fps)/2688 × 1520@(1–25/30 fps) sub stream: 704 × 576@(1–25 fps)/704 × 480@(1–30 fps) The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity. |
|
| Stream Capability | 2 streams | |
| Bit Rate Control | VBR;CBR | |
| Video Bit Rate | H.264: 32 kbps–8192 kbps; H.265: 12 kbps–8192 kbps |
|
| Day/Night | Auto(ICR)/Color/B/W | |
| BLC | Yes | |
| HLC | Yes | |
| WDR | 120 dB | |
| Gain Control | Auto/Manual | |
| Noise Reduction | 3D NR | |
| Region of Interest (ROI) | Yes (4 areas) | |
| Mirror | Yes | |
| Privacy Masking | 4 areas | |
| Others | Smart Dual Light: Yes Image Rotation: 0°/90°/180°/270° (Support 90°/270° with 2688×1520 resolution and lower) Audio Compression: G.711a; G.711Mu; PCM; G.726 Built-in Microphone: Yes, built-in Mic |
|
| Network | ||
| Protocol | IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP ; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; P2P; Bonjour; Auto Registration | |
| Interoperability | ONVIF (Profile S & Profile G & Profile T); CGI | |
| API | Yes | |
| User/Host | 20 (Total bandwidth: 48 M) | |
| Client | iOS;Android | |
| Web Browser | IE; Chrome; Firefox |
|
| App | Smart PSS Lite; DSS; DMSS; DoLynk Care | |
| Network Interface | RJ-45 (10/100 Base-T) | |
| Others | Card Slot: Micro SD card (support max. 256 GB); Network Storage: FTP; SFTP; NAS |
|
| Physical Specification | ||
| Dimension | 238.5 mm × 90.7 mm × 90.7 mm (9.39" × 3.57" × 3.57") (L × W × H) | |
| Weight | Net Weight: 0.72 kg (1.59 lb) Gross Weight: 0.97 kg (2.14 lb) |
|
| Color | White | |
| Power | Power Supply: 12 VDC; PoE Power Consumption: Basic: 2.2 W (12 VDC); 2.9 W (PoE); Max.: 6.4 W (12 VDC); 8 W (PoE) (H.265 + intelligence on+ WDR + illuminator intensity) |
|
| Others | Operating Temperature: –40 °C to +60 °C (–40 °F to +140 °F) Operating Humidity: ≤95% (RH), non-condensing Storage Temperature: –40 °C to +60 °C (–40 °F to +140 °F) Storage Humidity: ≤95% (RH), non-condensing Water Protection: IP67 Vandal Protection: IK10 (optional) Casing Material: Metal |
|
| Warranty | ||
| Warranty | 1 Year | |

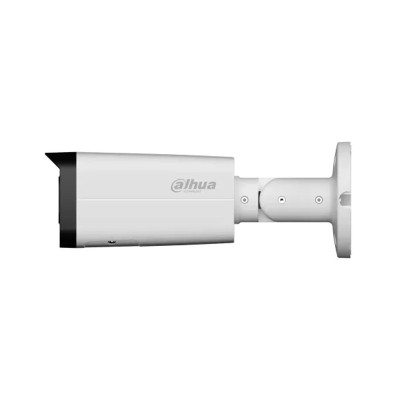

The Dahua DH-IPC-HFW2649T-AS-IL 6MP Smart Dual Light WizSense Bullet IP Camera is designed for users who need professional-grade surveillance with accurate detection, superior night vision, and reliable smart features. Built with cutting-edge WizSense technology, Smart Dual Light illumination, and a high-resolution 6MP sensor, this camera delivers outstanding performance for both indoor and outdoor security. Whether used for home, business, or industrial protection, it ensures high-quality monitoring with intelligent alerts and strong environmental resistance.
This bullet IP camera stands out with its powerful 1/2.7" CMOS sensor, offering a maximum resolution of 3288 × 1850 at 20 fps for clear and detailed video capture. The Smart Dual Light feature intelligently switches between infrared and warm light based on real-time detection, ensuring full-color visibility when needed. With a durable metal casing, IP67 water protection, and wide operating temperature support, the camera is built for long-term outdoor performance. Featuring integrated AI detection such as intrusion, tripwire, SMD, and video tampering alerts, it enhances security efficiency while minimizing false alarms.
The camera uses a 1/2.7" CMOS sensor providing high-resolution 6MP clarity, delivering sharper images with vivid details. It supports multiple resolutions including 6M, 5M, 4M, 3M, 1080p, and 720p, giving you flexibility based on your network bandwidth and storage needs.
Its dual-light design includes two IR LEDs and two warm lights, offering up to 60 m IR distance and 50 m warm light illumination. The camera automatically switches between IR night mode and warm-light full-color mode based on detection, ensuring optimal clarity in low-light environments. With fixed-focal lens options in 3.6 mm, 6 mm, and 8 mm, you can choose the ideal field of view for your surveillance area. Whether you need wide coverage or long-distance detail capture, the AK400 G2 DIGITAL NYX delivers multiple viewing angles with accurate DORI distances.
The camera performs exceptionally well in low light, offering 0.007 lux @F1.6 in color and 0.0007 lux @F1.6 in B/W. With illuminators turned on, it delivers 0 lux visibility, ensuring clear and reliable monitoring even in complete darkness. Equipped with WizSense technology, the camera supports tripwire detection, intrusion detection, motion detection, SMD (Smart Motion Detection), audio detection, illegal access alerts, video tampering detection, and more. This ensures accurate event monitoring and reduces unnecessary false alerts.
With 120 dB WDR, BLC, HLC, 3D NR noise reduction, and ROI support, the camera maintains high-quality video in challenging lighting conditions. It also supports smart H.265+ compression, reducing bandwidth and storage consumption without compromising quality. The integrated microphone allows high-quality audio capture, improving situational awareness and enhancing your recorded footage with sound.
Supporting a wide range of network protocols including IPv6, RTMP, RTSP, FTP, NTP, DDNS, and more, the camera integrates seamlessly into modern surveillance systems. It also features a MicroSD card slot supporting up to 256 GB, along with NAS, FTP, and SFTP storage support. Designed for outdoor use, the camera features IP67 water protection and optional IK10 vandal resistance. It operates comfortably in temperatures from –40°C to +60°C, making it suitable for harsh environments.
It supports 12 VDC and PoE, offering flexible installation. With a maximum power consumption of 6.4 W on 12 VDC and 8 W with PoE, the camera ensures powerful performance with efficient energy use. The camera supports full-angle adjustments with 360° pan, 90° tilt, and 360° rotation, making installation and positioning easy for any surveillance layout.
Potaka IT ensures that you receive original Dahua products with manufacturer warranty and reliable after-sales support, ensuring long-term satisfaction and security. We provide competitive pricing on Dahua’s premium WizSense IP cameras, giving you professional-level surveillance at the best value. Our security experts help you choose the right camera for your home, office, shop, or industrial location. We guide you with installation, compatibility, and technical setup.
The latest price of Dahua DH-IPC-HFW2649T-AS-IL 6MP IP Camera in Bangladesh is 0৳. You can buy the Dahua DH-IPC-HFW2649T-AS-IL 6MP IP Camera at best price from our website or visit any of our showrooms.
