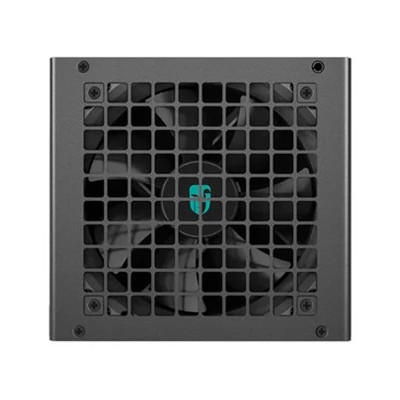

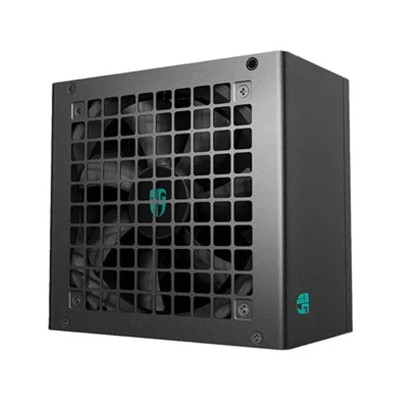

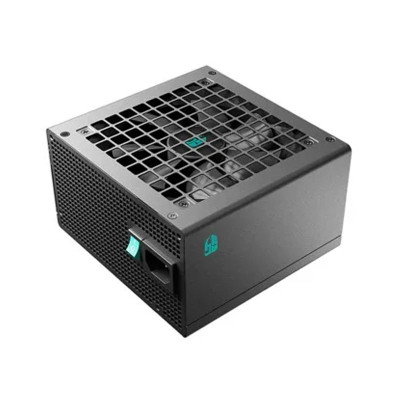

DeepCool PF500X 500W 80 Plus Bronze Non-Modular ATX Power Supply

DeepCool PF500X 500W 80 Plus Bronze Non-Modular ATX Power Supply

The DeepCool PF500X 500W 80 Plus Bronze Non-Modular ATX Power Supply is built for users who want stable, efficient power delivery without stretching their budget. Ideal for entry to mid-level gaming rigs and everyday desktop setups, this 80 Plus Bronze certified PSU offers trusted performance, long-term reliability, and support for modern hardware configurations. Whether you’re building your first PC or upgrading an old one, the PF500X brings everything you need in a dependable, energy-efficient package that doesn’t compromise on safety or compatibility.

Key Features of DeepCool PF500X 500W Power Supply

With 500W of continuous output, the PF500X is perfectly suited for mainstream systems with modern CPUs and dedicated GPUs. This unit comes with an 80 PLUS Bronze certification, offering up to 88% efficiency under typical load—translating to lower heat output and reduced electricity bills over time. It’s powered by Active PFC + DC to DC topology, ensuring stable voltage regulation and smooth power delivery to all components, even under fluctuating loads. This means greater system stability and better protection for your valuable hardware.

The 120mm hydro bearing fan keeps things cool and quiet, even during long gaming sessions or extended workloads. The fan automatically adjusts speed based on system temperature, ensuring low noise when idle and effective cooling when needed.

Built-in Protections for Peace of Mind

DeepCool has equipped the PF500X with a wide range of industry-standard protection mechanisms. This includes:

• OPP (Over Power Protection)
• OVP (Over Voltage Protection)
• SCP (Short Circuit Protection)
• OTP (Over Temperature Protection)
• OCP (Over Current Protection)
• UVP (Under Voltage Protection)
• SIP (Surge & Inrush Protection)
• NLO (No Load Operation)

These features ensure that your components stay safe from unexpected voltage surges, overheating, or electrical faults—making the PF500X a solid choice for long-term system reliability. The DeepCool PF500X 500W 80 Plus Bronze Non-Modular ATX Power Supply delivers excellent value for anyone building a reliable and efficient PC. With high-quality components, strong safety protections, and the trusted DeepCool brand name behind it, this PSU is ready to power your system today and into the future.

Reliable Performance in All Conditions

Designed to operate in ambient temperatures ranging from 0°C to 40°C, the PF500X is optimized for performance in typical environments, whether you're using your PC in a home office, bedroom, or studio. It comes with a Power Good Signal (100–150ms) and Hold-Up Time ≥16ms at 80% load, which are important indicators of power consistency and stability during minor power interruptions. The unit’s MTBF (Mean Time Between Failures) of 40,000 hours ensures years of consistent use without worry.

Clean and Compatible Cable Setup

Though non-modular, the PF500X includes all the necessary connectors to support most gaming and productivity builds. Here’s what you get:

• 1 x 24(20+4) Pin Main Connector for motherboard
• 1 x (4+4) Pin CPU Connector for powering your processor
• 2 x (6+2) Pin PCIe Connectors for dedicated graphics cards
• 3 x SATA Connectors for SSDs or HDDs
• 1 x 4-Pin Peripheral Connector for additional accessories

This setup is ideal for most Micro-ATX or ATX builds and easily supports mainstream GPUs like the RTX 3060, RX 6600, or GTX 1660 Super, along with multiple storage drives.

Why You Can Buy the DeepCool PF500X 500W Power Supply from Potaka IT?

When you buy the DeepCool PF500X 500W PSU from Potaka IT, you’re not just purchasing a product—you’re investing in reliable performance backed by trusted service. We only sell 100% genuine DeepCool products, ensuring your power supply meets global safety and efficiency standards like CE, FCC, TUV, and more. We also provide competitive pricing in Bangladesh, fast delivery options, and easy warranty support, so you can shop with confidence.
