| Basic Information | ||
| Supported CPU | AMD Socket AM4, support for: AMD Ryzen™ 5000 Series/ AMD Ryzen™ 5000 G-Series/ AMD Ryzen™ 4000 G-Series/ 3rd Generation AMD Ryzen™/ 2nd Generation AMD Ryzen™/ 1st Generation AMD Ryzen™/ 2nd Generation Ryzen™ with Radeon™ Vega Graphics/ 1st Generation Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics Processors | |
| Chipset | AMD B450 | |
| BIOS | 1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
|
| Form Factor | Micro ATX Form Factor; 24.4cm x 21.5cm | |
| Audio | Realtek® Audio codec High Definition Audio 2/4/5.1/7.1-channel * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings. Support for S/PDIF Out |
|
| Expansion Slots | ||
| PCI | 1 x PCI Express x16 slot, running at x16 (PCIEX16)(Note) * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. (The PCIEX16 slot conforms to PCI Express 3.0 standard.) 1 x PCI Express x16 slot, running at x1 (PCIEX1_2) 1 x PCI Express x1 slot (The PCIEX1_1 and PCIEX1_2 slots conform to PCI Express 2.0 standard.) |
|
| Memory | ||
| Supported Memory | 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory Dual channel memory architecture Support for DDR4 2933/2667/2400/2133 MT/s memory modules Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules |
|
| Graphics | ||
| Graphics | 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz(Note) * Support for HDMI 2.1 version and HDCP 2.2.(Note) |
|
| Connector & Ports | ||
| Internal I/O Ports | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 1 x system fan header 1 x CPU cooler LED strip/RGB LED strip header 1 x RGB LED strip header 2 x addressable LED strip headers 1 x M.2 Socket 3 connector 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x USB 3.1 Gen 1 header 1 x USB 2.0/1.1 header 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only) 1 x serial port header 1 x Clear CMOS jumper |
|
| USB (s) | Chipset: 2 x USB 3.1 Gen 1 ports available through the internal USB header 6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header) CPU: 4 x USB 3.1 Gen 1 ports on the back panel |
|
| LAN Port (s) | Realtek® GbE LAN chip (1 Gbps/100 Mbps/10 Mbps) | |
| Supported Storage | 1 x M.2 connector (Socket 3, M key, type 22110/2280/2260/2242 SATA and PCIe* 3.0 x4/x2 SSD support) * Actual support may vary by CPU. 4 x SATA 6Gb/s connectors Support for RAID 0, RAID 1, and RAID 10 |
|
| Warranty Information | ||
| Manufacturing Warranty | 3 year | |

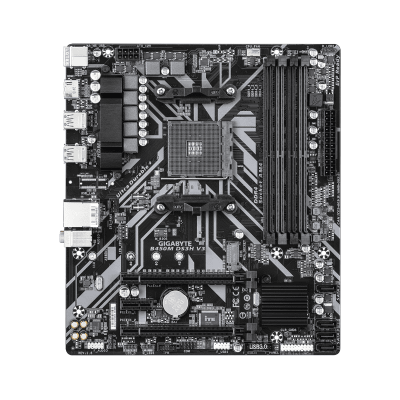

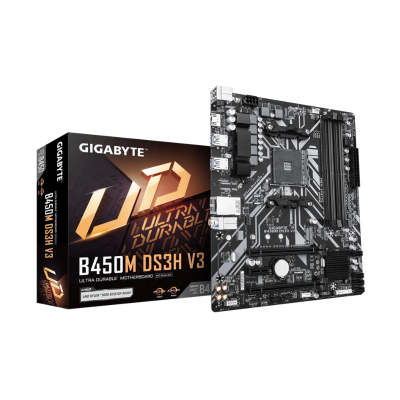

The Gigabyte B450M DS3H V3 DDR4 AMD Motherboard is an excellent choice for those looking to build a powerful and reliable PC. Designed with the AMD B450 chipset, this micro ATX motherboard supports a wide range of AMD Ryzen processors, including the latest Ryzen 5000 series. Whether you're a gamer, content creator, or general PC user, this motherboard provides solid performance with advanced connectivity, efficient power delivery, and superior memory support.
Supports AMD Socket AM4 processors, including Ryzen 5000, 4000, and earlier generations, ensuring flexibility for different builds.
Equipped with four DIMM slots, supporting up to 128GB of DDR4 RAM, ensuring smooth multitasking and performance.
Features an M.2 slot supporting PCIe 3.0 x4 NVMe and SATA SSDs, alongside four SATA 6Gb/s ports for enhanced storage options.
Includes PCIe 3.0 x16 and PCIe 2.0 x1 slots, providing flexibility for GPUs and additional expansion cards.
Integrated Realtek® Audio Codec supports 7.1-channel HD audio with S/PDIF output, delivering crystal-clear sound for immersive experiences.
Comes with RGB and addressable LED strip headers, allowing for customizable lighting effects to match your gaming setup.
Offers USB 3.1 Gen 1 and USB 2.0/1.1 ports for high-speed data transfer and connectivity for peripherals.
Integrated 1GbE LAN chip ensures stable and fast internet connectivity for gaming and streaming.
Looking for the best deal on the Gigabyte B450M DS3H V3 DDR4 Motherboard in Bangladesh? Potaka IT offers this high-performance motherboard at the most competitive price. With its excellent build quality, Ryzen processor support, and advanced features, this motherboard is perfect for gamers and professionals alike. Order now from Potaka IT and enjoy fast delivery, genuine products, and top-notch customer service in BD.
The latest price of Gigabyte B450M DS3H V3 DDR4 in Bangladesh is 10,500৳. You can buy the Gigabyte B450M DS3H V3 DDR4 at best price from our website or visit any of our showrooms.
