| Basic Information | ||
| Supported CPU | AM4 Socket: Supports AMD Ryzen 5000 series / Ryzen 5000 G-Series/ 3rd Gen Ryzen/ 2nd Gen Ryzen 1st Gen Ryzen/ 2nd Gen Ryzen with Radeon Vega Graphics/ 1st Gen Ryzen with Radeon Vega Graphics/ Athlon with Radeon Vega Graphics Processors (Please refer "CPU Support List" for more information.) |
|
| Chipset | AMD B450 | |
| BIOS | 1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
|
| Form Factor | Micro ATX Form Factor; 24.4cm x 21.5cm | |
| Expansion Slots | ||
| PCI | 1 x PCI Express x16 slot, running at x16 (PCIEX16)(Note) For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. (The PCIEX16 slot conforms to PCI Express 3.0 standard.) 1 x PCI Express x16 slot, running at x1 (PCIEX1_2) 1 x PCI Express x1 slot (The PCIEX1_1 and PCIEX1_2 slots conform to PCI Express 2.0 standard.) |
|
| M.2 Socket | 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4/x2 SSD support) Actual support may vary by CPU. Supports only M.2 SATA SSDs when using an AMD Athlon™-series/ 7th Gen. A-series or Athlon X4 APU. 4 x SATA 6Gb/s connectors Support for RAID 0, RAID 1, and RAID 10 Refer to "1-7 Internal Connectors," for the installation notices for the M.2 connector. |
|
| Memory | ||
| Type | Dual channel memory architecture | |
| Slots | 4 x DDR4 DIMM sockets | |
| Supported Memory | Support for DDR4 3600(O.C.)/3466(O.C.)/2933/2667/2400/2133 MHz memory modules Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules (Please refer "Memory Support List" for more information.) |
|
| Maximum Memory | 128 GB | |
| Graphics | ||
| Graphics | Radeon Vega Graphics/ 1st Gen Ryzen with Radeon Vega Graphics/ Athlon | |
| Connector & Ports | ||
| HDMI | 1 x HDMI port | |
| Internal I/O Ports | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 1 x system fan header 1 x M.2 Socket 3 connector 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x CPU cooler LED strip/RGB LED strip header 1 x RGB LED strip header 2 x addressable LED strip headers 1 x USB 3.1 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only) 1 x serial port header 1 x Clear CMOS jumper |
|
| USB (s) | CPU: 4 x USB 3.1 Gen 1 ports on the back panel Chipset: 2 x USB 3.1 Gen 1 ports available through the internal USB header 6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header) |
|
| LAN Port (s) | Realtek GbE LAN chip (10/100/1000 Mbit) | |
| Supported Storage | 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4/x2 SSD support) Actual support may vary by CPU. Supports only M.2 SATA SSDs when using an AMD Athlon™-series/ 7th Gen. A-series or Athlon X4 APU. 4 x SATA 6Gb/s connectors Support for RAID 0, RAID 1, and RAID 10 Refer to "1-7 Internal Connectors," for the installation notices for the M.2 connector. |
|
| Audio | Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1-channel To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver. Support for S/PDIF Out |
|
| Wireless Communication module | Wi-Fi 802.11 a/b/g/n/ac, supporting 2.4/5 GHz Dual-Band BLUETOOTH 4.2 Support for 11ac wireless standard and up to 433 Mbps data rate Actual data rate may vary depending on environment and equipment. |
|
| TPM (Trusted Platform Module ) | 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only) | |
| Others | ||
| Special Features | Support for APP Center Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. @BIOS EasyTune Fast Boot Game Boost ON/OFF Charge RGB Fusion Smart Backup System Information Viewer Support for Q-Flash Support for Xpress Install |
|
| Bundled Software | Norton Internet Security (OEM version) cFosSpeed |
|
| Warranty Information | ||
| Manufacturing Warranty | 03 years | |

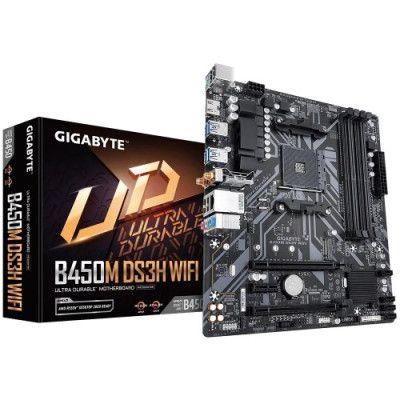

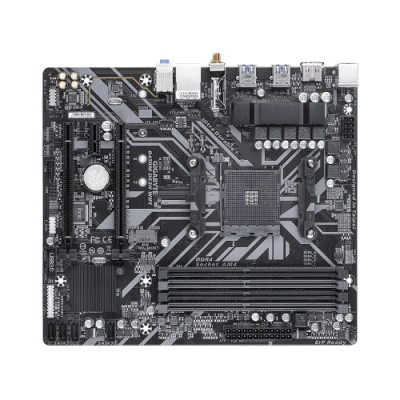

The GIGABYTE B450M DS3H WIFI AM4 AMD Micro ATX Motherboard is designed for PC builders who demand high-performance compatibility with AMD Ryzen processors, robust connectivity, and enhanced multimedia features in a compact form factor. With support for AMD Ryzen 5000 series, dual-channel DDR4 memory up to 128GB, and integrated Wi-Fi and Bluetooth, this motherboard ensures your system stays fast, efficient, and future-ready. Whether you're gaming, editing, or multitasking, this B450 chipset board offers reliable power, advanced expansion options, and RGB lighting control to match your build’s aesthetic and functionality.
Compatible with a wide range of AMD processors, including Ryzen 5000 series and earlier generations, giving users excellent flexibility for powerful builds.
Equipped with four DDR4 DIMM slots supporting up to 128GB of high-frequency RAM, ideal for heavy multitasking and performance-demanding applications.
Features onboard Wi-Fi 802.11ac and Bluetooth 4.2, offering seamless wireless connectivity for internet access and peripheral devices.
Supports multiple PCI Express slots and one M.2 connector, giving you the flexibility to add high-speed SSDs and graphics cards for gaming or content creation.
The reliable B450 chipset enables support for SATA RAID configurations, enhancing data redundancy and storage performance.
Delivers crisp visuals via HDMI when paired with AMD APUs featuring Radeon Vega Graphics, making it great for media-focused builds.
Customize your PC’s lighting setup with RGB Fusion software and onboard RGB and addressable LED headers for immersive lighting effects.

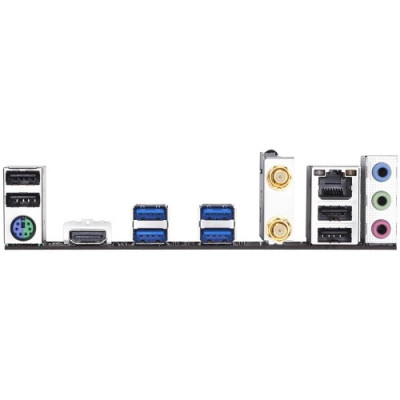

Includes USB 3.1 Gen 1 and USB 2.0/1.1 ports on both the back panel and internal headers for ample peripheral and accessory support.
Powered by Realtek Audio CODEC, the motherboard delivers crystal-clear, multi-channel audio for immersive entertainment experiences.
Bundled with powerful tools like APP Center, EasyTune, Smart Backup, and Q-Flash to streamline your system management and tuning.
If you're searching for a budget-friendly yet feature-rich AMD motherboard in Bangladesh, look no further than Potaka IT. We offer the GIGABYTE B450M DS3H WIFI AM4 Micro ATX Motherboard at the best price in BD with official 3-year warranty. Enjoy reliable after-sales support, authentic products, and fast delivery nationwide. Shop now from Potaka IT and upgrade your desktop with confidence.
The latest price of GIGABYTE B450M DS3H WIFI AM4 AMD Micro ATX Motherboard in Bangladesh is 12,200৳. You can buy the GIGABYTE B450M DS3H WIFI AM4 AMD Micro ATX Motherboard at best price from our website or visit any of our showrooms.
