| Basic Information | ||
| Supported CPU | AMD Socket AM4, support for: AMD Ryzen™ 5000 G-Series Processors/ AMD Ryzen™ 5000 Series Processors/ AMD Ryzen™ 4000 G-Series Processors/ AMD Ryzen™ 3000 G-Series Processors/ AMD Ryzen™ 3000 Series Processors |
|
| Chipset | AMD B550 | |
| BIOS | 1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
|
| Form Factor | Micro ATX Form Factor; 23.3cm x 19.8cm | |
| Audio | Realtek® Audio CODEC High Definition Audio 2/4/5.1/7.1-channel |
|
| Expansion Slots | ||
| PCI | 1 x PCI Express x16 slot, integrated in the CPU: AMD Ryzen™ 5000/3000 Series Processors support PCIe 4.0 x16 mode AMD Ryzen™ 5000 G/4000 G/3000 G Series Processors support PCIe 3.0 x16 mode Chipset: - 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1 |
|
| M.2 Socket | 1 x M.2 connector, integrated in the CPU, supporting Socket 3, M key, type 2280 SSDs: - AMD Ryzen™ 5000/3000 Series Processors support SATA and PCIe 4.0 x4/x2 SSDs - AMD Ryzen™ 5000 G/4000 G/3000 G Series Processors support SATA and PCIe 3.0 x4/x2 SSDs 4 x SATA 6Gb/s connectors |
|
| Memory | ||
| Type | 2 x DDR4 | |
| Slots | 2 | |
| Supported Memory | up to 64 GB (32 GB single DIMM capacity) of system memory | |
| Graphics | ||
| Graphics | Integrated | |
| Max Shared Memory | Integrated Graphics Processor with AMD Radeon™ Graphics support: - 1 x DisplayPort, supporting a maximum resolution of 5120x2880@60 Hz - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz |
|
| Connector & Ports | ||

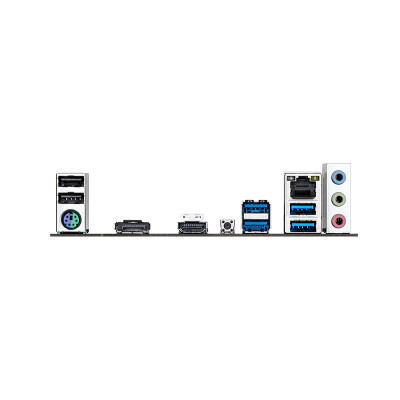

| Internal I/O Ports | Internal I/O Connectors: 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 2 x system fan headers 3 x addressable RGB Gen2 LED strip headers 1 x RGB LED strip header 1 x M.2 Socket 3 connector 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only) 1 x Clear CMOS jumper Back Panel Connectors: 2 x USB 2.0/1.1 ports 1 x PS/2 keyboard/mouse port 1 x DisplayPort* 1 x HDMI port* 1 x Q-Flash Plus button 4 x USB 3.2 Gen 1 ports 1 x RJ-45 port 3 x audio jacks |
|
| USB (s) | CPU: - 4 x USB 3.2 Gen 1 ports on the back panel Chipset: - 2 x USB 3.2 Gen 1 ports available through the internal USB header - 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers) |
|
| LAN Port (s) | Realtek® GbE LAN chip (1 Gbps/100 Mbps/10 Mbps) | |
| RAID | RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices RAID 0, RAID 1, and RAID 10 support for SATA storage devices |
|
| Others | ||
| Special Features | Support for GIGABYTE Control Center (GCC) Support for Q-Flash Support for Q-Flash Plus Support for Smart Backup Operating System: Support for Windows 11 64-bit Support for Windows 10 64-bit |
|
| Bundled Software | Norton® Internet Security (OEM version) | |
| Warranty Information | ||
| Manufacturing Warranty | 3 Years | |

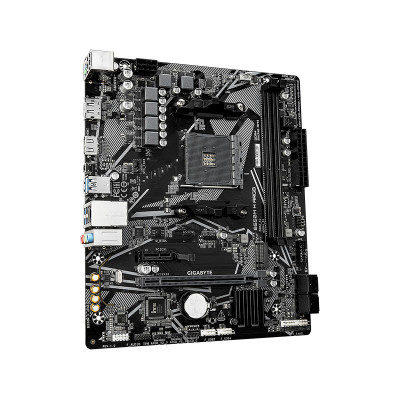

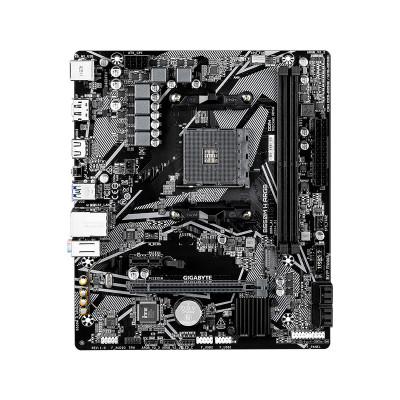

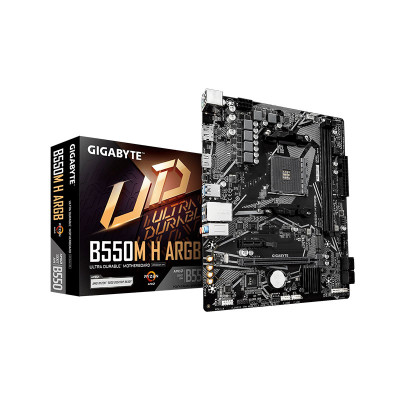

The Gigabyte B550M H ARGB (rev.1.0) AMD AM4 Micro ATX Motherboard is a practical foundation for compact AMD Ryzen PCs, combining the AMD B550 chipset with DDR4 memory, PCIe 4.0 support, M.2 NVMe storage, Gigabit LAN and customizable ARGB connectivity. With support for Ryzen 5000, 5000 G-Series, 4000 G-Series and compatible Ryzen 3000 processors, it is well suited for gaming, home, office and everyday performance-focused builds.
The B550M H ARGB uses a compact Micro ATX design measuring 23.3 × 19.8cm, making it suitable for space-conscious PC builds. Its two DDR4 DIMM slots support up to 64GB of system memory, while the AM4 platform gives builders flexibility when choosing compatible AMD Ryzen processors.
With a CPU-connected PCIe x16 slot and an M.2 Socket 3 connector, the motherboard can support PCIe 4.0 storage and graphics connectivity with compatible Ryzen 5000/3000 processors. Four SATA 6Gb/s ports also provide additional storage flexibility.
For RGB PC builds, the board provides three addressable RGB Gen2 headers and one RGB LED header. Q-Flash Plus makes BIOS updating more convenient, while GIGABYTE Control Center provides a centralized software environment for supported motherboard functions.
This AM4 motherboard is a strong fit for users building a compact Ryzen gaming PC, home workstation, office computer or upgrade system around DDR4 memory. Integrated DisplayPort and HDMI outputs also make it useful with compatible AMD processors featuring Radeon graphics, without requiring a dedicated graphics card for basic display needs.
| Specification | Details |
|---|---|
| Socket | AMD AM4 |
| Chipset | AMD B550 |
| Form Factor | Micro ATX, 23.3 × 19.8cm |
| Memory | 2 × DDR4 DIMM, up to 64GB |
| Graphics | DisplayPort and HDMI with compatible integrated Radeon graphics |
| Expansion | 1 × PCIe x16, 1 × PCIe x1 |
| Storage | 1 × M.2, 4 × SATA 6Gb/s |
| LAN | Realtek Gigabit LAN |
| Audio | Realtek HD Audio, up to 7.1-channel |
| RGB | 3 × Addressable RGB Gen2, 1 × RGB |
| BIOS Features | Q-Flash, Q-Flash Plus |
| Operating System | Windows 11/10 64-bit |
Choose this motherboard if you need an AMD AM4 B550 platform with DDR4 memory, PCIe 4.0 capability, M.2 NVMe support, multiple SATA connections and ARGB expansion in a Micro ATX form factor. Before purchasing, verify your processor's exact compatibility and whether your chosen CPU provides integrated Radeon graphics if you plan to use the motherboard's display outputs.
For a complete build, pair it with a compatible AMD processor, DDR4 desktop RAM, an M.2 NVMe SSD and a suitable CPU cooler and power supply.
Potaka IT makes it convenient to buy the Gigabyte B550M H ARGB motherboard in Bangladesh as part of a complete PC build. You can pair the motherboard with compatible processors, RAM, SSDs, graphics cards, cooling solutions and other PC components to create a balanced system.
Yes. It supports compatible AMD Ryzen 5000, Ryzen 5000 G-Series, Ryzen 4000 G-Series and Ryzen 3000-series processors.
It has two DDR4 memory slots and supports up to 64GB of system memory.
Yes. Its M.2 connector supports compatible SATA and PCIe NVMe SSDs, with PCIe 4.0 capability available with supported Ryzen processors.
Yes. Its AM4 Ryzen support, PCIe x16 slot, DDR4 memory, M.2 storage and Gigabit LAN make it suitable for compact gaming PC configurations.
The latest price of Gigabyte B550M H ARGB Motherboard in Bangladesh is 0৳. You can buy the Gigabyte B550M H ARGB Motherboard at best price from our website or visit any of our showrooms.
