| Basic Information | ||
| Supported CPU | AMD Socket AM5, support for: AMD Ryzen 8000/ 7000 Series Processors | |
| Chipset | AMD B650 | |
| BIOS | 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
|
| Form Factor | Micro ATX Form Factor; 24.4cm x 24.4cm | |
| Audio | Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1-channel * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings. |
|
| Expansion Slots | ||
| PCI | 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU: - AMD Ryzen 7000 Series Processors support PCIe 4.0 x16 mode - AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode - AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot. Chipset: - 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1 (PCIEX1) |
|
| M.2 Socket | 1 | |
| Memory | ||
| Type | DDR5 | |
| Slots | 4 DIMMs | |
| Supported Memory | 7600(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5600(OC)/ 5200/ 4800 MT/s memory modules Dual channel memory architecture Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.) |
|
| Maximum Memory | up to 192 GB (48 GB single DIMM capacity) of system memory | |
| Graphics | ||
| Graphics | Integrated Graphics Processor with AMD Radeon Graphics support - 2 x DisplayPorts, supporting a maximum resolution of 3840x2160@144 Hz * Support for DisplayPort 1.4 version. - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.1 version and HDCP 2.3. ** Support for native HDMI 2.1 TMDS compatible ports. Support for up to triple-display at the same time (Graphics specifications may vary depending on CPU support.) |
|
| Connector & Ports | ||
| HDMI | 1x HDMI | |
| Internal I/O Ports | Internal I/O Connectors 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 2 x system fan headers 2 x addressable LED strip headers 1 x RGB LED strip header 2 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C header, with USB 3.2 Gen 1 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Q-Flash Plus button 1 x reset jumper 1 x Clear CMOS jumper Back Panel Connectors 1 x PS/2 keyboard/mouse port 1 x USB Type-C port, with USB 3.2 Gen 1 support 3 x USB 3.2 Gen 1 ports 2 x USB 2.0/1.1 ports 1 x HDMI port 2 x DisplayPorts 1 x RJ-45 port 3 x audio jacks |
|
| Display Port (s) | 2 x DisplayPorts | |
| USB (s) | CPU: - 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 1 support - 1 x USB 3.2 Gen 1 port on the back panel - 1 x USB 2.0/1.1 port on the back panel Chipset: - 2 x USB 3.2 Gen 1 ports on the back panel - 1 x USB Type-C® port with USB 3.2 Gen 1 support, available through the internal USB header - 2 x USB 3.2 Gen 1 ports available through the internal USB header - 5 x USB 2.0/1.1 ports (1 port on the back panel, 4 ports available through the internal USB headers) |
|
| LAN Port (s) | Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) | |
| Supported Storage | 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2580 SSDs: - AMD Ryzen 7000 Series Processors support PCIe 4.0 x4/x2 SSDs - AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs - AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs 1 x M.2 connector (M2C_SB), integrated in the Chipset, supporting Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSDs 4 x SATA 6Gb/s connectors |
|
| Audio | 3 x Audio jacks | |
| TPM (Trusted Platform Module ) | 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) | |
| RAID | RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices RAID 0, RAID 1, and RAID 10 support for SATA storage devices |
|
| Others | ||
| Special Features | Support for GIGABYTE Control Center (GCC) * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. Support for Q-Flash Support for Q-Flash Plus |
|
| Bundled Software | Norton Internet Security (OEM version) LAN bandwidth management software |
|
| Warranty Information | ||
| Manufacturing Warranty | 3 Years | |

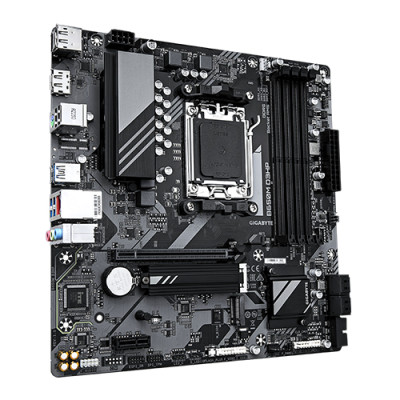

The GIGABYTE B650M D3HP DDR5 AM5 Motherboard is a high-performance micro ATX board designed for gamers, creators, and PC enthusiasts looking to harness the power of AMD Ryzen 8000 and 7000 Series processors. Built on the AMD B650 chipset, this motherboard brings next-gen DDR5 memory support, ultra-fast PCIe 4.0 lanes, and robust connectivity options. With integrated Radeon graphics support, multiple M.2 storage slots, and high-definition audio, this board is engineered to deliver speed, stability, and stunning visuals in a compact design.
This motherboard supports blazing-fast DDR5 RAM, pushing performance boundaries with speeds up to 7600MHz (OC). It also supports up to 192GB system memory, ensuring future-ready multitasking and heavy-load handling.
Designed for the latest AMD Ryzen 8000 and 7000 series processors, the AM5 socket provides cutting-edge performance, power efficiency, and access to advanced CPU features.
With two M.2 slots supporting PCIe 4.0 SSDs, users can enjoy ultra-fast boot times, application load speeds, and efficient file transfers ideal for gaming or productivity setups.
Enjoy sharp visuals with dual DisplayPort 1.4 and HDMI 2.1 ports. The board supports up to 4K and 8K resolutions with triple-display capability, perfect for multitasking or immersive gameplay.
Equipped with multiple USB 3.2 Gen 1 and USB Type-C ports, this motherboard ensures fast and versatile connections for peripherals, external storage, and charging devices.
Stay connected with the Realtek 2.5GbE LAN chip, offering improved data transfer speeds and low-latency networking for online gaming and streaming.
Manage your system effortlessly with the GIGABYTE Control Center and easily update BIOS with Q-Flash Plus, no CPU installation required—perfect for tech enthusiasts and DIY builders.
Get immersive sound quality with Realtek’s multi-channel high-definition audio, supporting configurations up to 7.1 channels for your ultimate media and gaming experience.
If you’re looking for a powerful, future-ready motherboard in Bangladesh, the GIGABYTE B650M D3HP DDR5 AM5 is an unbeatable choice. At Potaka IT, we offer genuine products with a 3-year manufacturing warranty, competitive prices, and trusted after-sales support. Whether you're building a new gaming rig or upgrading your current system, buy the GIGABYTE B650M D3HP DDR5 AM5 Motherboard from Potaka IT in BD today and experience reliable performance and advanced features in one compact board.
The latest price of GIGABYTE B650M D3HP DDR5 AM5 Motherboard in Bangladesh is 15,200৳. You can buy the GIGABYTE B650M D3HP DDR5 AM5 Motherboard at best price from our website or visit any of our showrooms.
