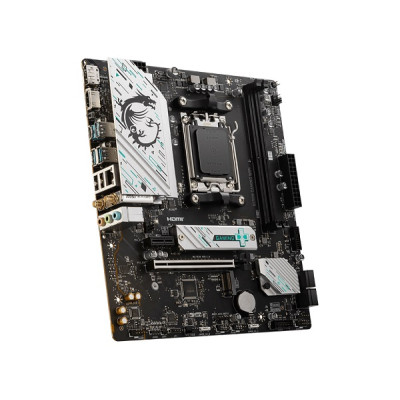

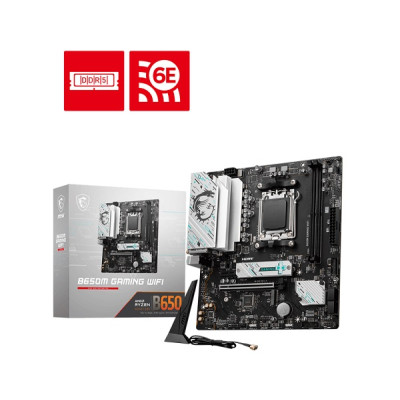

MSI B650M GAMING WIFI AMD AM5 mATX Motherboard

MSI B650M GAMING WIFI AMD AM5 mATX Motherboard
MSI B650M GAMING WIFI AMD AM5 mATX Motherboard
MSI B650M GAMING WIFI AMD AM5 mATX Motherboard
Save: 600৳
MSI B650M GAMING WIFI AMD AM5 mATX Motherboard
MSI B650M GAMING WIFI AMD AM5 mATX Motherboard
MSI B650M GAMING WIFI AMD AM5 mATX Motherboard
MSI B650M GAMING WIFI AMD AM5 mATX Motherboard

Key Features

  • 2x DDR5, Maximum Memory Capacity 128GB
  • AMD Wi-Fi 6E, 4x EZ Debug LED
  • Graphics Output: 1x HDM, 1x Display
  • Offer Price: 18,400৳
  • Price: 19,000৳
  • Stock: In Stock
  • Brand: MSI
  • Model: B650M GAMING WIFI
  • SKU: 196307
Based on 0 reviews. - Write a review
18,400৳
19,000৳
Ex Tax: 18,400৳
Add to Cart
Buy Now
WishList Compare
Basic Information
Raid Controller Supports RAID 0, RAID 1, and RAID 10 for SATA storage devices
Supports RAID 0, RAID 1, and RAID 10 for M.2 NVMe storage devices
Key Features
LED 4x EZ Debug LED
Operating System Support Support for Windows® 11 64-bit, Windows® 10 64-bit
Main Features

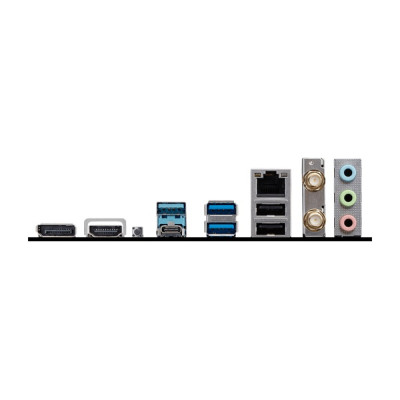

Back Panel Connectors DisplayPort
HDMI™
USB 3.2 Gen 1 5Gbps (Type-A)
2.5G LAN
Wi-Fi / Bluetooth
Audio connectors
Flash BIOS Button
USB 3.2 Gen 1 5Gbps (Type-C)
USB 3.2 Gen 1 5Gbps (Type-A)
USB 2.0
Chipset AMD B650
Form Factor mATX 226mmx243.84mm
Supported CPU Supports AMD Ryzen™ 8000/ 7000 Series Desktop Processors
Socket AM5
Type DDR5
Graphics Specifications
Graphics 1x HDMI™
Support HDMI™ 2.1, maximum resolution of 4K 60Hz* 1x DisplayPort
Support DP 1.4, maximum resolution of 4K 60Hz*
*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
Memory Specifications
Maximum Size 128GB
Slot 1x PCI-E x16 slot
Supports x16/x1
• Supports x16 (For Ryzen™ 7000 Series processors)
• Supports x8 (For Ryzen™ 7 8700G and Ryzen™ 5 8600G processors)
• Supports x4 (For Ryzen™ 5 8500G processor)
1x PCI-E x1 slot
PCI_E1 Gen PCIe 3.0 supports up to x1 (From Chipset)
PCI_E2 Gen PCIe 4.0 supports up to x16 (From CPU)
Supported Memory 2x DDR5, Maximum Memory Capacity 128GB
Memory Support DDR5 7800+(OC)/ 7600(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz
Max. overclocking frequency:
• 1DPC 1R Max speed up to 7800+ MHz
• 1DPC 2R Max speed up to 6400+ MHz Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports AMD EXPO™
Connectivity
Audio Realtek® ALC897 Codec
7.1-Channel High Definition Audio
Display Port 1
HDMI 1
Internal I/O Ports 1x Power Connector(ATX_PWR)
1x Power Connector(CPU_PWR)
1x Front Type-C Quick Charge Connector(PD_PWR1)
1x CPU Fan
3x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
2x Addressable V2 RGB LED connector (JARGB_V2)
1x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
4x USB 2.0 ports
4x USB 3.2 Gen1 Type A ports
LAN Ports Realtek® RTL8125BG 2.5Gbps LAN
Supported Storage 2x M.2
M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280 devices
M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280 devices
4x SATA 6G
• M2_2 supports PCIe 4.0 x2 speed when Ryzen™ 5 8500G is installed
TPM (Trusted Platform Module ) 1x TPM pin header(Support TPM 2.0)
USB 2x USB 2.0 (Rear)
4x USB 2.0 (Front)
3x USB 3.2 Gen1 Type A (Rear)
1x USB 3.2 Gen1 Type C (Rear)
4x USB 3.2 Gen1 Type A (Front)
Connector
Wireless Communication Module AMD Wi-Fi 6E
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX
Supports 20MHz, 40MHz, 80MHz,160MHz bandwidth in 2.4GHz/ 5GHz or 6GHz* bands
Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth® 5.3** * Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 11. ** Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11.
Warranty Information
Manufacturing Warranty 3 years warranty
Others
Special Features 4x EZ Debug LED

MSI B650M GAMING WIFI AMD AM5 mATX Motherboard

MSI B650M GAMING WIFI AMD AM5 mATX Motherboard, a powerhouse of performance and functionality tailored for gamers and enthusiasts alike. Boasting a range of advanced features, this motherboard offers unparalleled versatility and reliability for your gaming rig. Equipped with a comprehensive RAID controller supporting RAID 0, RAID 1, and RAID 10 for both SATA and M.2 NVMe storage devices, the MSI B650M GAMING WIFI ensures optimal data management and protection. Its LED-lit EZ Debug LEDs provide easy troubleshooting, while its compact mATX form factor makes it suitable for a wide range of PC builds. Delving deeper into its features, the motherboard supports AMD Ryzen™ 8000/ 7000 Series Desktop Processors, delivering exceptional processing power for demanding tasks such as gaming, programming, and graphics design. Its DDR5 memory support with a maximum capacity of 128GB ensures smooth multitasking and efficient performance.

Connectivity options abound with the MSI B650M GAMING WIFI, featuring DisplayPort and HDMI™ outputs, USB 3.2 Gen 1 Type-A and Type-C ports, and a lightning-fast 2.5G LAN connection. Moreover, its integrated AMD Wi-Fi 6E module offers blazing-fast wireless speeds and supports MU-MIMO technology for enhanced network efficiency. This motherboard also prioritizes user convenience with its easy setup process and comprehensive internal I/O ports, including power connectors, fan headers, RGB LED connectors, and more. Additionally, its Realtek® ALC897 audio codec delivers immersive 7.1-channel high-definition audio for an unparalleled gaming experience. Backed by a 3-year warranty, the MSI B650M GAMING WIFI AMD AM5 mATX Motherboard offers peace of mind and reliability, ensuring that your gaming setup performs flawlessly for years to come. Whether you're a casual gamer or a hardcore enthusiast, this motherboard provides the perfect foundation for building your dream gaming rig.

Special Features:

  • Supports AMD Ryzen™ 8000 / 7000 Series Desktop Processors
  • Supports DDR5 Memory, up to 7800+(OC) MHz
  • Core Boost : With premium layout and digital power design to support more cores and provide better performance
  • Memory Boost: Advanced technology to deliver pure data signals for the best performance, stability and compatibility
  • Lightning Fast Game experience: PCIe 4.0 slot, Lightning Gen4 M.2
  • Steel Armor: Protecting VGA cards against bending and EMI for better performance, stability and strength
  • AUDIO BOOST: Reward your ears with studio grade sound quality for the most immersive gaming experience
  • High Quality PCB: 6-layer PCB made by 2oz thickened copper
