| Basic Information | ||
| Supported CPU | AMD Socket AM5, support for: AMD Ryzen™ 7000 / Ryzen™ 8000 / Ryzen™ 9000 Series Processors |
|
| Chipset | AMD B650 | |
| BIOS | 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
|
| Form Factor | Micro ATX Form Factor; 24.0cm x 22.5cm | |
| Audio | Realtek® Audio CODEC High Definition Audio 2/4/5.1/7.1-channel |
|
| Expansion Slots | ||
| PCI | 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU: - AMD Ryzen™ 7000 Series Processors/ Ryzen™ 9000 Series Processors support PCIe 4.0 x16 mode - AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode - AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode |
|
| Memory | ||
| Type | DDR5 | |
| Slots | 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1 | |
| Supported Memory | Support for DDR5 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s memory modules 2 x DDR5 DIMM sockets supporting up to 128 GB (64 GB single DIMM capacity) of system memory Dual channel memory architecture Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules |
|
| Graphics | ||
| Graphics | Integrated Graphics Processor with AMD Radeon™ Graphics support: - 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.1 version and HDCP 2.3. ** Support for native HDMI 2.1 TMDS compatible ports. (Graphics specifications may vary depending on CPU support.) |
|
| Connector & Ports | ||

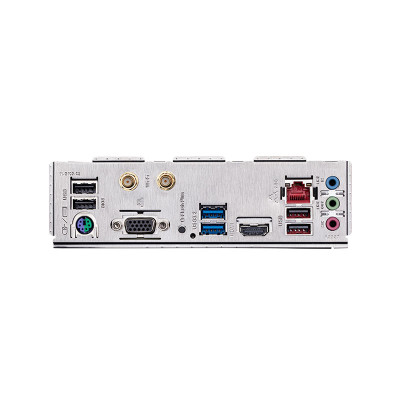

| Internal I/O Ports | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 2 x system fan headers 2 x addressable LED strip headers 1 x RGB LED strip header 1 x M.2 Socket 3 connector 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/ GC-TPM2.0 SPI V2 module only) 1 x Clear CMOS jumper Back Panel Connectors: 4 x USB 2.0/1.1 ports 1 x PS/2 keyboard/mouse port 1 x D-Sub port 1 x Q-Flash Plus button 2 x USB 3.2 Gen 1 ports 1 x HDMI port 1 x RJ-45 port 3 x audio jacks |
|
| USB (s) | CPU: - 2 x USB 3.2 Gen 1 ports on the back panel - 1 x USB 2.0/1.1 port on the back panel Chipset: - 2 x USB 3.2 Gen 1 ports available through the internal USB header - 5 x USB 2.0/1.1 ports (3 ports on the back panel, 2 ports available through the internal USB header) Chipset+USB 2.0 Hub: - 2 x USB 2.0/1.1 ports available through the internal USB header |
|
| LAN Port (s) | Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) | |
| Wireless Communication module | AzureWave Wi-Fi AW-CB304NF (Realtek® RTL8821CE) - WIFI 802.11 a, b, g, n, ac, supporting 2.4/5 GHz Dual-Band - BLUETOOTH 4.2 - Support for 11ac wireless standard |
|
| Others | ||
| Special Features | Support for GIGABYTE Control Center (GCC) Support for Q-Flash Support for Q-Flash Plus |
|
| Bundled Software | Norton® Internet Security (OEM version) LAN bandwidth management software |
|

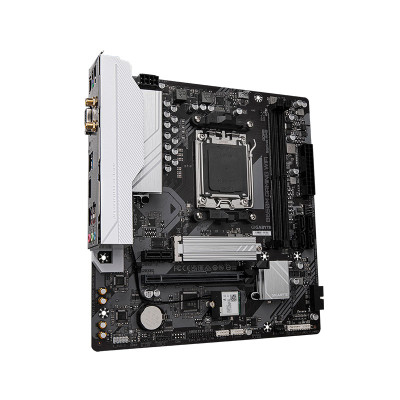

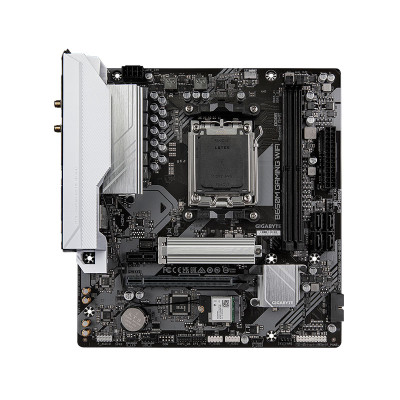

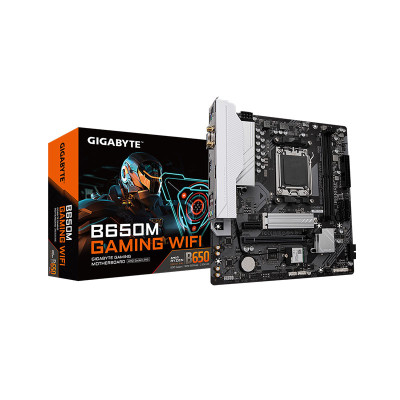

The GIGABYTE B650M GAMING WIFI (Rev. 1.0) AM5 Motherboard is built for gamers, creators, and PC enthusiasts looking for a reliable foundation for the latest AMD Ryzen processors. Powered by the AMD B650 chipset, this Micro-ATX motherboard supports Ryzen 7000, Ryzen 8000, and Ryzen 9000 Series CPUs, high-speed DDR5 memory, PCIe 4.0 connectivity, integrated Wi-Fi, and 2.5GbE LAN. Whether you're building a gaming PC or a productivity workstation, this motherboard offers the performance and features needed for modern computing.
This Micro-ATX motherboard supports AMD Ryzen 7000, Ryzen 8000, and Ryzen 9000 Series processors on the AM5 socket. It offers up to 128GB DDR5 memory with AMD EXPO and XMP support, PCIe 4.0 graphics compatibility, an M.2 NVMe slot, four SATA ports, Realtek 2.5GbE LAN, integrated dual-band Wi-Fi and Bluetooth, HDMI 2.1 and D-Sub outputs, Realtek HD 7.1-channel audio, USB 3.2 Gen 1 connectivity, Q-Flash Plus, and RGB lighting support for modern gaming and productivity builds.
Designed for the AMD Socket AM5 platform, the GIGABYTE B650M GAMING WIFI delivers compatibility with the latest AMD Ryzen desktop processors. The AMD B650 chipset provides stable performance, efficient power delivery, and support for next-generation technologies, making it an excellent choice for gaming, streaming, multitasking, and professional workloads.
The motherboard features two DDR5 DIMM slots supporting up to 128GB of system memory. It supports DDR5 memory speeds up to 6400MT/s through overclocking and is compatible with AMD EXPO and Intel XMP memory profiles for easy performance optimization. Dual-channel memory architecture improves bandwidth for faster application loading and smoother multitasking.
Equipped with a PCIe 4.0 x16 slot for modern graphics cards and an additional PCIe x1 slot for expansion devices, the motherboard provides flexibility for gaming and workstation builds. It also includes an M.2 PCIe SSD slot for high-speed NVMe storage along with four SATA 6Gb/s ports for additional SSDs and hard drives, ensuring fast boot times and ample storage capacity.
Stay connected with Realtek 2.5GbE LAN for high-speed wired networking, ideal for online gaming, streaming, and large file transfers. Integrated dual-band Wi-Fi 5 (802.11ac) and Bluetooth 4.2 provide stable wireless connectivity for compatible devices, making cable-free networking simple and convenient.
The GIGABYTE B650M GAMING WIFI includes HDMI and D-Sub display outputs for processors with integrated Radeon Graphics, multiple USB 3.2 Gen 1 and USB 2.0 ports, RGB and Addressable RGB headers, and high-definition Realtek audio. Exclusive features like Q-Flash Plus and GIGABYTE Control Center simplify BIOS updates, hardware monitoring, RGB customization, and overall system management without unnecessary complexity.
Potaka IT is a trusted destination for genuine GIGABYTE motherboards and premium PC components in Bangladesh. When you purchase the GIGABYTE B650M GAMING WIFI (Rev. 1.0) AM5 Motherboard from Potaka IT, you receive an authentic product, competitive pricing, dependable customer support, and reliable after-sales service. Build your next AMD gaming PC or workstation with confidence by choosing Potaka IT for quality products and a seamless shopping experience.
The latest price of GIGABYTE B650M GAMING WIFI Rev. 1.0 AM5 Motherboard in Bangladesh is 16,700৳. You can buy the GIGABYTE B650M GAMING WIFI Rev. 1.0 AM5 Motherboard at best price from our website or visit any of our showrooms.
