| Basic Information | ||
| Supported CPU | AMD Socket AM5, support for: AMD Ryzen 7000 / Ryzen 8000 / Ryzen 9000 Series Processors | |
| Chipset | AMD B650 | |
| BIOS | 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
|
| Form Factor | Micro ATX Form Factor; 23.0cm x 22.5cm | |
| Audio | Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1-channel |
|
| Expansion Slots | ||
| PCI | 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU: - AMD Ryzen 7000 Series Processors support PCIe 4.0 x16 mode - AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode - AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot. Chipset: - 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1(PCIEX1) |
|
| Memory | ||
| Type | DDR5 | |
| Slots | 2 x DIMM | |
| Supported Memory | 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s memory modules Dual channel memory architecture Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for AMD EXtended Profiles for Overclocking (AMD EXPO) and Extreme Memory Profile (XMP) memory modules |
|
| Maximum Memory | supporting up to 96 GB (48 GB single DIMM capacity) of system memory | |
| Graphics | ||
| Graphics | supporting a maximum resolution of 3840x2160@144 Hz * Support for DisplayPort 1.4 version. supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.1 version and HDCP 2.3. ** Support for native HDMI 2.1 TMDS compatible ports. |
|
| Connector & Ports | ||
| HDMI | 1 x HDMI | |
| Internal I/O Ports | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 2 x system fan headers 1 x addressable LED strip header 1 x RGB LED strip header 1 x M.2 Socket 3 connector 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Clear CMOS jumper Back Panel Connectors 4 x USB 2.0/1.1 ports 1 x PS/2 keyboard/mouse port 1 x Q-Flash Plus button 2 x USB 3.2 Gen 1 ports 1 x DisplayPort |
|
| Display Port (s) | 1 x DisplayPort | |
| USB (s) | CPU: - 2 x USB 3.2 Gen 1 ports on the back panel - 1 x USB 2.0/1.1 port on the back panel Chipset: - 2 x USB 3.2 Gen 1 ports available through the internal USB header - 7 x USB 2.0/1.1 ports (3 ports on the back panel, 4 ports available through the internal USB headers) |
|
| LAN Port (s) | Realtek GbE LAN chip (1 Gbps/100 Mbps/10 Mbps) | |
| Supported Storage | 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2580/2280 SSDs: - AMD Ryzen 7000 Series Processors support PCIe 4.0 x4/x2 SSDs - AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs - AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs 4 x SATA 6Gb/s connectors |
|
| Audio | 3 x audio jacks | |
| TPM (Trusted Platform Module ) | 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) | |
| RAID | RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices RAID 0, RAID 1, and RAID 10 support for SATA storage devices |
|
| Others | ||
| Special Features | Support for GIGABYTE Control Center (GCC) Support for Q-Flash Support for Q-Flash Plus |
|
| Bundled Software | Norton Internet Security (OEM version) LAN bandwidth management software |
|
| Warranty Information | ||
| Manufacturing Warranty | 3 Years | |

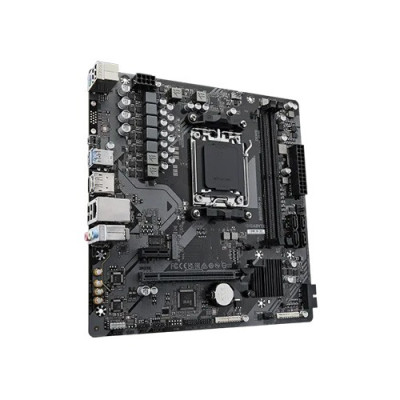

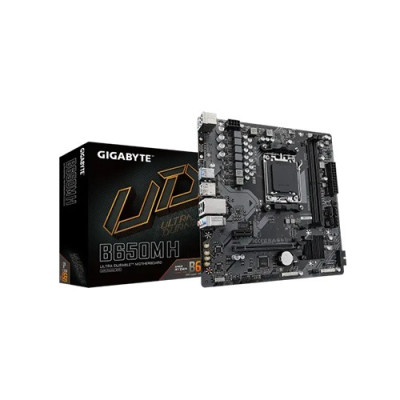

The GIGABYTE B650M H AM5 Micro-ATX Motherboard is a powerhouse built for AMD’s latest Ryzen 7000, 8000, and 9000 Series processors. Designed with a durable Micro-ATX form factor, it blends cutting-edge hardware compatibility with high-speed performance to meet the demands of modern PC builders and gamers. Featuring the advanced AMD B650 chipset, DDR5 memory support, and PCIe 4.0 expansion capabilities, this board is engineered to handle high-performance computing with ease. With integrated DisplayPort and HDMI outputs, USB 3.2 Gen 1 ports, and M.2 NVMe SSD support, it's ready for both work and play. Whether you're upgrading or building from scratch, this motherboard offers reliability, scalability, and top-tier functionality for your next PC build.
Compatible with AMD Socket AM5, this board supports the latest Ryzen processors, ensuring next-gen performance for demanding tasks and gaming.
Offers ultra-fast memory performance with support for up to 96 GB DDR5 RAM, including overclocking capabilities through AMD EXPO and XMP profiles.
Features a PCIe 4.0 x16 slot for high-performance graphics cards or NVMe SSDs, optimizing your system's speed and graphics capabilities.
Supports DisplayPort 1.4 and HDMI 2.1 with up to 4K resolution at 144Hz, delivering vivid visuals for gaming, content creation, or multitasking.
Equipped with 1 x M.2 PCIe 4.0 slot and 4 x SATA 6Gb/s ports, ensuring rapid data access and flexible storage expansion for modern workloads.
Delivers immersive 7.1-channel audio, making your gaming and media experiences more realistic and engaging.
Loaded with USB 3.2 Gen 1, USB 2.0 ports, and Realtek Gigabit LAN, ensuring stable network connections and wide device compatibility.
Comes with GIGABYTE Control Center (GCC) support and Q-Flash features for easy BIOS updates and real-time system management.
If you're searching for a future-proof, high-performance motherboard for your next AMD build, the GIGABYTE B650M H AM5 is a top-tier choice. At Potaka IT, we offer authentic components at competitive prices with fast delivery across Bangladesh. With a full 3-year warranty and dedicated customer support, Potaka IT is your reliable source for genuine GIGABYTE motherboards. Shop with confidence and upgrade your rig today with Potaka IT.
The latest price of GIGABYTE B650M H AM5 Micro-ATX Motherboard in Bangladesh is 13,400৳. You can buy the GIGABYTE B650M H AM5 Micro-ATX Motherboard at best price from our website or visit any of our showrooms.
