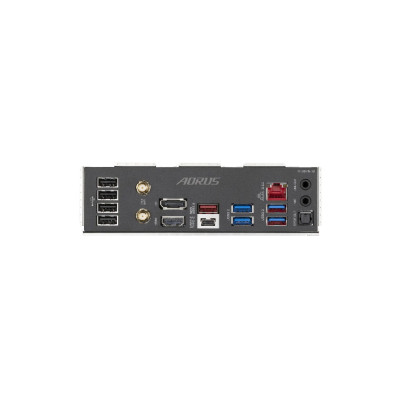

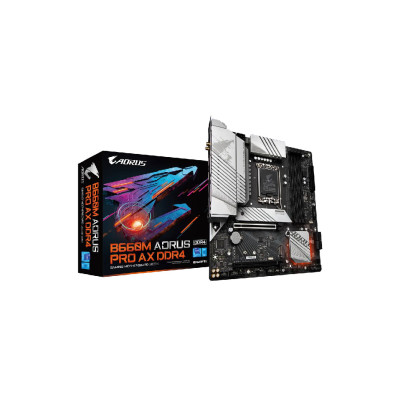

Gigabyte B660M Aorus Pro AX 12th Gen Micro ATX Motherboard

Gigabyte B660M Aorus Pro AX 12th Gen Micro ATX Motherboard
Gigabyte B660M Aorus Pro AX 12th Gen Micro ATX Motherboard
Save: 1100৳ Out Of Stock
Gigabyte B660M Aorus Pro AX 12th Gen Micro ATX Motherboard
Gigabyte B660M Aorus Pro AX 12th Gen Micro ATX Motherboard
Gigabyte B660M Aorus Pro AX 12th Gen Micro ATX Motherboard

Key Features

  • LGA1700 socket: Supports 12th Gen Intel Core Series Processors
  • Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs
  • WIFI 6 802.11ax 2T2R & BT5 with AORUS Antenna
  • Dual Ultra-Fast NVMe PCIe 4.0 x4 M.2
  • Offer Price: 21,400৳
  • Price: 22,500৳
  • Stock: Out Of Stock
  • Brand: Gigabyte
  • Model: B660M Aorus Pro AX DDR4
  • SKU: 10694
Based on 3 reviews. - Write a review
21,400৳
22,500৳
Ex Tax: 21,400৳
Add to Cart
Buy Now
WishList Compare
Main Features
BIOS 1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Chipset Chipset:
1 x USB Type-C port on the back panel, with USB 3.2 Gen 2x2 support
1 x USB Type-C port with USB 3.2 Gen 2 support, available through the internal USB header
1 x USB 3.2 Gen 2 Type-A port (red) on the back panel
Chipset+2 USB 3.2 Gen 1 Hubs:
6 x USB 3.2 Gen 1 ports (4 ports on the back panel, 2 ports available
through the internal USB header)
Chipset+2 USB 2.0 Hubs:
8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through
the internal USB headers)
Form Factor Micro ATX Form Factor; 24.4cm x 24.4cm
Supported CPU LGA1700 socket: Support for 12th Generation Intel Core, Pentium Gold and
Celeron Processors
L3 cache varies with CPU
Expansion Slots
M.2 Socket 1‎ x PCI Express x16 slot (PCIEX16), integrated into the CPU:
3rd Generation AMD Ryzen processors support PCIe 4.0 x16 mode
3rd Generation AMD Ryzen with Radeon Graphics processors support PCIe
3.0 x16 mode
1 x PCI Express x16 slot (PCIEX4), integrated into the Chipset:
Supporting PCIe 3.0 x4 mode
1 x PCI Express x1 slot (PCIEX1), integrated into the Chipset:
Supporting PCIe 3.0 x1 mode
PCI 1 x PCI Express x16 slot, running at x16 (PCIEX16)
* For optimum performance, if only one PCI Express graphics card is to be
installed, be sure to install it in the PCIEX16 slot.
(The PCIEX16 slot conforms to PCI Express 4.0 standard.)
1 x PCI Express x16 slot, running at x4 (PCIEX4)
(The PCIEX4 slot conforms to PCI Express 3.0 standard.)
Graphics Specifications
Graphics Integrated Graphics Processor-Intel HD Graphics support:
1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
* Support for HDMI 2.1 version and HDCP 2.3.
** Support native HDMI 2.1 TMDS compatible ports
1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
* Support for DisplayPort 1.2 version and HDCP 2.3
Support for AMD Quad-GPU CrossFire and 2-Way AMD CrossFire technologies
Max Shared Memory 16 GB
Memory Specifications
Maximum Size up to 128 GB (32 GB single DIMM capacity) of system memory
Slot 4 x DDR4 memory slots
Supported Memory Support for DDR4 5333(O.C.)/ DDR4 5133(O.C.)/DDR4
5000(O.C.)/4933(O.C.)/4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/
4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/4266(O.C.) / 4133(O.C.) /
4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) /
3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.)
/ 3200/3000/2933/2666/2400/2133 MHz memory modules
Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules
(operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
Type Dual-Channel Architecture
Connectivity
Audio Realtek Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel
* To configure 7.1-channel audio, you need to open the audio software and select Device advanced settings >
Playback Device to change the default setting first. Please visit GIGABYTE's website for details on configuring the audio software.
Support for S/PDIF Out
Audio Jack 6 x audio jacks
D-Sub 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
Display Port 1 x DisplayPort
DVI 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz
HDMI 1 x HDMI port
Internal I/O Ports 1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x 4-pin ATX 12V power connector
1 x CPU fan header
1 x water cooling CPU fan header
3 x system fan headers
1 x system fan/water cooling pump header
2 x addressable LED strip headers
2 x RGB LED strip headers
2 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB Type-C header, with USB 3.2 Gen 2 support
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
2 x Thunderbolt add-in card connectors
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
1 x serial port header
1 x reset button
1 x Q-Flash Plus button
1 x reset jumper
1 x Clear CMOS jumper
LAN Ports Intel 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Supported Storage CPU:
1 x M.2 connector (Socket 3, M key, type 2260/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
Chipset:
1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2P_SB)
4 x SATA 6Gb/s connectors
Support for SATA RAID 0, RAID 1, RAID 5, and RAID 10
Intel Optane Memory Ready
TPM (Trusted Platform Module ) 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
USB 4 x USB 3.2 Gen 1 ports on the back panel
Chipset:
2 x USB 3.2 Gen 1 ports available through the internal USB header
6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available
through the internal USB header)
Connector
Wireless Communication Module WIFI Module
WIFI a, b, g, n, ac, ax, supporting 2.4/5 GHz Dual-Band
BLUETOOTH 5.2
Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
Warranty Information
Manufacturing Warranty 03 Years
Others
Bundled Software Norton Internet Security (OEM version)
cFosSpeed
Special Features Support for APP Center
* Available applications in APP Center may vary by motherboard model.
Supported functions of each application may also vary depending on motherboard specifications.
@BIOS
EasyTune
Fast Boot
Game Boost
ON/OFF Charge
RGB Fusion
Smart Backup
System Information Viewer
Support for Q-Flash Plus
Support for Q-Flash
Support for Xpress Install

Gigabyte B660M Aorus Pro AX 12th Gen Micro ATX Motherboard

Gigabyte B660M Aorus Pro AX DDR4 12th Gen Micro ATX Motherboard is the perfect companion for gamers and creative professionals. Its robust set of features and contemporary design make it a great choice for gamers and creative professionals alike. With a Wireless Communication Module (WIFI a, b, g, n, ac, ax) supporting 2.4/5 GHz Dual-Band and BLUETOOTH 5.2 providing support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate, the Gigabyte B660M Aorus Pro AX DDR4 12th Gen Micro ATX Motherboard is well-equipped to meet the needs of today’s tech-savvy users. The motherboard also includes a 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 and Intel B660 Express Chipset to ensure efficient operation. With LGA1700 socket support for 12th Generation Intel Core, Pentium Gold, and Celeron Processors, 1 x PCI Express x16 slot, running at x16 (PCIEX16), 1 x PCI Express x16 slot, running at x4 (PCIEX4), and 4 x DIMM slots for DD4 5333, DDR4 5133, DDR4 5000, 4933, 4800, 4700, 4600, 4500, 4400, 4300, 4266, 4133, 4000, 3866, 3800, 3733, 3666, 3600, 3466, 3400, 3333, 3300, 3200, 3000, 2933, 2666, 2400, 2133 MHz memory modules, this Gigabyte B660M Aorus Pro AX DDR4 12th Gen Micro ATX Motherboard is designed to keep up with your needs.

Features:

Some of the features of the Gigabyte B660M Aorus Pro AX 12th Gen Micro ATX Motherboard are:

  • Supports 12th Gen Intel® Core™ Series Processors
  • Dual Channel Non-ECC Unbuffered DDR5, 4 DIMMs
  • 12*+1+1 Twin Hybrid Digital VRM Design with 60A DrMOS
  • DDR5 MEMORY Design with Shielded Memory Routing
  • Fully Covered Thermal Design with High Coverage MOSFET Heatsinks
  • WIFI6 802.11ax 2T2R & BT5 with AORUS Antenna
  • Blazing Fast Intel® 2.5GbE LAN with Bandwidth Management
  • Dual Ultra-Fast NVMe PCIe 4.0 x4 M.2 with Thermal Guard
  • SuperSpeed USB 3.2 Gen 2×2 Type-C® delivers up to 20Gb/s transfer speeds
  • Pre-installed IO Shield for easy and quick installation
  • RGB FUSION 2.0 with Multi-Zone Addressable LED Light Show Design, Support Addressable LED & RGB LED Strips
  • Smart Fan 6 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
  • Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card

Overall, the Gigabyte B660M Aorus Pro AX 12th Gen Micro ATX Motherboard offers a range of features and specifications to support a high-performance gaming or computing setup in a micro ATX form factor.
