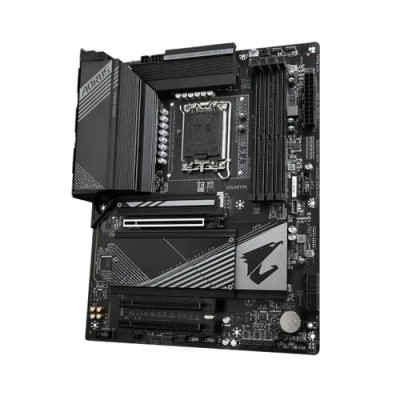

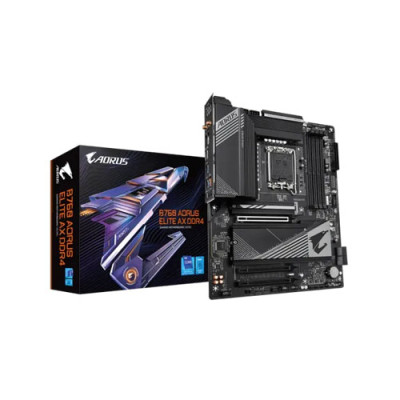

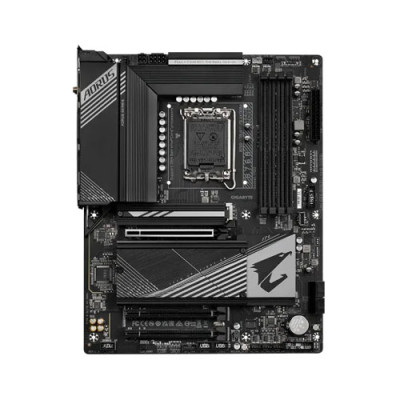

GIGABYTE B760 AORUS ELITE AX DDR4 13th Gen & 12th Gen ATX Motherboard

Name: GIGABYTE B760 AORUS ELITE AX DDR4 13th Gen &amp; 12th Gen ATX Motherboard
Brand: Gigabyte
SKU: 11606
Price: 24950 BDT
Availability: InStock

Price:

24,950৳ 26,950৳

Stock :

In Stock

Model :

B760 AORUS ELITE AX DDR4

SKU :

11606

Brand :

Gigabyte

24,950৳ 26,950৳

Offer Price End In

Days

Hours

Minutes

Seconds

Key Features

Supported CPU: 14th/13th/12th Gen Intel Processors (LGA1700)
Supported RAM: 4x DDR4, Max 128GB 5333(OC)
Graphics Output: 1x HDMI, 1x DisplayPort
Features: Realtek 2.5GbE LAN chip, Intel Wi-Fi 6E AX211

Specification
Description
Reviews
Questions

Basic Information
Supported CPU	LGA1700 socket: Support for the 14th 13th and 12th Generation Intel Core, Pentium Gold and Celeron Processors L3 cache varies with the CPU
Chipset	Intel B760 Express Chipset
BIOS	1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor	ATX Form Factor; 30.5cm x 24.4cm
Audio	Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1-channel Support for S/PDIF Out
Expansion Slots
PCI	1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16) 2 x PCI Express x16 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_1, PCIEX1_2)
M.2 Socket	1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) 2 x M.2 connectors (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB, M2M_SB) 4 x SATA 6Gb/s connectors RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
Memory
Type	DDR4
Slots	4
Supported Memory	Support for DDR4 5333(O.C.) / 5133(O.C.) / 5000(O.C.) / 4933(O.C.) / 4800(O.C.) / 4700(O.C.) / 4600(O.C.) / 4500(O.C.) / 4400(O.C.) / 4300(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 3000 / 2933 / 2666 / 2400 / 2133 MT/s memory modules Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules
Maximum Memory	128GB
Graphics
Graphics	Integrated Graphics Processor-Intel HD Graphics support: 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
Connector & Ports
HDMI	1x HDMI
Internal I/O Ports	1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x 4-pin ATX 12V power connector 1 x CPU fan header 1 x CPU fan/water cooling pump header 3 x system fan headers 1 x system fan/water cooling pump header 3 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x USB Type-C header, with USB 3.2 Gen 2 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x reset button 1 x Q-Flash Plus button 1 x reset jumper 1 x Clear CMOS jumper
Display Port (s)	1x DisplayPort

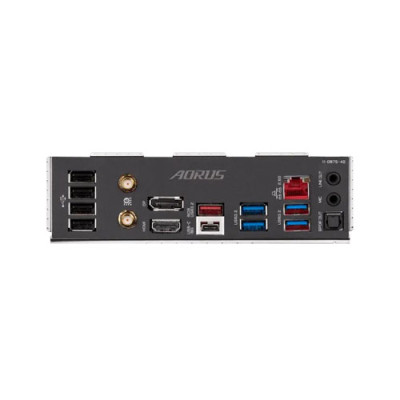

USB (s)	1 x USB Type-C port, with USB 3.2 Gen 2 support 1 x USB 3.2 Gen 2 Type-A port (red) 4 x USB 3.2 Gen 1 port 4 x USB 2.0/1.1 ports
LAN Port (s)	Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) 1 x RJ-45 port
Supported Storage	1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) 2 x M.2 connectors (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB, M2M_SB) 4 x SATA 6Gb/s connectors
Audio	1 x front panel audio header
Wireless Communication module	Intel Wi-Fi 6E AX211 WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands BLUETOOTH 5.3 Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
RAID	Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
Others
Special Features	2 x SMA antenna connectors (2T2R) 1 x optical S/PDIF Out connector 2 x addressable LED strip headers 2 x RGB LED strip headers iTE I/O Controller Chip Voltage detection Temperature detection Fan speed detection Water cooling flow rate detection Fan fail warning Fan speed control Support for GIGABYTE Control Center (GCC) Support for Q-Flash Support for Q-Flash Plus
Warranty Information
Manufacturing Warranty	3 years

Description

GIGABYTE B760 AORUS ELITE AX DDR4 13th Gen & 12th Gen ATX Motherboard

The GIGABYTE B760 AORUS ELITE AX DDR4 13th Gen & 12th Gen ATX Motherboard is designed to support Intel's 14th, 13th, and 12th Gen processors, delivering a high-performance, future-ready platform for gamers and creators. With its powerful B760 Express chipset and support for DDR4 memory up to 5333 MHz (OC), it brings top-tier speed and responsiveness to your desktop setup. The ATX form factor ensures compatibility with a wide range of PC cases, while the durable build and premium components promise long-term reliability. Whether you're building a gaming rig or a content creation powerhouse, this board provides the performance, expansion, and connectivity needed for your most demanding tasks.

Key Features of GIGABYTE B760 AORUS ELITE AX DDR4 13th Gen & 12th Gen ATX Motherboard

Supports Latest Intel Processors

Engineered with an LGA1700 socket, this motherboard supports 14th, 13th, and 12th Gen Intel Core, Pentium Gold, and Celeron processors, ensuring future compatibility and reliable computing power.

Advanced DDR4 Memory Compatibility

Equipped with 4 DDR4 DIMM slots, it supports memory speeds up to 5333 MHz (OC), delivering blazing-fast performance for multitasking, gaming, and content creation with a maximum capacity of 128GB.

Triple Ultra-Fast M.2 Slots

Features 3 PCIe 4.0 M.2 connectors for ultra-fast NVMe SSDs, ensuring rapid load times, smooth game streaming, and faster data transfer for professional workflows.

High-Speed Connectivity with Wi-Fi 6E

Integrated Intel Wi-Fi 6E AX211 and Bluetooth 5.3 provide faster wireless speeds, lower latency, and seamless connectivity for a next-gen network experience.

Comprehensive USB and Expansion Options

Offers a full range of USB options including USB 3.2 Gen 2 Type-C and Type-A ports, plus PCIe 4.0 and PCIe 3.0 expansion slots for future upgrades and peripheral support.

Immersive Audio and Visual Support

Supports high-definition 7.1-channel audio and provides both HDMI and DisplayPort outputs for crystal-clear visuals up to 4K resolution, perfect for gaming and content consumption.

Advanced Thermal and Power Management

Integrated with fan and pump headers, voltage/temperature monitoring, and Smart Fan 6 technology to keep your system cool and stable under heavy workloads.

Next-Level Storage with RAID Support

Supports RAID 0, 1, 5, and 10 configurations with SATA storage, offering flexibility, performance, and data redundancy options tailored to your needs.

Exclusive GIGABYTE Software Utilities

Comes with GIGABYTE Control Center (GCC), Q-Flash, and Q-Flash Plus, simplifying BIOS updates and system management with user-friendly tools.

Buy GIGABYTE B760 AORUS ELITE AX from Potaka IT in BD

If you're looking to build or upgrade your PC with reliable and future-ready hardware, buy the GIGABYTE B760 AORUS ELITE AX DDR4 motherboard from Potaka IT in BD. We guarantee 100% authentic products, competitive prices, and fast delivery across Bangladesh. Trust Potaka IT for expert service, real-time support, and unbeatable value on your next tech purchase.

What is the price of GIGABYTE B760 AORUS ELITE AX Motherboard in Bangladesh?

The latest price of GIGABYTE B760 AORUS ELITE AX Motherboard in Bangladesh is 24,950৳. You can buy the GIGABYTE B760 AORUS ELITE AX Motherboard at best price from our website or visit any of our showrooms.
