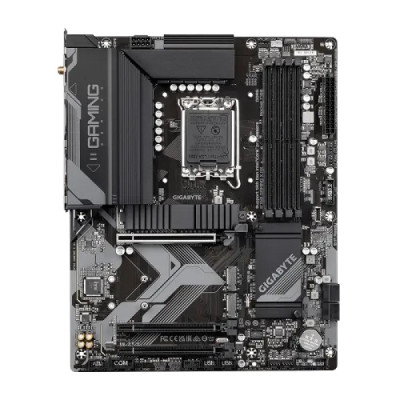

GIGABYTE B760 GAMING X AX DDR5 mATX Motherboard

Name: GIGABYTE B760 GAMING X AX DDR5 mATX Motherboard
Brand: Gigabyte
SKU: 362331
Price: 24500 BDT
Availability: InStock

Price:

24,500৳

Stock :

In Stock

Model :

B760M GAMING X AX DDR5

SKU :

362331

Brand :

Gigabyte

24,500৳

Key Features

Supported CPU: 14th/13th/12th Gen Intel Processors (LGA1700)
Supported RAM: 4x DDR5, Max 192GB 7600(OC)
Graphics Output: 1x HDMI, 1x DisplayPort
Features: Realtek 2.5GbE LAN chip, Intel Wi-Fi 6E AX210

Specification
Description
Reviews
Questions

Basic Information
Supported CPU	LGA1700 socket: Support for the 14th, 13th and 12th Generation Intel Core, Pentium Gold and Celeron Processors L3 cache varies with the CPU
Chipset	Intel B760 Express Chipset
BIOS	1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor	Micro ATX Form Factor; 24.4cm x 24.4cm
Audio	Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1-channel Support for S/PDIF Out
Expansion Slots
PCI	1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16) 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x4 (PCIEX4)
Memory
Type	DDR5
Slots	4
Supported Memory	Support for DDR5 7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MT/s memory modules Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules
Maximum Memory	192GB
Graphics
Graphics	Integrated Graphics Processor-Intel HD Graphics support: 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
Connector & Ports
HDMI	1x HDMI

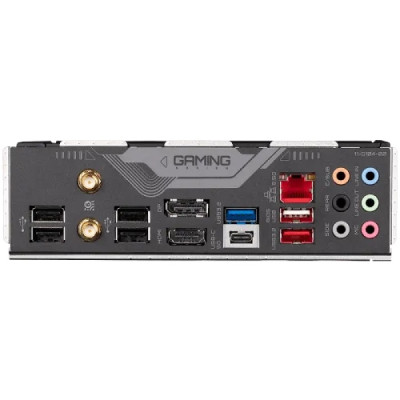

Internal I/O Ports	1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 3 x system fan headers 2 x addressable LED strip headers 2 x RGB LED strip headers 2 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x USB Type-C header, with USB 3.2 Gen 2 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 2 x Thunderbolt add-in card connectors 1 x serial port header 1 x Q-Flash Plus button 1 x reset jumper 1 x Clear CMOS jumper Back Panel Connectors 3 x USB 3.2 Gen 1 ports 5 x USB 2.0/1.1 ports 2 x SMA antenna connectors (2T2R) 1 x HDMI 2.0 port 1 x DisplayPort 1 x RJ-45 port 3 x audio jacks
Display Port (s)	1x DisplayPort
USB (s)	Chipset: 1 x USB Type-C port with USB 3.2 Gen 2 support, available through the internal USB header 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header) 1 x USB 2.0/1.1 port on the back panel Chipset+2 USB 2.0 Hubs: 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
LAN Port (s)	Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) 1 x RJ-45 port
Supported Storage	1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB) 4 x SATA 6Gb/s connectors
Audio	1 x front panel audio header 3 x audio jacks
Wireless Communication module	Intel Wi-Fi 6E AX210 (PCB rev. 1.0) WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands BLUETOOTH 5.3 Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate Intel Wi-Fi 6E AX211 (PCB rev. 1.1) WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands BLUETOOTH 5.3 Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate Realtek Wi-Fi 6E RTL8852CE (PCB rev. 1.2) WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands BLUETOOTH 5.3 Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
TPM (Trusted Platform Module )	1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
RAID	RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
Others
Special Features	Support for GIGABYTE Control Center (GCC) Support for Q-Flash Support for Q-Flash Plus
Bundled Software	Norton Internet Security (OEM version) LAN bandwidth management software
Warranty Information
Manufacturing Warranty	3 years

Description

GIGABYTE B760 GAMING X AX DDR5 mATX Motherboard

The GIGABYTE B760 GAMING X AX DDR5 mATX Motherboard is a high-performance platform built for gamers and PC enthusiasts who demand next-gen speed, stability, and future-ready compatibility. Powered by the Intel B760 chipset, it supports the latest 14th, 13th, and 12th Gen Intel Core processors via the LGA1700 socket, making it a reliable and future-proof choice for any build. Its micro-ATX form factor makes it perfect for compact setups without compromising on features or performance. Equipped with DDR5 memory support, PCIe 4.0 lanes, integrated Wi-Fi 6E, and Bluetooth 5.3, this motherboard sets a new standard for mid-size gaming builds in Bangladesh.

Key Features of GIGABYTE B760 GAMING X AX DDR5 mATX Motherboard

Support for Latest Intel Processors

Compatible with Intel 14th, 13th, and 12th Generation Core, Pentium Gold, and Celeron processors, ensuring seamless power and performance for gaming and multitasking.

Advanced DDR5 Memory Support

Offers support for ultra-fast DDR5 memory up to 7600MHz (OC), with dual-channel architecture and a maximum capacity of 192GB for future-ready performance.

PCIe 4.0 Expansion for High-Speed Graphics

Features PCIe 4.0 x16 slot for blazing-fast GPU performance and a secondary PCIe 3.0 x4 slot, providing options for future expansion.

Next-Gen Connectivity

Equipped with Intel Wi-Fi 6E and Bluetooth 5.3, along with Realtek 2.5GbE LAN, this board ensures seamless internet and wireless device connections for gaming and streaming.

Rich Display Options

Supports dual displays with HDMI and DisplayPort outputs, both delivering 4K resolution up to 60Hz for crystal-clear visuals.

Comprehensive Storage Support

Offers two M.2 PCIe 4.0 slots and four SATA 6Gb/s ports, supporting ultra-fast SSDs and RAID configurations for maximum storage flexibility.

Robust I/O and USB Options

Includes multiple USB 3.2 Gen 1, USB 2.0 ports, and a USB Type-C header, ensuring fast data transfer and broad peripheral compatibility.

Premium Audio Experience

Realtek high-definition audio with multi-channel support and S/PDIF output delivers immersive sound quality for gaming and media consumption.

Reliable BIOS and Utility Support

Comes with AMI UEFI BIOS, Q-Flash, and Q-Flash Plus features, allowing users to update BIOS easily and maintain system stability.

3-Year Warranty for Peace of Mind

Backed by a 3-year manufacturing warranty, giving users in Bangladesh dependable after-sales support and service assurance.

Buy GIGABYTE B760 GAMING X AX DDR5 mATX Motherboard from Potaka IT in BD

If you're looking to upgrade your gaming rig with the latest in motherboard technology, the GIGABYTE B760 GAMING X AX DDR5 is the smart choice. At Potaka IT, we bring you genuine, high-quality components at competitive prices with full warranty and expert customer support. Order now to enjoy fast delivery across Bangladesh and elevate your PC build with confidence.

What is the price of GIGABYTE B760 GAMING X AX Motherboard in Bangladesh?

The latest price of GIGABYTE B760 GAMING X AX Motherboard in Bangladesh is 24,500৳. You can buy the GIGABYTE B760 GAMING X AX Motherboard at best price from our website or visit any of our showrooms.
