| Basic Information | ||
| Supported CPU | LGA1700 socket: Support for the 14th 13th and 12th Generation Intel Core, Pentium Gold and Celeron Processors L3 cache varies with the CPU |
|
| Chipset | Intel B760 Express Chipset | |
| BIOS | 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
|
| Form Factor | Micro ATX Form Factor; 24.4cm x 24.4cm | |
| Audio | Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1-channel Support for S/PDIF Out |
|
| Expansion Slots | ||
| PCI | 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16) 2 x PCI Express x16 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_1, PCIEX1_2) |
|
| M.2 Socket | 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) 2 x M.2 connectors (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB, M2M_SB) 4 x SATA 6Gb/s connectors |
|
| Memory | ||
| Type | DDR5 | |
| Slots | 4 | |
| Supported Memory | Support for DDR5 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MT/s memory modules Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules |
|
| Maximum Memory | 128GB | |
| Graphics | ||
| Graphics | Integrated Graphics Processor-Intel HD Graphics support: 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz |
|

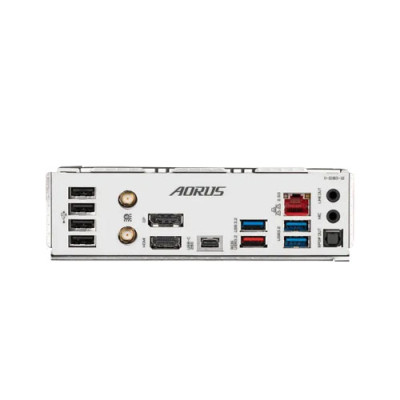

| Connector & Ports | ||
| HDMI | 1x HDMI | |
| Internal I/O Ports | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x 4-pin ATX 12V power connector 1 x CPU fan header 1 x CPU fan/water cooling pump header 3 x system fan headers 1 x system fan/water cooling pump header 3 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x USB Type-C® header, with USB 3.2 Gen 2 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x reset button 1 x Q-Flash Plus button 1 x reset jumper 1 x Clear CMOS jumper |
|
| Display Port (s) | 1x DisplayPort | |
| USB (s) | 1 x USB Type-C port, with USB 3.2 Gen 2 support 1 x USB 3.2 Gen 2 Type-A port (red) 4 x USB 3.2 Gen 1 port 4 x USB 2.0/1.1 ports |
|
| LAN Port (s) | Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) 1 x RJ-45 port |
|
| Supported Storage | 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) 2 x M.2 connectors (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB, M2M_SB) 4 x SATA 6Gb/s connectors |
|
| Audio | 1 x front panel audio header 2 x audio jacks |
|
| Wireless Communication module | Intel Wi-Fi 6E AX211 WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands BLUETOOTH 5.3 Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate |
|
| TPM (Trusted Platform Module ) | 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) | |
| RAID | Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices | |
| Others | ||
| Special Features | 2 x addressable LED strip headers 2 x RGB LED strip headers iTE I/O Controller Chip Support for GIGABYTE Control Center (GCC) Support for Q-Flash Support for Q-Flash Plus |
|
| Warranty Information | ||
| Manufacturing Warranty | 3 years | |

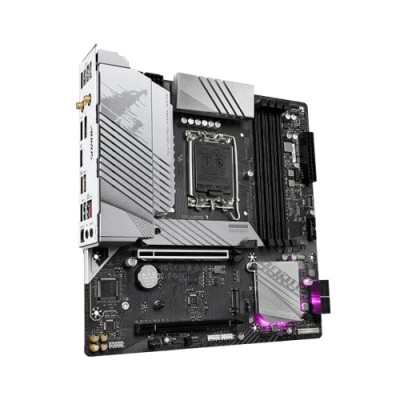

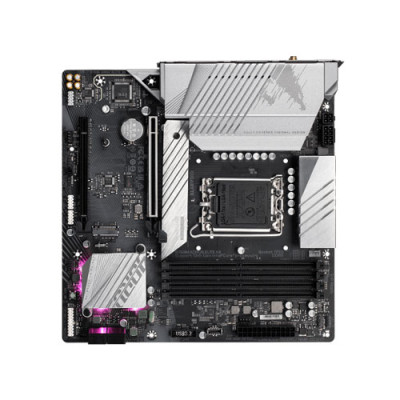

The GIGABYTE B760M AORUS ELITE AX DDR5 13Gen Intel mATX Motherboard is a powerful and feature-rich mATX board designed for 14th, 13th, and 12th Gen Intel processors. Equipped with the Intel B760 Express chipset, it delivers excellent performance and future-proof compatibility with DDR5 memory and PCIe 4.0 support. With its micro ATX form factor, integrated Intel Wi-Fi 6E, Realtek 2.5GbE LAN, and advanced connectivity options, this motherboard is an ideal choice for gamers, PC builders, and enthusiasts in Bangladesh looking for reliable high-end performance.
Compatible with LGA1700 socket processors, including the latest Intel Core, Pentium Gold, and Celeron CPUs, delivering cutting-edge computing performance.
Integrated B760 chipset ensures superior system responsiveness and better data throughput for demanding applications and multitasking.
Four DIMM slots support blazing-fast DDR5 memory up to 7600MHz (OC), enabling top-tier performance for gaming and heavy workloads.
Three ultra-fast M.2 connectors support high-speed NVMe SSDs, ensuring rapid game load times and faster data access.
Experience ultra-low latency and stable wireless connections with built-in Wi-Fi 6E and the latest Bluetooth 5.3 standard.
Enjoy optimal graphics performance with a full x16 PCIe 4.0 slot, perfect for modern GPUs and high-resolution gaming setups.
Multiple fan headers and water pump support make this motherboard ready for high-performance cooling configurations.
Crystal-clear sound with Realtek High Definition Audio, supporting multi-channel audio setups for immersive experiences.
Integrated Realtek 2.5GbE LAN delivers enhanced online gaming, streaming, and large file transfers with low latency.
Dual RGB and ARGB headers with support for GIGABYTE Control Center allow dynamic lighting effects and system personalization.
Looking to buy the GIGABYTE B760M AORUS ELITE AX DDR5 Motherboard in Bangladesh? Potaka IT offers you the best price in BD with authentic products, 3-year official warranty, and expert customer support. Whether you're building a new PC or upgrading your current rig, trust Potaka IT for fast delivery and genuine tech gear that meets your performance needs. Shop now and power up your system with confidence.
The latest price of GIGABYTE B760M AORUS ELITE AX Motherboard in Bangladesh is 23,400৳. You can buy the GIGABYTE B760M AORUS ELITE AX Motherboard at best price from our website or visit any of our showrooms.
