| Basic Information | ||
| Supported CPU | LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel Core, Pentium Gold and Celeron Processors L3 cache varies with CPU |
|
| Chipset | Intel B760 Express Chipset | |
| BIOS | 1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
|
| Form Factor | Micro ATX Form Factor; 24.4cm x 24.4cm | |
| Audio | Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1-channel |
|
| Expansion Slots | ||
| PCI | CPU: - 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 * The PCIEX16 slot can only support a graphics card or an NVMe SSD. Chipset: - 2 x PCI Express x1 slots, supporting PCIe 3.0 and running at x1 |
|
| Memory | ||
| Type | DDR4 | |
| Slots | 4 | |
| Supported Memory | Support for DDR4 5333(O.C.)/ 5133(O.C.)/ 5000(O.C.)/ 4933(O.C.)/ 4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3800(O.C.)/ 3733(O.C.)/ 3666(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3300(O.C.)/3200/3000/2933/2666/2400/2133 MT/s memory modules Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules |
|
| Maximum Memory | Supporting up to 128 GB (32 GB single DIMM capacity) of system memory | |
| Graphics | ||
| Graphics | Onboard Graphics Integrated Graphics Processor-Intel HD Graphics support: - 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.1 version and HDCP 2.3. ** Support for native HDMI 2.1 TMDS compatible ports. - 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz * Support for DisplayPort 1.2 version and HDCP 2.3 |
|
| Connector & Ports | ||
| HDMI | 1 x HDMI port | |

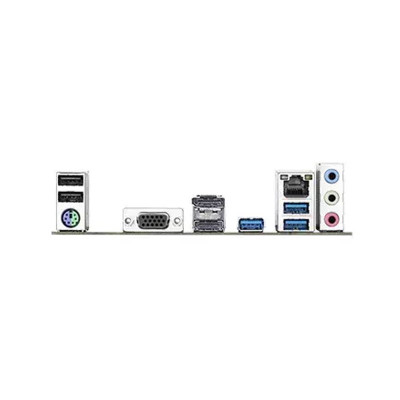

| Internal I/O Ports | Internal I/O Connectors 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 3 x system fan headers 1 x addressable LED strip header 1 x RGB LED strip header 2 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C header, with USB 3.2 Gen 1 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x serial port header 1 x parallel port header 1 x S/PDIF Out header 1 x Q-Flash Plus button 1 x reset jumper 1 x Clear CMOS jumper Back Panel Connectors 2 x USB 2.0/1.1 ports 1 x PS/2 keyboard/mouse port 1 x D-Sub port 1 x DisplayPort 1 x HDMI port 3 x USB 3.2 Gen 1 ports 1 x RJ-45 port 3 x audio jacks |
|
| Display Port (s) | 1 x DisplayPort | |
| USB (s) | Chipset: - 1 x USB Type-C port with USB 3.2 Gen 1 support, available through the internal USB header - 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header) - 2 x USB 2.0/1.1 ports on the back panel Chipset+USB 2.0 Hub: - 4 x USB 2.0/1.1 ports available through the internal USB headers |
|
| LAN Port (s) | Realtek GbE LAN chip (1 Gbps/100 Mbps/10 Mbps) | |
| Supported Storage | CPU: - 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) Chipset: - 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB) - 4 x SATA 6Gb/s connectors |
|
| Audio | 3 x audio jacks | |
| D-Sub (s) | 1 x D-Sub port | |
| TPM (Trusted Platform Module ) | 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 / GC-TPM2.0 SPI V2 module only) | |
| RAID | RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices | |
| Others | ||
| Special Features | Support for GIGABYTE Control Center (GCC) Support for Q-Flash Support for Q-Flash Plus |
|
| Bundled Software | Norton Internet Security (OEM version) LAN bandwidth management software |
|
| Warranty Information | ||
| Manufacturing Warranty | 3 years Warranty | |

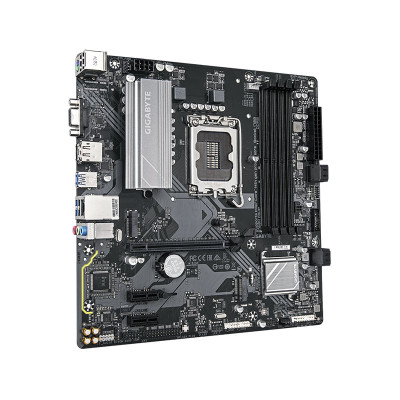

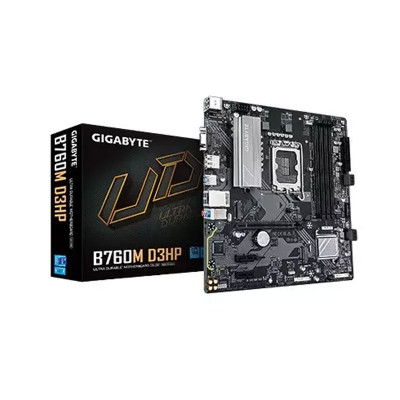

The GIGABYTE B760M-D3HP DDR4 Micro ATX Motherboard is a reliable and performance-driven solution for modern PC builders who want strong compatibility with Intel’s latest processors and stable DDR4 memory support. Designed with essential features, fast connectivity, and durable components, this motherboard is ideal for gaming setups, office PCs, and content creation systems at an affordable price point.
Built around the Intel B760 Express Chipset, this motherboard supports LGA1700 socket processors, including 14th, 13th, and 12th Gen Intel Core, Pentium Gold, and Celeron CPUs. This ensures you get the flexibility to build a high-performance desktop with future-ready compatibility. Whether you're multitasking, gaming, or working on demanding applications, the GIGABYTE B760M-D3HP delivers stable and efficient performance.
The board features 4 DDR4 DIMM slots supporting up to 128GB of memory, allowing you to run heavy workloads with ease. With support for memory speeds up to 5333MHz (overclocked), along with Intel XMP profiles, you can unlock enhanced system responsiveness and faster data processing. Dual-channel architecture further boosts overall system efficiency.
Equipped with dual M.2 PCIe 4.0 slots and four SATA 6Gb/s ports, this motherboard offers flexible storage solutions for both high-speed SSDs and traditional drives. The PCIe 4.0 x16 slot ensures optimal GPU performance, making it perfect for gamers and creators who rely on powerful graphics cards. Additional PCIe x1 slots allow easy expansion for other components.
The GIGABYTE B760M-D3HP supports integrated Intel HD Graphics with multiple display outputs including HDMI, DisplayPort, and D-Sub. Enjoy stunning visuals with resolutions up to 4K at 60Hz via HDMI and DisplayPort. This makes it suitable for both productivity and entertainment setups without requiring a dedicated GPU.
This motherboard is designed with a wide range of connectivity options. It includes USB 3.2 Gen 1 ports, USB Type-C header support, multiple USB 2.0 ports, and a Realtek GbE LAN port for fast and stable internet connectivity. Internal headers for RGB lighting, fans, and front panel connectivity give you flexibility when building your system.
Featuring a Realtek High Definition Audio codec, the motherboard delivers clear and immersive sound with support for up to 7.1-channel audio. It also includes useful features like Q-Flash Plus for easy BIOS updates without installing a CPU, and GIGABYTE Control Center for system monitoring and customization.
With its Micro ATX form factor (24.4cm x 24.4cm), the GIGABYTE B760M-D3HP is perfect for compact PC builds without compromising on performance. It includes durable components, multiple fan headers, and essential safety features like BIOS protection and thermal management.
At Potaka IT, you get genuine GIGABYTE products with competitive pricing and trusted customer service. This motherboard is carefully selected for users who want performance, reliability, and value in one package. Whether you're upgrading your PC or building a new system, Potaka IT ensures a smooth buying experience with authentic products and dependable after-sales support.
The latest price of GIGABYTE B760M-D3HP DDR4 Motherboard in Bangladesh is 0৳. You can buy the GIGABYTE B760M-D3HP DDR4 Motherboard at best price from our website or visit any of our showrooms.
