| Basic Information | ||
| Supported CPU | LGA1700 socket: Support for the 14th, 13th and 12th Generation Intel Core, Pentium Gold and Celeron Processors L3 cache varies with the CPU |
|
| Chipset | Intel B760 Express Chipset | |
| BIOS | 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
|
| Form Factor | Micro ATX Form Factor; 24.4cm x 24.4cm | |
| Audio | Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1-channel Support for S/PDIF Out |
|
| Expansion Slots | ||
| PCI | 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16) 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x4 (PCIEX4) |
|
| Memory | ||
| Type | DDR5 | |
| Slots | 4 | |
| Supported Memory | Support for DDR5 7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MT/s memory modules Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules |
|
| Maximum Memory | 192GB | |
| Graphics | ||
| Graphics | Integrated Graphics Processor-Intel HD Graphics support: 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz |
|
| Connector & Ports | ||
| HDMI | 1x HDMI | |

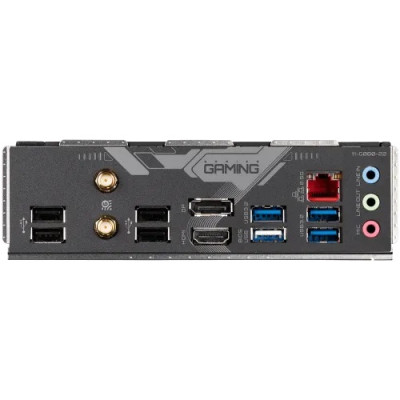

| Internal I/O Ports | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 3 x system fan headers 2 x addressable LED strip headers 2 x RGB LED strip headers 2 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x USB Type-C header, with USB 3.2 Gen 2 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 2 x Thunderbolt add-in card connectors 1 x serial port header 1 x Q-Flash Plus button 1 x reset jumper 1 x Clear CMOS jumper Back Panel Connectors 3 x USB 3.2 Gen 1 ports 5 x USB 2.0/1.1 ports 2 x SMA antenna connectors (2T2R) 1 x HDMI 2.0 port 1 x DisplayPort 1 x RJ-45 port 3 x audio jacks |
|
| Display Port (s) | 1x DisplayPort | |
| USB (s) | Chipset: 1 x USB Type-C port with USB 3.2 Gen 2 support, available through the internal USB header 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header) 1 x USB 2.0/1.1 port on the back panel Chipset+2 USB 2.0 Hubs: 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers) |
|
| LAN Port (s) | Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) 1 x RJ-45 port |
|
| Supported Storage | 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB) 4 x SATA 6Gb/s connectors |
|
| Audio | 1 x front panel audio header 3 x audio jacks |
|
| Wireless Communication module | Intel Wi-Fi 6E AX210 (PCB rev. 1.0) WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands BLUETOOTH 5.3 Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate Intel Wi-Fi 6E AX211 (PCB rev. 1.1) WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands BLUETOOTH 5.3 Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate Realtek Wi-Fi 6E RTL8852CE (PCB rev. 1.2) WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands BLUETOOTH 5.3 Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate |
|
| TPM (Trusted Platform Module ) | 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) | |
| RAID | RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices | |
| Others | ||
| Special Features | Support for GIGABYTE Control Center (GCC) Support for Q-Flash Support for Q-Flash Plus |
|
| Bundled Software | Norton Internet Security (OEM version) LAN bandwidth management software |
|
| Warranty Information | ||
| Manufacturing Warranty | 3 years | |

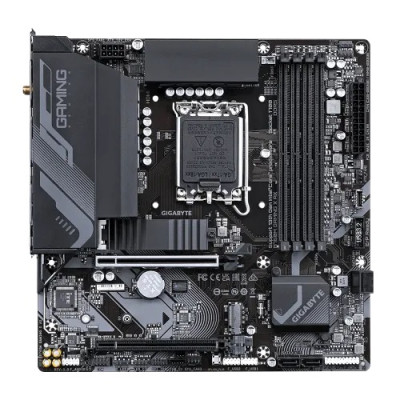

The GIGABYTE B760M GAMING X AX DDR5 mATX Intel Motherboard is built to deliver next-level performance for gamers, power users, and PC enthusiasts in Bangladesh. Powered by the Intel B760 Express Chipset and compatible with Intel’s latest 14th, 13th, and 12th Gen Core processors, this Micro ATX motherboard ensures both speed and stability. Designed for high-speed DDR5 memory and enhanced connectivity, it’s a solid choice for modern computing needs. Whether you’re upgrading your system or building from scratch, this board offers reliable features, integrated Wi-Fi 6E, and superior thermal design in a compact form factor.
Built for LGA1700 socket, this board supports Intel 14th, 13th, and 12th Gen Core, Pentium Gold, and Celeron processors, giving users access to the latest CPU performance advancements.
With four DDR5 DIMM slots, this motherboard supports up to 192GB of ultra-fast memory, including XMP profiles and speeds up to 7600MHz (OC), ensuring top-tier performance for intensive multitasking and gaming.
Equipped with a PCIe 4.0 x16 slot and a PCIe 3.0 x4 slot, users can enjoy faster data throughput and support for next-gen graphics and expansion cards.
Enjoy blazing-fast storage with two M.2 connectors, both supporting PCIe 4.0 SSDs for ultra-responsive boot and load times.
Experience seamless connectivity with built-in Wi-Fi 6E for ultra-fast wireless performance and Bluetooth 5.3 for high-speed device pairing and low-latency communication.
Includes USB 3.2 Gen 2 Type-C support, multiple USB 3.2 Gen 1 and USB 2.0 ports, ensuring all your modern devices and peripherals stay connected effortlessly.
With Realtek HD Audio Codec and support for 7.1-channel output, your sound quality is crisp and immersive whether you're gaming, streaming, or video conferencing.
Faster, more stable online gameplay and data transfer with Realtek’s high-speed 2.5GbE LAN connectivity.
Built on a compact Micro ATX form factor (24.4cm x 24.4cm), it’s perfect for small builds without compromising on performance or expansion options.
Includes support for GIGABYTE Control Center, Q-Flash, and Q-Flash Plus, offering users enhanced BIOS update tools and smart system management.
If you're looking for a powerful, future-ready motherboard that fits into compact PC builds, the GIGABYTE B760M GAMING X AX DDR5 is your go-to option. At Potaka IT, we offer genuine GIGABYTE products with official 3-year warranty and competitive pricing across Bangladesh. When you buy from Potaka IT, you’re guaranteed fast delivery, expert customer support, and the peace of mind that comes with purchasing from a trusted tech retailer. Upgrade your gaming or workstation setup with confidence — shop now at Potaka IT!
The latest price of GIGABYTE B760M GAMING X AX Motherboard in Bangladesh is 22,500৳. You can buy the GIGABYTE B760M GAMING X AX Motherboard at best price from our website or visit any of our showrooms.
