| Basic Information | ||
| Supported CPU | LGA1700 socket: Support for the 14th 13th and 12th Generation Intel Core, Pentium Gold and Celeron Processors L3 cache varies with the CPU |
|
| Chipset | Intel B760 Express Chipset | |
| BIOS | 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
|
| Form Factor | Micro ATX Form Factor; 24.4cm x 24.4cm | |
| Audio | Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1-channel Support for S/PDIF Out |
|
| Expansion Slots | ||
| PCI | 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16) 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x4 (PCIEX4) |
|
| M.2 Socket | 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB) 4 x SATA 6Gb/s connectors |
|
| Memory | ||
| Type | DDR4 | |
| Slots | 4 | |
| Supported Memory | Support for DDR4 5333(O.C.)/ 5133(O.C.)/ 5000(O.C.)/ 4933(O.C.)/ 4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3800(O.C.)/ 3733(O.C.)/ 3666(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3300(O.C.)/ 3200/ 3000/ 2933/ 2666/ 2400/ 2133 MT/s memory modules Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules |
|
| Maximum Memory | 128GB | |
| Graphics | ||
| Graphics | Integrated Graphics Processor-Intel HD Graphics support: 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz |
|
| Connector & Ports | ||
| HDMI | 1x HDMI | |
| Internal I/O Ports | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 3 x system fan headers 2 x addressable LED strip headers 2 x RGB LED strip headers 2 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x USB Type-C header, with USB 3.2 Gen 2 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 2 x Thunderbolt add-in card connectors 1 x serial port header 1 x reset button 1 x Q-Flash Plus button 1 x reset jumper 1 x Clear CMOS jumper |
|
| Display Port (s) | 1x DisplayPort | |
| USB (s) | 1 x USB Type-C port with USB 3.2 Gen 2 support, available through the internal USB header 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header) 1 x USB 2.0/1.1 port on the back panel 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers) |
|
| LAN Port (s) | Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) 1 x RJ-45 port |
|
| Supported Storage | 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB) 4 x SATA 6Gb/s connectors |
|
| Audio | 1 x front panel audio header 3 x audio jacks |
|
| TPM (Trusted Platform Module ) | 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) | |
| RAID | Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices | |
| Others | ||
| Special Features | 2 x addressable LED strip headers 2 x RGB LED strip headers iTE I/O Controller Chip Support for GIGABYTE Control Center (GCC) Support for Q-Flash Support for Q-Flash Plus |
|
| Warranty Information | ||
| Manufacturing Warranty | 3 years |
|

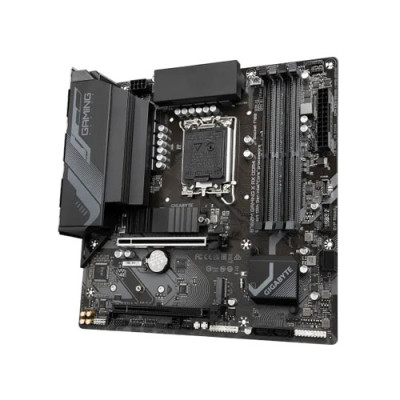

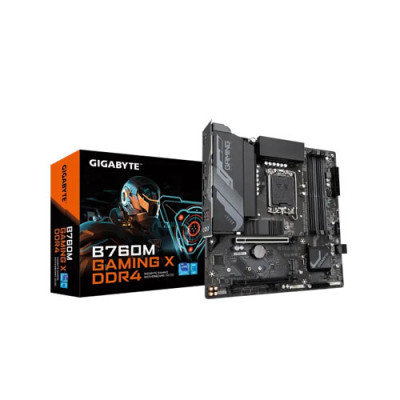

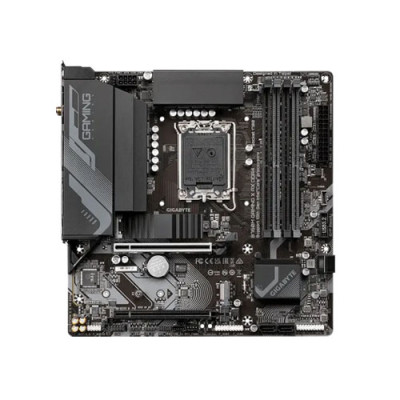

The GIGABYTE B760M GAMING X DDR4 13Gen mATX Motherboard is built to unleash the full potential of Intel’s 14th, 13th, and 12th Gen processors. Designed with gamers and PC enthusiasts in mind, this mATX board offers top-tier performance, rock-solid durability, and wide compatibility — all packed in a compact form factor. With support for DDR4 memory up to 5333 MHz (OC), PCIe 4.0 connectivity, advanced thermal solutions, and premium audio features, it delivers the perfect balance of power and versatility for your next-gen gaming or productivity build.
This motherboard uses the LGA1700 socket and supports the latest Intel Core, Pentium Gold, and Celeron processors, ensuring seamless performance with cutting-edge CPUs.
Enjoy lightning-fast boot and load times with two M.2 slots supporting PCIe 4.0 SSDs, ideal for gamers and content creators seeking top-tier data speeds.
With four DIMM slots, the board supports up to 128GB of DDR4 RAM with overclocking support up to 5333 MHz, perfect for memory-intensive applications and multitasking.
Realtek High Definition Audio with support for 2/4/5.1/7.1-channel sound provides immersive audio whether you’re gaming, streaming, or working with multimedia.
The PCIe 4.0 x16 slot offers full bandwidth for high-end graphics cards, ensuring high FPS gaming and smooth performance in demanding software.
Multiple USB 3.2 Gen 1 ports and a USB Type-C port ensure blazing-fast data transfers and wide compatibility with modern peripherals.
With HDMI and DisplayPort outputs, the board supports high-resolution displays up to 4K, ideal for users utilizing Intel integrated graphics.
The onboard 2.5 Gigabit LAN delivers ultra-fast and stable wired internet connectivity for competitive gaming and heavy downloads.
Customize your build with vibrant RGB lighting using the included RGB and addressable RGB headers, all manageable via GIGABYTE Control Center.
Benefit from a user-friendly UEFI BIOS and easily update firmware without installing CPU or memory using the Q-Flash Plus button.
If you're looking for a reliable and feature-rich motherboard in Bangladesh, the GIGABYTE B760M GAMING X DDR4 is a top choice. At Potaka IT, we offer authentic products at competitive prices with fast delivery and trusted after-sales service. Whether you're building a gaming rig or upgrading your existing setup, buying from Potaka IT ensures peace of mind and genuine quality. Make your next PC build smarter and faster — shop now from Potaka IT in BD!
The latest price of GIGABYTE B760M GAMING X DDR4 Motherboard in Bangladesh is 19,800৳. You can buy the GIGABYTE B760M GAMING X DDR4 Motherboard at best price from our website or visit any of our showrooms.
