| Basic Information | ||
| Supported CPU | AMD Socket AM5, support for: AMD Ryzen™ 9000 Series Processors/ AMD Ryzen™ 8000 Series Processors/ AMD Ryzen™ 7000 Series Processors (Go to GIGABYTE's website for the latest CPU support list.) |
|
| Chipset | AMD B850 | |
| BIOS | 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
|
| Form Factor | Micro ATX Form Factor; 24.4cm x 24.4cm |
|
| Memory | ||
| Slots | x PCI Express x16 slot (PCIEX16), integrated in the CPU: AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x16 mode AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode Chipset: - 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x4 (PCIEX4) |
|
| Supported Memory | Support for DDR5 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C) / 6200(O.C) / 6000(O.C) / 5800(O.C) / 5600(O.C) / 5200 / 4800 / 4400 MT/s memory modules. 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory Dual channel memory architecture Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules |
|
| Graphics | ||
| Graphics | Integrated Graphics Processor with AMD Radeon™ Graphics support: - 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz - 1 x Front HDMI port, supporting a maximum resolution of 1920x1080@30 Hz |
|
| Connector & Ports | ||
| Internal I/O Ports | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 1 x CPU fan/water cooling pump header 3 x system fan headers 1 x system fan/water cooling pump header 3 x addressable RGB Gen2 LED strip headers 1 x RGB LED strip header 2 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C® header, with USB 3.2 Gen 2x2 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) 1 x HDMI port (Note) 1 x reset button 1 x reset jumper 1 x Clear CMOS jumper |
|
| USB (s) | CPU: - 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2 support - 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel CPU+USB 2.0 Hub: - 4 x USB 2.0/1.1 ports on the back panel Chipset+USB 3.2 Gen 1 Hub: - 4 x USB 3.2 Gen 1 ports on the back panel Chipset: - 1 x USB Type-C® port with USB 3.2 Gen 2x2 support, available through the internal USB header - 3 x USB 3.2 Gen 1 ports (1 port on the back panel, 2 ports available through the internal USB header) - 4 x USB 2.0/1.1 ports available through the internal USB headers |
|
| LAN Port (s) | Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) | |
| Supported Storage | 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, Type 25110/22110/2580/2280 SSDs: AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs 1 x M.2 connector (M2B_CPU), integrated in the CPU, supporting Socket 3, M key, type 22110/2280 SSDs: AMD Ryzen™ 9000/7000 Series Processors support PCIe 4.0 x4/x2 SSDs AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x2 SSDs 4 x SATA 6Gb/s connectors RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices RAID 0, RAID 1, and RAID 10 support for SATA storage devices |
|
| Audio | Realtek® Audio CODEC (Only for rev. 1.0) High Definition Audio 2/4/5.1/7.1-channel Support for S/PDIF Out Realtek® ALC1220 CODEC (Only for rev. 1.1) High Definition Audio 2/4/5.1/7.1-channel |
|
| Wireless Communication module | Realtek® Wi-Fi 6E RTL8852CE - WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands - BLUETOOTH 5.3 - Support for 11ax 160MHz wireless standard |
|
| Others | ||
| Special Features | Support for GIGABYTE Control Center (GCC) Support for Q-Flash Support for Q-Flash Plus Support for Smart Backup |
|
| Bundled Software | Norton® Internet Security (OEM version) LAN bandwidth management software |
|
| Warranty Information | ||
| Manufacturing Warranty | 3 Years | |

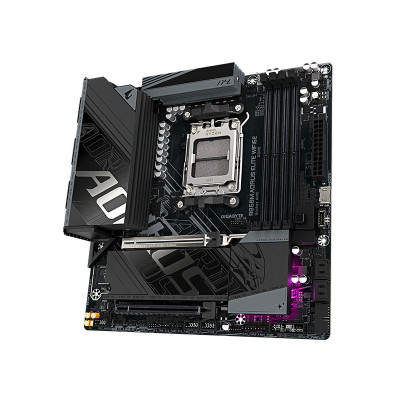

GIGABYTE B850M AORUS ELITE WiFi-6E (Rev. 1.x) AM5 DDR5 Micro ATX Motherboard is a powerful, future-ready foundation for modern AMD Ryzen builds, designed for gamers, creators, and performance-focused users who want next-gen features without compromise. Built on the AMD B850 chipset, this Micro ATX motherboard blends high-speed DDR5 support, PCIe 5.0 readiness, and WiFi 6E connectivity into a compact yet premium AORUS design that fits perfectly in today’s advanced PC setups.
The GIGABYTE B850M AORUS ELITE WiFi-6E motherboard supports AMD Ryzen™ 9000, 8000, and 7000 Series processors, making it an ideal choice for both current and upcoming AM5 CPUs. Powered by the AMD B850 chipset and a robust UEFI BIOS, it delivers excellent stability, smooth power delivery, and long-term upgrade potential for high-performance gaming and productivity systems.
This motherboard is engineered for extreme memory performance with support for DDR5 memory speeds up to 8200 MT/s (overclocked). With four DDR5 DIMM slots supporting up to 256GB of dual-channel memory, it’s ready for heavy multitasking, content creation, and next-gen gaming. Compatibility with AMD EXPO™ and XMP profiles ensures easy memory tuning and optimized system performance.
The GIGABYTE B850M AORUS ELITE WiFi-6E offers cutting-edge PCIe support, including a full PCIe 5.0 x16 slot for AMD Ryzen 9000 and 7000 Series processors, ensuring maximum bandwidth for modern graphics cards. Additional PCIe expansion from the chipset provides flexibility for add-on cards, making this Micro ATX motherboard a smart choice for compact yet powerful PC builds.
Equipped with two M.2 slots and four SATA 6Gb/s ports, this motherboard supports PCIe 5.0 and PCIe 4.0 NVMe SSDs depending on the CPU, delivering lightning-fast boot times and data transfer speeds. RAID support for both NVMe and SATA storage allows users to configure performance-driven or redundancy-focused storage solutions with ease.
With integrated AMD Radeon™ Graphics support, the motherboard includes DisplayPort and HDMI outputs for high-resolution displays. DisplayPort supports up to 4K at 144Hz, making it suitable for smooth visuals and productivity setups, even without a dedicated graphics card.
The onboard Realtek Wi-Fi 6E module delivers faster wireless speeds, lower latency, and access to the 6GHz band, ideal for competitive gaming and streaming. Bluetooth 5.3 ensures reliable connectivity for peripherals, while the Realtek 2.5GbE LAN provides ultra-fast and stable wired networking for demanding online workloads. High-definition Realtek audio delivers immersive 7.1-channel sound with S/PDIF output support, enhancing gaming and entertainment experiences. GIGABYTE Control Center, Q-Flash, and Q-Flash Plus make system management, BIOS updates, and backups simple and user-friendly, even without a CPU or memory installed.
At Potaka IT, you get more than just genuine GIGABYTE hardware. We ensure reliable sourcing, competitive pricing, and expert support tailored to PC builders and gamers. When you buy the GIGABYTE B850M AORUS ELITE WiFi-6E AM5 DDR5 Micro ATX motherboard from Potaka IT, you’re investing in performance, authenticity, and peace of mind—backed by a team that understands your tech needs. Upgrade your system today with a motherboard built for speed, stability, and the future of AMD computing.
The latest price of GIGABYTE B850M AORUS ELITE WiFi-6E Motherboard in Bangladesh is 34,000৳. You can buy the GIGABYTE B850M AORUS ELITE WiFi-6E Motherboard at best price from our website or visit any of our showrooms.
