| Basic Information | ||
| Supported CPU | AM4/AM5 | |
| Chipset | AMD B850 | |
| BIOS | 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
|
| Form Factor | Micro ATX Form Factor; 24.4cm x 24.4cm | |
| Audio | Realtek® Audio CODEC High Definition Audio 2/4/5.1/7.1-channel |
|
| Expansion Slots | ||
| PCI | 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU: AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x16 mode AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot. |
|
| Memory | ||
| Supported Memory | Support for DDR5 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C) / 6200(O.C) / 6000(O.C) / 5800(O.C) / 5600(O.C) / 5200 / 4800 / 4400 MT/s memory modules. 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory Dual channel memory architecture Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules |
|
| Graphics | ||
| Graphics | Integrated Graphics Processor with AMD Radeon™ Graphics support: - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.1 version and HDCP 2.3, and HDR. ** Support for native HDMI 2.1 TMDS compatible ports. - 2 x DisplayPorts, supporting a maximum resolution of 3840x2160@144 Hz * Support for DisplayPort 1.4 version. |
|
| Connector & Ports | ||
| Internal I/O Ports | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 1 x CPU fan/water cooling pump header 1 x system fan header 1 x system fan/water cooling pump header 3 x addressable RGB Gen2 LED strip headers 1 x RGB LED strip header 4 x SATA 6Gb/s connectors 2 x M.2 Socket 3 connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C® header, with USB 3.2 Gen 2 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) 1 x reset button 1 x reset jumper 1 x Clear CMOS jumper Back Panel Connectors |
|
| USB (s) | CPU: - 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2 support - 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel CPU+USB 2.0 Hub: - 4 x USB 2.0/1.1 ports on the back panel Chipset: - 1 x USB Type-C® port with USB 3.2 Gen 2 support, available through the internal USB header - 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header) - 4 x USB 2.0/1.1 ports available through the internal USB headers |
|
| LAN Port (s) | Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) | |
| Supported Storage | 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs: AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs 1 x M.2 connector (M2B_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs: AMD Ryzen™ 9000/7000 Series Processors support PCIe 4.0 x4/x2 SSDs AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x2 SSDs 4 x SATA 6Gb/s connectors RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices * RAID 5 is only available on AMD Ryzen™ 9000 Series Processors. RAID 0, RAID 1, and RAID 10 support for SATA storage devices |
|
| Wireless Communication module | Realtek® Wi-Fi 6E RTL8852CE - WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands - BLUETOOTH 5.3 - Support for 11ax 160MHz wireless standard |
|
| Warranty Information | ||
| Manufacturing Warranty | 3 years | |

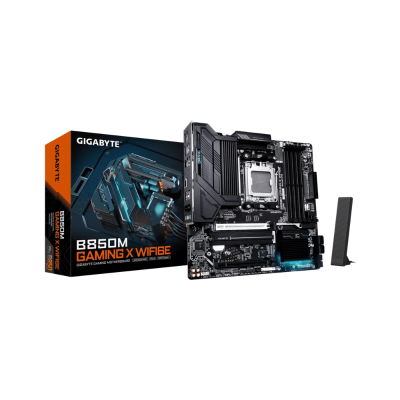

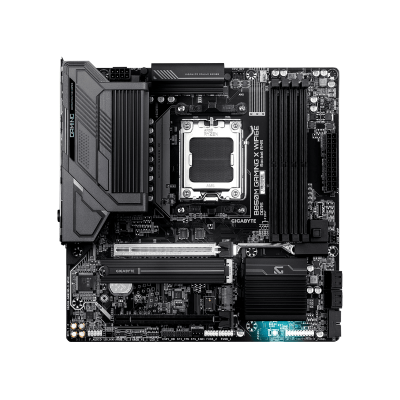

The Gigabyte B850M GAMING X WIFI6E AMD AM5 Motherboard is a high-performance micro ATX motherboard designed for gamers and power users. Featuring the latest AMD B850 chipset, this motherboard supports AMD Ryzen™ 9000, 8000, and 7000 series processors, ensuring top-tier processing power. With cutting-edge DDR5 memory support and PCIe 5.0 compatibility, it delivers blazing-fast performance for gaming, content creation, and multitasking. The integrated WiFi 6E and 2.5GbE LAN provide high-speed networking, making this motherboard a powerhouse for modern computing.
Built with the AMD B850 chipset, this motherboard supports the latest Ryzen processors, offering high-speed performance and future-proof compatibility.
Supports up to 256GB of DDR5 RAM, allowing overclocking speeds up to 8200 MT/s for an ultra-responsive computing experience.
Equipped with a PCIe 5.0 x16 slot for high-end graphics cards and NVMe SSDs, delivering maximum bandwidth for gaming and professional workloads.
Enjoy ultra-fast wireless connectivity with Realtek WiFi 6E and high-speed wired networking with the integrated 2.5GbE LAN chip.
Comes with HDMI 2.1 and dual DisplayPort 1.4 outputs, supporting high-resolution 4K and 144Hz displays for immersive visuals.
Features multiple fan headers and a water pump header, ensuring optimal cooling for stable performance even under heavy loads.
Includes multiple USB 3.2 Gen 2 and Type-C ports for fast data transfers and easy connectivity with modern devices.
Supports dual M.2 NVMe SSD slots with PCIe 5.0 and 4.0 compatibility, providing lightning-fast storage speeds and ample expansion options.
If you’re looking for the best place to buy the Gigabyte B850M GAMING X WIFI6E AMD AM5 Motherboard in Bangladesh, Potaka IT is your go-to destination. We offer authentic Gigabyte motherboards at the best prices, ensuring top performance for your gaming and professional needs. Get fast delivery, excellent customer support, and a hassle-free shopping experience when you shop with us. Upgrade your PC today with the Gigabyte B850M GAMING X WIFI6E and experience next-level computing power!
The latest price of Gigabyte B850M GAMING X WIFI6E AMD AM5 Motherboard in Bangladesh is 30,000৳. You can buy the Gigabyte B850M GAMING X WIFI6E AMD AM5 Motherboard at best price from our website or visit any of our showrooms.
