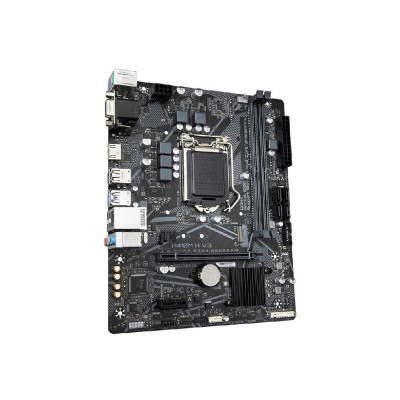

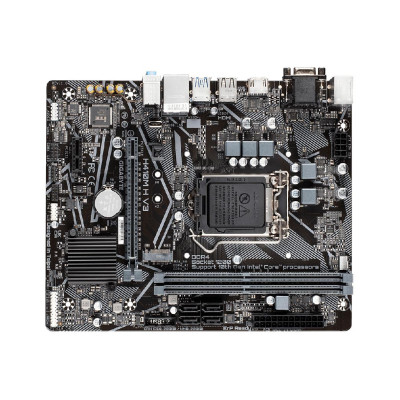

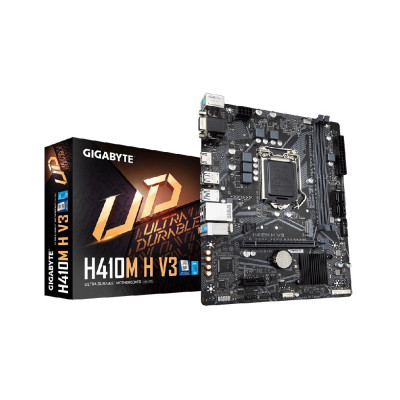

Gigabyte H410M H V3 Intel Motherboard

Gigabyte H410M H V3 Intel Motherboard
Gigabyte H410M H V3 Intel Motherboard
Gigabyte H410M H V3 Intel Motherboard
Gigabyte H410M H V3 Intel Motherboard
Save: 660৳ Out Of Stock
Gigabyte H410M H V3 Intel Motherboard
Gigabyte H410M H V3 Intel Motherboard
Gigabyte H410M H V3 Intel Motherboard
Gigabyte H410M H V3 Intel Motherboard
Gigabyte H410M H V3 Intel Motherboard

Key Features

  • Intel Socket LGA1200 for 10th Gen Processors
  • Dual Channel Non-ECC Unbuffered DDR4, 2 DIMMs
  • 8-Channel HD Audio with High-Quality Audio Capacitors
  • Ultra-Fast M.2 with PCIe Gen3 X2 & SATA Interface
  • Offer Price: 7,800৳
  • Price: 8,460৳
  • Stock: Out Of Stock
  • Brand: Gigabyte
  • Model: H410M H V3
  • SKU: 10318
Based on 4 reviews. - Write a review
7,800৳
8,460৳
Ex Tax: 7,800৳
Add to Cart
Buy Now
WishList Compare
Main Features

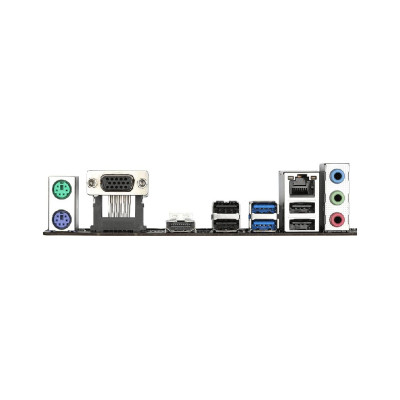

Back Panel Connectors 1 x PS/2 keyboard port
1 x PS/2 mouse port
1 x D-Sub port
1 x HDMI port
2 x USB 3.2 Gen 1 ports
4 x USB 2.0/1.1 ports
1 x RJ-45 port
3 x audio jacks
BIOS 1 x 128 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Chipset Intel® H510 Express Chipset
Expansion Slots 1 x PCI Express x16 slot, running at x16
1 x PCI Express x1 slot
(The PCI Express slots conform to PCI Express 3.0 standard.
Form Factor Micro ATX Form Factor; 22.6cm x 18.5cm
H/W Monitoring Voltage detection
Temperature detection
Fan speed detection
Overheating warning
Fan fail warning
Fan speed control
* Whether the fan speed control function is supported will depend on the cooler you install.
Supported CPU Support for 10th Generation Intel® Core™ i9 processors/Intel®
Core™ i7 processors/ Intel® Core™ i5 processors/Intel® Core™
i3 processors/Intel® Pentium® processors/ Intel® Celeron®
processors in the LGA1200 package
L3 cache varies with CPU
Expansion Slots
PCI 1 x PCI Express x16 slot, running at x16
2 x PCI Express x1 slot
Graphics Specifications
Graphics 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz
* Support for HDMI 1.4 version and HDCP 2.3.
Maximum shared memory of 512 MB
Max Shared Memory 512MB
Memory Specifications
Maximum Size 64 GB
Slot 2 x DDR4 DIMM
Supported Memory Intel® Core™ i9/i7 processors:
Support for DDR4 2933/2666/2400/2133 MHz memory modules
Intel® Core™ i5/i3/Pentium®/Celeron® processors:
Support for DDR4 2666/2400/2133 MHz memory modules
2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM
capacity) of system memory
Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules
(operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
Type Dual-channel architecture
Connectivity
Audio Realtek® Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel
* To configure 7.1-channel audio, you need to open the audio
software and select Device advanced
settings > Playback Device to change the default setting first.
Please visit GIGABYTE's website for details on configuring the audio software.
HDMI 1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz
Internal I/O Ports 1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
4 x SATA 6Gb/s connectors
1 x CPU fan header
1 x system fan header
1 x RGB LED strip header
1 x front panel header
1 x front panel audio header
1 x USB 3.2 Gen 1 header
1 x USB 2.0/1.1 header
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
1 x serial port header
1 x Clear CMOS jumper
LAN Ports Gigabit Ethernet Chip (1 Gbps/100 Mbps)
Supported Storage 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 PCIe x4/x2 SSD support)
4 x SATA 6Gb/s connectors
TPM (Trusted Platform Module ) 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
USB 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available
through the internal USB header)
6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available
through the internal USB header)
Warranty Information
Manufacturing Warranty 03 Years
Others
Bundled Software Norton® Internet Security (OEM version)
Realtek® 8118 Gaming LAN Bandwidth Control Utility
Special Features Support for APP Center
* Available applications in APP Center may vary by motherboard model.
Supported functions of each application may also vary depending on motherboard specifications.
@BIOS
Ambient LED
EasyTune
Fast Boot
Game Boost
ON/OFF Charge
Smart Backup
System Information Viewer
Support for Q-Flash
Support for Xpress Install

Gigabyte H410M H V3 Intel Motherboard

The GIGABYTE H410M H V3 10th Gen Micro ATX Motherboard brings the power you need for blazing fast performance. With an Intel® H510 Express Chipset, 1 x PCI Express x16 slot, running at x16, 2 x PCI Express x1 slot, 1 x D-Sub port, 1 x HDMI port, 2 x USB 3.2 Gen 1 ports, 4 x USB 2.0/1.1 ports, and 1 x RJ-45 port, you can plug in your peripherals for smooth multitasking. There are also 3 x audio jacks, 1 x 128 Mbit flash BIOS, a Micro ATX Form Factor with a size of 22.6cm x 18.5cm, as well as Voltage, Temperature, and Fan Speed detection, Overheating warning, and Fan fail warning, so you know your hardware is safe and secure. There are also H/W Monitoring with Fan Speed Control, meaning you can optimize cooling to ensure your system won't overheat when pushed to its limits. The GIGABYTE H410M H V3 10th Gen Micro ATX Motherboard has all the ports, power, and performance you need while remaining reliable and secure, making it ideal for building the ultimate gaming powerhouse.

Features:

The GIGABYTE H410M H V3 is a micro ATX motherboard designed for 10th generation Intel Core processors. It supports LGA 1200 socket and provides the following features-

  • Supports 10th Gen Intel®Core™ Processors
  • Dual Channel Non-ECC Unbuffered DDR4, 2 DIMMs
  • 8-Channel HD Audio with High Quality Audio Capacitors
  • NVMe PCIe Gen3 x4 2280 M.2 Connector
  • GIGABYTE Gaming GbE LAN with Bandwidth Management
  • Smart Fan 5 features Multiple Temperature Sensors and Hybrid Fan Headers with FAN STOP
  • GIGABYTE APP Center, Simple and Easy Use
  • Anti-Sulfur Resistors Design

Overall, the GIGABYTE H410M H V3 is a simple and cost-effective motherboard that provides basic features and performance for a budget-conscious build.
