| Basic Information | ||
| Supported CPU | AMD Ryzen™ Threadripper™ PRO 9000-WX Series Processors/ AMD Ryzen™ Threadripper™ 9000 Series Processors/ AMD Ryzen™ Threadripper™ PRO 7000-WX Series Processors/ AMD Ryzen™ Threadripper™ 7000 Series Processors | |
| Chipset | AMD TRX50 | |
| BIOS | UEFI Dual BIOS with Q-Flash Plus support | |
| Form Factor | E-ATX Form Factor; 30.5cm x 26.4cm | |
| Audio | Realtek® ALC4080 CODEC (rear panel audio) - Support for DTS:X® Ultra - High Definition Audio - 2-channel Realtek® ALC897 CODEC (front panel audio) |
|
| Expansion Slots | ||
| PCI | 4 x PCIe 5.0 x16 Slots | |
| M.2 Socket | 4 x M.2 PCIe 4.0/5.0 slots with thermal guards | |
| Memory | ||
| Type | DDR5 | |
| Slots | 4 x DIMM | |
| Supported Memory | Support for DDR5 8000(O.C.) / 7800(O.C.) / 7600(O.C.) / 7200(O.C.) / 7000(O.C) / 6800(O.C.) / 6400(O.C.) / 6000(O.C.) / 5600(O.C.) / 5200/4800/4400 MT/s ECC Registered memory modules (RDIMM/RDIMM-3DS) 4 x DDR5 DIMM sockets supporting up to 1TB (256 GB single DIMM capacity) of system memory Quad channel memory architecture Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules |
|
| Maximum Memory | 1TB | |
| Graphics | ||
| Graphics | Supports discrete GPU via PCIe 5.0 x16 | |
| Max Shared Memory | Depends on CPU integrated GPU (if any) | |
| Connector & Ports | ||
| HDMI | Not available (TRX50 motherboards typically rely on GPU for display output) | |
| Internal I/O Ports | 1 x 24-pin ATX main power connector 2 x 8-pin ATX 12V power connectors 1 x CPU fan header 1 x CPU fan/water cooling pump header 4 x system fan headers 4 x system fan/water cooling pump headers 3 x addressable RGB Gen2 LED strip headers 1 x RGB LED strip header 4 x M.2 Socket 3 connectors 8 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C® header, with USB 3.2 Gen 2x2 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x noise detection header 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI V2 module only) 1 x power button 1 x Clear CMOS button 1 x reset button 1 x reset jumper 2 x temperature sensor headers 1 x Clear CMOS jumper |
|
| Display Port (s) | Not available | |
| USB (s) | CPU: - 3 x USB 3.2 Gen 2 Type-A ports (red) on the back panel Chipset+Intel® JHL8540 USB4® controller: - 2 x USB4® USB Type-C® ports on the back panel Chipset: - 1 x USB Type-C® port with USB 3.2 Gen 2x2 support, available through the internal USB header - 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel - 2 x USB 3.2 Gen 1 ports available through the internal USB header CPU+USB 3.2 Gen 1 Hub: - 4 x USB 3.2 Gen 1 ports on the back panel Chipset+USB 2.0 Hub: - 4 x USB 2.0/1.1 ports available through the internal USB headers |
|
| LAN Port (s) | Marvell® AQtion AQC113C 10GbE LAN chip (10 Gbps/5 Gbps/2.5 Gbps/1 Gbps/100 Mbps) (LAN1) Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) (LAN) |
|
| Supported Storage | 4 x M.2 Slots, 8 x SATA 6Gb/s | |
| Audio | 7.1-channel HD audio with DTS:X® Ultra | |
| Wireless Communication module | Qualcomm® Wi-Fi 7 QCNCM865 - 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands - BLUETOOTH 5.3 - Support for 11be 320MHz wireless standard (Actual data rate may vary depending on environment and equipment.) Note: Wi-Fi 7 features require Windows 11 SV3 to function properly. (There is no support driver for Windows 10) Wi-Fi 7 channels on 6GHz band availability depends on individual country's regulations. |
|
| TPM (Trusted Platform Module ) | Supported |
|
| RAID | RAID 0, 1, 5, 10 supported on SATA and NVMe drives | |
| Others | ||
| Special Features | PCIe 5.0 slots for GPU & storage expansion Ultra-durable components for long-term stability Advanced thermal design with heatsinks for M.2 & VRM Dual BIOS with Q-Flash Plus 10GbE + 2.5GbE LAN & Wi-Fi 7 |
|
| Bundled Software | Norton® Internet Security (OEM version) LAN bandwidth management software GIGABYTE App Center (includes EasyTune, RGB Fusion 2.0, System Information Viewer) |
|
| Warranty Information | ||
| Manufacturing Warranty | 3 Years | |

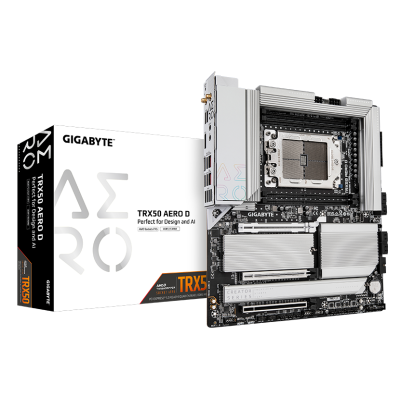

The GIGABYTE TRX50 AERO D AMD TR5 E-ATX Motherboard is built for ultimate performance and professional workloads. Designed to support AMD Ryzen™ Threadripper™ PRO 7000/9000 series processors, this high-end motherboard ensures seamless performance, advanced scalability, and next-gen connectivity for creators, engineers, and gamers in Bangladesh.
With a 16+8+4 phases digital VRM solution, the TRX50 AERO D provides stable power delivery to handle demanding workloads. Whether you are building a high-end workstation or a powerful gaming PC, this motherboard delivers unmatched reliability.
Equipped with 4 x DDR5 DIMM sockets, it supports up to 1TB of memory capacity. With AMD EXPO™ and Intel® XMP support, you can achieve higher memory frequencies and optimized performance for multitasking, rendering, and simulation.
The VRM Thermal Armor Advanced and M.2 Thermal Guard ensure efficient heat dissipation, keeping your system cool even under heavy loads. This helps maintain performance stability and extends hardware lifespan.
The motherboard offers 3 PCIe x16 slots for multi-GPU setups and 4 M.2 slots for high-speed NVMe SSDs. With PCIe 5.0 support, you get blazing-fast transfer speeds ideal for 3D modeling, AI training, and data-intensive tasks.

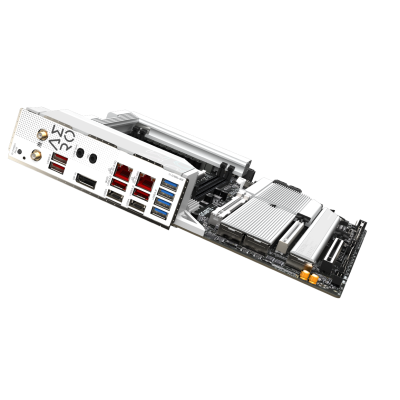

Enjoy faster connections with Dual USB4® Type-C ports, multiple USB 3.2 ports, and high-speed PCIe 5.0 storage support. This makes it ideal for professionals handling large files, video editing, and cloud-based workflows.

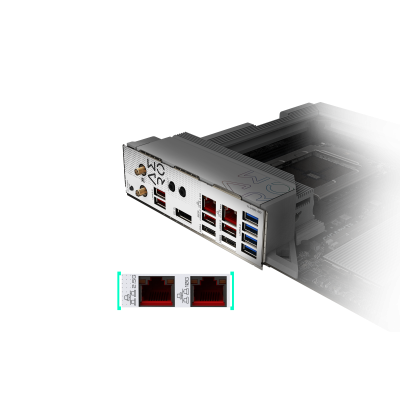

The TRX50 AERO D comes with Marvell® AQtion 10GbE LAN, 2.5GbE LAN, and Wi-Fi 7 for seamless connectivity. Whether you are gaming, streaming, or transferring massive data, this motherboard ensures ultra-low latency and blazing speeds.
Featuring Realtek® ALC4080 & ALC897 codecs with DTS:X® Ultra support, this motherboard offers crystal-clear Hi-Fi audio. Perfect for music producers, streamers, and gamers who demand immersive sound quality.
With EZ-Latch Click & EZ-Latch Plus, installing M.2 SSDs and heatsinks is quick and screwless. The UC BIOS provides a user-centered intuitive interface for easy system customization and updates.
At Potaka IT, we bring you the latest GIGABYTE motherboards at the best price in Bangladesh. We ensure genuine products, reliable after-sales support, and fast nationwide delivery. If you are looking for the GIGABYTE TRX50 AERO D AMD TR5 E-ATX Motherboard in Bangladesh, Potaka IT is your trusted destination.
The latest price of GIGABYTE TRX50 AERO D AMD TR5 E-ATX Motherboard in Bangladesh is 105,000৳. You can buy the GIGABYTE TRX50 AERO D AMD TR5 E-ATX Motherboard at best price from our website or visit any of our showrooms.
