| Basic Information | ||
| Supported CPU | LGA1700 socket: Support for the 14th, 13th and 12th Generation Intel Core, Pentium Gold and Celeron Processors L3 cache varies with CPU |
|
| Chipset | Intel Z790 Express Chipset | |
| BIOS | 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
|
| Form Factor | ATX Form Factor; 30.5cm x 24.4cm | |
| Audio | Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1-channel * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings. Support for S/PDIF Out |
|
| Expansion Slots | ||
| PCI | CPU: 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16) * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. Chipset: 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4) 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x1 (PCIEX1_4) 2 x PCI Express x1 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_2, PCIEX1_3) Support for AMD CrossFire technology (PCIEX16 and PCIEX4) |
|
| Memory | ||
| Type | DDR4 | |
| Slots | 4 x DIMM sockets |
|
| Supported Memory | 5333(O.C.)/ DDR4 5133(O.C.)/DDR4 5000(O.C.)/4933(O.C.)/4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133 MHz memory modules 4 x DDR DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules |
|
| Maximum Memory | 128GB (32 GB single DIMM capacity) | |
| Graphics | ||
| Graphics | Integrated Graphics Processor-Intel HD Graphics support: 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.0 version and HDCP 2.3. 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz * Support for DisplayPort 1.2 version and HDCP 2.3 |
|
| Connector & Ports | ||
| HDMI | 1 x HDMI | |
| Internal I/O Ports | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x 4-pin ATX 12V power connector 1 x CPU fan header 1 x water cooling CPU fan header 3 x system fan headers 1 x system fan/water cooling pump header 2 x addressable LED strip headers 2 x RGB LED strip headers 3 x M.2 Socket 3 connectors 6 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x USB Type-C header, with USB 3.2 Gen 1 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x serial port header 2 x Thunderbolt add-in card connectors 1 x reset button 1 x Q-Flash Plus button 1 x reset jumper 1 x Clear CMOS jumper |
|
| Display Port (s) | 1 x DisplayPort | |

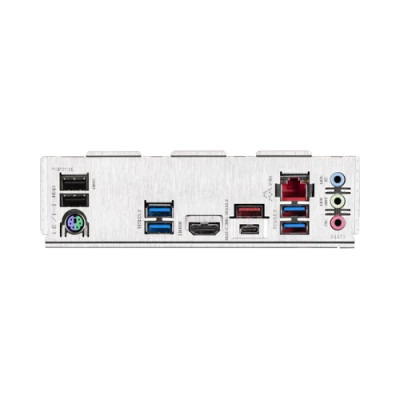

| USB (s) | Chipset: 1 x USB Type-C port on the back panel, with USB 3.2 Gen 2x2 support 1 x USB Type-C port with USB 3.2 Gen 1 support, available through the internal USB header 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel 6 x USB 3.2 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header) Chipset+1 USB 2.0 Hub: 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers) |
|
| LAN Port (s) | Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) | |
| Supported Storage | CPU: 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) Chipset: 2 x M.2 connectors (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB, M2P_SB) 6 x SATA 6Gb/s connectors |
|
| Audio | 3 x audio jacks | |
| TPM (Trusted Platform Module ) | 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) | |
| RAID | RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices |
|
| Others | ||
| Special Features | Support for GIGABYTE Control Center (GCC) * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. Support for Q-Flash Support for Q-Flash Plus Support for Smart Backup |
|
| Bundled Software | Norton Internet Security (OEM version) LAN bandwidth management software |
|
| Warranty Information | ||
| Manufacturing Warranty | 3 years | |

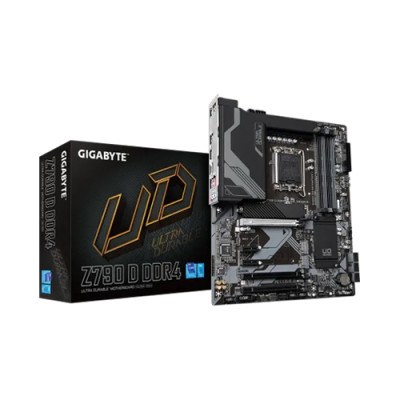

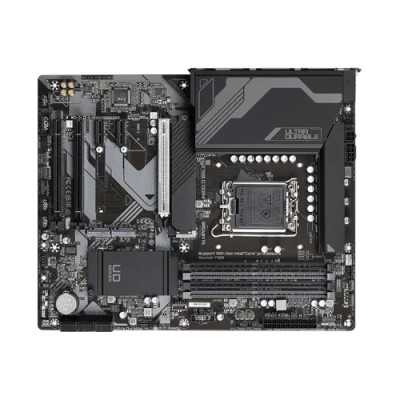

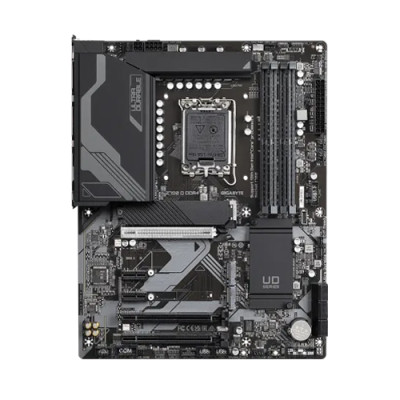

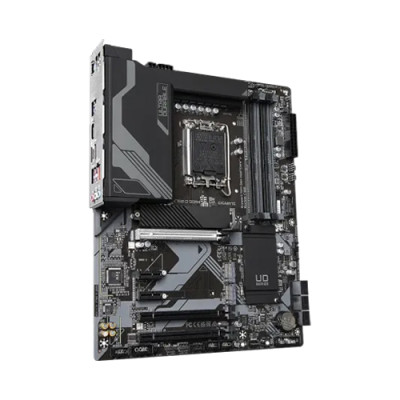

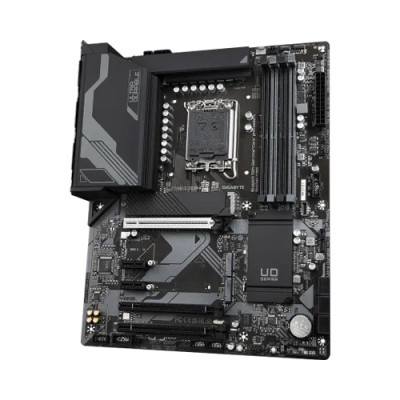

The GIGABYTE Z790 D DDR4 ATX Motherboard is a powerful and future-ready platform designed for Intel 14th, 13th, and 12th Gen processors. Built on the Intel Z790 Express chipset, this motherboard delivers excellent performance, advanced connectivity, and solid stability for gaming, content creation, and professional workloads. With support for high-speed DDR4 memory, PCIe 5.0 graphics, and multiple M.2 SSDs, it ensures smooth multitasking and fast data access for modern PC builds.
This motherboard supports Intel 14th Gen, 13th Gen, and 12th Gen Core, Pentium Gold, and Celeron processors using the LGA1700 socket. It allows users to build a high-performance system with excellent processing power, making it ideal for gamers, streamers, and productivity-focused users in Bangladesh.
The GIGABYTE Z790 D DDR4 features four DDR4 DIMM slots supporting up to 128GB of memory with speeds up to 5333MHz (overclocked). Dual-channel architecture and XMP support ensure enhanced system responsiveness, smoother multitasking, and optimized performance for demanding applications.
This ATX motherboard includes a PCIe 5.0 x16 slot for next-generation graphics cards, ensuring maximum bandwidth and future compatibility. Additional PCIe 4.0 and PCIe 3.0 slots provide flexibility for expansion cards, capture cards, and other peripherals.
With three PCIe 4.0 M.2 slots and six SATA 6Gb/s ports, the GIGABYTE Z790 D DDR4 motherboard supports high-speed NVMe SSDs and large-capacity storage drives. RAID 0, 1, 5, and 10 support allows users to configure storage for speed, security, or both.
The motherboard offers HDMI and DisplayPort outputs, supporting resolutions up to 4K at 60Hz. This makes it suitable for users who rely on Intel integrated graphics for office work, media consumption, or professional tasks without a dedicated GPU.
Equipped with a Realtek 2.5GbE LAN chip, this motherboard delivers faster and more stable wired internet performance. It is ideal for online gaming, streaming, large file transfers, and professional networking tasks.
The Realtek High Definition Audio codec supports up to 7.1-channel surround sound, delivering clear and immersive audio. S/PDIF output support ensures compatibility with premium audio systems for an enhanced entertainment experience.
The GIGABYTE Z790 D DDR4 includes multiple fan and water-cooling headers for efficient thermal management. Addressable RGB and RGB LED headers allow users to customize lighting effects, creating a visually appealing PC setup.
With AMI UEFI BIOS, Q-Flash Plus, Smart Backup, and GIGABYTE Control Center support, system tuning and BIOS updates become simple and hassle-free, even without installing a CPU or memory.
Potaka IT offers genuine GIGABYTE motherboards at competitive prices in Bangladesh. With trusted customer service, expert guidance, and fast delivery options, Potaka IT ensures a reliable and smooth shopping experience for your PC components.
The latest price of GIGABYTE Z790 D ATX Motherboard in Bangladesh is 27,500৳. You can buy the GIGABYTE Z790 D ATX Motherboard at best price from our website or visit any of our showrooms.
