| Basic Information | ||
| Supported CPU | LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel® Core, Pentium Gold and Celeron Processors L3 cache varies with CPU (Please refer "CPU Support List" for more information.) |
|
| Chipset | Intel Z790 Express Chipset | |
| BIOS | 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
|
| Form Factor | ATX Form Factor; 30.5cm x 24.4cm | |
| Audio | Realtek® Audio CODEC High Definition Audio 2/4/5.1/7.1-channel * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings. Support for S/PDIF Out |
|
| Expansion Slots | ||
| PCI | CPU: - 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16) * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot. Chipset: - 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4) - 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x1 (PCIEX1_4) - 2 x PCI Express x1 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_2, PCIEX1_3) |
|
| Memory | ||
| Type | DDR5 | |
| Slots | 4 x DDR5 DIMM sockets | |
| Supported Memory | 14th and 13th Generation Intel Core i9/i7 Pocessors: - Support for DDR5 7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600 / 5400 / 5200/ 4800/4400 MT/s memory modules 13th Generation Intel Core i5/i3 and 12th Generation Intel Core, Pentium Gold and Celeron Processors: - Support for DDR5 4800/4400 MT/s memory modules Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.) |
|
| Maximum Memory | supporting up to 192 GB (48 GB single DIMM capacity) of system memory | |
| Graphics | ||
| Graphics | Integrated Graphics Processor-Intel HD Graphics support: - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.1 version and HDCP 2.3. ** Support for native HDMI 2.1 TMDS compatible ports. - 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz * Support for DisplayPort 1.2 version and HDCP 2.3 (Graphics specifications may vary depending on CPU support.) |
|
| Connector & Ports | ||
| HDMI | 1 x HDMI port | |
| Internal I/O Ports | Internal I/O Connectors 1 x 24-pin ATX main power connector 2 x 8-pin ATX 12V power connectors 1 x CPU fan header 1 x CPU fan/water cooling pump header 3 x system fan headers 1 x system fan/water cooling pump header 2 x addressable LED strip headers 3 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x USB Type-C header, with USB 3.2 Gen 1 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 2 x Thunderbolt add-in card connectors 1 x reset button 1 x Q-Flash Plus button 1 x reset jumper 1 x Clear CMOS jumper Back Panel Connectors 1 x PS/2 keyboard/mouse port 1 x USB Type-C port, with USB 3.2 Gen 2 support 1 x USB 3.2 Gen 2 Type-A port (red) 4 x USB 3.2 Gen 1 ports 2 x USB 2.0/1.1 ports 1 x HDMI port 1 x DisplayPort |
|
| Display Port (s) | 1 x DisplayPort | |
| USB (s) | Chipset: - 1 x USB Type-C port on the back panel, with USB 3.2 Gen 2 support - 1 x USB Type-C port with USB 3.2 Gen 1 support, available through the internal USB header - 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel - 6 x USB 3.2 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header) - 2 x USB 2.0/1.1 ports on the back panel Chipset+USB 2.0 Hub: - 4 x USB 2.0/1.1 ports, available through the internal USB headers |
|
| LAN Port (s) | Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) | |
| Supported Storage | CPU: - 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) Chipset: - 1 x M.2 connectors (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB) - 1 x M.2 connectors (Socket 3, M key, type 2280 SATA and PCIe 4.0 x4/x2 SSD support) (M2M_SB) - 4 x SATA 6Gb/s connectors |
|
| TPM (Trusted Platform Module ) | 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI / GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) | |
| RAID | RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices |
|
| Others | ||
| Special Features | Support for GIGABYTE Control Center (GCC) * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. Support for Q-Flash Support for Q-Flash Plus Support for Smart Backup |
|
| Bundled Software | Norton Internet Security (OEM version) LAN bandwidth management software |
|
| Warranty Information | ||
| Manufacturing Warranty | 3 years | |

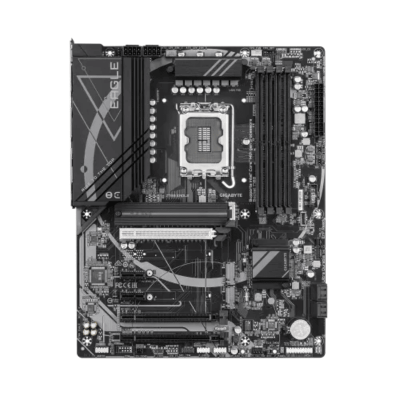

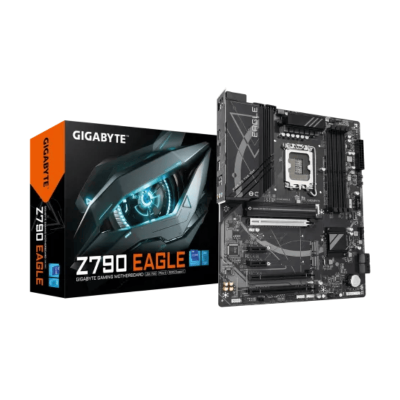

The GIGABYTE Z790 EAGLE DDR5 ATX Motherboard is a powerful and future-ready platform designed for Intel 14th, 13th, and 12th Gen processors. Built on the Intel Z790 Express Chipset, this motherboard delivers excellent performance, stability, and expandability for gaming PCs, professional workstations, and high-end desktop builds in Bangladesh. With support for ultra-fast DDR5 memory, PCIe 5.0 graphics, and advanced connectivity, it is an ideal choice for users who want cutting-edge technology without compromise.
This motherboard supports Intel Core i9, i7, i5, i3, Pentium Gold, and Celeron processors using the LGA1700 socket. The Z790 chipset ensures better CPU overclocking capability, improved system responsiveness, and long-term compatibility with the latest Intel platforms.
Equipped with four DDR5 DIMM slots, the GIGABYTE Z790 EAGLE supports up to 192GB of system memory. With overclocking support up to 7600MHz, users can enjoy faster data transfer, smoother multitasking, and improved gaming performance. XMP support allows easy memory tuning for optimized speed and stability.
The motherboard features a PCIe 5.0 x16 slot for next-generation graphics cards, ensuring maximum bandwidth for high-end GPUs. Additional PCIe 4.0 and PCIe 3.0 slots allow installation of expansion cards, capture cards, or storage adapters, making it suitable for both gamers and creators.
For fast storage performance, the GIGABYTE Z790 EAGLE includes three M.2 slots supporting PCIe 4.0 NVMe SSDs along with four SATA 6Gb/s ports. RAID 0, 1, 5, and 10 support ensures data security and speed, making it ideal for content creation and professional workloads.
The motherboard offers HDMI 2.1 and DisplayPort connectivity, supporting up to 4K resolution at 60Hz. This makes it suitable for users relying on Intel integrated graphics for office work, multimedia consumption, or secondary display setups.
With a Realtek 2.5GbE LAN chip, users can enjoy faster and more stable internet connections compared to standard Gigabit Ethernet. This is especially beneficial for online gaming, streaming, and large file transfers.
The onboard Realtek High Definition Audio codec supports up to 7.1-channel audio output. With S/PDIF out support, users can experience immersive and clear sound quality for gaming, movies, and music.
The GIGABYTE Z790 EAGLE provides a wide range of USB ports including USB Type-C with USB 3.2 Gen 2 support, USB 3.2 Gen 1, and USB 2.0 ports. Internal headers support front panel USB, RGB lighting, cooling solutions, and Thunderbolt add-in cards for future expansion.
With GIGABYTE Control Center, Q-Flash, and Q-Flash Plus, updating BIOS and managing system settings becomes simple and user-friendly. These features help ensure system stability and easy maintenance.
Potaka IT is a trusted computer hardware retailer in Bangladesh, offering genuine products, competitive pricing, and reliable customer service. When you buy the GIGABYTE Z790 EAGLE DDR5 ATX Motherboard from Potaka IT, you get authentic components, expert support, and a smooth shopping experience both online and offline.
The latest price of GIGABYTE Z790 EAGLE Motherboard in Bangladesh is 29,500৳. You can buy the GIGABYTE Z790 EAGLE Motherboard at best price from our website or visit any of our showrooms.
