| Basic Information | ||
| Supported CPU | LGA1700 socket: Support for the 14th,13th and 12th Generation Intel Core, Pentium Gold and Celeron Processors L3 cache varies with CPU |
|
| Chipset | Intel Z790 Express Chipset | |
| BIOS | 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
|
| Form Factor | ATX Form Factor; 30.5cm x 24.4cm | |
| Audio | Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1-channel * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings. Support for S/PDIF Out |
|
| Expansion Slots | ||
| PCI | CPU: 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16) * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. Chipset: 2 x PCI Express x16 slots, supporting PCIe 4.0 and running at x4 (PCIEX4_1, PCIEX4_2) Support for AMD CrossFire technology (PCIEX16 and PCIEX4) |
|
| Memory | ||
| Type | DDR5 | |
| Slots | 4 x DIMM sockets | |
| Supported Memory | Support for DDR5 7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 memory modules Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules |
|
| Maximum Memory | 128GB (32 GB single DIMM capacity) | |
| Graphics | ||
| Graphics | Integrated Graphics Processor-Intel HD Graphics support: 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.0 version and HDCP 2.3. 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 * Support for DisplayPort 1.2 version and HDCP 2.3 |
|
| Connector & Ports | ||
| HDMI | 1 x HDMI | |
| Internal I/O Ports | 1 x 24-pin ATX main power connector 2 x 8-pin ATX 12V power connectors 1 x CPU fan header 1 x water cooling CPU fan header 3 x system fan headers 1 x system fan/water cooling pump header 2 x addressable LED strip headers 2 x RGB LED strip headers 4 x M.2 Socket 3 connectors 6 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C header, with USB 3.2 Gen 2 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 2 x Thunderbolt add-in card connectors 1 x reset button 1 x Q-Flash Plus button 1 x Clear CMOS button 1 x reset jumper 1 x Clear CMOS jumper |
|
| Display Port (s) | 1 x DisplayPort | |
| USB (s) | Chipset: 1 x USB Type-C port on the back panel, with USB 3.2 Gen 2x2 support 1 x USB Type-C port with USB 3.2 Gen 2 support, available through the internal USB header 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header) Chipset+2 USB 2.0 Hubs: 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers) |
|
| LAN Port (s) | Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) | |
| Supported Storage | CPU: 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) Chipset: 2 x M.2 connectors (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB, M2Q_SB) 1 x M.2 connector (Socket 3, M key, type 22110/2280 SATA and PCIe 4.0 x4 SSD support) (M2M_SB) 6 x SATA 6Gb/s connectors |
|
| Audio | 2 x audio jacks | |
| Wireless Communication module | Intel Wi-Fi 6E AX211 WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands BLUETOOTH 5.3 Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate |
|
| TPM (Trusted Platform Module ) | 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) | |
| RAID | RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices |
|
| Others | ||
| Special Features | Support for GIGABYTE Control Center (GCC) * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. Support for Q-Flash Support for Q-Flash Plus Support for Smart Backup |
|
| Bundled Software | Norton Internet Security (OEM version) LAN bandwidth management software |
|
| Warranty Information | ||
| Manufacturing Warranty | 3 years | |

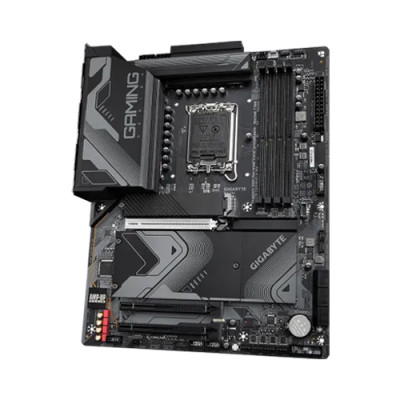

The GIGABYTE Z790 GAMING X AX ATX Motherboard is engineered for high-performance PC builds, offering support for Intel’s 14th, 13th, and 12th Gen Core, Pentium Gold, and Celeron processors on the LGA1700 socket. Designed with the Intel Z790 Express Chipset, this motherboard ensures ultra-fast connectivity, robust power delivery, and versatile compatibility for gamers and creators alike. With advanced PCIe 5.0 graphics support, DDR5 memory up to 7600 MHz (OC), and integrated Wi-Fi 6E, this board is a future-ready foundation for powerful desktops.
Compatible with Intel's latest 14th Gen, 13th Gen, and 12th Gen Core processors, ensuring reliable and cutting-edge performance for any workload or game.
Features four DDR5 DIMM slots with support for up to 128GB and blazing-fast memory speeds of up to 7600 MHz (OC), delivering superior multitasking and gaming performance.
Includes a PCIe 5.0 x16 slot to support the latest high-performance GPUs, maximizing graphics potential for gamers and content creators.
Equipped with four M.2 slots and six SATA 6Gb/s ports, this motherboard supports NVMe and SATA RAID configurations to deliver lightning-fast load times and ample storage flexibility.
Enjoy ultra-fast wireless connectivity with Intel Wi-Fi 6E AX211 and stable wired connections through Realtek 2.5GbE LAN, ideal for low-latency gaming and streaming.
Offers multiple USB ports including USB 3.2 Gen 2x2 Type-C, HDMI 2.0, DisplayPort 1.2, Thunderbolt headers, and customizable RGB lighting for maximum utility and personalization.
Delivers immersive high-definition 7.1-channel audio through Realtek’s advanced codec with S/PDIF support, perfect for high-quality gaming and media playback.
Includes multiple fan headers, water cooling support, and reinforced power connectors for optimal cooling and reliable power delivery in demanding applications.
Features built-in TPM header for security, Smart Backup for data protection, and Q-Flash Plus for effortless BIOS updates, ensuring a secure and user-friendly experience.
If you're looking to build a high-performance PC with next-gen components, buy the GIGABYTE Z790 GAMING X AX ATX Motherboard from Potaka IT in BD. We offer genuine products with official warranty, expert guidance, and competitive pricing in Bangladesh. Whether you're a gamer, content creator, or enthusiast, this motherboard is an unbeatable choice for speed, stability, and connectivity. Order now from Potaka IT and power your build with the latest hardware technology.
The latest price of GIGABYTE Z790 GAMING X AX Motherboard in Bangladesh is 33,500৳. You can buy the GIGABYTE Z790 GAMING X AX Motherboard at best price from our website or visit any of our showrooms.
