| Basic Information | ||
| Supported CPU | LGA1700 socket: Support for the 14th, 13th and 12th Generation Intel Core, Pentium Gold and Celeron Processors L3 cache varies with CPU |
|
| Chipset | Intel Z790 Express Chipset | |
| BIOS | 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
|
| Form Factor | ATX Form Factor; 30.5cm x 24.4cm | |
| Audio | Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1-channel * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings. Support for S/PDIF Out |
|
| Expansion Slots | ||
| PCI | CPU: 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16) * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. Chipset: 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4) 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x1 (PCIEX1_4) 2 x PCI Express x1 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_2, PCIEX1_3) Support for AMD CrossFire technology (PCIEX16 and PCIEX4) |
|
| Memory | ||
| Type | DDR5 | |
| Slots | 4 x DIMM sockets | |
| Supported Memory | 7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 memory modules Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules |
|
| Maximum Memory | 128GB (32 GB single DIMM capacity) | |
| Graphics | ||
| Graphics | Integrated Graphics Processor-Intel HD Graphics support: 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.0 version and HDCP 2.3. 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz * Support for DisplayPort 1.2 version and HDCP 2.3 |
|
| Connector & Ports | ||
| HDMI | 1 x HDMI | |
| Internal I/O Ports | 1 x 24-pin ATX main power connector 2 x 8-pin ATX 12V power connectors 1 x CPU fan header 1 x water cooling CPU fan header 3 x system fan headers 1 x system fan/water cooling pump header 2 x addressable LED strip headers 2 x RGB LED strip headers 3 x M.2 Socket 3 connectors 6 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x USB Type-C header, with USB 3.2 Gen 1 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x serial port header 2 x Thunderbolt add-in card connectors 1 x reset button 1 x Q-Flash Plus button 1 x reset jumper 1 x Clear CMOS jumper |
|
| Display Port (s) | 1 x DisplayPort | |
| USB (s) | Chipset: 1 x USB Type-C port on the back panel, with USB 3.2 Gen 2x2 support 1 x USB Type-C port with USB 3.2 Gen 1 support, available through the internal USB header 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel 6 x USB 3.2 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header) Chipset+2 USB 2.0 Hubs: 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers) |
|
| LAN Port (s) | Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) | |
| Supported Storage | CPU: 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) Chipset: 2 x M.2 connectors (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB, M2P_SB) 6 x SATA 6Gb/s connectors |
|
| Audio | 3 x audio jacks | |
| Wireless Communication module | AMD Wi-Fi 6E RZ616 (MT7922A22M) WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands BLUETOOTH 5.2 Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate |
|
| TPM (Trusted Platform Module ) | 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) | |
| RAID | RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices |
|
| Others | ||
| Special Features | Support for GIGABYTE Control Center (GCC) * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. Support for Q-Flash Support for Q-Flash Plus Support for Smart Backup |
|
| Bundled Software | Norton Internet Security (OEM version) LAN bandwidth management software |
|
| Warranty Information | ||
| Manufacturing Warranty | 3 years | |

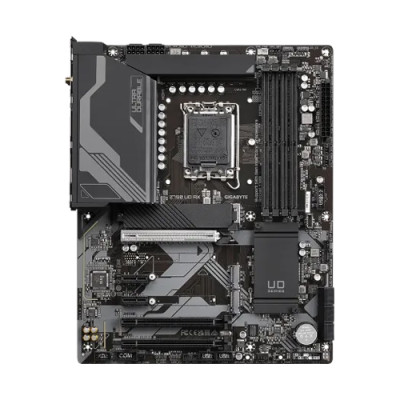

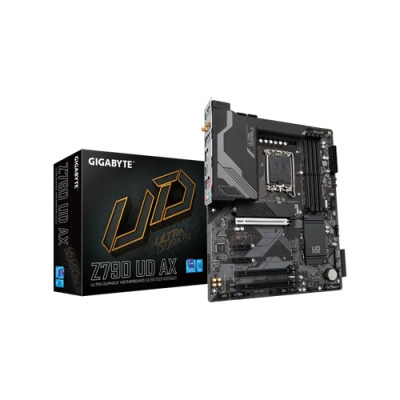

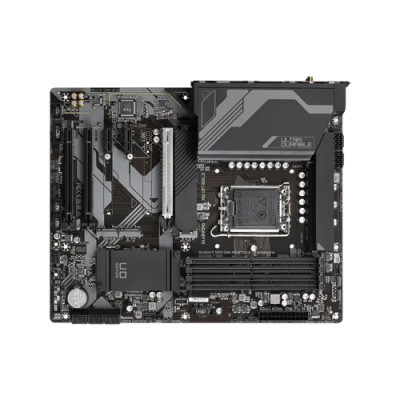

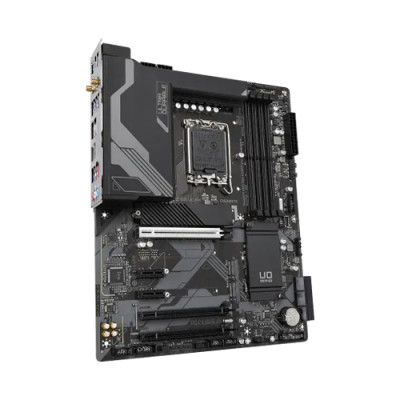

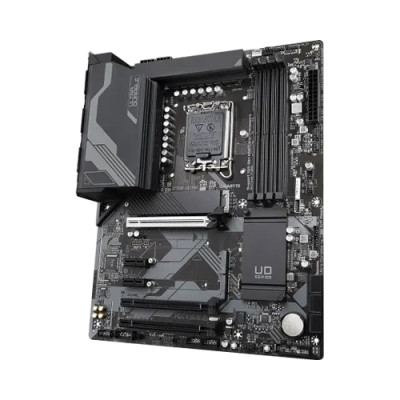

The GIGABYTE Z790 UD AX ATX Motherboard is a high-performance motherboard designed for 12th, 13th, and 14th Gen Intel processors. Perfect for gamers, content creators, and tech enthusiasts, it offers advanced connectivity, ultra-fast memory support, and superior networking capabilities, ensuring a seamless computing experience.
This motherboard features an LGA1700 socket, compatible with Intel Core, Pentium Gold, and Celeron processors of the 12th, 13th, and 14th generation. L3 cache varies depending on the CPU installed, providing optimal processing power for multitasking and gaming.
With 4 DDR5 DIMM slots, the GIGABYTE Z790 UD AX supports memory speeds up to 7600(O.C.), dual-channel architecture, and a maximum capacity of 128GB. It supports ECC and non-ECC modules, as well as Extreme Memory Profile (XMP) for enhanced performance.
The motherboard includes 1 HDMI port supporting up to 4096x2160@60Hz and 1 DisplayPort with up to 4096x2304@60Hz. Both ports support HDCP, allowing high-quality video output for gaming, streaming, and professional work.
Equipped with a Realtek 2.5GbE LAN chip and AMD Wi-Fi 6E (802.11ax), the motherboard delivers fast and stable wired and wireless internet connectivity. Bluetooth 5.2 is also included for seamless device pairing.
Integrated Realtek Audio CODEC supports high-definition audio output with 2/4/5.1/7.1-channel configurations. The functionality of audio jacks can be customized through audio software, including S/PDIF Out support for premium sound quality.
The motherboard offers a variety of PCIe slots: 1 x PCIe 5.0 x16, 1 x PCIe 4.0 x16, 1 x PCIe 3.0 x16, and 2 x PCIe 3.0 x1 slots. It also supports AMD CrossFire technology, allowing multi-GPU configurations for high-end gaming setups.
Supports 3 M.2 slots and 6 SATA 6Gb/s connectors for NVMe and SATA SSDs. RAID 0, 1, 5, and 10 are supported, providing flexible storage configurations for both speed and data redundancy.

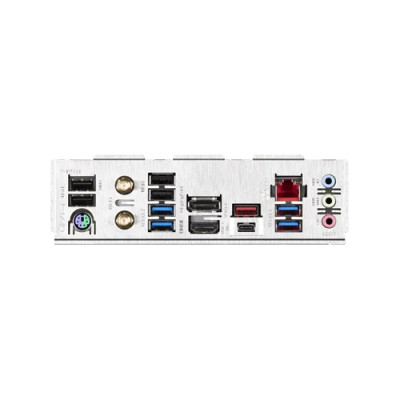

The motherboard includes 1 HDMI, 1 DisplayPort, multiple USB 3.2 Gen1/Gen2 ports, USB Type-C, 2 Thunderbolt add-in card connectors, audio jacks, front panel headers, and LED strip headers. It also has Q-Flash Plus and Clear CMOS buttons for easy BIOS updates and system resets.
Features include GIGABYTE Control Center (GCC) for system monitoring, Smart Backup, Q-Flash, and Q-Flash Plus. These tools provide advanced system management and easy firmware updates to keep your PC running at peak performance.
Potaka IT offers authentic GIGABYTE motherboards with fast shipping across Bangladesh. Our expert team ensures quality checks, competitive prices, and dedicated customer support to make your online shopping experience seamless. Order your GIGABYTE Z790 UD AX ATX Motherboard today and enjoy reliable delivery and service in Bangladesh.
The latest price of GIGABYTE Z790 UD AX Motherboard in Bangladesh is 30,999৳. You can buy the GIGABYTE Z790 UD AX Motherboard at best price from our website or visit any of our showrooms.
