| Basic Information | ||
| Supported CPU | LGA1851 socket: Support for Intel® Core™ Ultra Processors L3 cache varies with CPU |
|
| Chipset | Intel® Z890 Express Chipset | |
| BIOS | 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
|
| Form Factor | ATX Form Factor; 30.5cm x 24.4cm | |
| Audio | Realtek® Audio CODEC High Definition Audio 2/4/5.1/7.1-channel * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings. |
|
| Expansion Slots | ||
| PCI | CPU: - 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16) * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot. Chipset: - 2 x PCI Express x16 slots, supporting PCIe 4.0 and running at x4 (PCIEX4_1/2) |
|
| M.2 Socket | CPU: - 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 5.0 x4/x2 SSD support) (M2A_CPU) - 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2B_CPU) Chipset: - 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB) - 1 x M.2 connector (Socket 3, M key, type 22110/2280 SATA and PCIe 4.0 x4/x2 SSD support) (M2M_SB) |
|
| Memory | ||
| Type | DDR5 | |
| Slots | 4 x DIMM | |
| Supported Memory | Support for DDR5 9200(O.C) / 9066(O.C) / 8933(O.C) / 8800(O.C) / 8600(O.C) / 8400(O.C) /8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400 / 6200 / 6000 / 5800 / 5600MT/s memory modules. | |
| Maximum Memory | 256GB (64 GB single DIMM capacity) of system memory | |
| Graphics | ||
| Graphics | Integrated Graphics Processor-Intel® HD Graphics support: - 1 x USB4® USB Type-C® port, supporting USB4 and DisplayPort video outputs and a maximum resolution of 3840x2160@144 Hz * Support for DisplayPort 2.1 version - 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz * Support for DisplayPort 2.1 version (Graphics specifications may vary depending on CPU support.) |
|
| Connector & Ports | ||

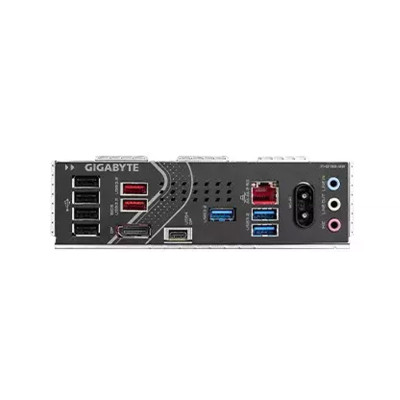

| Internal I/O Ports | 1 x 24-pin ATX main power connector 2 x 8-pin ATX 12V power connectors 1 x CPU fan header 1 x CPU fan/water cooling pump header 3 x system fan headers 1 x system fan/water cooling pump header 3 x addressable RGB Gen2 LED strip headers 1 x RGB LED strip header 4 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C® header, with USB 3.2 Gen 2 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 2 x Thunderbolt™ add-in card connectors 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) 1 x power button 1 x Q-Flash Plus button 1 x reset button 1 x reset jumper 1 x Clear CMOS jumper Back Panel Connectors 1 x USB4® USB Type-C® port (DisplayPort (Note)) 2 x USB 3.2 Gen 2 Type-A ports (red) 3 x USB 3.2 Gen 1 ports 4 x USB 2.0/1.1 ports 1 x DisplayPort (Note) 2 x antenna connectors (2T2R) 1 x RJ-45 port 3 x audio jacks |
|
| Display Port (s) | - 1 x USB4® USB Type-C® port, supporting USB4 and DisplayPort video outputs and a maximum resolution of 3840x2160@144 Hz * Support for DisplayPort 2.1 version - 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz * Support for DisplayPort 2.1 version |
|
| LAN Port (s) | Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) | |
| Supported Storage | CPU: - 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 5.0 x4/x2 SSD support) (M2A_CPU) - 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2B_CPU) Chipset: - 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB) - 1 x M.2 connector (Socket 3, M key, type 22110/2280 SATA and PCIe 4.0 x4/x2 SSD support) (M2M_SB) - 4 x SATA 6Gb/s connectors |
|
| Audio | 1 x front panel audio header 3 x audio jacks |
|
| Wireless Communication module | MediaTek Wi-Fi 7 MT7925 (PCB rev. 1.0) - 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands - BLUETOOTH 5.4 - Support for 11be 160MHz wireless standard Realtek® Wi-Fi 7 RTL8922AE (PCB rev. 1.1) - 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands - BLUETOOTH 5.4 - Support for 11be 160MHz wireless standard |
|
| TPM (Trusted Platform Module ) | 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) | |
| RAID | RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices |
|
| Others | ||
| Special Features | Support for GIGABYTE Control Center (GCC) * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. Support for Q-Flash Support for Q-Flash Plus Support for Smart Backup |
|
| Bundled Software | Norton® Internet Security (OEM version) LAN bandwidth management software |
|
| Warranty Information | ||
| Manufacturing Warranty | 3 Year Warranty | |

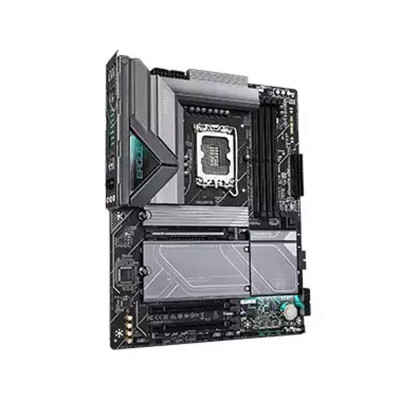

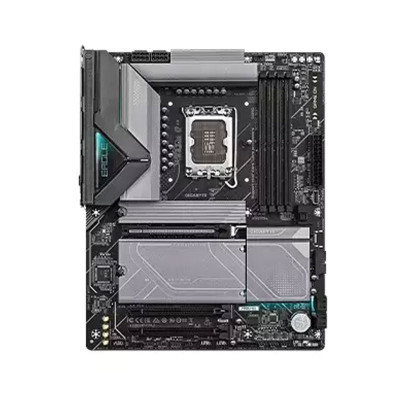

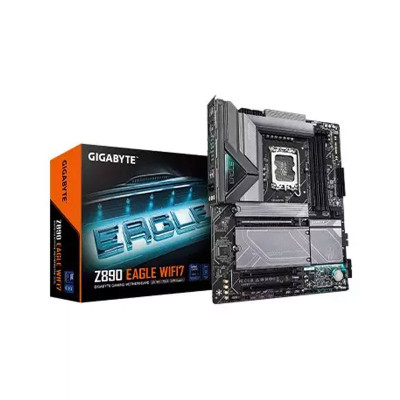

Gigabyte Z890 EAGLE WIFI7 DDR5 ATX Motherboard is designed for gamers, creators, and PC enthusiasts who want uncompromising performance on Intel’s latest platform. Powered by the Intel Z890 chipset and built for Intel Core Ultra processors on the LGA1851 socket, this motherboard delivers cutting-edge DDR5 memory speeds, PCIe 5.0 support, Wi-Fi 7 connectivity, and advanced thermal and power features for next-level computing.
The Gigabyte Z890 EAGLE motherboard supports Intel Core Ultra processors on the LGA1851 socket, ensuring exceptional processing power and efficiency for modern gaming and productivity workloads. With the Intel Z890 Express chipset and a robust AMI UEFI BIOS, users get a stable platform that supports advanced power management, smooth system tuning, and long-term upgrade flexibility. Q-Flash and Q-Flash Plus make BIOS updates fast and simple, even without a CPU installed.
Equipped with four DDR5 DIMM slots, the Gigabyte Z890 EAGLE WIFI7 motherboard supports up to 256GB of system memory, making it ideal for high-end gaming rigs and professional workstations. With overclocking support reaching up to 9200 MT/s, this motherboard delivers ultra-fast memory bandwidth, reduced latency, and improved system responsiveness for demanding applications and multitasking.
The primary PCIe 5.0 x16 slot delivers maximum bandwidth for the latest graphics cards, ensuring smooth performance in modern AAA games and GPU-intensive workloads. Additional PCIe 4.0 expansion slots provide flexibility for add-on cards, capture devices, and storage controllers. This future-ready expansion design makes the Gigabyte Z890 EAGLE ATX motherboard a solid foundation for high-performance builds.
With four M.2 slots, including a PCIe 5.0 x4 slot connected directly to the CPU, this motherboard offers blazing-fast NVMe SSD performance for rapid boot times and fast data access. Additional PCIe 4.0 and SATA-supported M.2 slots, along with four SATA 6Gb/s ports, allow users to build high-capacity storage setups. RAID 0, 1, 5, and 10 support for both NVMe and SATA drives adds flexibility and data protection options.
The Gigabyte Z890 EAGLE WIFI7 DDR5 motherboard features next-generation Wi-Fi 7 technology with support for 2.4GHz, 5GHz, and 6GHz bands, delivering ultra-fast wireless speeds and low-latency connections. Bluetooth 5.4 ensures seamless pairing with modern peripherals, while the Realtek 2.5GbE LAN provides stable and fast wired networking. A built-in USB4 Type-C port supports high-speed data transfer and DisplayPort output, enhancing both performance and versatility.
Supporting DisplayPort 2.1 via both USB4 Type-C and standard DisplayPort, this motherboard can drive displays up to 4K resolution at 144Hz, making it perfect for high-refresh-rate monitors. Realtek high-definition audio delivers clear and immersive sound with support for up to 7.1-channel audio, enhancing gaming, streaming, and entertainment experiences.
Multiple fan and pump headers allow precise thermal control for air and liquid cooling setups. Addressable RGB Gen2 and RGB headers support customizable lighting, while onboard power, reset, and Clear CMOS buttons make system tuning and troubleshooting easier. Support for Gigabyte Control Center enables centralized system monitoring, performance tuning, and RGB management from a single interface.
When you purchase the Gigabyte Z890 EAGLE WIFI7 DDR5 ATX Motherboard from Potaka IT, you get an original product backed by trusted customer service and competitive pricing. Potaka IT is known for supplying genuine PC components, reliable after-sales support, and expert assistance for gamers and PC builders. Choosing Potaka IT means investing in performance, authenticity, and peace of mind for your next high-end Intel build.
The latest price of Gigabyte Z890 EAGLE Motherboard in Bangladesh is 0৳. You can buy the Gigabyte Z890 EAGLE Motherboard at best price from our website or visit any of our showrooms.
